Use PLA Pro for rigid cable clips and bench organizers that mostly need clean fit and light snap action in stable indoor spaces. Use PETG when the clip will live in a warmer shop, see more repeated flex, or needs more abuse margin. Use TPU when the real job is strain relief, cable grip, vibration isolation, or soft retention instead of hard snap geometry.
This is one of those part families where people often ask the wrong material question. They compare strength numbers when the real decision is how the part is supposed to hold the cable. A rigid desk clip, a screw-down harness retainer, and a soft strain-relief boot are not the same job.
If you pick the filament based on the holding method first, the answer gets a lot cleaner.
PoE injector clips are the electrical-adjacent exception: use PETG as the ordinary indoor mounting-clip default only when the injector maker permits the mounting arrangement and measured heat is modest. Use ASA for a genuinely warmer or UV-exposed location, consider an exact polycarbonate grade only when measured heat or stiffness demands it, and use an exact documented flame-rated material/process—or specified commercial hardware—whenever a code, equipment specification, or approval path requires one. A printed clip is not electrical insulation, a flame-rated enclosure, or a substitute for the injector's own strain relief.

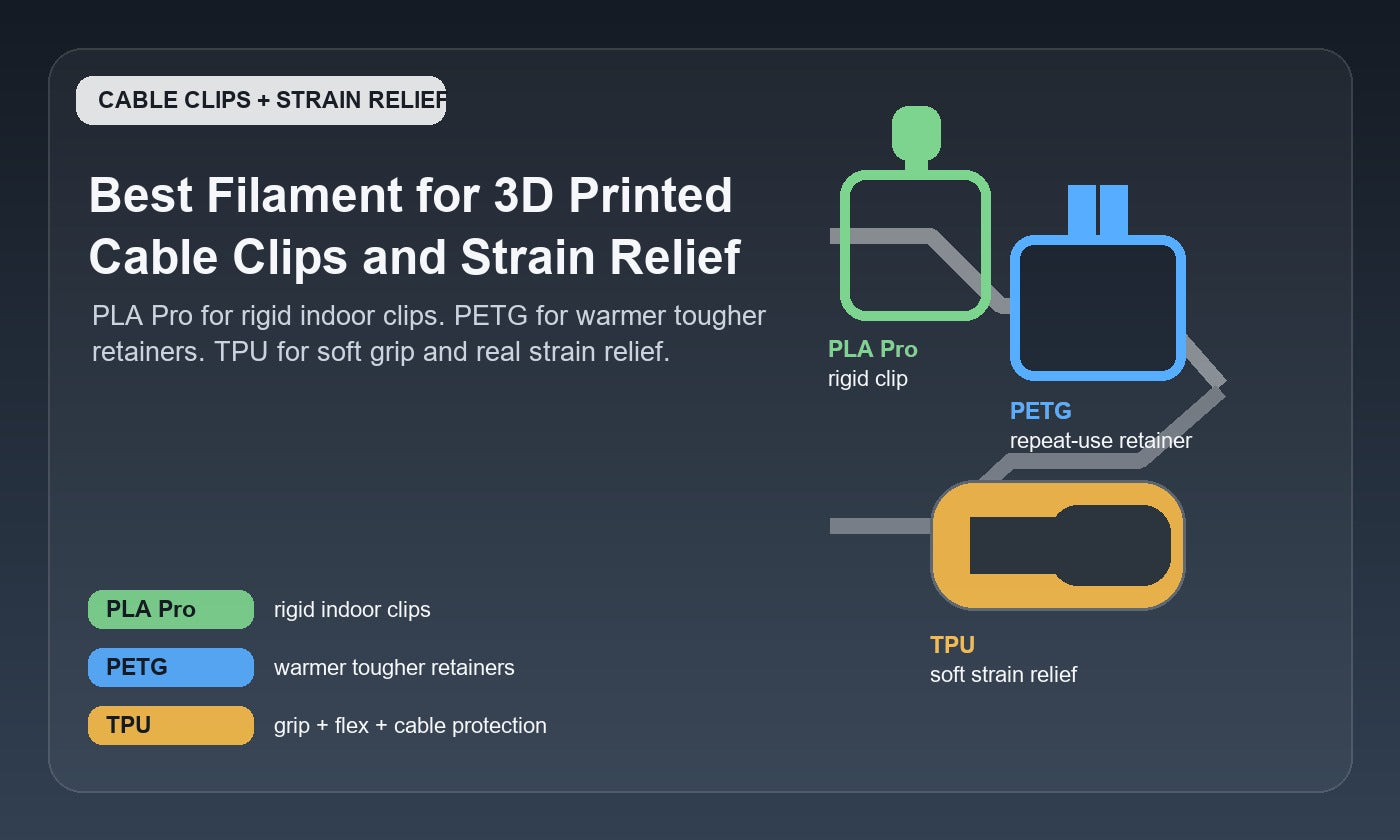

Short answer
Choose PLA Pro for indoor cable clips that should stay rigid, print easily, and keep sharp geometry.
Choose PETG for tougher cable retainers, warmer utility spaces, and clips that need a little more flex and abuse margin without becoming soft and rubbery.
Choose TPU for strain relief, wire grips, anti-rattle retainers, and parts that should bend with the cable instead of fighting it.
Why cable clips and strain relief deserve a separate material answer
These parts look small, but they fail in very different ways:
- rigid clip failure: the snap arm cracks or takes a set
- retainer failure: the cable works loose because the part does not keep enough pressure
- strain-relief failure: the part transfers bending stress right into the cable exit instead of softening it
- heat drift: clips mounted near power supplies, machines, windows, or shop walls soften faster than expected
That makes this a real materials page, not a generic "just use PETG" answer. The best material depends on whether you need clean rigid shape, tougher repeated snap behavior, or controlled flexibility.
Fast material guide by part type
| Cable part type | Best first choice | Why |
|---|---|---|
| Desk or wall cable clips in stable indoor spaces | PLA Pro | Sharp geometry, easy printing, and enough toughness when the clip is not living a hard life. |
| Shop or utility-area cable retainers | PETG | More heat and abuse margin for clips near warmer equipment or rougher handling. |
| Screw-down strain relief for cords leaving a box or bracket | TPU | Lets the part bend and grip without concentrating stress at one hard edge. |
| Anti-rattle wire guides or cable bumpers | TPU | Soft contact is often more important than max stiffness. |
| Snap clips that will be opened and closed often | PETG | Usually gives a safer middle lane when repeated flex matters more than perfect rigidity. |
When PLA Pro is the better call
PLA Pro is usually the cleanest answer when the clip is really a small rigid organizer. Think desk-edge cable clips, simple under-shelf guides, light wire separators, or bracketed retainers that do not need to bend much in service.
- indoor office, desk, or electronics-bench cable routing
- clips that should hold shape more than they should flex
- parts where crisp fit and easy repeat printing matter most
- low-heat environments away from windows, enclosures, motors, and power bricks
If the part only needs a little more toughness than plain PLA, this is often the least complicated win. For that broader question, read when PLA Pro makes more sense than standard PLA.
The catch is simple: if the clip lives in a hotter shop or has to flex open repeatedly, PLA Pro stops being the easy default and starts looking like a short-term convenience choice.
When PETG earns the step up
PETG is often the best answer for cable clips that are still basically rigid parts but need more environmental margin or more forgiveness under repeat use.
- shop-wall and machine-side cable retainers
- cord clips near warmer chargers, printers, or power tools
- snap features that get opened more often
- utility-space installs where a little extra toughness matters more than perfect stiffness
This is the same middle lane PETG fills in a lot of functional printing: tougher and more heat-tolerant than the easy PLA branch, but not a reason to overcomplicate the whole project. If you are still deciding whether the job truly belongs in PETG, go next to when to use PETG and PLA vs PETG for functional parts.
If the clip is mounted near an electronics enclosure, control box, or bench power setup, the related environment guidance in best filament for 3D printed electronics enclosures often helps clarify whether you are still in PETG territory or drifting toward a hotter-material problem.
When TPU is the correct answer instead of a weird answer
People underuse TPU on cable-management parts because they think every cable clip should be rigid. That is often backwards.
If the part's job is to grip the cable gently, absorb movement, reduce rattle, or prevent bending stress right at a connector or box exit, TPU is often the best fit.
- strain-relief boots and cord exits
- soft clips for cables that should not get pinched
- vibration-friendly retainers on moving machines or carts
- anti-rattle and anti-chafe inserts
- wraparound grips where cable diameter varies a little
That does not mean TPU is ideal for every small clip. It is worse when you need a sharp hard snap or a dead-rigid cable path. But for cable protection and soft retention, it usually makes more sense than trying to force a rigid filament into a flexible job. The broader TPU workflow page is when to use TPU.
What should you print PoE injector clips in?
Use PETG for most indoor, removable PoE injector mounting clips when the clip stays outside the injector, does not block cooling or labels, and the measured installed temperature remains comfortably inside the exact filament's proven range. Use ASA when sunlight, a hot utility area, or a warmer equipment cabinet creates a real environmental requirement. Do not jump to polycarbonate just because the part sits near power: use it only when a measured temperature, stiffness, or creep problem exceeds the easier materials and your printer can reproduce the exact grade. If a flame rating is required, ordinary PETG, ASA, or PC names are not enough; follow the exact material, specimen thickness, print process, and equipment-approval requirements, or use specified commercial mounting hardware.
The first decision is not filament. It is whether a printed add-on is allowed at all. Read the exact injector's installation guide, preserve its mounting method and service clearances, and keep the printed part outside the electrical enclosure. The clip may organize or retain the injector and cable path; it must not replace the injector shell, mains-cord restraint, connector latch, cable gland, protective earth path, or any required listed bracket.
| Installed condition | First choice | Stop rule |
|---|---|---|
| Cool indoor shelf, wall, rack, or bench; removable external clip | PETG | Stop if the clip traps heat, pinches a jacket, covers a vent or label, or becomes part of the electrical barrier. |
| Sunlit, outdoor-adjacent, hot utility, or warmer cabinet location | ASA, after checking the injector's own environment rating | ASA does not make an indoor-only or non-weatherproof injector suitable outdoors. |
| Measured heat or sustained clamp load exceeds the qualified PETG/ASA design | Exact polycarbonate grade, after process qualification | PC is not automatically flame-rated, electrically approved, dimensionally accurate, or safer because the family sounds more technical. |
| A drawing, code, customer, insurer, or equipment approval requires a flammability classification | Exact certificate-backed material/process such as a documented PETG V0 path, or specified commercial hardware | A spool label does not transfer a rating to every printer, thickness, orientation, clip geometry, or finished installation. |
Heat buildup comes before material ranking
Measure the clip root, injector case next to the clip, cable-exit area, and the surrounding air after the real network load has reached steady state. Repeat the check in the worst credible cabinet, summer, or equipment-room condition. A material guide is only a screening tool; the installed temperature and clamp load decide whether the clip keeps its shape.
The exact equipment manual owns the layout. For example, Cisco's current AIR-PWRINJ6 installation guide says not to stack the injector or bundle it with its AC power cable, gives model-specific ambient limits, and requires secure mounting. Those instructions apply to that injector, not every PoE device, but they show why a tidy-looking printed cradle can still be a bad design if it traps heat or ties the wrong parts together.
Design for cable strain and service access
- Retain the injector body, not the connector: do not make the RJ45 latch or cable plug carry the mount load.
- Use broad radii and clearance: the clip should guide the cable without crushing the jacket or forcing a tight bend at the plug.
- Keep removal obvious: a technician should be able to unplug, inspect, and replace the injector without cutting the clip or disturbing unrelated wiring.
- Preserve cooling and labels: keep vents, case seams, status LEDs, ratings, warnings, and serial information visible.
- Proof the weakest direction: orient layers so the snap root is not peeled apart in normal removal, then cycle the clip at the warm installed condition.
If the real job is a soft boot at the cable exit rather than a body mount, return to the TPU guidance above. If the design becomes a shell, cover, or heat-trapping cradle around the injector, use the separate electronics-enclosure decision and apply a much stricter thermal, electrical, and approval review.
Orient, reinforce, and validate a PoE injector clip
For a removable external PoE injector clip, keep the injector's exact approved mounting position, put the broad fixed base on the build plate when that creates continuous paths from each screw land into the cradle, and orient every flexing snap arm so normal opening bends along deposited paths rather than peeling layers apart. If the base and snap need conflicting print directions, split them: use a rigid ventilated base plus a replaceable strap or clip. Never turn the print into an electrical enclosure, mains-cord restraint, connector latch, heat shield, or substitute for manufacturer mounting hardware.
Make the load path obvious in the slice
- Base and fasteners: use a broad seating face, generous edge distance, rounded screw lands, and continuous perimeter paths into the back and side walls. A thin boss rising from sparse infill is not reinforcement.
- Snap arms: use a long controlled flex length, a large root radius, a travel stop, and clearance for release. Inspect the slicer preview at the root; rotate or separate the arm if its service bend would open layer interfaces.
- Injector contact: retain the body with broad pads or a replaceable soft liner. Do not clamp a vent, case seam, label, indicator, connector, or power lead. Avoid point loads that can distort the injector shell.
- Cable support: give Ethernet and power leads independent guides. Preserve the cable maker's bend and pull limits, keep axial load off both plugs, and leave room to operate each latch without levering on the socket.
- Cooling: leave open air around the case and keep the warmest surfaces measurable. A full wrap may look stronger while trapping heat and hiding deterioration.
Prusa's layers-and-perimeters guidance explains how perimeter count, extrusion width, layer height, gap fill, and thin-wall behavior change the actual shell. Use that as process guidance, not as proof of a universal clip strength. The exact material grade, moisture state, printer, orientation, geometry, fastener preload, installed temperature, and cycle count still control the result.
Keep insulation and cable strain separate from retention
The printed part may retain an intact injector body in an ordinary permitted environment. It does not establish dielectric strength, creepage, clearance, grounding, fire containment, listing, or suitability for a wiring space. Keep the print entirely outside the injector shell. Do not open the injector, share its enclosure fasteners unless the manual explicitly permits that use, cover damage, or route mains wiring against a printed edge. If the installation requires a listed bracket, flame classification, plenum-rated method, or other approval, use the exact specified hardware and process.
Likewise, a body clip is not cable strain relief. The injector should remain supported if either patch cable is unplugged, while each cable should remain relaxed if the injector is removed. Route a service loop with broad bends, protect jacket contact with radiused surfaces, and make every plug removable without cutting a tie or dismantling unrelated equipment. The patch-panel cable-comb guide covers loose bundle routing; the electronics-enclosure guide owns whole-housing material decisions.
Validate the final installed condition
- Read the exact injector manual first. Record model, permitted orientation, mounting method, clearances, environment limits, cable requirements, and any approved accessory. Cisco's AIR-PWRINJ6 guide is an official model-specific example, not a universal PoE rule.
- Freeze the printed configuration. Record material and grade, conditioning state, printer, nozzle, layer height, walls, orientation, inserts, fasteners, clip dimensions, and slice images. A changed input creates a new build.
- Inspect and fit with power disconnected. Reject cracks, layer separation, lift, under-extrusion, sharp cable contact, rocking, blocked markings, forced case seams, or a release feature that needs a tool near a live connector.
- Proof removal and cable independence. Cycle the clip through installation and removal while the injector is cool. Verify the body—not the RJ45 latch, socket, power cord, or cable jacket—carries retention load. Confirm each plug and the injector can be serviced independently.
- Measure the worst credible thermal cycle. With the final PoE load, cable bundle, cabinet state, nearby equipment, and warm ambient, measure the injector case near the clip, snap root, fastener lands, cable exits, and surrounding air through warm-up and steady operation. Never assume a harder filament fixes blocked airflow.
- Cycle while warm, then remeasure. After the installation returns to a safe service state, repeat removal and retention cycles and compare dimensions, preload, cable marks, case fit, and fastener witness marks with the baseline.
- Define retirement rules. Remove the print for cracks, whitening, permanent spread, softened contact pads, loose hardware, blocked airflow, jacket dents, connector movement, odor, discoloration, unexpected temperature rise, unknown impact, or any injector fault.
UL Solutions' explanation of UL 94 limits is the important boundary: a material flammability classification is based on defined specimens and conditions and does not by itself approve an arbitrary printed clip or finished installation. If a failure could expose live parts, defeat required spacing, drop equipment, damage a cable, or create an unreviewed fire path, stop at a dimensioned mockup and use specified commercial hardware or an engineer-reviewed solution.
For a low-consequence custom retainer, document the manual, cable routes, slice, temperatures, service sequence, inspection criteria, and retirement rules with the material-before-quote checklist, then use the GoodPrints quote route or discuss a repeatable build with JC Print Farm. Those production routes do not replace electrical design, listing, or site approval.
What a flame rating does—and does not—prove
UL's explanation of UL 94 describes controlled small-scale tests for plastic materials and warns against treating a material classification as a substitute for other end-use fire requirements. For a printed clip, verify the exact grade, color where relevant, specimen thickness, orientation, printer, nozzle, layer setup, conditioning, and certificate scope. Then verify what the finished PoE installation actually requires. Do not describe an ordinary printed clip as flameproof, fire-safe, electrically insulating, listed, or approved unless the relevant evidence explicitly covers that finished use.
For repeat installations, record the injector model, clip revision, material lot, printer profile, installed temperature, cable-clearance check, cycle test, and approval decision. If that evidence burden is disproportionate—or the mount sits near mains input, life-safety equipment, plenum space, or regulated infrastructure—use manufacturer-specified or listed commercial hardware. For a controlled small-batch part, the existing material-before-quote checklist and JC Print Farm quote route provide the practical handoff.
What usually pushes a cable part from PLA Pro into PETG or TPU
Three pressures matter most:
- repeated opening and closing: hard snap clips fatigue differently than one-time install guides
- heat exposure: cable parts near power equipment, windows, or shop machines need more margin
- cable protection versus cable restraint: if you need gentle grip, rigid plastic is often solving the wrong problem
That is why "strongest filament" is the wrong framework here. A rigid clip that cracks is bad, but a clip that is too soft and lets the cable wander is also bad. Match the material to the retention style.
Do not let material choice hide bad clip geometry
A better filament will not rescue bad radii, sharp stress risers, undersized living hinges, or cable channels that are tighter than the real wire jacket. Small cable parts are geometry-sensitive.
Before blaming the spool, check:
- whether the snap arm root is too thin
- whether the cable channel is pinching instead of guiding
- whether screw zones have enough wall thickness
- whether layer orientation puts the flex right across the weakest direction
If the part has a rigid mounting body plus one flexible contact area, it may be better as a mixed-material concept or two-part assembly rather than a one-filament compromise. General strength guidance is here: wall thickness and perimeters for functional prints.
Where the Polymaker lane fits naturally
If you want known branded branches inside this decision, the natural next reads are the PolyLite PLA Pro review, the PolyLite PETG review, and the PolyFlex TPU95 review. If you already know you want that buy path, the approved direct link is Polymaker.
When this becomes a service or product workflow question
If you are building repeat cable-retention parts for a product, fixture, control box, or installation kit, the question stops being hobby-filament trivia and becomes a consistency question. That is where material choice before requesting a quote, repeat small batches, and the JC Print Farm quote form start making more sense than arguing over one spool.
Bottom line
Use PLA Pro for rigid cable clips in calmer indoor spaces. Use PETG for tougher retainers and warmer shop environments. Use TPU when the part should protect, grip, or flex with the cable instead of clamping it like a hard bracket.
The right answer is usually not the strongest-sounding material. It is the one that matches how the cable is supposed to move.
Common questions
Is PLA okay for cable clips?
Plain PLA can work for very light indoor clips, but many readers are better served by PLA Pro because it keeps the easy workflow while giving a little more real-world toughness.
Should strain relief parts be TPU?
Often yes. If the part's job is to soften bends, grip gently, or absorb movement, TPU is usually more correct than a rigid filament.
Is PETG better than PLA Pro for snap clips?
Usually yes when the clip will be opened repeatedly or live in a warmer environment. PLA Pro is still fine for calmer indoor clips with lighter duty.
What matters more, material or geometry?
Both matter, but small cable parts are unforgiving. Sharp corners, thin snap roots, and bad layer orientation can ruin a good material choice fast.
