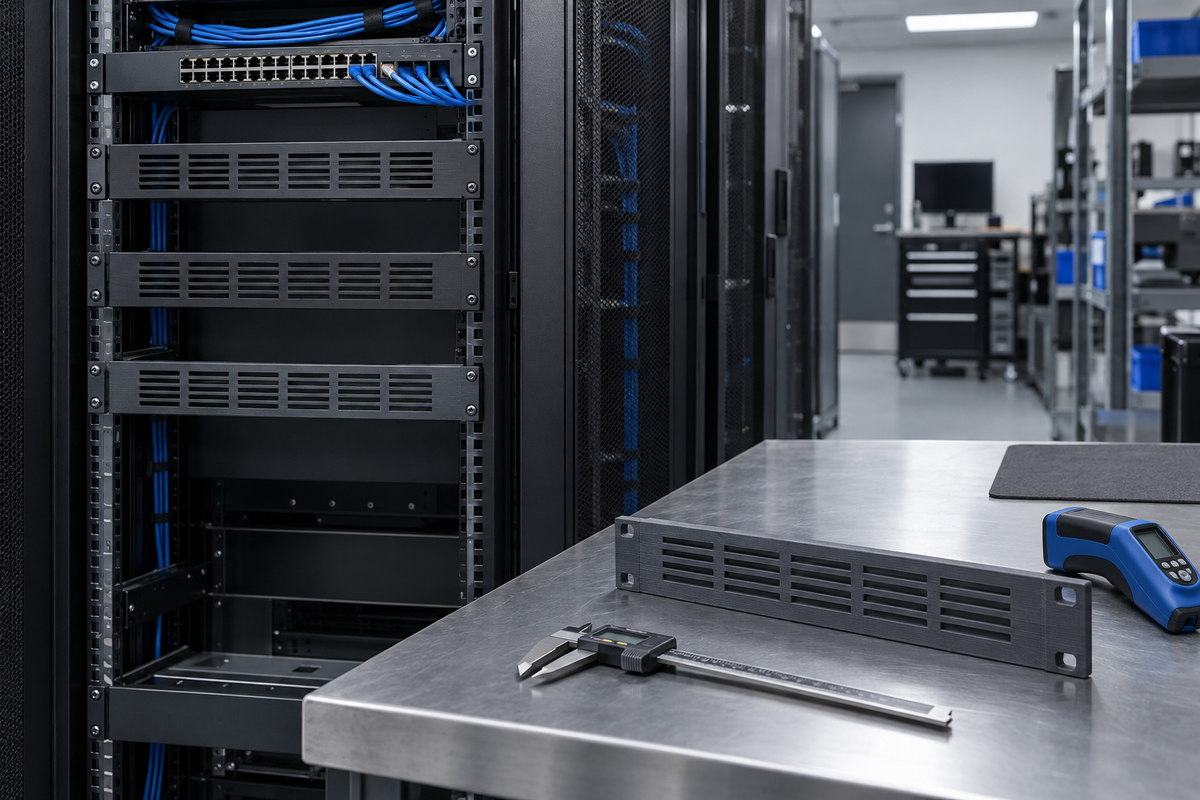

Should You 3D Print Server-Rack Blanking Panels?

For a production server or network rack, use the rack maker's compatible blanking panels or another documented commercial panel, not an ordinary PETG, ASA, or polycarbonate print. Blanking panels are airflow-control parts: they close unused rack units so supply air is less likely to bypass equipment or mix with hot exhaust. A printed panel is reasonable only as a labeled fit prototype, or in a noncritical lab rack after the rack owner confirms that no fire, material, listing, insurer, warranty, or facility requirement applies.

If that narrow lab exception is valid, PETG is usually the simplest prototype choice. Choose an exact ASA or PC grade only when measured conditions justify its extra heat or environmental capability. If a flame classification is required, do not shop by a generic "flame-rated filament" label: use the exact approved panel or a documented material, thickness, printer, process, and finished-part qualification route accepted for the installation.

Short answer by rack condition

Rack condition	Best route	Reason
Production data center, colocated equipment, customer rack, or audited facility	Compatible commercial blanking panel	Airflow, retention, material, facility, service, and documentation requirements stay traceable.
Rack or project documentation names a panel family, material, or fire classification	Use the named or approved part	A similar outline in a different polymer is not an equivalent qualified component.
De-energized fit check before ordering panels	PETG prototype	Fast way to verify rack-unit height, rail-hole position, latch clearance, and neighboring-faceplate access.
Noncritical lab rack with owner approval and no compliance function	PETG after thermal and retention checks	Reasonable only when failure cannot compromise cooling, electrical safety, service, or valuable equipment.
Measured warm lab position or a mobile demonstration rack	Exact ASA or PC grade only if the data and test justify it	More temperature margin may help, but it does not establish airflow or fire compliance.
Flame performance is required	Exact documented commercial part or qualified material/process route	A spool claim or resin coupon result does not certify the printed panel or rack.

Why blanking panels are not just cosmetic covers

Vertiv describes blanking panels as a way to close unused U space, promote proper airflow, and minimize bypass air. The U.S. Department of Energy's data-center airflow guidance likewise documents blanking plates as part of controlling hot-air short-circuiting through racks. Legrand's current rack guidance describes blanking products that conform to 19-inch rail spacing and work with cabinet airflow accessories, while its 1U filler-panel documentation identifies the panel's dimensions, material, mounting method, compatibility, included hardware, and air-blocking function.

That evidence changes the design question. The panel must fill the intended opening, stay attached through service, avoid interfering with neighboring equipment, and support the rack's actual airflow plan. A panel with decorative vents is not automatically better: if its job is to stop front-to-back bypass through an empty U, open slots can defeat that job. Conversely, some switches use side-to-side or back-to-front airflow and need a manufacturer-specific duct or baffle rather than a generic solid plate. Read the equipment and cabinet instructions before copying the visible shape.

Standard rack-unit geometry is only the beginning. Confirm the rail type, mounting-hole pattern, usable width, door clearance, latch or screw style, nearby cable managers, aisle containment, and the exact open spaces to close. Do not rely on a nominal 19-inch label as proof that a homemade snap fit will retain safely in every rack.

When printing one can be reasonable

A print can earn a place in a development rack when all of these statements are true:

• the rack owner explicitly permits a custom part;
• the rack is not governed by a named blanking-panel requirement, customer standard, listing, insurer rule, lease condition, or facility fire policy;
• the panel is not an electrical barrier, finger guard, cable support, structural brace, or containment component;
• failure or removal cannot expose a hazardous part or cause unacceptable equipment temperature;
• the installed temperature is measured at the hottest credible rack load and room condition;
• retention, removal, airflow, service access, and repeated thermal cycles are verified; and
• the print is labeled and recorded so a later technician does not mistake it for an approved rack accessory.

A de-energized dimensional gauge is an even cleaner use. Print a short section to check rail-hole alignment and face clearance, then replace it with the documented production panel. That preserves the value of rapid iteration without making the print responsible for the live cooling plan.

Best material for a server-rack airflow baffle under heat cycling

Use the rack maker's compatible commercial baffle, duct or blanking panel in a production rack. If a custom printed baffle is explicitly allowed in a noncritical lab rack, choose from measured service conditions rather than the material name: ASA is the practical first custom candidate for a moderately warm baffle; an exact polycarbonate grade is the next step when measured temperature and stiffness justify it; PA-CF is a specialist choice when stiffness is needed and moisture conditioning, abrasive printing and directional strength can be controlled; and a named high-temperature copolyester can be useful when its grade-specific data and finished-part cycles beat the other options. None of those polymers turns an improvised baffle into an approved rack accessory.

This recommendation applies to a removable airflow guide or closure that is not an electrical barrier, fire barrier, finger guard, cable support or structural rack part. Vertiv's airflow-accessory documentation separates blanking panels, rail brush strips, recirculation-prevention kits, roof fans and vertical exhaust ducts because they solve different flow paths. Copy the required function, not merely a visible panel shape.

Candidate	When it can make sense	Controlling limit
ASA	A permitted lab baffle sees moderate warm air, and a flat, dimensionally accurate print survives the measured rack cycle.	Its weathering advantage rarely matters inside a rack; warping, layer direction and creep at the fasteners can still open bypass gaps.
Polycarbonate	The exact PC grade documents the needed temperature margin or stiffness, and the printer can hold the long, flat geometry.	A generic PC label is not a service-temperature value. Moisture, chamber control, residual stress and thermal cycling can ruin fit.
PA-CF	A named grade is justified by a stiffness requirement, dry-state handling is controlled and a wear-resistant nozzle is available.	Carbon fiber does not erase layer weakness, moisture response or creep. The finished baffle must be conditioned and retested after humidity exposure.
High-temperature copolyester	A currently documented filament grade offers a useful thermal and toughness balance and stays flat through the actual duty cycle.	"Copolyester" covers different formulations. A supplier's heat-resistance figure is a screening input, not the allowable temperature of your loaded printed baffle.

Radiant heat, hot air and cycling are three different checks

• Hot air: map inlet and exhaust temperature at the proposed baffle under the highest credible equipment load and room condition. Measure the panel center and each attachment point; do not substitute the room thermostat or one handheld reading.
• Radiant heat: identify the hot surface and view path. A baffle can absorb radiation while nearby air remains cooler, so shield or increase separation before buying a more exotic filament.
• Repeated cycling: alternate the real cold and hot states with the baffle installed. Inspect bowing, edge gaps, fastener-hole growth, clip relaxation, layer cracks and contact with neighboring faceplates after cooling as well as while hot.

Published material data are useful only when the test method, load, specimen condition and print direction are understood. For example, Polymaker's current PA6-CF20 page reports dry and wet rigidity separately, calls for a wear-resistant nozzle and ties its heat-deflection value to a stated load. ColorFabb's copolyester guidance identifies a specific HT formulation. Those are reasons to demand exact-grade evidence, not reasons to transfer a headline number to a different brand, wall thickness, orientation or rack installation.

A bounded qualification plan

1. Record the rack, device airflow direction, opening, rail and attachment geometry, facility requirements and the exact commercial accessory that would otherwise be used.
2. Log temperatures at the baffle's center, edges and retainers under maximum credible load. Record nearby radiant sources, fan-failure behavior and the cold start condition.
3. Freeze the filament brand, grade, color, drying or conditioning state, printer, nozzle, orientation, walls, fasteners and revision. Do not qualify "PA-CF" or "PC" as a family.
4. Check cold fit, door and service clearance, neighboring controls and intentional removal. Then cycle the installed part through the bounded temperature profile while monitoring device inlet temperatures.
5. Reject the design for new bypass gaps, permanent bow, loose retention, cracking, whitening, surface shedding, fastener damage, equipment-temperature regression or any loss of service access.

If the environment or failure consequence cannot be bounded, return to the documented commercial panel or duct. For a permitted custom part, bring the temperature map, airflow direction, retention method, material evidence, required life and failure consequence to the material-before-quote checklist, then request a manufacturing review. A print farm can reproduce a controlled design; it cannot approve the rack installation or invent a safe temperature limit.

PETG vs ASA vs polycarbonate vs flame-rated filament

PETG: the default for a fit prototype or permitted low-risk lab panel

PETG is the practical starting point when the part is a prototype or a removable lab accessory in a controlled indoor rack. It is generally easier to print accurately than PC and avoids the outdoor-first rationale of ASA. Design enough edge stiffness that the middle does not bow away from the rack opening, but do not make the snaps so rigid that they damage square holes, cage nuts, or paint.

PETG does not establish a safe rack temperature, flame behavior, electrical insulation rating, or service life. Measure the real environment, use the exact filament maker's data, and retire the panel if it softens, creeps, cracks, rattles, or loses retention.

ASA: useful environmental properties, usually no production-rack advantage

ASA is attractive for UV and weather exposure, but those are rarely the controlling conditions inside a server room. It can be reasonable for a mobile demonstration rack or exposed temporary lab setup if the exact grade and measured temperature support it. Its higher printing difficulty and warping risk can work against the flatness a blanking panel needs. Do not choose ASA merely because the rack feels "hotter" than a desktop project.

Polycarbonate: reserve it for a measured heat or stiffness need

An exact PC grade may provide more heat capability and stiffness, but it also demands tighter moisture, enclosure, bed-adhesion, and dimensional control. A warped PC panel that leaves gaps or strains the rails is worse than a flat PETG prototype. Use PC only after a temperature map or mechanical requirement proves PETG inadequate, and validate the printed geometry after conditioning and thermal cycling.

Flame-rated filament: verify the whole evidence chain

UL explains that UL 94 ratings come from defined small-scale material tests and should not be substituted for other ratings required by codes or end-use applications. Prusa's PETG V0 documentation is a useful process-scope example: evidence is tied to exact material variants, specimen thickness, moisture control, printers, and settings. That is very different from assuming every object printed from a spool inherits an unrestricted V-0 claim.

If the facility requires a flame classification, freeze the exact material, color, minimum thickness, print orientation, machine, settings, conditioning, traceability, and acceptance method. Then confirm whether the requirement applies to a material specimen, a rack accessory, or the finished installation. In most operational racks, buying the documented panel is simpler and safer than building that qualification chain.

Do not ask the blanking panel to do four other jobs

1. It is not electrical insulation

A front blanking panel is not evidence for dielectric strength, creepage, clearance, arc resistance, grounding, bonding, finger safety, or separation from energized hardware. Keep power distribution, busways, power supplies, exposed terminals, and device covers under their own manufacturer instructions. For ordinary low-risk housing decisions, the electronics-enclosure material guide explains the separate enclosure boundary.

2. It is not cable strain relief

Do not hang service loops from a panel, pinch patch cords behind its edge, or cut slots that become sharp bend points. Use the rack's cable managers and specified support hardware. The cable-clips and strain-relief guide applies only to permitted ordinary routing parts, not to power-cord retention or the rack's airflow barrier.

3. It is not a substitute for thermal diagnosis

A panel can reduce bypass through an empty rack unit, but it cannot fix reversed equipment airflow, blocked intakes, overloaded cooling, missing side seals, recirculation around the rack, or cables packed against exhaust paths. Record intake temperature at the equipment locations before and after the change under comparable load. Check every affected device, not just the air near the new panel.

4. It is not a reason to make service harder

A technician should be able to remove the panel intentionally without a pry tool slipping into live equipment. Neighboring release tabs, labels, status lights, handles, and fasteners must remain visible and accessible. Avoid brittle hidden clips that can break and fall into the rack. If a custom panel needs frequent access, captive screws or an approved commercial tool-less design may be a better route than aggressive printed snaps.

A practical validation workflow

1. Document the airflow plan. Record each device's intake and exhaust direction, empty U spaces, aisle or cabinet containment, and any required baffles or ducts.
2. Read the rack and equipment instructions. Identify approved accessories, rail compatibility, mounting hardware, prohibited obstructions, and facility requirements.
3. Choose the lowest-risk path. Use the compatible commercial panel in production. Print only a gauge or a permitted noncritical lab part.
4. Measure the exact opening. Check rack-unit height, hole pattern, face width, rail setback, door clearance, cable-manager clearance, and adjacent equipment tolerances.
5. Keep the face appropriately solid. Do not add vents unless the documented airflow design calls for them. Seal unintended edge gaps without interfering with doors or rails.
6. Separate retention from the face. Use replaceable hardware or conservative clips that cannot shed fragments into equipment. Do not overstress rack holes or finishes.
7. Run a fit and service review. Cycle installation and removal, verify adjacent controls remain accessible, and inspect for bowing, interference, sharp edges, and loose fragments.
8. Test thermally under credible load. Compare device intake temperatures and alarms before and after installation, then repeat after thermal cycles and planned cable changes.
9. Record and inspect. Label a custom lab part, preserve material and process records, and set an inspection interval for creep, cracks, discoloration, looseness, and deformation.

When a custom manufacturing route makes sense

A custom part can still be useful when the job is a non-regulated lab rack, demonstration fixture, temporary fit study, or a rack-adjacent organizer that does not control equipment cooling or electrical protection. Start with the material-before-quote guide and provide the rack drawing, rail type, measured thermal envelope, load case, removal frequency, and required documentation.

For a bounded prototype or production review, request a manufacturing quote or review JC Print Farm's service route. These routes do not replace the rack maker, facility engineer, electrical designer, fire-safety review, or authority responsible for the installation.

Final recommendation

Use compatible commercial blanking panels for working server and network racks. Use PETG for an offline fit prototype or a specifically permitted low-risk lab panel. Move to an exact ASA or PC grade only for a measured environmental or thermal need. When a flame classification or other approval is required, follow the exact documented panel or qualified material-and-process route; do not treat a filament label as approval of the printed part.

Sources and evidence boundary

• Vertiv rack airflow management - blanking-panel purpose, unused U-space closure, bypass-air control, and current commercial panel families.
• Legrand network-cabinet airflow guidance and 1U blank filler-panel documentation - rack spacing, accessory context, material, mounting, compatibility, dimensions, and air-blocking function.
• U.S. Department of Energy data-center airflow guidance - blanking plates and other measures used to reduce hot-air recirculation and leakage.
• UL Solutions: Understanding UL 94 Rating Certifications and Limitations - scope and limits of small-scale plastic flammability ratings.
• Prusa PETG guide, ASA guide, PC guide, and PETG V0 guide - material, printing, and exact-process boundaries.

This is documentation analysis, not first-hand rack testing, fire engineering, electrical design, facility approval, or a claim that any generic filament or printed panel is certified. No universal rack temperature, flame classification, equipment-cooling result, service life, price, or availability is asserted.
