Why Does My ABS First Layer Have Gaps, and What Should You Change First?

July 13, 2026

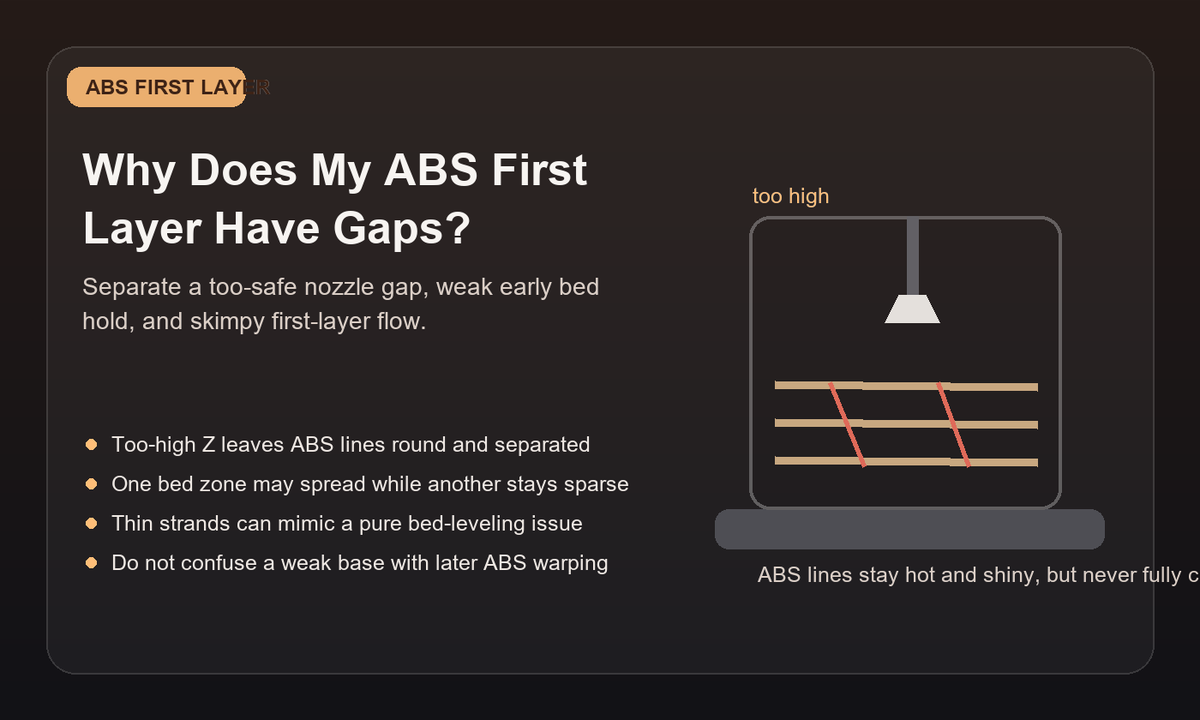

Illustration of an ABS first layer with visible gaps between lines on a heated build plate, showing a slightly too-high nozzle gap and patchy early spread.

ABS first layers usually have gaps because the nozzle is still riding a little too high above the bed, and ABS makes that mistake confusing because the lines can look hot, slightly glossy, and temporarily attached while never really spreading into one continuous base. The result is a bottom layer with visible spaces between lines, a sheet that looks striped instead of fused, or a first layer that seems acceptable until later corners, walls, or support edges start telling on it.

This ABS version deserves its own page because the failure pattern is not the same as generic first-layer gaps. ABS adds early shrink tension, heavier bed-heat habits, enclosure effects, and a stronger temptation to overfocus on warp prevention. Operators often keep raising or protecting the first layer to avoid elephant foot or plate damage, then end up with a sparse ABS base that never really locked in.

If the first layer already looks broad and over-compressed rather than sparse, compare with first layer too close and ABS elephant foot. If the real defect is later corner lift on wider parts, branch into ABS warping. If the first layer looks generally distant everywhere, read first layer too far from the bed.

Short answer

Most ABS first-layer gaps still come from a nozzle gap that is slightly too high.
ABS makes operators overprotect the first layer. People trying to avoid over-squish, elephant foot, or plate drama often leave the nozzle a little too safe.
Uneven early bed hold can mimic a mesh problem. One area spreads enough while another stays beaded and separate.
Weak first-layer flow can look a lot like a Z problem. Thin ABS strands plus a hot bed create a striped bottom that never closes.
Start by separating nozzle contact, early hold, and strand thickness before you blame the enclosure or retune the entire profile.

What this ABS defect usually looks like

visible spaces between adjacent first-layer ABS lines
a bottom skin that looks striped instead of joined
lines that look attached enough to stay put but too round to fuse side to side
gaps that are worse in one zone of the bed than another
small dragged sections where the line never planted firmly before the next move

If the same spool has also started acting hairier, rougher, or less predictable, compare with ABS stringing and wet-filament diagnosis. If you need the broader map first, the parent page is Why Do First Layers Have Gaps in 3D Printing?

Why ABS first layers end up with gaps

What is happening	What it usually looks like	What to check first
The nozzle gap is too safe for a clean ABS base	The lines sit down hot and shiny but never flatten enough to meet each other cleanly.	Whether the first layer looks round and striped instead of broad and fused.
Early bed hold is inconsistent	One zone spreads reasonably while another area stays beaded, sparse, or easy to tug.	Whether the defect shifts by position, cleaning state, or plate surface condition.
First-layer flow is a little skimpy	The ABS strand itself looks thin as well as separated, not just insufficiently squished.	Whether the line looks underfed rather than merely too round.
Startup drag is tugging at a weakly planted base	A line lays down, then shifts or stretches slightly on the next move because it never locked in.	Whether the lines are moving on the next pass instead of staying planted.
Warp prevention habits are masking the simpler cause	The operator keeps thinking in terms of enclosure heat or corner lift while the base is still too sparse to begin with.	Whether the part is truly lifting later or just starting with a weak striped base.

ABS often makes people overshoot in the high-Z direction

This is the most useful ABS-specific clue. Once operators have seen elephant foot, over-grip, or ugly compressed lower edges, they often compensate by leaving the nozzle a touch too high. That can look safer in the moment, but it creates a base that never becomes one joined sheet.

That is why this page is separate from the generic first-layer-gaps article. ABS failures here often begin with a reasonable fear of a different ABS problem.

Early bed hold can make the layer look random when it is not

ABS first layers do not always fail the same way across the bed. One area may hold well enough to spread while another stays too beaded or gets nudged by the next pass. That patchiness can make the defect feel like a wild mesh issue when it is really about contact, plate state, and whether the strand ever planted firmly enough in the first place.

If your print changes dramatically by bed zone, keep bed adhesion basics high on the list before you reinvent the entire ABS profile.

Do not confuse sparse ABS with later ABS warping

ABS warping and ABS first-layer gaps can show up on the same part, but they are not the same thing. Warping is about the part pulling upward later as internal stress builds. First-layer gaps are about the base never becoming a believable sheet at the start. If you diagnose only in terms of enclosure heat and corner lift, you can miss the simpler fact that the part started weak before the stress story even began.

That is why ABS warping is the next page only when the base truly starts joined and then fails later.

What to check first

Look at the line shape, not just whether it stuck. If the ABS line is shiny, round, and separate, the nozzle is probably still too high.
Notice whether the strand itself looks thin. Thin plus sparse points harder toward first-layer flow, not only Z height.
Compare one bed zone against another. If the defect changes by position, bed state and early hold belong near the top of the list.
Watch for the next-pass tug. If the line moves when the next path comes by, the base never really planted.
Ask whether you are overcompensating for another ABS fear. If you recently backed off to avoid elephant foot or over-grip, that may be the whole story.

What usually helps next

Bring the nozzle slightly closer if the lines are staying too round to meet cleanly.
Refresh the bed baseline if one zone behaves differently from another.
Correct skimpy first-layer flow if the strand itself looks thin and underfed.
Retest on the same geometry and same bed zone so you can read the change honestly.
Dry or swap the spool if the sparse first layer arrived together with rougher or stringier ABS behavior.

What not to do

Do not treat ?it stuck for a minute? as proof that the gap is right.
Do not swing straight from gaps to over-squish. Trading sparse lines for elephant foot is not a real win.
Do not blame the enclosure first if the line shape is obviously too round.
Do not collapse every ABS first-layer issue into warping. Some parts start weak long before they pull upward.
