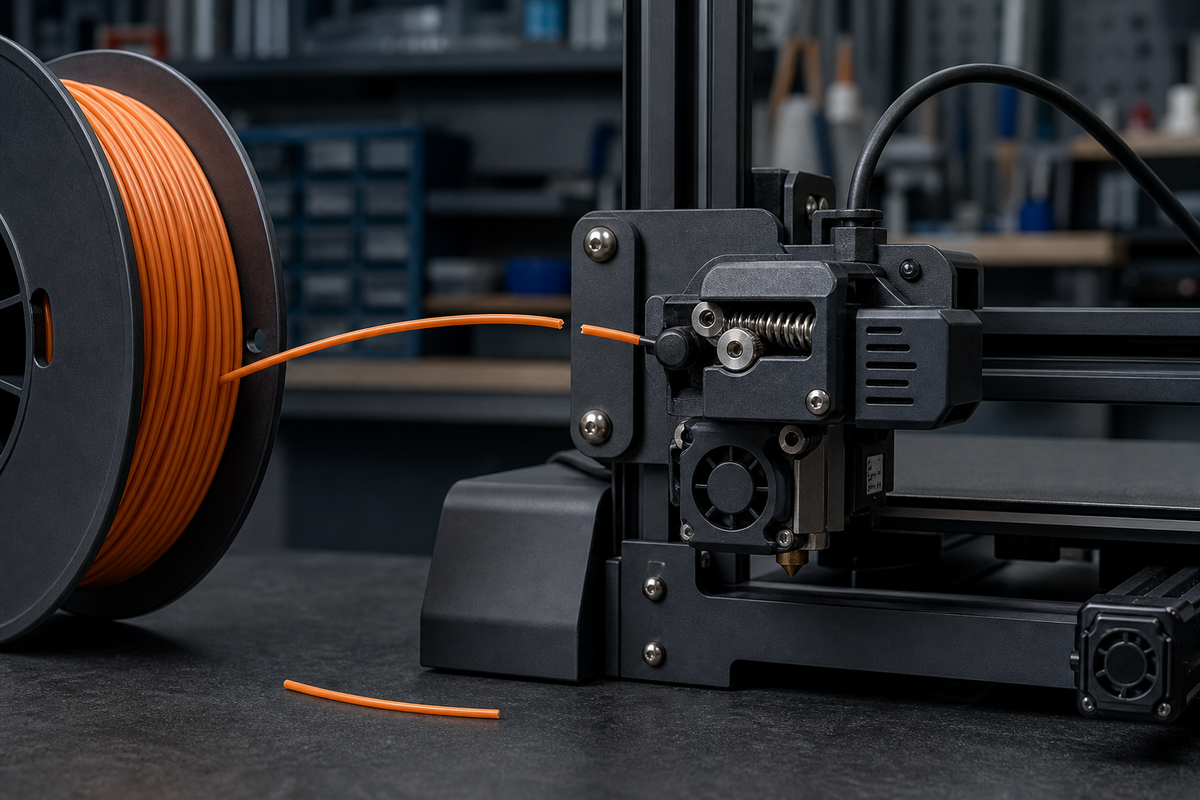

If 3D printer filament keeps snapping before it reaches the extruder, stop repeatedly feeding the same exposed section. The strand is usually brittle, kinked, or being bent too tightly somewhere between the spool and feeder. First mark where it broke, cut back to undamaged material, and test a short sample gently. A strand that breaks in your hands points toward the filament or its conditioning; a strand that survives the hand check but breaks only on the printer points toward the spool holder, guide, tube, or loading path.
The word brittle is useful, but it is not a complete diagnosis. PLA can become fragile after long exposure, aging, repeated bending, or poor storage. A tight filament clip can create a permanent stress notch. A Bowden tube can force one sharp bend. A spool can also bind hard enough to snap an already weakened strand. The fix depends on whether the weakness follows the material or stays at one machine location.
What a snapping-filament failure actually looks like
This page is about solid filament breaking upstream of the melt zone: on the spool, between the spool and feeder, at a guide, just before the extruder, or inside a Bowden tube. It is not the same as a drive gear grinding a notch into filament or a nozzle clog stopping extrusion.
| Where or when it breaks | Most likely branch | Best next check |
|---|---|---|
| The loose end snaps with a gentle bend before loading | Brittle exposed filament or a compromised spool | Compare the outer section with material several turns deeper |
| It always breaks at one guide, inlet, or tube bend | Sharp radius, rough edge, misalignment, or tube damage | Inspect that exact contact point for whitening, scoring, or a kink |
| It breaks after the printer sits idle | One loaded section remained bent and exposed for hours or days | Unload between long idle periods and compare a freshly cut section |
| It snaps only while the spool turns | Spool drag, crossed winding, rubbing flange, or bad feed angle | Rotate the spool by hand and watch the full path under light tension |
| The break is inside a Bowden tube | Aged brittle filament plus a tight bend, scored tube, or fitting step | Remove the fragment safely, then inspect routing and tube ends |
| The strand is intact but has a deep chewed notch and dust | Feeder grinding, not simple brittleness | Follow the resistance branch in the extruder-grinding guide |
Start with the break location, not a dryer
Before moving the spool or trimming the strand, photograph the failure and note its distance from the spool, guide, feeder, or tube fitting. A repeatable location is strong mechanical evidence. Random breaks across several exposed sections are stronger material evidence.
Do a controlled comparison
Cut one sample from the exposed end and, if the spool permits it without creating a loose tangle, another from several turns deeper. Let both reach room temperature. Bend them gradually around a broad curve rather than folding them sharply in half. If the exposed sample snaps while the protected sample flexes, remove the compromised outer length and improve storage. If both break with little deflection, treat the spool as suspect and check the maker's conditioning guidance.
This is a comparison, not a universal pass/fail number. PLA, PETG, nylon, TPU, filled materials, and specialty blends do not share one correct bend behavior. Do not judge every filament against flexible TPU or force carbon-fiber filament through an aggressive bend test.
Cause 1: the exposed filament has become brittle
PLA is the most common version of this complaint because a loaded strand may sit under a constant curve between the spool and extruder. Time, storage conditions, prior heat exposure, material age, and manufacturing variation can reduce its margin until a small movement causes a clean fracture. The outer wraps can be worse than material deeper on the spool because they saw more room air and handling.
What to check
- The filament snaps in more than one place away from printer hardware.
- A fresh cut exposes a clean, glassy-looking fracture rather than a deeply crushed gear mark.
- The loaded section breaks after the printer sits unused, especially while held in a tight curve.
- Material deeper on the spool behaves better than the exposed end.
What to try next
Remove enough material to reach a consistently sound section. If brittleness returns quickly, stop using that spool for an unattended or long job. Review the dedicated guide to wet-filament symptoms before assuming moisture is the only cause; popping, foamy extrusion, excess stringing, pits, and rough surfaces provide different evidence than a cold strand simply snapping.
Cause 2: a clip, kink, or sharp bend created a weak point
Filament can be locally damaged even when the rest of the spool is healthy. Forcing the end through a small spool-hole, clamping it under an aggressive clip, folding it during loading, or trapping it beneath another wrap can leave a white stress mark or sharp set. The next pull straightens that point and it fractures.
Inspect the last 50 to 100 cm
Look for a hard elbow, flattened patch, tooth mark, scrape, or whitened surface. Cut behind the damage with a suitable filament cutter and make a clean loading tip. Do not try to straighten a severe kink repeatedly; every reverse bend consumes more of the remaining fatigue margin.
When parking a spool, secure the end without folding it. Avoid letting the loose end pass under another wrap, because that creates a tangle risk as well as local bending. A clean spool end should follow a broad curve from storage to loading.
Cause 3: the spool holder or guide is forcing a tight feed angle
A low-friction spool is not enough if the filament exits at a severe angle. Side-mounted spools, top-mounted arms, dry-box outlets, and reverse-Bowden guides can all make the strand rub an edge or change direction too abruptly. Repeated flexing at one point can snap marginal filament.
What to check while feeding by hand
- The spool rotates without rubbing a lid, frame, wall, or neighboring roll.
- The strand leaves the spool without dragging across a flange.
- Every guide presents a smooth radius and stays aligned as the spool diameter changes.
- The feed path does not tighten at the toolhead's far-left, far-right, highest, or lowest position.
What to try next
Return the holder and guide path to the printer maker's supported arrangement. Reposition only one suspect guide at a time and repeat the same movement. The useful result is that the break follows or disappears with that one geometry change. Do not leave a large loose loop beside a moving printer; it can snag and create a different failure.
Cause 4: a Bowden or reverse-Bowden tube is damaged or routed too tightly
A tube protects filament, but it can also hide a fragment and concentrate bending. A crushed section, undersized radius, rough cut, worn fitting, or internal step can score the strand. Brittle filament may then break inside the tube and leave the printer apparently unloaded even though a short piece remains trapped.
Remove trapped filament safely
Use the exact printer's unload and tube-release procedure. Power down when instructed, keep clear of hot components, and do not push metal tools toward the extruder, sensors, or hotend without manufacturer guidance. After removing the fragment, inspect the tube for oval sections, deep scratches, contamination, and ends that are no longer square.
Replace damaged tubing and fittings with exact compatible parts. A looser connector is not harmless: movement can create a ledge or change the feed angle. If the filament reaches the feeder but is then excavated into dust, switch to the focused guide for an extruder grinding or chewing filament.
Cause 5: spool drag is pulling a weakened strand apart
A spool that hesitates and releases in jerks applies peak loads rather than a smooth pull. Narrow holder contact, a deformed cardboard hub, a rubbing flange, an overloaded dry-box outlet, or a crossed loose wrap can all raise tension. Healthy filament may survive, while aged PLA snaps at its weakest point.
Separate drag from brittleness
With the printer safely stopped, pull filament through the unloaded upstream path using light, steady force. If resistance changes with spool rotation, correct the holder or winding problem. If resistance stays high after the spool is removed from the path, isolate guides and tubing. If the strand breaks even when held loose in your hands, the spool condition is the stronger lead.
Cause 6: drying was skipped, done incorrectly, or blamed too early
Drying can restore print quality when a hygroscopic filament has absorbed moisture, but it is not a universal repair for every brittle strand. Material chemistry matters. Damp nylon often becomes more flexible while printing badly; TPU and PETG may show stringing, popping, or roughness rather than cold snapping. PLA behavior varies with formulation, storage history, age, and prior thermal exposure.
Use the filament maker's limits
Confirm the exact material, spool construction, dryer temperature accuracy, and recommended time. Do not use an oven with uncontrolled temperature, exceed the maker's limit, or assume hotter is better. Excess heat can deform the spool, fuse turns, or further change the material. After conditioning, cool the spool in dry storage before repeating the same sample comparison.
The broader filament storage guide explains sealed containers, desiccant, humidity checks, and dry-then-store workflow. If two frequently used spools repeatedly degrade between jobs, the focused guide to active-spool storage failures covers the handoff between printing and protected storage.
Cause 7: the feeder is pulling against a downstream restriction
Most upstream snaps are material or path problems, but a severe downstream restriction can add tension during loading, unloading, or retraction. A blocked sensor path, jammed feeder, trapped fragment, or nozzle-side resistance can turn an already weak strand into the mechanical fuse.
Watch what happens before the snap
If the spool feeds freely until the filament enters the machine, follow the maker's controlled loading test. Clicking, pulsing, plastic dust, or a deep gear notch suggests feeder resistance. Weak or missing extrusion from a filament that still advances calls for the under-extrusion check order. Do not increase feeder tension to compensate for a blocked path.
A safe fix order for filament that keeps snapping
- Record the location: spool, exposed arc, guide, feeder entrance, or tube.
- Remove the damaged section: cut behind kinks, clip marks, whitening, and previous gear damage.
- Compare samples: test the exposed end against material several turns deeper using a gentle broad bend.
- Check free spool motion: look for rubbing, crossed wraps, a tight outlet, or jerky rotation.
- Trace the feed path: inspect every guide, radius, fitting, sensor entrance, and tube section.
- Condition only with evidence: follow the exact filament maker's drying limits when moisture symptoms or storage history support it.
- Reload correctly: use a clean cut and the printer's supported route without forcing the strand.
- Verify under movement: test the full toolhead travel and a short known-good print before an unattended job.
How to verify that the problem is fixed
Mark the fresh filament 20 to 30 cm before the first guide. Load it, move the toolhead through the printer's normal supported range, and watch whether the marked section develops whitening, a sharp set, or a new scrape. The spool should turn smoothly and the feed path should retain broad curves at every position.
Then run a short known-good print. A real fix survives loading, steady extrusion, retraction, toolhead travel, and unloading without a new fracture. If the material still snaps away from every machine contact point, quarantine the spool rather than gambling on a long job. Record the lot, color, purchase date, storage history, and conditioning attempt if you contact the filament seller.
What not to do
- Do not keep joining or feeding tiny brittle remnants into the machine.
- Do not dry an unidentified material at a guessed temperature.
- Do not tighten the feeder because filament broke upstream.
- Do not pull a trapped fragment through a cold hotend.
- Do not bypass a runout sensor or safety cover as a permanent fix.
- Do not leave loose coils where they can cross, snag, or wrap around moving parts.
When to replace the spool or ask for help
Replace or return the spool when fresh material from multiple depths snaps unusually easily, conditioning within the maker's instructions does not improve it, the winding is fused or repeatedly crossed, or the filament diameter and surface are visibly inconsistent. Stop printer-side troubleshooting when the material fails the same way off the machine.
Contact the printer maker when breaks repeat at a proprietary sensor, feeder, tube junction, or moving guide; when a trapped fragment cannot be removed with the documented procedure; or when a feeder fault, heater issue, or hotend blockage appears. Send photos of the fracture and location, the material type, storage history, printer model, feed-path layout, and a short video of spool movement.
If the real priority is a dependable batch rather than recovering one questionable spool and feed path, use the internal guide on whether to keep the work in-house or use a print farm. When outside production is the practical next step, JC Print Farm can evaluate the file, material intent, quantity, dimensions, finish, and deadline.
Bottom line
Filament that keeps snapping before the extruder is usually telling you one of two things: the weakness follows the material, or the stress stays at one feed-path location. Compare the exposed end with material deeper on the spool, remove every kinked section, then check spool motion, guide radius, and tubing before reaching for a dryer or adjusting the feeder.
Frequently asked questions
Why does PLA filament snap while sitting on the printer?
The loaded section may remain exposed and held in a tight curve for hours or days. Cut back to sound material, compare it with deeper wraps, and unload or relax the path during long idle periods.
Does snapping always mean filament is wet?
No. Moisture is one possibility, but aging, local kinks, sharp guides, spool drag, tube damage, and unsuitable thermal conditioning can produce the same visible break. Look for supporting moisture symptoms before drying.
Can I still print with brittle filament?
Only if a fresh, properly conditioned section passes a controlled comparison and the feed path no longer creates a tight bend. A spool that keeps breaking away from the printer is a poor choice for long or unattended work.
Why does filament break inside the Bowden tube?
The strand may already be brittle, while a tight tube bend, damaged tube, rough end, or fitting step concentrates stress. Remove the fragment using the printer maker's procedure and inspect the complete route before reloading.
Should I increase extruder tension after filament snaps?
No. A break upstream is not evidence that the feeder needs more grip. Extra pressure can deform filament or deepen damage when the real problem is a restriction.
