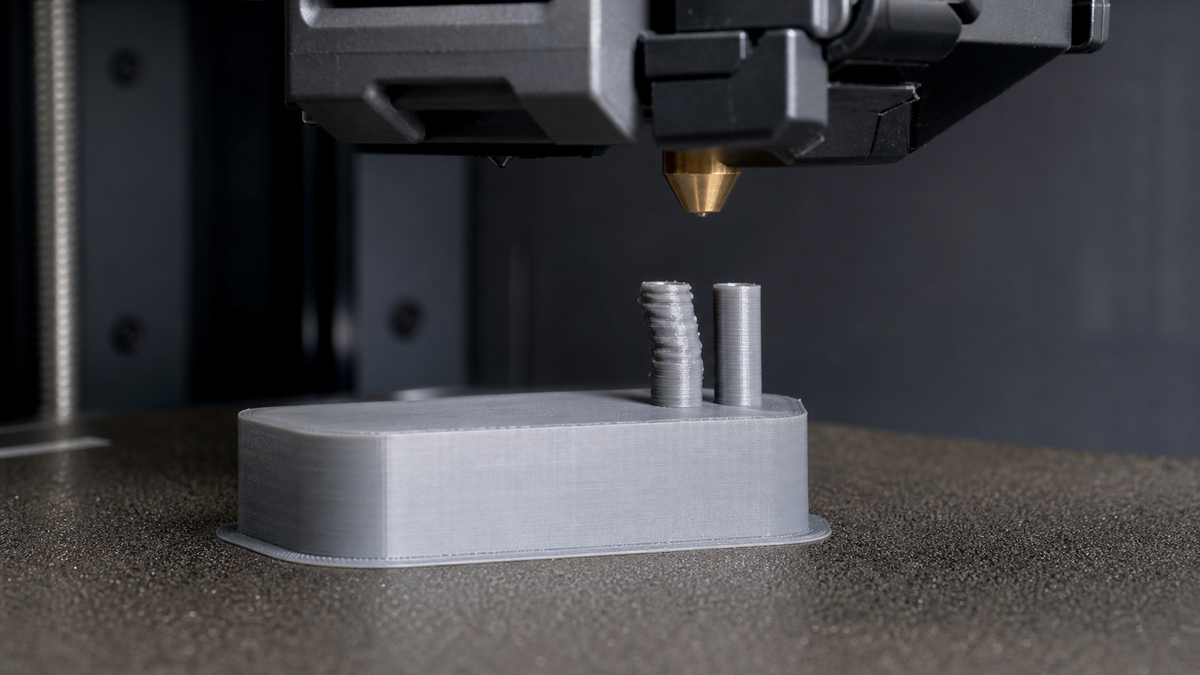

Why Do Small 3D Printed Pins or Towers Look Melted and Deformed?

Small 3D printed pins, posts, towers, and pointed tips usually look melted because the nozzle returns before the previous layer has become firm enough to support the next one. Heat accumulates in the tiny cross-section, the nozzle keeps passing close to the same soft plastic, and the feature begins to lean, smear, widen, or curl. The most useful first checks are the feature's actual layer time, whether the part-cooling air reaches it, and what the slicer does when a layer is shorter than its cooling target.

Do not start by lowering nozzle temperature as far as it will go. A print can have excellent large walls and still overheat on a 3 mm pin because the problem is local dwell time, not a globally bad material profile. First compare a single-pin print with the same part duplicated and spaced apart. If both pins become cleaner when the nozzle has to travel between them, insufficient cooling time is strongly implicated.

Short answer: what should you check first?

1. Look at where the defect starts. A clean base followed by deformation only after the cross-section becomes small points toward heat accumulation.
2. Inspect layer time in the slicer preview. Find the first bad layer and note how quickly the printer completes it.
3. Verify real airflow at the feature. A fan command of 100% does not prove that the duct is clear, correctly aimed, or equally effective from every direction.
4. Read the minimum-layer-time behavior. Confirm whether the slicer slows the print, raises the toolhead, changes fan speed, or respects a minimum print-speed floor.
5. Run a spaced-duplicate test. Print two identical parts far enough apart to add travel and cooling time without creating a collision risk.
6. Change one thermal variable at a time. If extra time helps, tune layer-time and cooling first; then make a modest temperature change only if extrusion and layer bonding remain sound.

Use the failure shape to choose the right branch

1. Prove that the failure follows shrinking layer area

Heat accumulation has a recognizable height pattern. A larger base prints normally because each layer takes long enough to circle the part, build infill, or cover several features. When the model narrows to one short perimeter, the nozzle may complete the layer in seconds and return almost immediately. The soft layer is pressed, dragged, and reheated by the next pass. The tower can then lean progressively even though the printer's axes are mechanically accurate.

Keep the failed part and mark printer front. Compare the height where the deformation starts with the sliced model. If the bad surface begins exactly where a broad body changes into one small pin, cooling time is a better first branch than belts, Z screws, or bed leveling. If the entire object leans from the build plate upward, use a motion or layer-shift diagnosis instead. If only unsupported edges curl while the central tower remains straight, the overhang-curling guide is the closer match.

2. Inspect actual layer time, not only the speed label

A wall-speed setting does not tell you how long a tiny layer remains under the nozzle. Acceleration, cornering limits, perimeter length, seam behavior, travel, extrusion rate, and cooling rules all affect the real result. Open the time or speed view in the slicer and inspect the exact layer where the tower begins to deform. Some slicers color the slowed region clearly; others expose estimated time only in a layer summary.

Record the layer time for a clean lower layer and for the first bad small-feature layer. The important number is not a universal target copied from another printer. It is the threshold at which this material, nozzle, airflow, chamber condition, and geometry become repeatable. A small PLA tower in open air and a nylon post inside a warm enclosure should not be expected to use identical cooling rules.

Minimum layer time and minimum print speed can fight each other

Many profiles try to meet a minimum layer time by slowing extrusion. A separate minimum print-speed setting may prevent enough slowdown. At the other extreme, slowing a tiny loop to a crawl keeps the hot nozzle hovering beside the same plastic for longer, which can make the surface worse even though the estimated layer time increased. Read both settings together and inspect the actual toolpath speed.

If the slicer offers a lift-head, cool-head, or move-away option, test it cautiously. Moving away can provide real cooling time, but it may add ooze, strings, restart blobs, or a visible dwell seam. A spaced second object often gives cleaner evidence because the nozzle continues productive work instead of pausing directly over the feature.

3. Verify that the part-cooling air reaches the tiny feature

Fan percentage is only a command. A clogged duct, damaged fan, loose connector, reversed replacement fan, warped shroud, or duct aimed above the nozzle tip can leave the feature nearly uncooled. Dust and filament wisps can also reduce flow. Inspect the fan and duct with the printer off and cool, following the manufacturer's service procedure. Do not place fingers or loose paper near moving blades or a hot nozzle.

Directional airflow matters. A one-sided duct may cool the near face while the far face stays soft. Print the same small tower after rotating the model 90 or 180 degrees. If the damaged side stays fixed to the printer rather than rotating with the model, airflow direction deserves attention. Do not assume a more powerful fan is automatically safe; excessive cooling can reduce layer bonding, promote warping in some materials, or destabilize a controlled chamber.

Check the fan schedule at the affected height

Profiles often ramp part cooling over the first several layers or limit it for a material. The tiny tower may begin before the fan reaches its intended speed, especially on a short calibration model. Inspect fan commands by layer rather than reading only the maximum setting. If the first layer must remain fan-limited for adhesion, redesign the coupon so the small feature starts later instead of applying full fan to the build plate.

4. Use a spaced duplicate as the cleanest diagnostic

Duplicate the model and place the copies far enough apart that the nozzle must travel between them. Keep every other setting unchanged. Each tower now gets the other tower's print time plus travel time to cool. If the same feature becomes materially straighter and sharper on both copies, you have strong evidence that short local layer time caused the original failure.

This test has limits. Printing by object rather than by layer does not add inter-layer cooling to each object and can create toolhead-clearance hazards. Keep the normal layer-by-layer sequence unless you have validated sequential-print clearances. A sacrificial cooling tower can add time, but it also consumes material and may create strings. Two useful parts are often a better production tactic when order quantity permits.

5. Lower nozzle temperature only after proving the thermal branch

A modestly lower nozzle temperature can help the new bead become firm sooner and reduce radiant and conductive reheating. It can also increase extrusion pressure, weaken layer bonding, dull the surface, or cause under-extrusion if pushed below the filament's useful range. Change temperature in small controlled steps while keeping the material dry, flow baseline stable, and cooling test geometry unchanged.

Judge more than the tip. Bend or section a suitable coupon, inspect layer fusion, and look for matte starved lines or extruder clicking. If lower temperature sharpens the tower but makes the base weak, restore the sound material temperature and solve more of the problem with time, airflow, geometry, or a different process plan. The weak-layer-adhesion guide covers the bonding branch.

6. Do not confuse slower printing with more cooling

Reducing the whole job's speed can improve a flexible tower by lowering acceleration and nozzle forces, but it can worsen pure heat accumulation because the nozzle spends longer beside the same tiny loop. The correct change depends on what the feature is doing. A straight tower whose top looks soft needs time away from the nozzle. A tower that oscillates as the toolhead changes direction may need lower feature acceleration or speed.

Use the slicer's preview and, when safe, observe the print. If the tower visibly deflects with each direction change before it becomes lumpy, mechanical excitation is contributing. If it remains still but the bead never solidifies before the next pass, cooling time is dominant. Apply feature-specific speed or acceleration controls when available instead of slowing large stable regions that already print well. The broader print-quality guide explains why local evidence beats a global speed penalty.

7. Check flow, line width, and minimum feature geometry

A tiny vertical pin may be only one perimeter around an empty or narrow center. The slicer may replace the intended cylinder with a single loop, variable-width path, tiny gap-fill path, or no path at all. Inspect extrusion preview at maximum zoom. If the commanded feature is wider, thinner, or discontinuous before printing, cooling alone cannot restore the CAD shape.

Confirm the nozzle diameter and line width stored in the profile. Excess flow can make every loop too wide and deposit more hot material into the same area; under-extrusion can leave a fragile tower that bends under nozzle contact. Calibrate the general extrusion baseline on an appropriate coupon, then return to the small feature. Do not use flow as a cosmetic control for one melted tip if the rest of the part measures correctly.

Some features are too small for the selected process

A nominal pin diameter close to one extrusion width has little room for geometric fidelity. A sharp mathematical point eventually narrows below the path the printer can place. The slicer may round, omit, or thicken the final layers, and real plastic adds its own pressure and cooling limits. Consider increasing the feature, changing its orientation, using a smaller validated nozzle, adding a flat at the tip, printing the pin separately, or substituting a metal dowel for a critical locator.

A smaller nozzle is not a free fix. It raises clog sensitivity, print time, and pressure demands, and it still needs sufficient cooling time on tiny layers. Validate dimensional fit and strength rather than assuming that a finer nozzle makes every vertical pin production-ready.

8. Separate heat-softening from seam blobs and nozzle contact

Every short layer has a start and stop. If those events align, a narrow post may build one vertical ridge that pushes the apparent center sideways. Turn on seam view and compare the ridge with the physical defect. Move the seam for one test. If the mark moves while the rest of the tower remains straight, use the blobs, zits, and seam-bumps guide instead of adding more cooling indiscriminately.

Also watch for a raised curl that the nozzle strikes. Repeated light contact can bend a soft pin, and a heavy collision can shift or detach it. The nozzle-scraping guide covers travel collisions, curled edges, and broader height errors. Z-hop can sometimes avoid a symptom, but it adds motion and stringing risk and does not fix the heat-softened layer that curled in the first place.

9. Material choice changes the safe cooling strategy

PLA normally tolerates and often benefits from strong part cooling, so a melted PLA tower quickly raises questions about fan delivery, warm chamber air, and very short layers. Printing PLA in a fully closed warm enclosure can reduce the temperature difference that the fan needs to solidify the feature.

PETG may need a balance: enough cooling and time to hold a tiny feature, but not so much that bonding and surface consistency suffer. Stringing can become more visible when a duplicate-part test adds travel. Use a dry, known-good spool and treat travel cleanup separately. The functional PETG guide helps when the feature's material choice is still open.

ABS and ASA often run with limited fan in a warm enclosure to control warping and layer bonding. A tiny tower can still overheat. Add layer time first, then qualify the smallest amount of localized cooling that works without destabilizing the whole part. The functional ASA guide covers when the material's weathering and heat advantages justify that process burden.

Nylon varies by grade and can combine moisture sensitivity, warm-chamber needs, and limited cooling. Drying may improve surface consistency and extrusion, but it does not replace minimum layer time. TPU adds feed compliance and may leave soft, easily disturbed small features even after the bead has cooled. Avoid copying a PLA fan recipe into either material without checking the manufacturer's guidance and a controlled coupon.

A controlled test sequence for melted small features

1. Save the failed part, project, slicer version, profile, filament lot, and G-code.
2. Mark printer front and the height where the pin or tower first deforms.
3. Inspect the matching layers for perimeter count, seam location, speed, fan command, and estimated layer time.
4. Confirm that the base and larger walls are sound before changing the material baseline.
5. Inspect the part-cooling fan and duct while the printer is off and cool.
6. Print the original single-part coupon once with the current settings as a control.
7. Print two spaced copies by layer with every other setting unchanged.
8. If the duplicate improves, adjust the documented layer-time strategy rather than all global speeds.
9. Rotate the coupon to reveal printer-fixed directional airflow or motion behavior.
10. Change fan strategy only within a range appropriate for the material and enclosure.
11. Test one modest nozzle-temperature reduction only after time and airflow evidence support it.
12. Inspect seam placement and first nozzle contact if one ridge or bend remains.
13. Measure the cooled feature; visual sharpness does not prove dimensional accuracy.
14. Repeat the winning coupon, then validate the real part at its intended batch layout.

Fixes that match the evidence

• Two spaced copies are cleaner: increase useful time between passes with layer-time control, a second part, or a validated cooling object.
• The slicer slows to a crawl beside the feature: review minimum layer time together with minimum print speed and move-away behavior.
• One printer-facing side stays worse after model rotation: inspect duct alignment, blockage, fan condition, and asymmetric airflow.
• A modest temperature decrease helps without weakening the coupon: use the lowest qualified temperature that still extrudes and bonds reliably.
• The tower deflects with direction changes: reduce local speed or acceleration and improve the feature's root support.
• One vertical ridge controls the shape: diagnose seam and restart pressure rather than treating the whole tower as melted.
• The sliced path already rounds or deletes the tip: enlarge, flatten, reorient, split, or redesign the feature.
• The feature is a critical locator or wear pin: consider a printed hole plus a metal pin instead of forcing an undersized FDM tower to do precision hardware work.

What not to change first

• Do not lower temperature aggressively. A sharper but weak or under-extruded tower is not a successful fix.
• Do not slow the entire print automatically. Extra nozzle dwell can add heat to the tiny loop.
• Do not trust a 100% fan command by itself. Verify airflow, direction, schedule, and duct condition.
• Do not add Z-hop as the first answer. It can avoid a collision while leaving the original curl or soft layer unresolved.
• Do not print sequentially without clearance analysis. Toolhead collisions can damage the printer or parts.
• Do not use random flow changes to resize one pin. Separate thermal deformation from the commanded path and cooled dimensions.
• Do not expect drying to replace cooling time. Dry filament can extrude more consistently, but a two-second layer can still remain too hot.

Frequently asked questions

Why does the rest of the print look good while only the small tower melts?

The larger sections take longer per layer and give deposited plastic time to firm up. Once the cross-section shrinks, the nozzle returns much sooner and repeatedly heats the same tiny area.

Should I increase minimum layer time?

Often, but inspect how the slicer achieves it. A useful move away from the feature or time spent on another part may help more than crawling around the same hot loop. Validate the actual toolpath and surface result.

Why did printing two copies improve both parts?

The nozzle spends time printing and traveling to the other copy before returning. That creates inter-pass cooling time without changing the feature's geometry, which makes it a strong diagnostic for heat accumulation.

Can I point a desk fan at the printer?

Uncontrolled room airflow can cool the bed and large part unevenly, increasing warping risk. Fix the printer's intended part-cooling path or use a validated enclosure and material strategy instead of introducing a random draft.

Why does the top point always come out rounded?

The final layers may be extremely short, and the designed point may narrow below the slicer's printable line width. Cooling can improve the result, but the tip may also need a small flat, larger geometry, different orientation, or finer qualified process.

Will a smaller nozzle fix tiny pins?

It can represent smaller paths, but it does not eliminate short-layer heat, seam pressure, clog risk, or weak vertical orientation. Treat it as a process change that needs a new coupon and strength check.

Is this the same as overhang curling?

Not exactly. Both involve hot plastic and cooling, but a melted tower is centered on repeated passes over a tiny layer area. Overhang curling is centered on unsupported edges lifting into the nozzle path. Some parts can show both.

Next steps

Keep the original and revised coupons together. Record the smallest feature diameter, actual layer time, fan schedule, nozzle temperature, chamber condition, batch layout, seam position, and cooled measurement. The common print-quality problems guide is the best route if the feature also shows under-extrusion, ringing, rough walls, or layer shifts that do not fit the short-layer pattern.

For repeated or quoted parts, define whether the small feature is cosmetic, a locator, a fastener post, a fluid feature, or a load-bearing pin. Include its nominal diameter, height, orientation limits, mating part, and acceptance method. The custom-part tolerance guide explains why appearance, diameter, straightness, and strength need separate requirements. JC Print Farm is the relevant handoff when the controlling file, material, quantity, critical small features, batch layout, and acceptance checks are already defined and you need an operator to qualify a repeatable production path.
