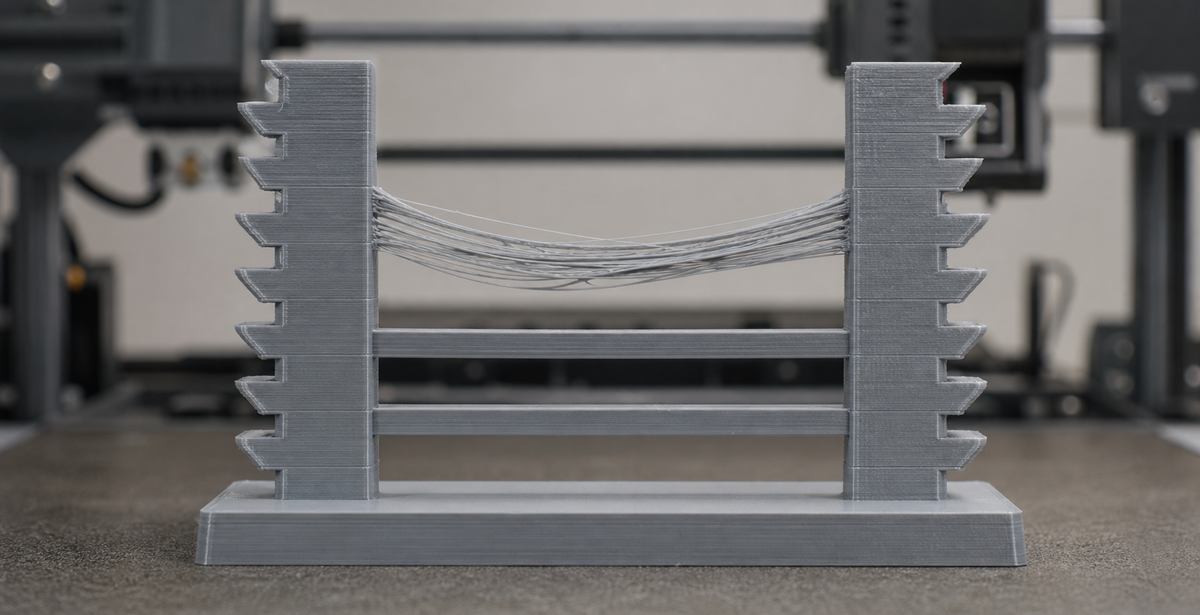

Why Do Long PETG Bridges Sag Even When Short Bridges Look Fine?

Long PETG bridges sag even when short bridges look fine because a longer strand has more unsupported distance over which it can stretch, stay soft, and droop before the next line helps stabilize it. PETG's tacky, heat-retaining behavior makes that limit especially visible. A profile that crosses a 10 or 20 mm gap cleanly can still fail badly at 40 or 60 mm without anything being mechanically wrong with the printer.

Check the sliced preview first to confirm the span is being treated as a bridge. Then verify that the part-cooling fan and duct are actually delivering air to the extrusion, compare nozzle temperature and bridge speed, inspect bridge flow, and rule out a damp or inconsistent spool. If only one long span fails while shorter spans remain clean, the geometry may simply need a shorter unsupported distance, a different orientation, or support.

Short answer: what should you check first?

1. Measure the unsupported span. Short-bridge success does not prove that a much longer span is within the same process window.
2. Open the slicer preview. Confirm the failing lines are classified and printed as bridges rather than ordinary bottom skin.
3. Watch the part-cooling fan during the bridge. Confirm it starts, reaches the commanded level, and is not blocked by a damaged or misaligned duct.
4. Compare temperature and speed without changing both at once. PETG that stays too soft will sag; PETG pulled too fast or too cold can snap, thin out, or fail to anchor.
5. Inspect the first bridge layer, not only the finished underside. The first unsupported strands reveal whether the problem begins with heat, flow, anchoring, direction, or material instability.
6. Ask whether the spool recently changed behavior. Hissing, bubbles, fuzz, or a sudden decline after the spool sat out makes drying a sensible branch.

Why long PETG bridges fail before short ones

A bridge line leaves one supported edge, travels through open air, and anchors on the far side. While it is airborne, it behaves less like a normal deposited road and more like a warm filament under tension. It needs enough stretch to cross cleanly, enough cooling to become self-supporting, and enough adhesion at both ends to stay where it was placed.

As the span grows, the strand remains unsupported for longer. Gravity has more time and distance to pull it downward. Heat from the nozzle and nearby lines keeps the center soft. Small changes that are invisible on a short gap become obvious on a long one: a few degrees too much heat, weak airflow on one side, a slightly heavy bridge-flow ratio, or a bridge path that the slicer did not detect correctly.

PETG compounds the problem because it is normally printed hotter than PLA and tends to remain tacky. That helps layer bonding, but it also means a bridge line can stretch and stick to the next pass before it has stabilized. The fix is not simply to make PETG behave like PLA. It is to find the narrow bridge window that cools the unsupported strand without causing weak anchors, brittle lines, or cooling-related trouble elsewhere on the part.

Read the failure pattern before changing settings

1. Confirm the slicer is detecting the bridge

Do not assume every line over empty space receives bridge settings automatically. Open the sliced preview and color the toolpath by line type, feature type, speed, flow, or fan level. The exact labels vary by slicer, but the question is the same: does the failing span switch to the intended bridge behavior?

A bridge may be misclassified when it touches a tiny ledge, crosses over sparse support, follows an unusual modifier, or is treated as a normal bottom surface. In that case, tuning the bridge-speed field may appear to do nothing because those lines never use it. Check whether bridge detection, thick-bridge behavior, support contact, or a model repair changed how the region is sliced.

Also inspect bridge direction. A clean path usually crosses the shortest unsupported distance and lands on solid anchors at both ends. If the slicer runs diagonally across a rectangular opening, the actual strand length may be much greater than the nominal gap. Reorienting the model or changing the bridge direction can solve more than another round of temperature edits.

2. Verify cooling at the nozzle, not only the fan percentage

A slicer can command high fan speed while the print still receives weak air. Watch the fan when the bridge starts. Listen for a fan that stalls, surges, or never changes. Inspect the duct for cracks, softened plastic, debris, missing screws, or a nozzle change that left the outlet too high or pointed away from the extrusion.

Directional cooling matters on long spans. If the near side sets cleanly but the far side droops, rotate a small bridge test 90 degrees. A strong change after rotation points toward airflow or anchoring direction more than a universal material problem. Dual-sided ducts are not automatically perfect; one blocked outlet can create a repeatable one-sided failure.

Increase bridge cooling in controlled steps within the material and printer's safe operating range. More cooling can help the airborne line become rigid sooner, but it can also weaken local bonding or create shrink stress in a larger PETG part. Judge the bridge together with the anchor edges and the surrounding walls instead of optimizing one coupon in isolation.

3. Lower PETG temperature carefully

If the strands are smooth but sag deeply, the bridge may be leaving the nozzle too soft. Test a small temperature reduction while holding speed and flow constant. Five-degree steps are easier to interpret than a large jump. Use a known bridge coupon with several span lengths so you can see where the process stops being reliable.

Do not chase the coldest possible bridge. PETG that is too cold may fail to anchor, turn matte and weak, or leave thin separated strands. A lower bridge temperature also cannot help if the slicer never applies it, the fan is not delivering air, or the material flow is unstable. The winning temperature is the lowest one that preserves clean extrusion and firm anchor bonding for the actual grade.

Brand and formulation matter here more than a generic PETG label. High-flow PETG, PETG-HF, filled PETG, translucent grades, and tougher copolyester blends can have different melt behavior. Start from the filament maker's supported range, then validate on the printer rather than copying a single internet number.

4. Tune bridge speed around the failure, not a myth

Bridge speed has two opposing jobs. The nozzle must cross fast enough that the strand is tensioned across the opening instead of lingering and drooping. It must also move slowly enough to extrude a continuous line that reaches and bonds to the far anchor. That is why both very slow and very fast bridges can fail.

If the strand is thick, continuous, and deeply bowed, test a modest speed increase. If it becomes thin, snaps, fails to reach the far side, or shows gaps between lines, move back toward a slower or better-fed setting. Change one step at a time and record the actual bridge speed shown in preview; global print speed may not be the value used.

Acceleration can affect the result on short spans, where the toolhead may never reach the commanded speed. A long span can reach full bridge speed and therefore expose a problem that the short coupon hid. This is another reason a 10 mm success does not predict a 60 mm result.

5. Adjust bridge flow only after basic extrusion is stable

Too much bridge flow produces a heavier airborne strand that takes longer to cool and can sag more. Too little flow creates thin lines that separate, break, or leave an open underside. Make small bridge-flow changes only after normal walls and extrusion are consistent.

Use the preview and the first unsupported layer to tell those cases apart. Rounded, heavy lines that merge into a hanging sheet support a cautious flow reduction. Wispy, discontinuous, or widely spaced lines do not. If the printer is under-extruding throughout the part, fix that feed problem before using a bridge multiplier to hide it.

Line width and layer height also change the airborne strand. A thick line or tall layer carries more hot material. A thinner bridge line can cool sooner, but it still needs enough material to stay continuous. Avoid changing width, layer height, flow, and speed in the same test because the result will not tell you which lever mattered.

6. Check whether the PETG is damp

Moisture does not always create one dramatic symptom. A spool can still print acceptable walls while bridge lines become fuzzy, inconsistent, or prone to snapping because the unsupported path magnifies small flow disturbances. Hissing, popping, tiny bubbles, rough extrusion, extra stringing, or behavior that worsened after the spool sat out are useful clues.

Drying is worth testing when the symptom changed over time or follows one spool. Use the filament maker's temperature guidance and a dryer that can hold the required range without overheating the spool. Then repeat the same bridge coupon with the same slicer settings. If the bridge improves while everything else stays fixed, material condition was part of the problem.

Do not use drying as a ritual response to a clean, repeatable long-span limit. A dry spool cannot make an unlimited bridge physically reliable. The filament-drying guide helps separate evidence-based drying from random heat cycles.

7. Inspect anchors and nearby geometry

A bridge needs solid material at both ends. A thin wall, rounded edge, small island, or still-soft perimeter may not hold the initial strand under tension. Watch whether the line sticks cleanly at departure and arrival. A tiny failure at either anchor can become a large central sag.

Make sure the bridge does not start from an already curled overhang. If the anchor lip is lifting, the nozzle can pull the bridge downward or drag the next line across it. That symptom belongs partly in PETG overhang-curl troubleshooting, not only bridge tuning.

Also check whether the bridge crosses an opening that changes width along its path. The slicer may produce mixed line lengths, weak short anchor segments, or odd diagonals. A small geometry edit that gives each line a straight, well-supported landing can outperform a profile tuned around a poor anchor.

When settings are not the right fix

Some PETG spans are longer than the required finish or strength can tolerate without support. A bridge coupon only tells you what the current machine, material, orientation, and profile can repeat. It does not guarantee that a visible housing roof, functional duct, or loaded bracket will meet the same standard.

Use a geometry fix when the bridge remains marginal after controlled testing:

• Shorten the unsupported distance. Add a rib, center divider, internal post, or removable sacrificial feature.
• Change the shape. A chamfer, arch, teardrop hole, or stepped roof can replace one flat airborne span with self-supporting layers.
• Rotate or split the part. Put the critical surface on the bed or divide the model where the seam is easier to control than a failed bridge.
• Use support selectively. Support only the span that needs it, then validate contact distance and interface behavior on the actual PETG grade.
• Accept a rough hidden underside only when function allows it. Cosmetic and sealing surfaces deserve a tighter standard than an unseen clearance pocket.

For the broader decision between unsupported geometry, overhang changes, and support, use the overhang and bridging guide. This page stays focused on the narrower case where PETG crosses short gaps acceptably but long spans sag.

A controlled PETG bridge test that gives useful answers

1. Use one small coupon with several labeled span lengths and solid anchors.
2. Slice it with the same nozzle, layer height, PETG profile, and cooling setup used on the real part.
3. Confirm bridge classification, direction, speed, fan, and flow in preview.
4. Print a baseline and photograph the first unsupported layer from the same angle.
5. Change only one variable: cooling, temperature, speed, or bridge flow.
6. Repeat the exact coupon and compare the longest span that remains continuous and acceptably flat.
7. Reprint the real geometry or a cut section of it before trusting a long production job.

Use a cut section when the real part has different anchors, enclosure heat, or surrounding walls than the coupon. A bridge tower on an open bed is a screening tool, not a substitute for validating the final geometry.

What not to change first

• Do not lower global flow because one long bridge sags. That can create weak walls while leaving the real heat or cooling problem untouched.
• Do not max every fan blindly. Confirm the duct works and watch for weak anchors or surrounding-part distortion.
• Do not copy a PLA bridge profile into PETG. The materials do not share the same heat, tack, or cooling window.
• Do not tune with a damp or suspect spool. An unstable material baseline makes every setting comparison noisy.
• Do not assume support is failure. Support, a geometry change, or a different orientation can be the controlled engineering answer for a finish-critical long span.
• Do not judge only the top of the finished bridge. Later layers can hide a poor first span that remains weak or dimensionally wrong underneath.

Frequently asked questions

Why can my PETG bridge 20 mm but not 50 mm?

The longer strand stays unsupported for more time and distance, so small limits in cooling, temperature, tension, flow, and anchor strength become large enough to see. Short-span success establishes a baseline, not an unlimited capability.

Should PETG bridges print faster or slower?

Neither direction is universally correct. A deeply bowed but continuous strand may benefit from a modest speed increase. A thin, broken, or poorly anchored strand may need less speed or more stable flow. Test around the observed failure.

Should I use 100% fan for PETG bridges?

Some printers and PETG grades benefit from high local bridge cooling, but 100% is not a universal rule. Duct effectiveness, fan size, surrounding geometry, anchor bonding, and shrink behavior all matter. Increase cooling in measured steps and validate the whole region.

Can wet PETG cause sagging bridges?

Yes, especially when the strands are bubbly, fuzzy, erratic, or newly worse after storage. But a smooth repeatable sag only on long spans more often points to the basic heat, cooling, flow, speed, or geometry limit.

Is a rough PETG bridge the same as support scarring?

No. A bridge crosses open space without support under the first line. Support scarring happens where temporary support contacts or nearly contacts the part. If a support interface was present, use the PETG support-scar guide.

When should I stop tuning and redesign the span?

Redesign when the required span remains marginal, the underside must be flat or sealed, anchors are too small, the part will be produced repeatedly, or the successful coupon does not transfer reliably to the real geometry. Repeatability matters more than one lucky bridge.

Next steps

Start with the preview and the first bridge layer. If the toolpath is recognized correctly, the cooling duct works, extrusion is stable, and controlled temperature, speed, and flow tests still leave the long span marginal, shorten or support the span. That is a cleaner answer than building the rest of the part around a bridge that only succeeds occasionally.

For general material behavior, continue to the PETG functional-printing guide. If the failed underside is only one clue in a print with several defects, use the common 3D print quality problems guide to name the root symptom before changing more settings.

If a long-span part needs repeatable cosmetic undersides, controlled dimensions, or a production quantity that no longer justifies repeated bridge experiments, compare the workload with using a print service instead of owning the process. JC Print Farm can help evaluate a production-ready file and requirements when the right next step is controlled output rather than another profile guess.
