Why Do ASA Prints Get Elephant Foot, and What Should You Change First?

May 28, 2026

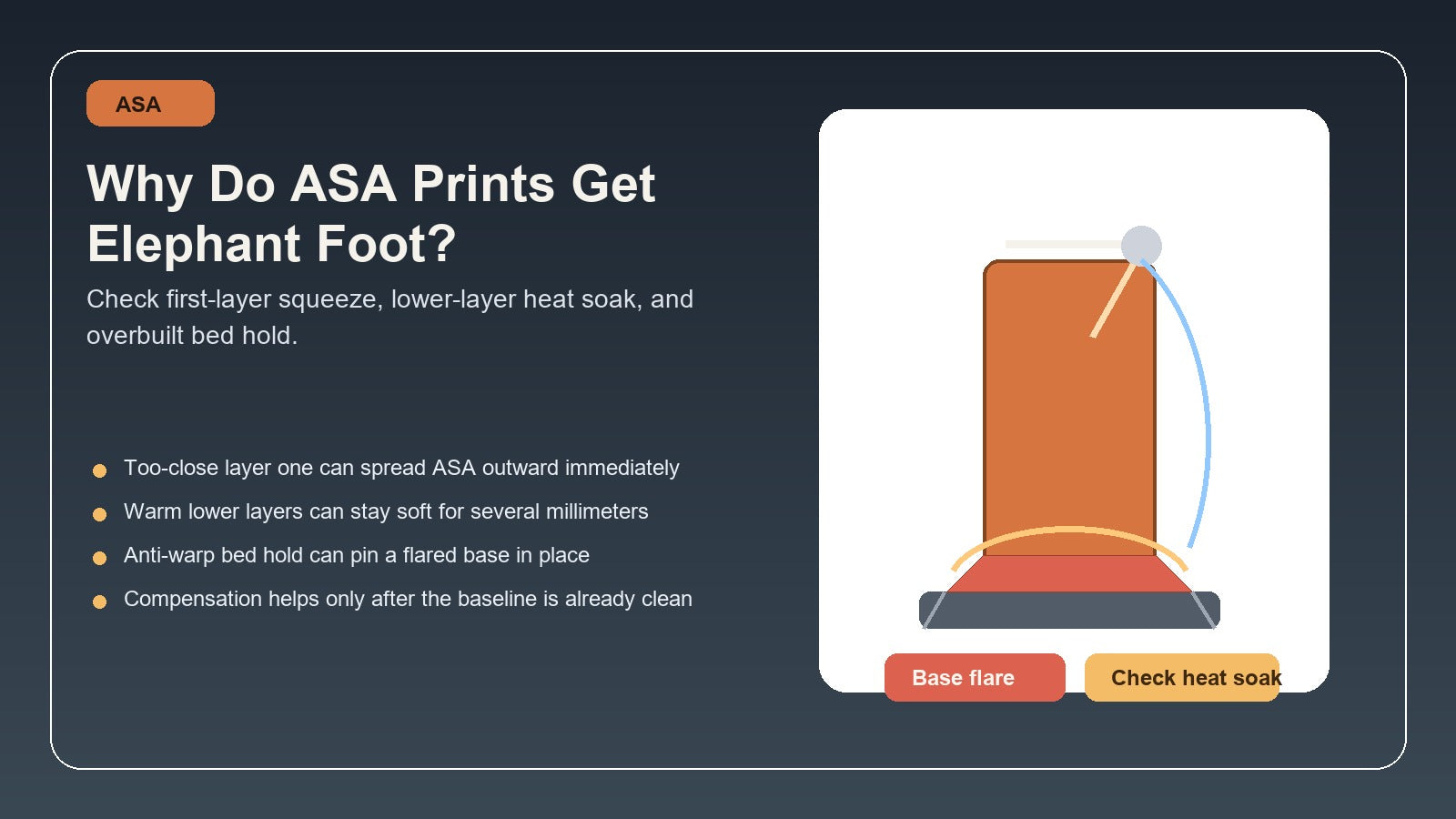

Illustration of an ASA 3D printed part with a flared bottom edge caused by first-layer squeeze and lower-layer heat soak near the bed.

ASA elephant foot is the flared lower edge where the first few millimeters of a print come out wider than the walls above them. The part may still look solid overall, but the base lip gets fat, bottom corners soften, and anything that needs clean fit near the bed line starts coming out tighter than the model intended.

With ASA, the easy mistake is to blame every oversize base on Z offset alone when the real problem can be a mix of first-layer squeeze and lower-layer heat soak. ASA is often printed on warm beds, with slower early layers and more enclosure heat than PLA, so the base can stay soft long enough to spread before the walls stabilize.

This page is the ASA-only troubleshooting lane: why ASA prints get elephant foot, what to check first, and how to separate first-layer compression, ASA lower-layer heat behavior, bed-hold pressure, and missing compensation.

Short answer

ASA elephant foot usually happens because the first layers are either too compressed, too heat-soaked near the bed, or held in that spread shape too long.

The first things to check are:

whether the first layer is visibly too close or over-squished
whether bed heat and enclosed lower-layer heat are keeping the base soft too long
whether the part is being held so hard that the lower edge cannot relax cleanly
whether compensation is missing after the baseline is already mostly right

If the first layer already looks crushed, start there. If layer one looks acceptable but the lower walls still bulge for a few more layers, think heat soak next.

What ASA elephant foot usually looks like

a small flange or lip around the bottom edge
base corners that look fatter than the rest of the part
slots, tabs, or holes near the bed coming out too tight
parts that fit well higher up but bind near the bottom
a problem that gets worse on broad bases, slow lower layers, or warm enclosed runs

That last clue matters. ASA elephant foot is often most obvious on parts that already need the same warm lower-zone conditions that make ASA manageable in the first place.

Main cause split: why ASA gets elephant foot

Cause	What it usually looks like	What to check first
First layer is too close	The base looks crushed, lines merge hard, and the nozzle may drag or leave a smeared first layer.	Z offset, plate assumptions, first-layer flow, and whether the defect is already obvious on layer one.
ASA lower layers stay heat-softened too long	Layer one looks okay, but the flare continues upward for several lower layers before the wall settles.	Bed temperature, chamber warmth, slow early-layer timing, and whether large flat bases are soaking heat at the bottom.
Bed hold is stronger than the geometry really needs	The base stays pinned in a slightly spread shape and the lower edge keeps that outward lip.	Whether you have overcorrected for ASA warping and are now holding the part harder than necessary.
No elephant-foot compensation	The defect is mild but repeatable across otherwise stable ASA parts.	Whether the slicer profile includes any base-edge cleanup after the process is already close.
The real problem is broader first-layer or warping control	The lower layers look messy in several ways at once, or the part is both flaring and trying to lift.	Whether this should route first into first-layer-too-close or ASA warping instead of staying in the elephant-foot lane.

What to check first

Look at layer one honestly. If it already looks over-compressed or smeared, go first to the first-layer-too-close guide.
Check how high the flare climbs. If it is really a lower-layer band rather than one compressed opening layer, ASA heat soak is part of the diagnosis.
Compare a wide base to a narrow tower. Large ASA footprints often reveal base heat behavior much more clearly than small towers do.
Ask whether you overbuilt bed hold to fight warping. If the part used brims, strong adhesives, or aggressively warm first layers just to stay down, keep ASA warping in the next-step path.

If the print also shows rough top skin, stringing, or broader surface inconsistency, keep rough ASA top surfaces, ASA stringing, and the quality-problems hub nearby so you do not flatten several symptoms into one guess.

A too-close first layer is still the fastest thing to rule out

If the nozzle starts even slightly too low, ASA has nowhere clean to go except sideways. That pushes material outward at the base and starts the classic flared edge before you even get to the heat-soak part.

This is especially likely when:

the first layer looks unusually glossy and flattened
the lines merge into each other more than they should
the nozzle sounds like it is rubbing the first pass
you recently changed nozzle, plate, or first-layer profile settings

If those clues are present, fix the first-layer baseline before adding compensation or changing the whole ASA recipe.

ASA lower-layer heat soak is what makes this feel different from PLA

ASA is usually printed with the exact conditions that help prevent warping: a warm bed, reduced drafts, slower early layers, and often an enclosure that keeps the whole lower zone warm. Those conditions are normally correct for warping control, but they can also keep the base soft a little longer than the geometry wants.

That means ASA elephant foot often shows up as a few lower layers blooming outward rather than a single ugly crushed first layer. If the flare keeps going after layer one, stop treating it like a pure leveling issue.

Overcorrecting for warping can create a different base problem

ASA operators often learn to fear lifting corners, and for good reason. But the fix stack for warping can overshoot. Very warm beds, slow sticky first layers, brims, and aggressive bed hold can keep the part planted so effectively that a slightly spread lower edge stays locked in place instead of relaxing back toward the intended wall line.

If the part is not lifting but the bottom edge keeps coming out fat, the answer may be to balance bed hold rather than increase it again. That is why this page pairs naturally with ASA warping troubleshooting and ASA enclosure guidance.

Compensation is a cleanup tool, not a rescue tool

If the machine is already stable and the remaining flare is small but repeatable, elephant-foot compensation can be the right finishing move. It helps clean up a mild base lip after the real lower-layer process is already under control.

The mistake is using compensation to hide obvious first-layer compression or a clearly overheated ASA base. Use compensation after the baseline is close, not instead of making it close.

What usually works next

raise first-layer Z slightly if the opening layer is clearly over-squished
trim lower-layer heat burden if the flare continues for several warm base layers
revisit whether the bed-adhesion stack is stronger than the geometry actually needs
use elephant-foot compensation only after the print is already mostly clean
retest on the real part family, because wide flat ASA parts reveal this issue faster than skinny towers

Editorial take

ASA elephant foot is rarely a weird advanced mystery. It is usually the cost of getting ASA to behave at the bed and then not separating that success from the next problem it creates. Once you split first-layer squeeze from lower-layer heat soak and overbuilt bed hold, the fix path gets much less chaotic.

Frequently Asked Questions

Why do ASA prints get elephant foot even when they are not warping?

Because the same warm, stable lower-layer conditions that help ASA resist warping can also leave the base soft long enough to spread outward before it fully firms up.

Is ASA elephant foot always a nozzle-too-close problem?

No. A too-close first layer is common, but ASA can also flare because the lower layers stay heat-softened too long or because bed hold is stronger than the part really needs.

Should I lower bed temperature right away?

Not automatically. If the print is also fighting warping, dropping bed heat too quickly can trade one problem for another. First decide whether the flare is mainly layer-one compression or multi-layer heat soak.

Should I use elephant-foot compensation for ASA?

Yes, if the process is already stable and the remaining flare is mild. No, if the first layer is obviously crushed or the lower ASA layers are still too heat-softened.

What should I read next?

Go next to the broader elephant-foot guide, first layer too close, ASA warping, ASA enclosure guidance, rough ASA top surfaces, or the quality-problems hub depending on whether the next clue points to first-layer distance, lower-layer heat, anti-warp strategy, or broader ASA tuning drift.
