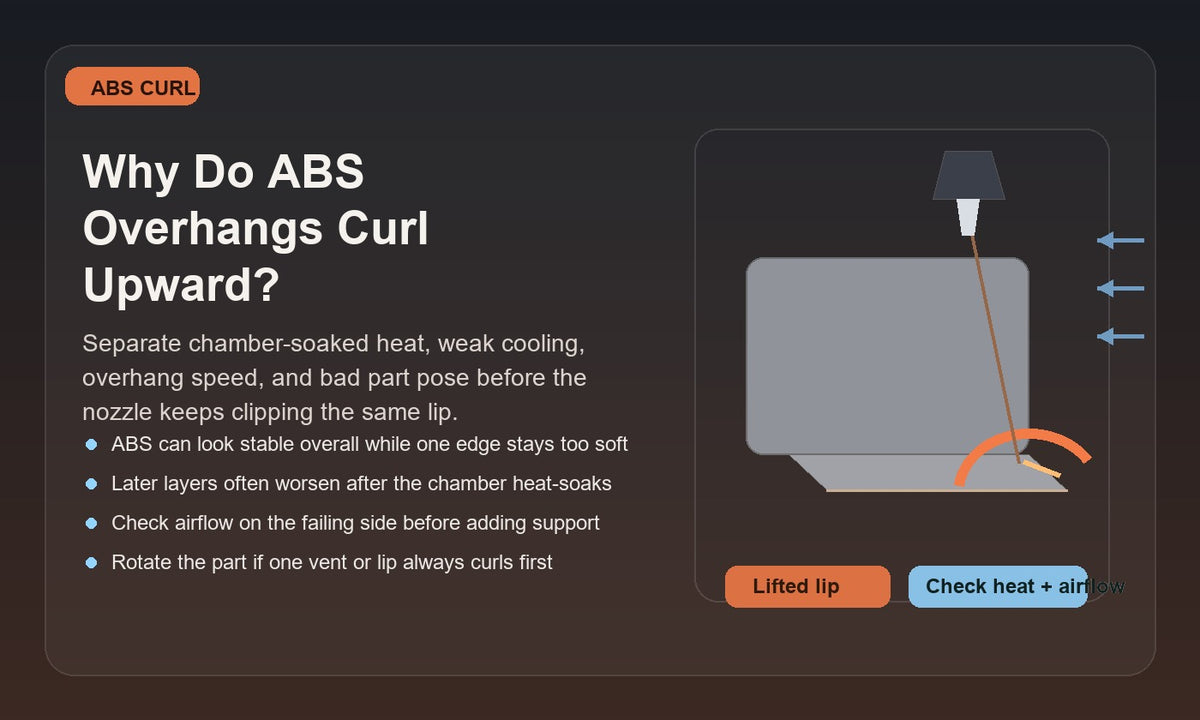

ABS overhangs curl upward because the fresh edge is staying too warm and soft for too long, then the next nozzle pass catches that lip and lifts it again. What starts as a slightly ugly underside can turn into repeated nozzle rub, shiny drag streaks, and eventually a failed part because the same edge keeps climbing into the toolpath.
This is not the same thing as a bridge sagging across open air or a support-facing surface looking rough after cleanup. This page is for the narrower ABS symptom where the overhang edge itself bends upward during the print. ABS makes this trickier than PLA because the chamber helps the part overall while also making one marginal edge stay softer longer than you want.
ABS overhangs curl upward when the unsupported edge does not solidify enough before the next layer or nearby travel-adjacent pass.
Start by checking enclosure-soaked edge heat, real cooling coverage, and overhang speed before you thrash extrusion settings.
If the same lip keeps curling in the same place, orientation and geometry deserve attention too.
What ABS overhang curl actually looks like
The giveaway is that the unsupported edge starts turning upward toward the nozzle instead of only looking a little rough underneath. You may hear light scraping, see glossy rub marks, or notice that every pass makes the same lip worse because the nozzle keeps touching the lifted edge again.
- If the whole span droops across a gap, that is closer to bridge sagging.
- If the underside only looks ugly after support comes off, that is closer to ABS support scars.
- If the ABS edge itself lifts toward the nozzle during the print, stay here.
Why ABS overhangs can fool you during enclosed printing
ABS benefits from enclosure stability, but that does not mean every overhang edge is automatically safe. A part can be structurally happier in the chamber while one unsupported lip is still too hot to set cleanly. That is why operators sometimes think they need more support or more generic ABS tuning when the real issue is a very local thermal mismatch: too much retained edge heat, not enough effective airflow on that face, too much speed on the wrong feature, or a pose that keeps exposing the worst lip to the weakest cooling path.
Main cause split: what usually makes ABS overhangs curl upward
| Cause area | What it usually looks like | What to check first |
|---|---|---|
| The edge is staying too hot in the chamber | The lip looks glossy, soft, and easy to drag upward on the next pass, especially later in the print. | Nozzle temperature, part size, and whether the trouble gets worse after the chamber heat-soaks. |
| Cooling is weak where the overhang lives | The same side stays soft too long and curls farther with each new layer. | Actual airflow direction, fan effectiveness on that face, and whether one side always curls first. |
| Overhang speed outruns ABS edge solidification | The overhang starts acceptable, then one lip rises because the printer keeps returning before the edge settles. | Overhang and outer-wall speed on that feature, not just whole-print speed. |
| The part pose exposes a bad lip | One opening, hook, vent, or ledge always curls in the same orientation while the rest looks fine. | Rotation, support strategy, and whether a pose change would shorten or better cool the edge. |
| Spool-condition drift is muddying the edge | The edge looks fuzzier or less controlled while the same spool also strings or roughens surfaces elsewhere. | Storage history, exposure time, and whether the same roll used to print this geometry more cleanly. |
What to check first before you keep slicing blindly
- Watch whether the nozzle is hitting the same lip again. Once ABS starts lifting, the defect can feed itself with every pass.
- Question edge heat before you question everything else. If the lip looks glossy and soft, a modest temperature or chamber-behavior correction is a better first test than global profile panic.
- Check real cooling, not just the fan percentage. ABS overhangs care about whether that exact edge actually sees useful airflow.
- Slow only the overhang feature before slowing the whole print. Local feature speed often matters more than punishing the entire job.
- Rotate the part if one opening or ledge always causes trouble. Orientation is often cleaner than blanket support on ABS.
If the whole machine baseline feels questionable beyond this one edge, use the setup checklist before pretending the issue lives only in one ABS profile checkbox.
Heat is usually the first ABS-specific clue
ABS overhang curl often gets worse later in the print because the chamber, part body, and nozzle surroundings all warm up together. Early layers can look fine, then the same lip starts smearing once the print is fully heat-soaked. That is one of the most useful tells that the problem is not generic support failure. It is local edge heat staying too high for the angle you are asking that feature to hold.
If the spool is also leaving hairs between features, continue with ABS stringing because the same hotter, oozier state often shows up there too.
Cooling matters, but only on the edge that is failing
Some ABS parts fail on one side because the duct, enclosure path, or part pose favors one face more than the other. That can make the problem look mysterious when the real issue is simply that one overhang lip is living in worse airflow. If only one side of a slot, vent, or housing edge keeps curling first, local cooling coverage is a stronger suspect than a broad slicer failure.
Do not confuse ABS overhang curl with bridge sagging
Bridge sagging means the material is spanning open air and dropping because there is nothing under it. Overhang curl is different. The edge is partly supported by the layer below, but ABS is still too soft or too heat-soaked to stay put at that angle under the current chamber and airflow balance.
If the defect really looks like open-air span weakness instead of a lifted lip, go to bridge sagging and the broader overhang and bridging guide.
Orientation can beat support on ABS
If the critical visible edge can rotate into a friendlier pose, that is often better than throwing support everywhere and trading curl for cleanup damage. ABS support contact can leave its own scars, and a visible housing edge often benefits more from a pose change than from supporting the hardest version of the same lip.
If that is the real decision, go next to the orientation guide and ABS support scars.
When spool condition is part of the mess
Spool-condition drift can make ABS overhang edges less crisp and harder to diagnose. Moisture is rarely the only cause of an upward-bending lip, but it can make the edge less controlled and more likely to smear. If the same roll is also stringing, roughening top skin, or printing less consistently than it used to, pair this page with wet-filament diagnosis and the ABS dryer page.
If you need a known-consistency reference while sorting out whether the spool is part of the problem, Polymaker is a reasonable material baseline, but only after you have separated that from the chamber and airflow side.
What usually works next
- trim ABS heat modestly if the edge looks glossy and easy to drag
- improve cooling on the actual failing side instead of assuming fan percentage alone tells the story
- slow only the overhang feature before slowing the whole job into the ground
- rotate the part if one lip is simply a bad thermal pose
- use support deliberately only after orientation and local cooling still leave the edge unstable
If broader thermal stress is also showing up, continue with ABS warping and ABS layer cracking. If the visible top skin is rough after you stabilize the edges, continue with ABS rough top surfaces.
Editorial take
ABS overhang curl gets mislabeled as generic "ABS is hard" behavior all the time. Usually the real story is smaller and more fixable than that: one enclosed edge is too hot, too soft, too fast, or badly posed for the airflow it is getting. Once you solve that local thermal problem, the part often stops looking like a support emergency.
Common questions
Why do ABS overhangs curl upward more later in the print?
Because the chamber and part often heat-soak as the job goes on, which can leave the same edge softer and easier to lift on later layers.
Should I lower temperature first for ABS overhang curl?
If the edge already looks glossy and soft, yes, that is one of the best first checks. Pair it with cooling and local overhang speed instead of assuming temperature is the whole answer.
Can wet ABS make overhang curl worse?
It can make the edge messier and less crisp, especially if the spool is also stringing or roughening surfaces elsewhere, but upward curl still usually needs a heat, cooling, or pose problem too.
Should I just add support to fix ABS curling edges?
Not automatically. Support can help, but on ABS it can also create its own cleanup tax. Orientation and local thermal control are often cleaner first moves.
What should I read next?
Go next to the broader overhang and bridging guide, ABS stringing, ABS warping, ABS rough tops, ABS support scars, and the quality-problems hub depending on whether the next clue is chamber heat, wider thermal stress, top-skin damage, support cleanup, or broader symptom sorting.
