Why Do 3D Printed Circles Look Faceted or Polygonal?

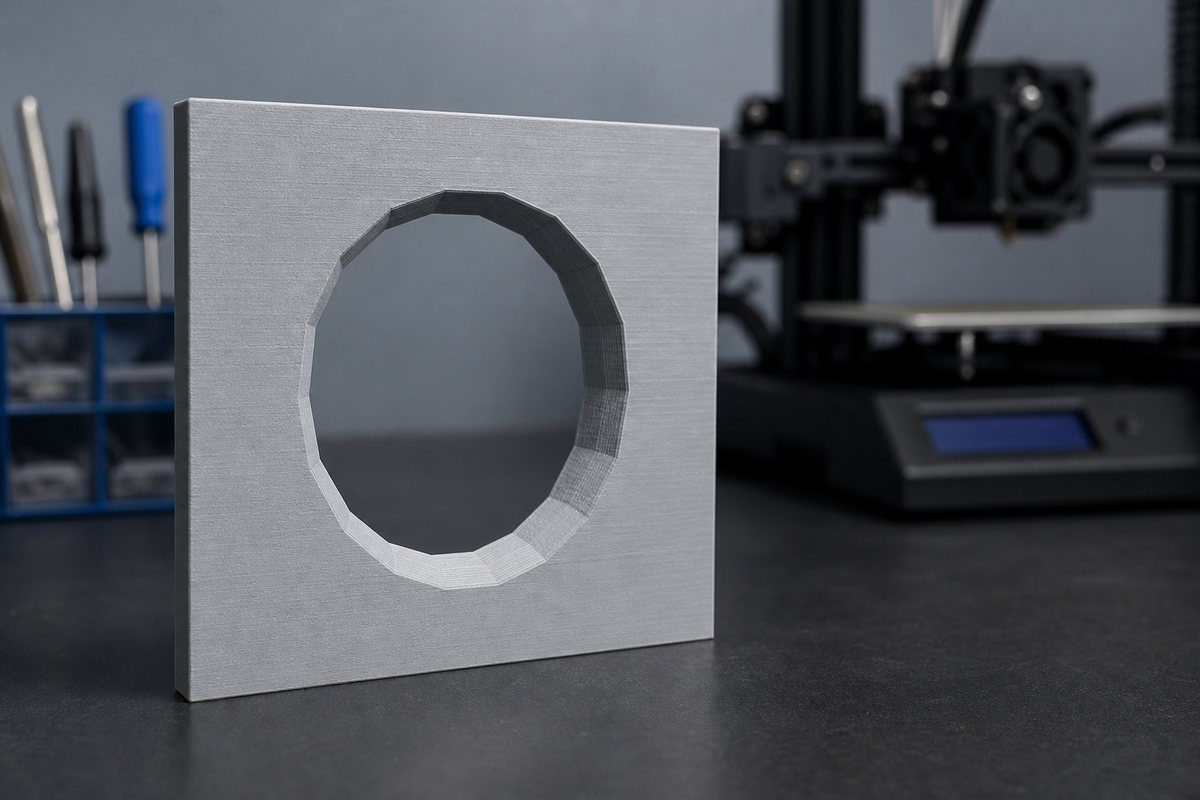

A 3D printed circle usually looks faceted because the printer was given a chain of straight moves instead of a sufficiently smooth curve. The most common source is a low-resolution mesh export, but the polygon can also exist in the CAD model, appear during a repair or conversion, or be simplified by the slicer. If the sliced perimeter already has the same straight flats, tuning belts, flow, temperature, or acceleration will not round it.

Start with the sliced toolpath, not the finished part alone. Count or mark several facets, inspect the matching perimeter in layer preview, and compare the original CAD geometry with the exported file. If the preview is smooth but the print alone has repeating waves, flats, or axis-specific distortion, move to motion and extrusion checks. If only the ceiling of a horizontal hole is flat or droopy, that is an overhang and bridging problem rather than full-circle faceting.

Short answer: what should you check first?

1. Confirm that the shape is made of straight flats. Fixed straight edges around most or all of the circumference are different from ringing waves, one seam line, or a generally oval hole.
2. Inspect the exact sliced perimeter. View one affected layer from directly above and zoom in until individual toolpath segments are visible.
3. Compare the facet count and positions. If the same flats appear in the preview and the part, the file or slicing path is the primary branch.
4. Return to the source model. Check whether the circle is a true CAD circle or an imported polygon, and whether booleans, remeshing, or sculpting converted it.
5. Review mesh export and slicer simplification. Use a tighter, purposeful geometric-deviation setting without generating a needlessly huge file.
6. Run a rotation test only if the preview is smooth. Rotate the model 30 to 45 degrees on the plate. Defects that stay fixed to printer X or Y suggest machine behavior; flats that rotate with the model suggest geometry or toolpath.

Use the shape of the defect to choose the right branch

1. First prove that the circle is actually faceted

Faceting means the intended curve has become a series of straight chords with visible corners between them. Under raking light, each flat reflects as one broad plane. The corner locations remain fixed from layer to layer, and a vertical cylinder often carries those corners straight up its wall. A large circular opening may look like a many-sided stop sign.

Do not group every imperfect circle into this diagnosis. Ringing produces decaying waves after a direction change. Vertical fine artifacts create closely spaced texture rather than a few broad planes. A seam creates one repeated start-stop location. Under-extrusion makes irregular thin sections or pits. An oval circle may have smooth curvature but wrong X/Y proportions. These symptoms need different tests and different fixes.

Let the part cool before measuring it. Mark printer front and model front, then photograph it under low-angle light. If possible, trace the perimeter on paper or use a profile projector, scanner, or calibrated photograph for larger parts. The goal is not metrology-grade proof; it is to identify whether the error has discrete corners, smooth distortion, or surface waves.

2. The sliced toolpath is the fastest source-of-truth check

Open the exact project or G-code that produced the part. Select a simple layer through the affected circle, hide infill if necessary, and look directly down on the perimeter. Zoom until you can distinguish individual moves. A coarse polygon in preview is decisive: the printer is being commanded to visit those corners. No amount of belt tension, pressure advance, flow calibration, or nozzle replacement can create curvature that is absent from the path.

Compare a recognizable facet, such as the widest flat or a corner aligned with model front, between preview and part. If several positions agree, stay in the geometry branch. If the preview looks much smoother, save screenshots and move to the machine-direction tests later in this guide. Do not rely on the slicer's shaded object view alone; it may visually smooth the surface while the actual extrusion preview reveals the segments.

Count segments carefully, but do not chase an arbitrary number

Segment count helps link the physical part to the file. Twelve broad flats in the mesh and twelve in the print are strong evidence. However, there is no universal segment count that makes every circle acceptable. A 4 mm clearance hole, a 100 mm display ring, and a 400 mm pulley have different allowable deviation and viewing distance. Use the part's fit and finish requirement to choose a maximum geometric error, not a social-media rule such as “always export at the highest resolution.”

3. Low-resolution mesh export is the most common cause

Many CAD systems represent a circle precisely while you design it, then approximate the surface with triangles when exporting STL or another mesh. The printer never receives the mathematical circle; it receives the triangle edges or a perimeter derived from them. A loose chord-height, surface-deviation, or angular-tolerance setting creates fewer, larger facets. The problem becomes more visible as diameter grows and on glossy or side-lit parts.

Return to the native model and export again with a smaller allowable geometric deviation and an appropriate angular tolerance. Names differ by CAD program, so use the application's documentation rather than copying a setting blindly. Preview the exported mesh before slicing. Compare file size and segment density, then print a short ring or cylinder using the same outer diameter as the critical feature.

A finer export cannot fix a polygon that was modeled as a polygon. It also cannot fix a low-resolution imported mesh that has already lost the original curve. Re-export from the earliest authoritative CAD source when possible. Repeatedly converting STL to another format usually wraps the same coarse triangles in a new container.

Chord error matters more than triangle count by itself

The useful question is how far each straight chord departs from the intended curve at the part's scale. A mesh with many triangles concentrated on irrelevant fillets can still leave the important large bore too coarse. Conversely, a clean purpose-built part can print well without millions of triangles. Inspect the actual critical circle and define a deviation comfortably below the part's functional or cosmetic allowance.

4. The polygon may already exist in the model

A profile can look round in a shaded viewport even when it was drawn with a low-sided polygon tool, imported from vector artwork, traced from an image, or rebuilt from scan data. Boolean operations, voxel remeshing, mesh reduction, decimation, and some repair workflows can also reduce a smooth feature into visible flats. If the model is mesh-native, check the wireframe rather than trusting smooth shading.

In parametric CAD, inspect the sketch constraint or feature history. A true circle should remain editable as a circle with a diameter or radius. If the boundary is a chain of line segments, replace it with controlled circular geometry where design intent requires a circle. If the part came from someone else, ask for the native or STEP source rather than guessing at the intended diameter from coarse STL vertices.

The STL-versus-STEP file guide explains why editable curve and feature information can make manufacturing review easier. STEP is not automatically flawless, and the eventual toolpath may still be segmented, but it gives the receiving workflow a better geometry reference than a coarse final-purpose mesh.

5. A 3MF file does not automatically restore smooth curves

3MF can preserve useful project structure, units, grouped parts, colors, and slicer context. It can also contain mesh geometry. Saving a faceted STL inside a 3MF project does not recreate the original mathematical circle. Treat file extension and geometry quality as separate questions.

If you use 3MF for a production handoff, identify which file controls geometry and which settings are merely references. The 3MF quote-handoff guide covers that distinction. For troubleshooting at home, reopen the 3MF, inspect the object mesh and actual perimeter preview, and compare it with the native CAD source.

6. Slicer resolution and simplification can create or expose facets

Slicers must convert geometry into executable paths and may merge, simplify, or discard extremely short segments. Settings described as resolution, maximum deviation, simplify model, arc fitting, or minimum segment length do not all mean the same thing. One may control how closely a path follows the mesh; another may reduce tiny moves; another may affect only arc output. Read the definition for the exact slicer version.

Use a controlled A/B slice. Keep the model, scale, line width, perimeter count, and orientation fixed. Change only the setting that governs path simplification or geometric resolution. Then compare the actual extrusion preview and exported G-code size. If the facet corners move or disappear, you have identified a slicing contribution. If the original mesh remains coarse, a slicer cannot reliably infer the designer's intended curve.

More segments are not always better

An unnecessarily dense mesh or path can increase project size, slicing time, transfer time, and controller workload. Very short moves may also force speed changes or expose limitations in older motion systems. The objective is a path whose geometric error is below the useful threshold and which the printer can execute smoothly—not the largest file the software can produce.

7. Arc fitting can help path efficiency, but it is not a geometry-repair button

Some toolchains can represent circular motion with G2/G3 arcs or fit arcs to a segmented path. Support varies by slicer, firmware, printer, and file-transfer workflow. A fitted arc may reduce command count when the source points already describe a trustworthy curve. It should not be used to guess that every polygon was intended to be a circle.

Before enabling arc output, confirm that the entire toolchain supports it and that the result is visible in a trustworthy G-code preview. Validate dimensions and shape on a coupon. A printer that does not support the chosen command path may reject, reinterpret, or internally segment it. For most faceting cases, correcting the source geometry and mesh export is the cleaner first fix.

8. If the preview is smooth, test whether the defect stays with the model or the printer

When the toolpath looks acceptably smooth but the physical print does not, print a short ring twice: once in the original orientation and once rotated 30 to 45 degrees on the build plate. Keep the scale, layer height, material, speed, and temperatures unchanged. Mark printer X and Y on both parts before removal.

Flats or waves that rotate with the model still implicate the path, feature geometry, seam placement, or model-specific cooling. Defects that remain fixed to printer X/Y deserve checks for belt condition and tension according to the manufacturer, pulley security, axis binding, carriage play, cable drag, and frame stability. Avoid tightening belts by feel until they are “as tight as possible”; excessive tension can damage bearings, motors, idlers, and belt life.

If the surface shows waves after sharp directional changes rather than straight planes, use the ghosting and ringing guide. If the pattern forms horizontal ribs as Z rises, use the Z-banding guide. Those are motion-pattern diagnoses, not mesh-facet fixes.

Check the seam before blaming an axis

A seam placed on a round wall creates one vertical interruption and can visually anchor a flat-looking region. Turn on seam preview or deliberately move the seam for a short test. If only one mark moves, the circle may be geometrically smooth and the visible problem may be start-stop pressure. Do not hide broad source facets by randomizing the seam; that merely distributes a separate artifact.

9. Horizontal holes can look polygonal for a different reason

A vertical cylinder or a circle lying in the XY plane can be traced continuously on each layer. A horizontal through-hole has an upper arc that becomes an increasingly steep overhang and eventually a short bridge. The slicer may use special hole compensation, bridge flow, variable line width, or a deliberately flattened teardrop-like path. Cooling and gravity can make the top sag, peak, or appear flat even when the source circle is smooth.

Inspect the bottom, sidewalls, and ceiling separately. Full-circumference equal facets still suggest geometry. A smooth lower half with a rough or flattened ceiling suggests unsupported upper geometry. Consider changing orientation, using a teardrop or diamond hole when design allows, adding support, reducing the unsupported span, or post-machining a critical bore. Validate strength and fit after any redesign.

If the opening is smoothly round but consistently too small, switch to the undersized-hole troubleshooting guide. Hole size, hole roundness, and visible faceting are related in a finished part but should be measured and corrected separately.

10. Flow and temperature rarely fix true polygonal geometry

Over-extrusion can make an internal hole smaller and soften corners. Under-extrusion can make the perimeter rough or discontinuous. Excess heat can smear detail, while insufficient cooling can deform a small feature. None of those settings adds missing intermediate points to a coarse toolpath. If the preview contains broad flats, correct that first and then re-evaluate extrusion quality.

This ordering matters because a hotter nozzle or lower flow may make one faceted sample look less harsh under light while moving dimensions in the wrong direction. Separate geometry fidelity from bead width and fit. Print the corrected path with a known-good profile before making filament-specific tuning changes.

A controlled test sequence for faceted circles

1. Save the failed part, native model, exported file, project, G-code, and profile together.
2. Mark printer front, model front, X, and Y before removing another test.
3. Use raking light to decide whether the perimeter has straight flats, smooth ovality, waves, or one seam.
4. Count several major facets and note their angular positions.
5. Inspect the affected layer in extrusion preview, not only shaded object view.
6. Compare the preview's facet positions with the physical part.
7. Inspect the source sketch or mesh wireframe for true circles versus line chains.
8. Re-export once using a justified tighter geometric-deviation setting.
9. Re-slice and confirm that the perimeter becomes smoother before printing.
10. Print a short ring or plate containing the same critical diameter.
11. If preview and print disagree, rotate the coupon and check X/Y-fixed behavior.
12. Measure diameter and roundness separately; a smoother circle can still be the wrong size.
13. Repeat the winning coupon, then validate the full part at its real orientation and speed.

Fixes that match the evidence

• The native CAD circle is smooth but the mesh is coarse: re-export from the native source with a tighter chord or surface-deviation tolerance.
• The model contains a polygon: rebuild the critical profile as controlled circular geometry or obtain the authoritative CAD source.
• The slicer simplifies an adequate mesh: adjust only the documented path-resolution or simplification setting and verify the extrusion preview.
• The path is excessively dense and execution stutters: use a sensible deviation target or validated arc workflow instead of retaining unnecessary micro-segments.
• The defect remains fixed to printer X/Y: follow the manufacturer's mechanical inspection procedure for belts, pulleys, axis motion, carriage play, and frame stability.
• Only the horizontal-hole ceiling is distorted: treat it as overhang and bridge geometry; change orientation, support, span, or feature design.
• The circle is smooth but too small: calibrate fit and hole compensation with a measured coupon rather than changing mesh density.
• One vertical mark interrupts the circle: diagnose seam and restart behavior separately from overall roundness.

What not to change first

• Do not tighten belts because the circle looks like a polygon. Prove that the sliced path is smoother than the part first.
• Do not increase global flow to “fill in” facets. It changes size and bead overlap without changing commanded curvature.
• Do not convert a coarse STL to 3MF and expect new detail. A new container does not reconstruct the lost circle.
• Do not export at maximum resolution without a requirement. Huge meshes can add processing cost without improving the printed result.
• Do not enable arc commands without checking the full toolchain. Slicer, firmware, preview, and printer behavior must agree.
• Do not use hole compensation to hide visible facets. Compensation can move the boundary while preserving its polygonal shape.
• Do not judge a horizontal hole only by its ceiling. Separate overhang deformation from the rest of the circumference.

Frequently asked questions

Why does a circle look smooth in CAD but polygonal after printing?

The CAD viewport may render a precise mathematical curve smoothly, while the exported mesh approximates it with straight triangle edges. Inspect the exported mesh and sliced perimeter rather than the native shaded view.

Does a higher-resolution STL always fix faceted circles?

Only when the coarse STL export is the source. It will not fix a polygon drawn in the model, an already-low-resolution imported mesh, slicer simplification, a horizontal-hole ceiling, or machine-direction distortion.

Is 3MF smoother than STL?

Not automatically. 3MF can carry richer project information, but it can still contain segmented mesh geometry. The smoothness depends on the geometry stored inside and the path produced from it.

Can the slicer turn line segments into true arcs?

Some toolchains support arc fitting or arc commands, but compatibility and behavior vary. Correct source geometry first, verify the output path, and validate the complete printer workflow before relying on arcs.

Why is only the top of my horizontal hole flat?

The upper arc is printed as steep overhangs and a bridge. Cooling, span, orientation, support, and slicer hole behavior matter there. That is different from equal facets around the whole circle.

Why is my 3D printed circle round but too small?

That is primarily a dimensional and process-compensation problem. Measure X and Y, confirm flow and first-layer effects, and use a controlled hole-fit coupon. More mesh segments may improve appearance without correcting size.

Can low polygon count weaken a circular part?

It can change wall thickness, contact, stress concentration, and fit when the facets materially depart from the intended profile. Whether that matters depends on load, orientation, feature size, and acceptance criteria. Revalidate functional parts after correcting geometry.

Next steps

Keep the source CAD revision, export settings, mesh, slicer version, project, G-code, printer orientation, and measured coupon results together. Record the maximum acceptable diameter error and whether visible flats are allowed on critical faces. The common print-quality problems guide is the best next route if the circle also has rough walls, inconsistent extrusion, seams, ringing, or layer artifacts.

For quoted or repeated parts, define whether the circular feature is cosmetic, a clearance opening, a bearing seat, a seal surface, or a post-machined bore. The custom-part tolerance guide explains why nominal size, roundness, surface finish, and inspection method should not be collapsed into one vague “accuracy” requirement. JC Print Farm is the relevant handoff when the controlling file, material, quantity, critical circular features, delivered condition, and acceptance method are already defined and you need an operator to validate the production path.
