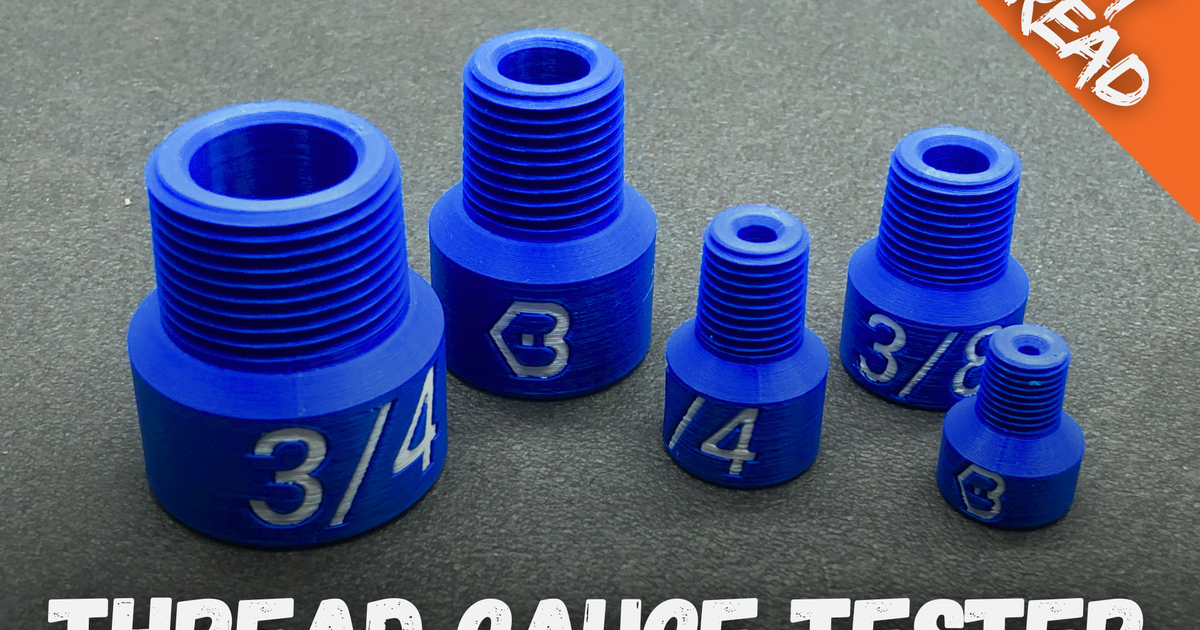

Thread Gauge Tester: A Handy Tool for Measuring NPT Hydraulic Pipe Threads on Printables earns attention because it solves a repair delay that wastes real time. Hydraulic fittings, ports, adapters, and hose ends can look close enough to guess from memory, especially when the machine is dirty, access is tight, and the right replacement part is not sitting on the bench. One wrong assumption can turn a quick repair into a second parts run.
This file gives readers a faster way to identify common NPT thread sizes before ordering fittings, assembling a hose, or pulling a machine apart farther than necessary. That makes it stronger than a generic measuring-gadget spotlight. The article can speak directly to downtime, parts accuracy, and the cost of getting thread size wrong.
Direct source review exposed roughly 1,660 downloads, around 5,904 visible views, 436 likes, 252 public collections, 5 makes, 29 comments, and 6 ratings averaging about 5.00 on Printables. Those are strong public signals for a niche measurement tool, and the use case stays clear even when exact platform-wide rankings are unavailable.
What problem this model solves
Thread identification is one of those jobs that sounds simple until it slows down a real repair. Hydraulic systems often involve fittings that are similar enough to invite bad guesses, especially when the machine is in service, the threads are oily, and the part has to be identified before the right replacement can be sourced.
- helps identify NPT hydraulic pipe thread sizes before ordering fittings or adapters
- reduces guesswork when matching replacement parts during repair work
- supports maintenance checks in tighter spaces where eyeballing threads is unreliable
- gives mechanics, machine owners, and makers a reusable reference tool instead of repeated trial-and-error
Why the design is worth noticing
The strongest part of this model is that it maps directly to a costly little mistake. Ordering the wrong fitting or dragging several candidates back to the machine is not dramatic, but it burns time fast. A lightweight thread gauge that can live in a toolbox or service cart has an easy story for readers to understand.
The source listing also frames it for hydraulic pipe work rather than vague general measurement. That focus makes the article more useful and keeps it distinct from the site's broader screw-size and geometry-reference coverage.
Who gets the most value from it
- small equipment owners trying to identify fittings before buying hoses or adapters
- garage and farm users maintaining hydraulic attachments, implements, and shop equipment
- makers and small operators who deal with fluid fittings but do not want a parts-ordering mistake
- service benches that benefit from a dedicated size-check tool near the fitting drawer
When this kind of gauge matters most
This file is most valuable when thread identification errors actually cost time. If the shop already has a full commercial gauge set or works with one narrow fitting family all day, the payoff is smaller. If the work involves mixed machines, occasional hose replacement, or one-off maintenance jobs, a clear printed reference can earn its keep quickly.
- good fit: occasional hydraulic repairs, fitting swaps, and hose-ordering checks
- great fit: field or garage work where the wrong part means another trip, another delay, or more downtime
- less compelling: shops that already have dedicated metal gauge kits for every fitting system they use
- check first: confirm the source tool covers the thread range you actually run into most often
Why this works as an outsourced print
This is a strong outsourced-print candidate because the value is in having the gauge ready when you need it, not in spending your own machine time on a one-off measuring aid. A lot of people only need one or two copies for a toolbox, service truck, or workbench drawer.
If you need a print service to make the file for you, JC Print Farm is the broader path for one-offs and small batches built from supplied models.
When ordering one makes sense
Ordering makes sense when your main goal is cutting fitting guesswork, not starting another print project. It also makes sense for people who want a dedicated service reference tool in the truck, garage, or machine shed without buying a broader commercial kit first.
If you want this model made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is a positive signal, but this pass did not independently confirm the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does an NPT thread gauge tester help with?
It helps identify thread sizes on hydraulic pipe fittings and ports so you can match adapters, hoses, and replacement parts with less guessing.
Why is this a strong GoodPrints feature?
Because it solves a real downtime problem in a visually understandable way. Wrong-fitting orders and repeat trips are ordinary headaches, and the file addresses that directly.
Who is this most useful for?
Equipment owners, mechanics, farm and garage users, and small operators who work with hydraulic fittings often enough that identification mistakes cost them time.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
