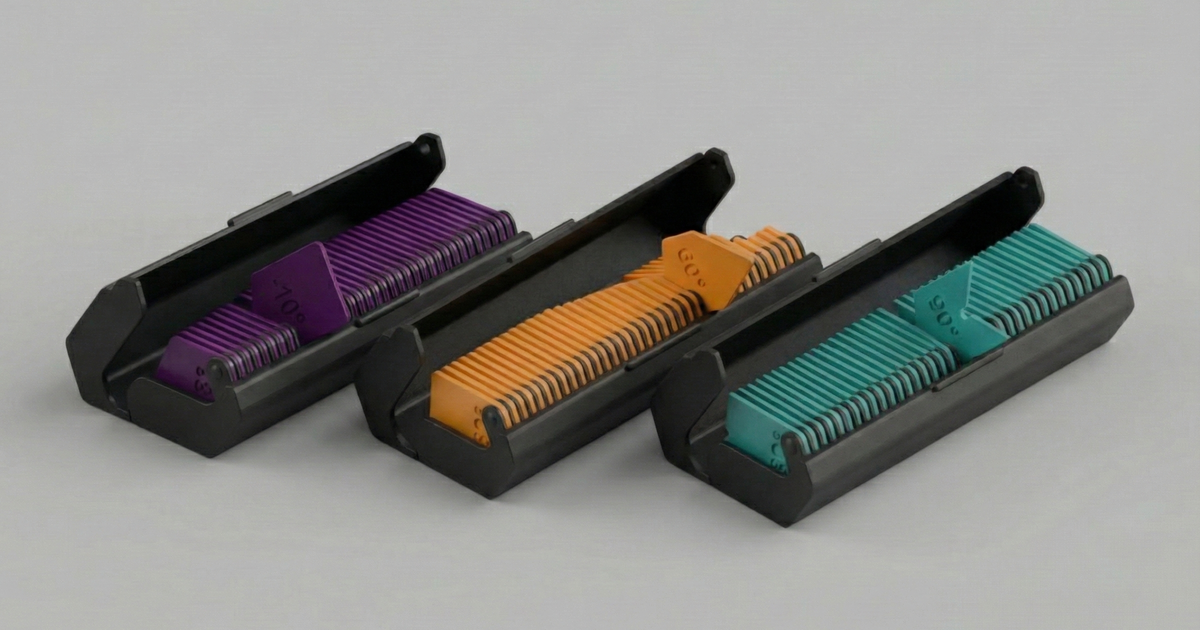

Angle Gauge Set – Print-in-Place Organizer on Printables is the kind of file that works best when it is treated as a bench reference tool, not as another generic printable accessory. It gives readers a compact way to compare real-world angles, check slopes, inspect molded parts, and pull cleaner geometry into CAD without relying on eyeballing or a rough digital guess.
That makes this a stronger workflow article than a thin file spotlight. A lot of useful 3D work starts before the printer. It starts when someone is trying to match an existing part, understand a taper, verify a draft angle, or rebuild an object that does not have drawings. A dedicated angle reference kit helps close that gap.
Direct source review showed about 13 likes, roughly 267 visible views, and 7 public collections on Printables at review time. Those are still early signals rather than mature proof, but the design itself is unusually clear, the use case is easy to understand, and the article lane stays meaningfully distinct from the site's existing repair trays, soldering fixtures, and screw-measuring coverage.
What problem this model solves
Reverse engineering usually breaks down in the same places: not on the obvious overall size, but on the less-obvious geometry. One face leans a few degrees. One molded wall has draft. A bracket edge is not square. A replacement part almost fits, but not quite, because the original shape was estimated instead of checked against a reference.
- helps compare unknown angles against a physical reference instead of guessing
- gives CAD and repair workflows a faster way to inspect slopes and draft
- supports part matching when a protractor or digital angle finder is too awkward for the job
- keeps a wide range of angle references in one compact print-in-place case
Why the design is worth noticing
The strongest part of this file is not novelty. It is how well the package fits the job. The organizer keeps a broad set of gauges together, the purpose is instantly understandable from the image, and the use cases bridge several GoodPrints-friendly lanes at once: repair, measurement, CAD reference, and geometry checking.
It also supports a believable outsourced-print story. Readers do not need to own a printer to benefit from a compact reference kit that can live in a drawer, on a modeling desk, or beside a repair bench. If the goal is better measurements and fewer geometry mistakes, ordering the tool is easier to justify than spending more time improvising with paper templates or rough on-screen estimates.
Who gets the most value from it
This model is strongest for people who repeatedly move between physical parts and digital design.
- makers reverse engineering broken or missing plastic parts
- CAD users matching slopes, tapers, and molded draft angles
- repair-minded readers trying to reproduce geometry more faithfully
- bench users who want a fast visual reference without reaching for a full measuring setup every time
How to capture angle information better, even if you never order this file
Even without this exact set, a few habits make angle matching far more reliable:
- measure from the real contact surface: small fillets and edge wear can distort a reading if you reference the wrong face
- check both sides of a part: molded pieces often hide draft or asymmetry that a quick glance misses
- pair angle checks with photos and dimensions: slope alone rarely explains a part, but it closes important gaps
- verify fit on a small test section first: angle mistakes are cheaper to catch on a short sample than on a full replacement print
- treat approximate geometry as risk: the more load-bearing or alignment-sensitive the part is, the less guessing you can afford
That gives the article value even for readers who only want a better reverse-engineering workflow and never click through to the file itself.
Printing and use notes
- Keep the set where design and inspection actually happen: this is a reference tool, so drawer placement matters.
- Use the gauge that matches the feature, not just the closest-looking one: small angle differences can matter more than expected on clips, brackets, and mating faces.
- Pair it with calipers: angle and dimension together are much more useful than either alone.
- Use it for verification as well as capture: once a replacement part is modeled, compare the print back to the gauge before calling it finished.
If you need a print service to make the file for you, JC Print Farm is the broader path for one-offs and small batches built from supplied models.
When ordering one makes sense
This model makes sense when you regularly inspect or recreate physical parts, when you want a small bench-ready geometry reference without assembling a bigger measuring kit, or when better angle matching would save more time than the print costs. It is especially sensible for repair benches, CAD desks, and anyone doing occasional reverse engineering where small geometry errors keep slowing the work down.
If you want this model made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes excludeCommercialUsage: false, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does an angle gauge set help with?
It helps compare unknown slopes and angles against physical references so CAD work, reverse engineering, and part inspection can start from better information.
Who is this most useful for?
Makers, repair-minded readers, and CAD users who regularly move between real parts and digital models.
Why is this a good outsourced-print candidate?
Because it is a compact repeat-use bench reference that provides value immediately without asking the reader to dedicate their own print time to another tool build.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
When do angle references matter more than people expect?
When a replacement part nearly fits but fails at one tapered edge, one drafted wall, or one small slope that looked close enough until assembly time.
