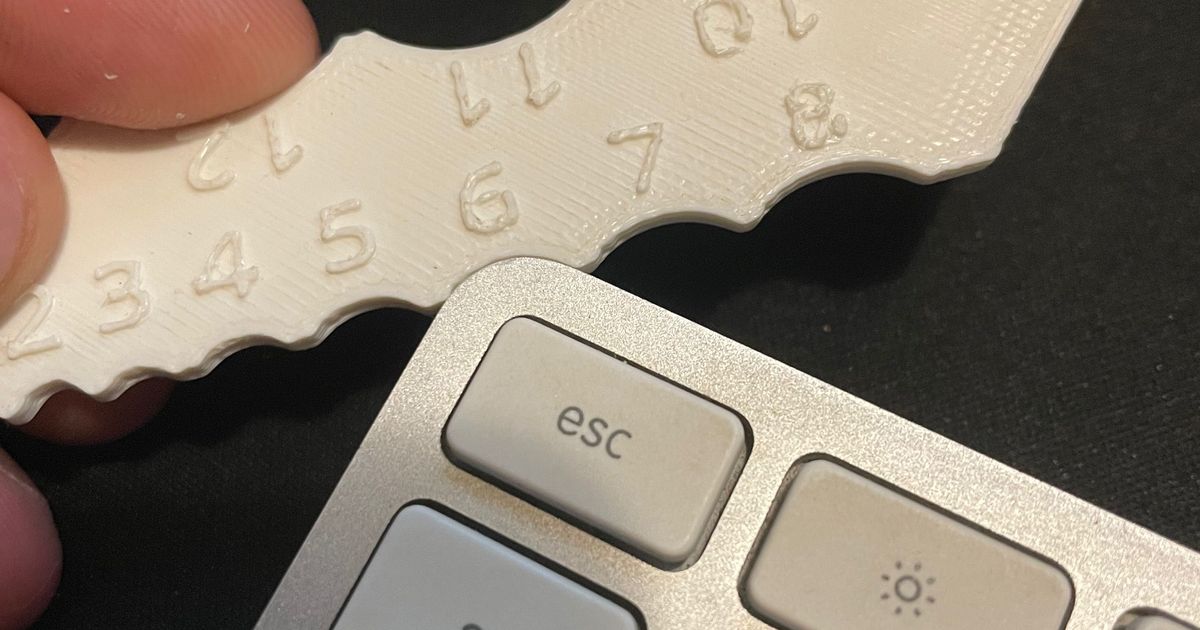

Fillet Radius Finder (Inner/Outer) - Design Reference Ruler 1 to 12mm on Printables is the kind of model that quietly makes repair and measurement work better. It is not flashy, but it solves a very real problem: when you are trying to copy, repair, or redesign an existing part, rounded edges are easy to eyeball badly and surprisingly annoying to measure with normal rulers or calipers alone.
That makes this a better GoodPrints article when framed as a workflow tool rather than a generic file spotlight. A radius gauge helps readers model replacement parts more accurately, check corner geometry before they redesign something, and avoid the small measurement mistakes that turn into ugly fit problems later.
Direct source review showed about 44,498 downloads, roughly 119,466 visible views, 15,972 likes, 8,209 public collections, 1,609 makes, and 1,182 ratings averaging about 4.90 on Printables. Those are unusually strong public signals for a focused bench-side measurement aid, which tells you this is a repeat-use tool rather than filler.
What problem this model solves
Reverse engineering often stalls on the small stuff. You can measure thickness, width, and hole spacing with common tools, but matching an inside or outside corner radius is slower unless you already own dedicated gauges. That matters when you are rebuilding broken plastic tabs, matching a bracket edge, recreating a trim part, or designing a cleaner mating feature.
- helps identify inside and outside radii faster
- reduces guesswork when modeling replacement parts
- supports cleaner fit checks before a print run
- gives repair and fixture work a more believable measurement path
Why the design is worth noticing
The useful part is not just the shape set. It is the handoff into actual workflow. A tool like this can sit next to calipers on a bench and get used every time someone measures a molded corner, checks a fillet on a broken housing, or wants to copy the feel of an existing object without trial-and-error reprints.
It also makes outsourced printing easier to justify. If someone wants a dedicated shop gauge instead of spending time making one, this is a straightforward one-off tool with obvious use the moment it arrives.
Who gets the most value from it
This file is strongest for repair-minded makers, CAD users who trace real-world geometry into new models, and small shops that regularly build brackets, jigs, covers, or replacement parts.
- repair work that starts from a worn or broken original part
- CAD modeling based on real objects
- fixture and jig design for workshop use
- prototype checking before a redesign gets printed
How to use radius checks better, even if you never order this file
If you are measuring a rounded feature for a repair or redesign, a few habits matter more than the tool itself:
- clean the edge first: grime, chipped paint, and burrs can make a radius look larger or smaller than it is
- check both sides: old molded parts are not always perfectly mirrored after years of wear or heat
- measure the mating part too: the corner you copy may not be the corner that controls fit
- treat printed shrink and elephant foot separately: a wrong print edge can hide a correct CAD radius
- record the surrounding dimensions at the same time: radius alone does not rescue a bracket with bad hole spacing or wall thickness
Those steps make this article useful whether readers print the gauge, order it, or just apply the measurement logic to their next project.
Printing and use notes
- Keep labels easy to read: clear size marks matter more than cosmetic finish.
- Print flat for dimensional consistency: a simple bench tool benefits from predictable face accuracy.
- Do not use one edge after visible wear: a gouged measuring face can introduce bad calls.
- Pair it with calipers, not instead of them: radius identification and dimensional measurement work best together.
If you want a print service to make the file for you, JC Print Farm is the broader path for one-offs and small batches built from supplied models.
When ordering one makes sense
This model makes sense when you repeatedly measure rounded features, repair plastic hardware, or build custom parts from existing objects and want a dedicated gauge on the bench. It is also the kind of tool that can pay for itself by cutting a few failed redraws or avoidable reprints.
If you want this model made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does a fillet radius finder help measure?
It helps identify the size of inside and outside rounded corners on real objects so you can model, match, or repair them with less guesswork.
Why is this useful for repair work?
Because broken housings, brackets, trim pieces, and molded parts often fail around rounded geometry. Matching those curves more accurately improves the odds that a replacement part fits cleanly.
Who is this most useful for?
Makers, CAD users, repairers, and workshop builders who reverse engineer existing parts or build jigs and fixtures from measured objects.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
When is a radius gauge more useful than just eyeballing with calipers?
When the corner shape actually affects fit, appearance, or how a replacement part mates to the original. Calipers still matter for overall dimensions, but a radius gauge is faster when the rounded edge itself is the detail most likely to send a redraw off course.
