A high-flow hotend is worth buying when your printer repeatedly reaches its melt-capacity limit on large, fast parts and the motion system can use the extra flow. For many owners, a 0.6 mm nozzle does more first: it reduces the number of lines and layers needed without replacing the whole hotend. If the printer is slow because of acceleration, cooling, small features, or minimum layer time, neither upgrade will deliver the speed shown on the box.
The useful question is not whether a high-flow hotend is faster in theory. It is whether your actual jobs are limited by volumetric flow: the cubic millimeters of plastic the hotend can melt and push each second. Measure that bottleneck before buying hardware.
Quick verdict
Try a 0.6 mm nozzle first if you print brackets, bins, fixtures, organizers, large prototypes, or other parts that tolerate thicker lines and coarser layers.
Choose a high-flow nozzle if you want more melt capacity while keeping the existing hotend and nozzle diameter, and a compatible CHT-style option is available.
Buy a high-flow hotend if repeated tests show the stock melt zone is the ceiling, the printer can sustain the matching motion, and your production queue benefits from the saved minutes.
Keep the stock setup if most prints are small, detailed, cooling-limited, or already finish within an acceptable window.
What a high-flow hotend actually changes
A normal hotend must heat solid filament, melt it consistently, and maintain enough pressure to extrude the requested line. A high-flow design increases effective melt-zone capacity through a longer heated path, a different internal geometry, more effective heating, or some combination of those changes. The goal is stable extrusion at a higher volumetric rate, not merely a hotter temperature reading.
Volumetric flow is approximately line width x layer height x print speed. A 0.45 mm line at 0.20 mm layer height and 150 mm/s asks for about 13.5 mm³/s. A 0.65 mm line at 0.30 mm and the same speed asks for about 29.25 mm³/s. That second toolpath can overwhelm an ordinary hotend even though the motion speed did not change.
When the requested rate exceeds real melt capacity, extrusion can become thin, dull, weak, inconsistent, or audibly overloaded. The feeder may click, but the hotend is not automatically guilty: the extruder-clicking guide separates excessive flow from clogs, first-layer pressure, spool drag, heat creep, and feeder faults.

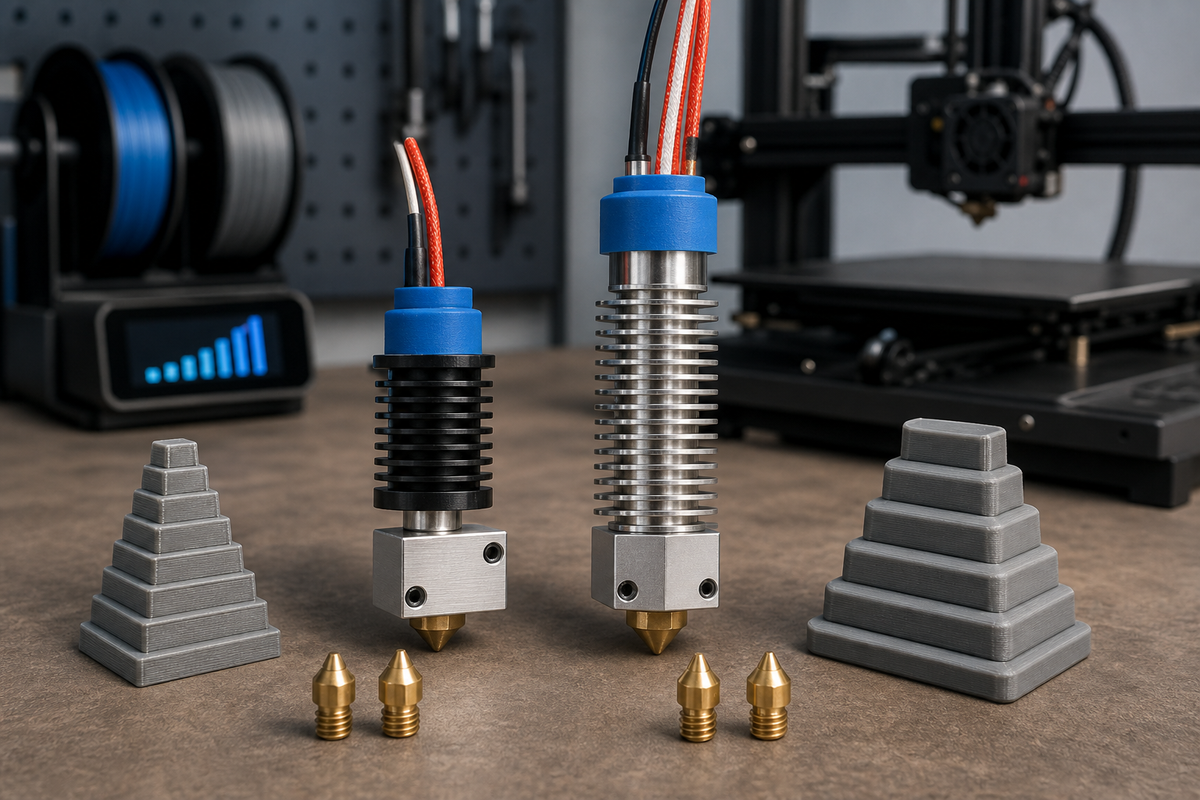

High-flow hotend vs larger nozzle
| Decision factor | Larger nozzle | High-flow hotend |
|---|---|---|
| Main speed gain | Fewer lines and thicker layers | More plastic melted per second |
| Best fit | Large utility and functional parts | Fast machines already hitting a flow ceiling |
| Detail tradeoff | More visible on small features | Can retain a 0.4 mm tip, hardware dependent |
| Installation burden | Usually low | Fit, wiring, firmware, PID tuning, and profile work may apply |
| Cost | Low | Moderate to high |
| Does it add melt capacity? | Not necessarily; it can demand more | Yes, when the design and filament are matched |
A larger nozzle and a high-flow hotend solve different parts of the speed problem. The nozzle changes toolpath efficiency. The hotend changes the ceiling on material throughput. They can be used together, but a bigger nozzle often exposes the stock hotend's flow limit sooner because every millimeter of travel now requests more plastic.
If functional parts dominate the queue, compare the exact 0.6 mm versus 0.4 mm buyer decision and the broader 0.4, 0.6, and 0.8 mm nozzle-size guide before replacing the hotend.
How to tell whether flow is your real bottleneck
- Check the sliced volumetric-flow view. Find the sustained high-flow regions, not a one-second peak.
- Run a stepped flow test in the actual filament. Increase flow gradually while keeping cooling and acceleration realistic.
- Watch for the first quality break. Measure line width and look for thinning, surface change, weak bonding, or feeder overload.
- Compare that limit with normal jobs. If production rarely approaches it, a higher ceiling will sit unused.
- Reslice with a larger nozzle or layer height. If estimated time drops without exceeding the measured ceiling, use the cheaper change first.
Do not define success as “filament still came out.” A useful maximum flow rate must preserve dimensions, surface quality, and layer bonding. If test bars become weaker before they look obviously under-extruded, use the weak-layer guide as a validation checkpoint.
When a high-flow hotend is worth it
You print large parts with long sustained toolpaths
Large bins, panels, fixtures, ducts, housings, and structural prototypes can hold a high material rate for minutes at a time. That is the workload most likely to convert added melt capacity into meaningful clock time.
Your printer can move faster than the stock hotend can melt
A rigid CoreXY or well-tuned fast bedslinger may reach a clean motion state while the stock hotend is already near its material limit. If acceleration, resonance control, part cooling, and extrusion are stable, a higher-flow path can unlock motion capability that already exists.
The same material and profile run repeatedly
Production repetition makes tuning pay back. One validated PLA or ABS profile used across hundreds of similar parts can justify an upgrade more easily than a hobby queue that changes filament and geometry every day.
Saved machine time has a clear value
For a busy shop, a reliable 15% reduction across a constrained printer lane can matter. For an occasional home print, saving 25 minutes on a six-hour job may not justify new leak paths, spares, profiles, and maintenance.
When it is not worth it
Small parts often spend more time accelerating, decelerating, and respecting feature-speed limits than holding maximum flow. Fine lettering, holes, sharp corners, short perimeters, and support interfaces do not become much faster just because the hotend can melt more.
Cooling can also become the hard limit. PLA laid down faster may stay too soft for overhangs and small layers. ABS and ASA may keep heat better, but geometry and chamber control still set limits. Flexible filament can be constrained by feed stability before melt capacity matters.
A stock printer that is reliable and already fast enough may be more valuable than a modified machine with a higher benchmark number. If the queue is mixed and detail-heavy, keep the known-good hotend and optimize layer height for the actual parts.
A high-flow nozzle can be the middle step
Some high-flow nozzles divide the incoming filament into smaller melt streams to increase heat transfer without replacing the whole hotend. This can be a cleaner experiment when the printer uses a common compatible nozzle format and the rest of the hotend is healthy.
That route is still hardware-specific. Confirm thread, overall length, tip geometry, probe relationship, material compatibility, and the profile changes required. The Bondtech CHT 0.4 mm MK8 guide shows what the narrower drop-in path looks like, while the CHT BiMetal versus Micro Swiss CM2 comparison is more useful when wear resistance matters alongside flow.
The hidden costs of a full hotend upgrade
- Mechanical fit: mount geometry, duct clearance, nozzle position, probe offset, and build-height loss.
- Electrical fit: heater voltage and wattage, thermistor type, connector compatibility, and safe wiring.
- Firmware work: temperature-sensor settings, heater limits, PID tuning, and extrusion recalibration.
- Profile work: maximum volumetric flow, pressure advance, retraction, temperature, cooling, and speed limits.
- Service inventory: replacement heaters, sensors, socks, heatbreaks, and the exact nozzles the new platform uses.
Ultra-high-flow hardware also tends to be a specialized choice rather than a universal upgrade. The Phaetus Rapido 2 UHF guide is relevant to a speed-focused Voron or similar build, but it should not be read as a recommendation to modify a mainstream stock printer that never reaches its present flow ceiling.
Filament changes the flow ceiling
Do not copy one maximum-flow number across every spool. PLA often melts and flows readily, but its useful speed can become cooling-limited. PETG can turn glossy, stringy, or dimensionally soft when temperature is raised just to chase a benchmark. ABS and ASA may suit sustained enclosed printing, yet the machine still needs stable chamber behavior and enough part cooling for the geometry. Filled materials add nozzle-wear and particle-flow constraints that a longer melt zone does not erase.
Color and formulation matter within one material family. A profile proven with one black PLA may not preserve dimensions or bonding with a heavily pigmented white spool. Test the exact production grade, color, dry condition, and nozzle. Record the validated maximum as a profile limit with safety margin, not as a universal hardware specification.
Temperature can raise apparent capacity, but hotter is not free speed. Excess heat can worsen bridges, overhangs, corners, stringing, and dimensional accuracy. The correct limit is the fastest rate that keeps the finished part acceptable, not the fastest rate that completes a flow tower.
What should you measure after the upgrade?
Reprinting one speed boat is not enough. Use a before-and-after part that represents the real queue, then record total print time, part weight, key dimensions, surface changes, and a simple strength or fit check. Compare the saved time with tuning and maintenance time. If the upgrade saves eight minutes but introduces more failed starts or profile switching, throughput may be worse even though peak flow improved.
Also test slow sections. A longer melt zone can behave differently during retractions, tiny features, and stop-start paths. Look for ooze, seam growth, heat creep, and pressure-control errors at the low-flow end as well as under full load. A useful production hotend must handle the whole part, not only its fastest straight line.
Use this upgrade order
- Fix basic extrusion and cooling. A partial clog, wet spool, slipping feeder, or weak duct will corrupt every speed test.
- Measure the current flow limit. Test the exact filament, temperature range, and nozzle used in real work.
- Optimize the slicer. Use appropriate layer height, line width, wall count, infill, and acceleration before buying hardware.
- Try a 0.6 mm nozzle for suitable parts. Judge total print time and finished-part quality, not motion speed alone.
- Try a compatible high-flow nozzle if available. This can add capacity without changing the whole hotend platform.
- Install a high-flow hotend only when the remaining limit is proven. Revalidate temperature control, flow, pressure advance, retraction, dimensions, and strength afterward.
Decision examples
| Workload | Best first move |
|---|---|
| Large PLA organizers on a stock printer | Try a 0.6 mm nozzle and thicker layers |
| Detailed miniatures and small mechanical parts | Keep the stock hotend |
| MK8 printer near its measured ceiling with 0.4 mm detail needed | Evaluate a compatible high-flow nozzle |
| Tuned CoreXY running repeated large ABS or ASA parts | High-flow hotend may pay back |
| Occasional batches with no desire to maintain modified hardware | Keep the printer simple or use production support |
Bottom line
Buy a high-flow hotend only after testing proves that melt capacity is the recurring bottleneck. Start with slicing changes and a 0.6 mm nozzle when your parts tolerate thicker lines; consider a compatible high-flow nozzle as the middle step. A full hotend upgrade makes the most sense for fast, mechanically capable printers running sustained-flow production work.
