Dowel Drill Jig: A 3D Printed Guide for Straighter Joinery Holes, Faster Furniture Repairs, and Cleaner Shelf Builds

May 1, 2026

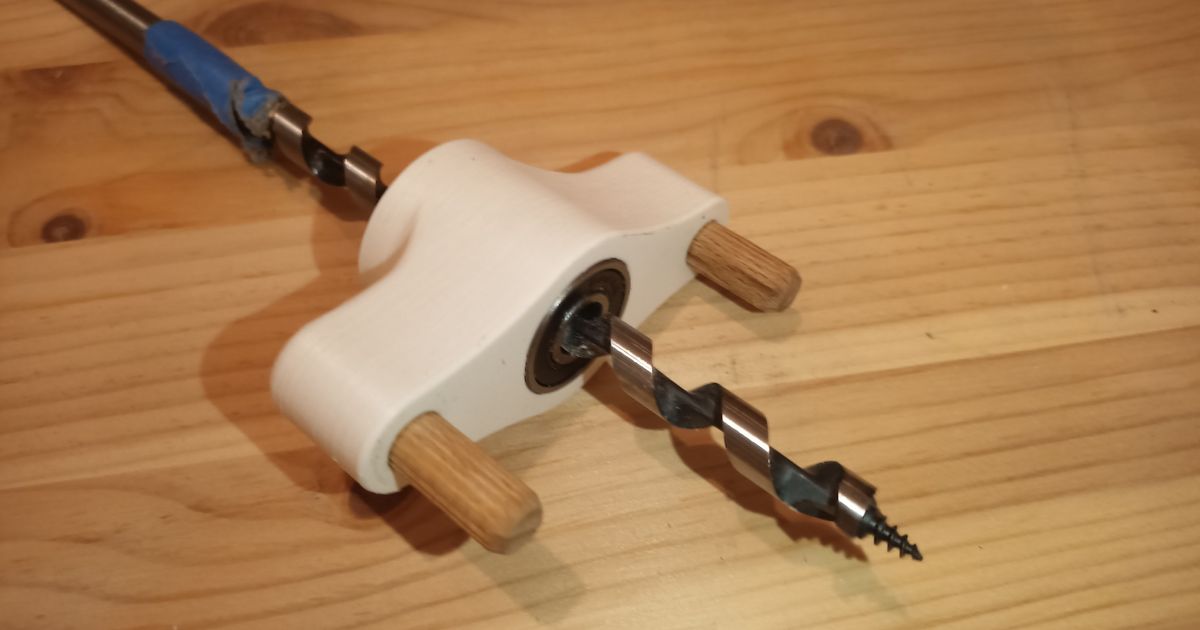

3D printed dowel drill jig for straighter joinery hole placement

DOWEL DRILL JIG on Printables earns attention because it supports one of the most common woodworking pain points: getting mating holes to land where they should so two parts actually align when glue, clamps, and time pressure show up. When dowel holes drift, shelves twist, frames rack, and repair jobs that looked easy on paper start turning into filler, re-drilling, or scrap.

That makes this a stronger GoodPrints fit than a thin file spotlight. It is a workflow tool for a real job. Whether someone is rebuilding a wobbly stool, adding shelves, repairing a loose cabinet part, or assembling shop furniture, a printed dowel jig can turn repeated measuring and eyeballing into a more repeatable process.

Direct source review showed about 396 downloads, roughly 2,817 visible views, 116 likes, 74 public collections, 5 makes, and 4 ratings averaging about 5.00 on Printables. Those are believable public signals for a focused woodworking helper with broad repair and assembly usefulness.

What problem this model solves

Dowel joinery is attractive because it is clean, hidden, and strong enough for a wide range of furniture and cabinet jobs. The failure point is usually not the dowel itself. It is hole placement. A small shift in location or angle can ruin edge alignment, throw off a corner, or force too much clamp pressure just to bring parts together.

helps keep dowel holes centered and more repeatable
supports shelf, cabinet, frame, and furniture assembly work
reduces the layout drift that causes ugly glue-up surprises
gives occasional woodworkers a sensible outsource path for a one-job bench tool

Why the design is worth noticing

The value here is not novelty. It is that the file supports a normal build-and-repair workflow readers already understand. Many people only need a dowel jig a few times a year, but when they need one, they need it immediately and they need it to be accurate enough to avoid ruining the actual workpiece.

That makes it a natural fit for Get this printed. It is small, job-specific, and easier to justify as an ordered helper than as another store-bought jig that may sit unused after one project.

Who gets the most value from it

This design is strongest for homeowners fixing loose furniture, woodworkers building shelves or boxes, landlords handling light repair work, and garage-shop builders making cabinets, benches, or utility fixtures where hidden alignment matters.

furniture repair and reinforcement
shelf and cabinet assembly
small shop fixtures and storage builds
repeatable edge-join and frame work

How to use the idea even if you never order the file

The larger takeaway is that dowel work should be treated like an alignment system, not just a drilling task. Before committing to the final boards, lock down three things:

reference faces: choose one face and one edge that stay consistent across both parts
test spacing: verify the first hole pair on scrap or offcut material before moving to finished parts
clamp plan: know how parts will be held during drilling and during glue-up so the setup does not shift between steps

That advice is useful whether someone prints this file, orders it, or uses a different jig entirely.

Printing and use notes

Check drill-bit size: the source file is tied to a specific dowel workflow, so verify the intended bit and dowel diameter before printing.
Prioritize dimensional accuracy: this is a guide tool, which means fit and hole location matter more than cosmetics.
Test on scrap first: one trial hole pair is cheaper than repairing a finished panel or rail.
Use the right clamping setup: even a good jig works better when the workpiece is held securely and reference edges stay consistent.

If you need a print service to make the file for you, JC Print Farm is the broader path for one-offs and small batches built from supplied models.

When ordering one makes sense

This file makes sense when a furniture repair, shelf build, or cabinet job is already on the bench and the cost of one bad alignment mistake is higher than the cost of getting a jig made correctly. It is especially credible for occasional woodworking jobs where the project matters more than owning a drawer full of dedicated joinery tools.

If you want this model made for you, use this quote link: Get this printed.

Ownership and print-offer note

The public Printables payload exposes `excludeCommercialUsage: false`, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.

Common questions

When is a dowel drill jig worth ordering instead of freehand drilling?

It is worth it when alignment matters enough that one crooked or offset hole will show up during glue-up, shelf assembly, or furniture repair. The more exact the mating parts need to be, the more the jig earns its keep.

What should you check before ordering one made?

Check the dowel sizes you use, drill-bit compatibility, stock thickness, and whether the jig is meant for edge-to-face, face-to-face, or repair-first work. Joinery helpers are only useful when the geometry matches the job in front of you.

When should you test one sample first?

Test a sample first if you are repairing visible furniture, matching an existing hole pattern, or building a batch of shelves where a tiny drift would repeat across every panel. That is the safer route when misalignment would waste material fast.

When is a printed jig not enough on its own?

A jig does not replace careful layout, clamping, or drill control. If the stock is warped, the reference edge is unreliable, or the assembly is already shifting, the jig helps less than people hope.
