Direct answer: ASA is the best first filament for exterior car clips that face direct sun, rain, road splash and parked-car heat; PETG is the easier choice for sheltered, inspectable, low-consequence helpers. Use neither as an automatic substitute for safety-critical, underhood, fuel, brake, lighting, sensor or structural retention hardware.
Recommendation: map the installed heat, UV, chemicals, flex cycles and release consequence before choosing a spool. Then qualify the final clip root, layer direction, seam, fastener stack and installed strain on the real vehicle. A better material cannot rescue a sharp notch, over-flexed latch or unsafe application.

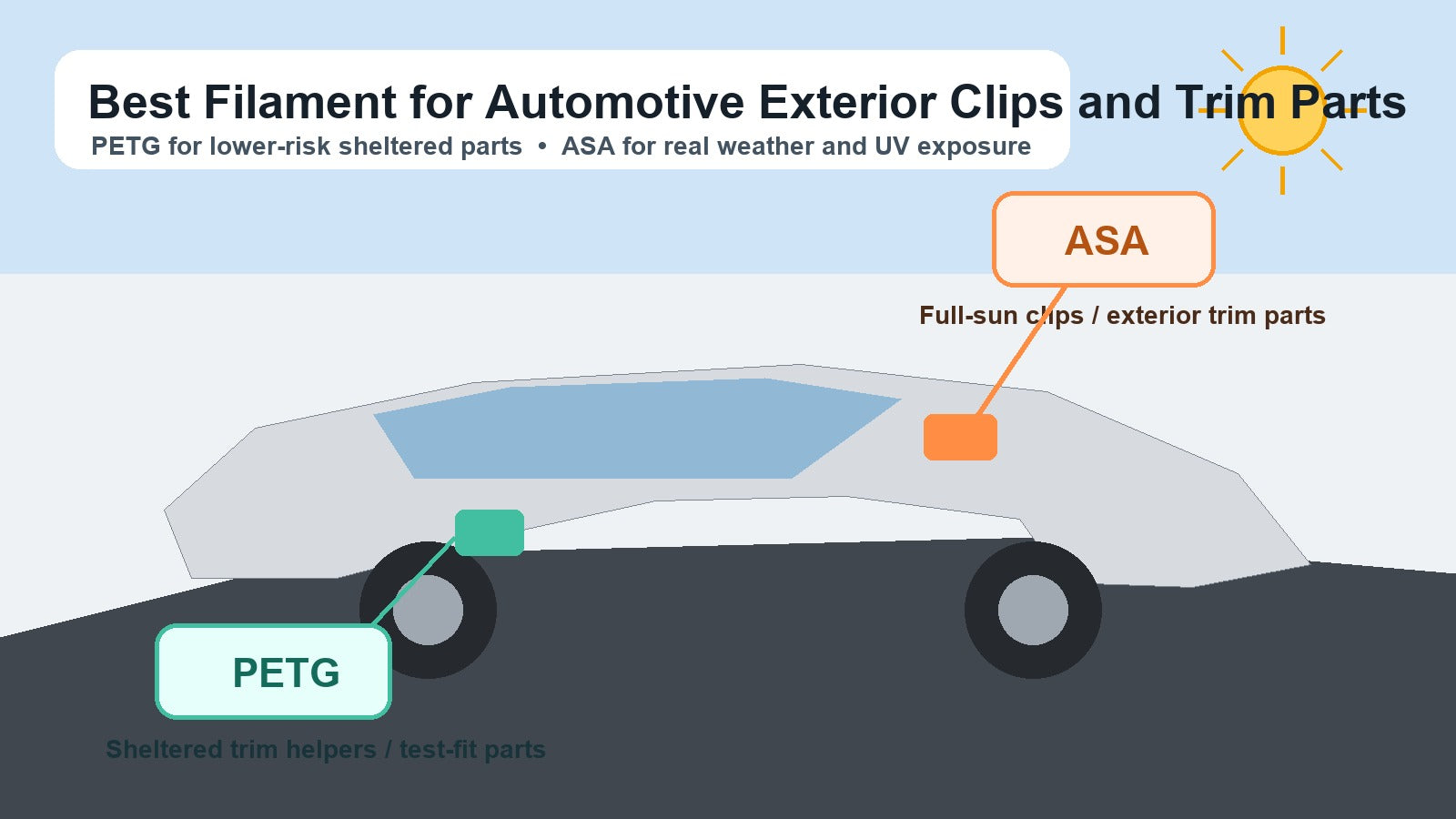

Exterior car clips: PETG vs ASA at a glance
| Installed job | Best starting point | Main tradeoff | Release gate |
|---|---|---|---|
| Direct-sun exterior clip or trim retainer | ASA | Cleaner UV and outdoor fit, but higher warp, enclosure and ventilation burden | Heat-soak, UV/weather, flex-cycle, vibration and installed-retention proof |
| Sheltered cable guide, spacer or easy-service helper | PETG | Easier printing and useful toughness, but creep and long outdoor exposure remain limits | Measured local temperature, retained load, inspection interval and cheap replacement |
| Temporary fit-check or routing mockup | PETG | Good for geometry proof, not evidence of permanent exterior life | Replace with the qualified final material or specified hardware after fit approval |
| Repeated-flex latch with meaningful retained load | Geometry-first review | Root radius, strain, layer direction, creep and fatigue can dominate the filament label | Cycle the installed part through credible worst-case heat and vibration |
| Safety, regulated, hot-underhood, fuel, brake or electrical-protection role | Specified/OEM hardware | Generic PETG or ASA data does not establish vehicle-system approval | Use the governing specification and qualified process |
Use a five-part release test
- Measure or conservatively bound the hottest installed location and direct-sun exposure.
- Print the final geometry with the intended orientation, seam, walls, radius and fastener stack.
- Install it without forcing the latch beyond its designed strain and record retention.
- Heat-soak, flex-cycle, vibrate and expose a spare to the real cleaner or road contaminant.
- Release only if fit, retention, cracks, whitening, creep and service access remain acceptable.
Use the automotive interior bracket guide for cabin parts, the snap-fit design guide when latch strain is primary, the PETG-versus-ASA enclosure guide for housings, and the replacement-part workflow when fit and repeatability need outside production.
Material boundaries were rechecked October 28, 2026 against Prusa's current ASA guide and PETG guide.
Source and disclosure: this is manufacturer-documented material and release guidance, not hands-on vehicle testing or approval for a safety-critical part. GoodPrints may earn a commission from qualifying links at no extra cost to you.
Exterior car clip FAQ
Is ASA always better than PETG for exterior car clips?
No. ASA is the better first choice for direct weather and sun, but PETG can be rational for a sheltered, inspectable, low-consequence helper. The installed environment and release test decide.
Can PETG survive outside on a car?
It can work in bounded sheltered locations, but do not infer permanent exterior retention from the material name. Check local heat, UV, creep, chemicals, vibration and replacement consequence.
Does ASA need an enclosure?
ASA usually benefits from a controlled enclosed workflow because warping and fumes are part of the process risk. Follow the exact grade and printer guidance and provide appropriate ventilation.
What fails first on a printed automotive clip?
Common weak points are the flex-arm root, a sharp notch, a seam or layer boundary in the opening load, excessive installed strain, heat-driven creep and repeated vibration.
Can a printed clip replace an OEM fastener?
Only after the application, governing requirements and complete installed proof support it. Use specified hardware for safety, regulated or consequential retention.
What should you test before installing a batch?
Test final fit, insertion force, removal, retained load, heat soak, flex cycles, vibration, cleaner or contaminant exposure, creep and service access on representative parts.
Run a five-question exposure audit first
- How much direct sun does the installed part receive? A clip behind a shaded liner is not the same job as a black bracket on a roofline or mirror housing.
- What is the hottest real parked condition? Measure or conservatively bound the location, not the weather forecast. Dark paint, glass, confined cavities, and engine-adjacent zones can make local conditions more severe.
- Does the part flex only during installation or during every use? A one-time snap is a different fatigue problem from a latch, cover, or cable retainer that cycles repeatedly.
- What happens if the part loosens? Cosmetic misalignment is not equivalent to a loose sensor, lamp, cable, splash shield, or road-facing component.
- How hard is replacement? A visible clip that takes two minutes to swap can justify less material margin than a hidden retainer that requires panel removal and adhesive cleanup.
If the answers point to direct sun, sustained heat, weather, high reinstall cost, and meaningful consequences, ASA is the better of these two materials. If the location is sheltered, cool enough, easy to inspect, and cheap to redo, PETG remains a defensible choice.
What current material guidance does and does not prove
Prusa's PETG material guide describes PETG as inexpensive, beginner-accessible, tough, temperature-resistant, and suitable for mechanical parts indoors and outdoors. That supports PETG as a sensible utility material, especially for sheltered or replaceable vehicle helpers. It does not say that every PETG grade, color, profile, or printed orientation is qualified for permanent automotive exterior service.
Prusa's ASA material guide positions ASA for outdoor use because of UV and temperature resistance. It also calls out significant warping and potentially dangerous fumes, with printing in a well-ventilated area. That is why ASA can be the better installed material and still be the wrong workshop choice if the printer, enclosure, ventilation, or operator process is not ready for it.
Neither guide converts a filament family into an OEM clip specification. Brand formulation, pigmentation, moisture, print temperature, chamber conditions, wall layout, seam placement, layer orientation, and conditioning all affect the actual part. Use manufacturer guidance for the exact spool and printer as the process starting point, then qualify the geometry that will be installed.
Clip geometry can overpower the material choice
Protect the root of the flexing arm
A sharp inside corner at the clip root concentrates strain exactly where an FDM part is most likely to crack. Use a generous transition, avoid an abrupt thickness step, and keep the arm long enough that installation flex is distributed rather than forced into one short hinge point. Copying the outside silhouette of an injection-molded clip without understanding its material and mold-flow behavior is not enough.
Orient the layers for the real opening load
A clip can look strong in CAD while its layer interfaces are aligned with the splitting direction. Review how the arm bends during installation, how the hook is loaded after engagement, and whether the base is being peeled from the mounting face. Print a sacrificial sample in the intended orientation and break it deliberately before trusting a batch.
Control the installed strain
If the arm must be forced far past its natural position to engage, changing PETG to ASA may only delay failure. Check lead-in angle, hook depth, root radius, arm length, wall layout, and the actual mating-panel thickness. A small clearance matrix is more useful than changing several slicer settings together.
Keep seams and defects out of the high-strain zone
Seams, under-extrusion, wet-filament artifacts, and support damage can become crack starters. Inspect the root and hook with good light. Reject a part with voids or whitening before installation rather than treating it as a free test of long-term durability.
When PETG is still the smarter buy
PETG makes sense when the part is sheltered enough that ASA's outdoor advantage does not solve a real failure mode. It is also useful for early fit and routing work because you can iterate without turning every geometry change into an ASA process-control exercise. Good PETG candidates include protected cable guides, noncritical spacers, temporary trim helpers, and test-fit parts that will be replaced by a final version after the interface is proven.
Do not choose PETG merely because it printed cleanly. Choose it because the exposure audit, consequence, and service plan show that its easier workflow is sufficient. For a broader housing decision, use the PETG-versus-ASA enclosure guide. For parts inside the cabin, use the separate automotive interior brackets guide, where weather and UV are not the same dominant constraints.
When ASA earns the harder workflow
ASA earns its place when the part is genuinely exposed and a redo is more expensive than the filament difference. Mirror and cowl helpers, roofline trim pieces, weather-facing covers, body-side clips, outdoor-parked fleet parts, and brackets that must retain shape in sun are the clearest lane. The value is not that ASA makes an FDM clip indestructible; it is that the material choice matches the environment more honestly.
An enclosure and ventilation solve different problems. The enclosure controls drafts and thermal gradients that promote warping. Ventilation manages occupied-air risk. Do not seal the printer for dimensional control and then assume the room-air problem disappeared. If the workspace cannot support the process responsibly, use PETG only where it truly meets the job, outsource the ASA part, or use the correct manufactured replacement.
Separate weather resistance from chemical and flex-cycle approval
Buyer rule: ASA is still the cleaner default for direct sun and weather, but that does not certify an exterior clip for road brine, wash detergent, wax, washer fluid, bug remover, fuel, oil, or another exact automotive chemical. PETG's easier printability and useful toughness do not certify repeated snap cycles either. Treat environmental survival and clip-cycle survival as two separate release gates.
| Question | What the material guides support | What still needs proof |
|---|---|---|
| Will it tolerate sun and exterior weather? | Prusa describes ASA as an outdoor material because of UV and temperature resistance; its PETG guide also allows indoor and outdoor mechanical parts. | The exact color, grade, print orientation, wall design, installed strain, peak location temperature, and service interval. |
| Will it survive the exact splash or cleaner? | Neither family-level page certifies a printed clip for a named vehicle fluid, concentration, temperature, contact time, or repeated wash cycle. Prusa also notes that ASA dissolves in acetone. | Compatibility evidence for the exact grade and fluid, or a representative coupon cycle that checks swelling, softening, cracking, whitening, mass, dimensions, and retained flex. |
| Will the clip survive repeated installation or vibration? | Generic toughness, UV resistance, or outdoor suitability is not a fatigue-life rating. | A representative clip-root geometry, print direction, insertion depth, mating surface, cycle count, vibration exposure, retention check, and replacement rule. |
For a low-risk helper, test coupons and a complete printed sample made from the same spool, color, settings, orientation, and post-processing planned for service. Expose them to the real cleaner or splash cycle at a representative temperature, rinse or dry them as the vehicle will, then remeasure and repeat the actual insertion, removal, and retention check. A good-looking coupon is not enough if the clip root has lost stiffness or the installed part no longer holds its load.
Stop condition: use the specified OEM or qualified part when exposure includes fuel, brake chemicals, battery electrolyte, hot underhood fluids, an unknown solvent, or when release could affect a lamp, sensor, visibility, road clearance, body retention, or another safety-relevant function. This guide cannot turn a generic material family into vehicle-fluid approval.
Set a retention requirement before choosing filament
A clip is not qualified because it snapped into place once. Before choosing PETG or ASA, define what the installed part must retain, how far it may move, how many planned service cycles it must tolerate, and what happens if it releases. Then test the printed geometry in the actual mating interface after realistic heat, sun, moisture, and vibration exposure.
| Clip job | Release gate | Material decision |
|---|---|---|
| Locator, spacer, or cosmetic cover helper | Record mating dimensions, permitted rattle or gap, and hot-exposure drift. Recheck after the part reaches the installed environment rather than only after bench cooling. | PETG can fit a sheltered, visible, replaceable job. Direct sun, weather, hidden inspection, or costly rework moves the first choice to ASA. |
| Serviceable snap clip | Define the planned install-removal cycles and an acceptable insertion, retention, and removal window. Reject whitening, root cracks, permanent opening, or a force trend that moves outside that window. | Use the separate snap-fit material and geometry guide for repeated flex. ASA's outdoor fit does not automatically make it the better flexing grade. |
| Loaded cable, sensor, splash, or vibration retainer | Test with the real supported mass, routing tension, fastener stack, temperature range, water path, and representative vibration. Re-measure retained position and removal force after exposure. | ASA is the better environmental screen for exposed duty, but use a specified manufactured fastener when release can damage a cable, sensor, lamp, panel, tire, or road user. |
| High-consequence or regulated retention | Require the governing specification, traceable material, validated process, inspection plan, and appropriate engineering approval. | Neither generic PETG nor generic ASA is a default approval. Brakes, steering, restraints, lighting compliance, fuel, high heat, electrical protection, and road-facing release need the correct rated solution. |
There is no universal retention-force number for every clip. The useful number comes from the actual mating panel, supported item, service schedule, environment, failure consequence, and an OEM or engineering requirement. Save the exact filament grade, color, moisture condition, printer, orientation, profile, dimensions, exposure, and force measurements with the accepted revision so a later spool or process change cannot silently inherit approval.
Qualify the installed part before releasing a batch
- Print the real interface. Include the clip arm, hook, root, mounting face, panel thickness, and nearby clearance. A generic tensile coupon does not expose the same failure mode.
- Measure after cooling and conditioning. Record the critical hook, slot, base, and mating dimensions instead of accepting a part because it snaps in once.
- Perform a controlled install and removal check. Watch for whitening, root cracks, permanent opening, layer separation, hook damage, or excessive force. Do not repeatedly force a marginal design and call the surviving sample qualified.
- Expose a spare sample to the realistic environment. Use a safe, controlled heat, sun, water, and vibration plan that represents the location without creating a new hazard. Recheck fit and retained load after the exposure.
- Inspect the installed part on a schedule. Early service checks should look for looseness, distortion, cracking, rubbing, and damage to the mating panel. Define replacement criteria before the part disappears behind trim.
- Repeat across the intended process. A batch needs consistent spool condition, printer, orientation, profile, inspection, and acceptance rules. One unusually good print is not process capability.
This is a screening workflow, not a universal automotive certification. If failure could release a road-facing part, harm wiring or sensors, reduce visibility, or create injury or property damage, move to OEM hardware or a professionally qualified design and material system.
Buyer verdict
- Buy PETG for sheltered, low-risk, replaceable helpers and fit-validation parts when the exposure audit supports it.
- Buy ASA for true exterior sun and weather exposure when you have an enclosed, ventilated workflow and will qualify the installed geometry.
- Buy neither by default for critical retention, regulated systems, underhood heat, fuel or chemical exposure, electrical protection, or any failure with meaningful road-safety consequences.
- Redesign before changing spools when the clip root is sharp, layer direction is wrong, engagement is excessive, or the mating dimensions are unproven.
Exterior car clip FAQ
Is PETG okay for exterior car clips?
It can be okay for semi-sheltered, low-consequence clips and helpers that are easy to inspect and replace. Direct sun, high local heat, long weather exposure, or difficult service pushes the decision toward ASA or a manufactured replacement.
Is ASA always better than PETG for car trim?
No. ASA is the stronger environmental match for true exterior exposure, but it adds warping and ventilation requirements. PETG can be the smarter workflow when the part is sheltered and low risk. Neither material fixes a bad clip design or establishes OEM equivalence.
Can a printed clip replace an OEM automotive fastener?
Sometimes a printed helper or temporary fit part is reasonable, but a critical retention fastener needs the correct specification and proof. Use OEM-rated hardware when release could affect a panel, lamp, sensor, cable, splash shield, visibility, or road safety.
Does ASA need an enclosure?
ASA benefits from controlled ambient conditions because warping is a major process risk. An enclosure does not replace ventilation; follow the exact printer and filament safety guidance for the workspace.
What should I test first?
Test the real clip root, hook, layer orientation, mating-panel thickness, installation strain, and post-exposure fit. A successful first snap on the bench is only the beginning of the decision.
Bottom line
ASA is the better default for a real weather- and sun-exposed exterior car clip; PETG is the sensible choice for a sheltered, replaceable helper. The permanent decision still depends on consequence, local heat, clip geometry, print orientation, process control, and installed validation. When failure matters, the right answer is often the specified manufactured fastener rather than a more ambitious filament.
