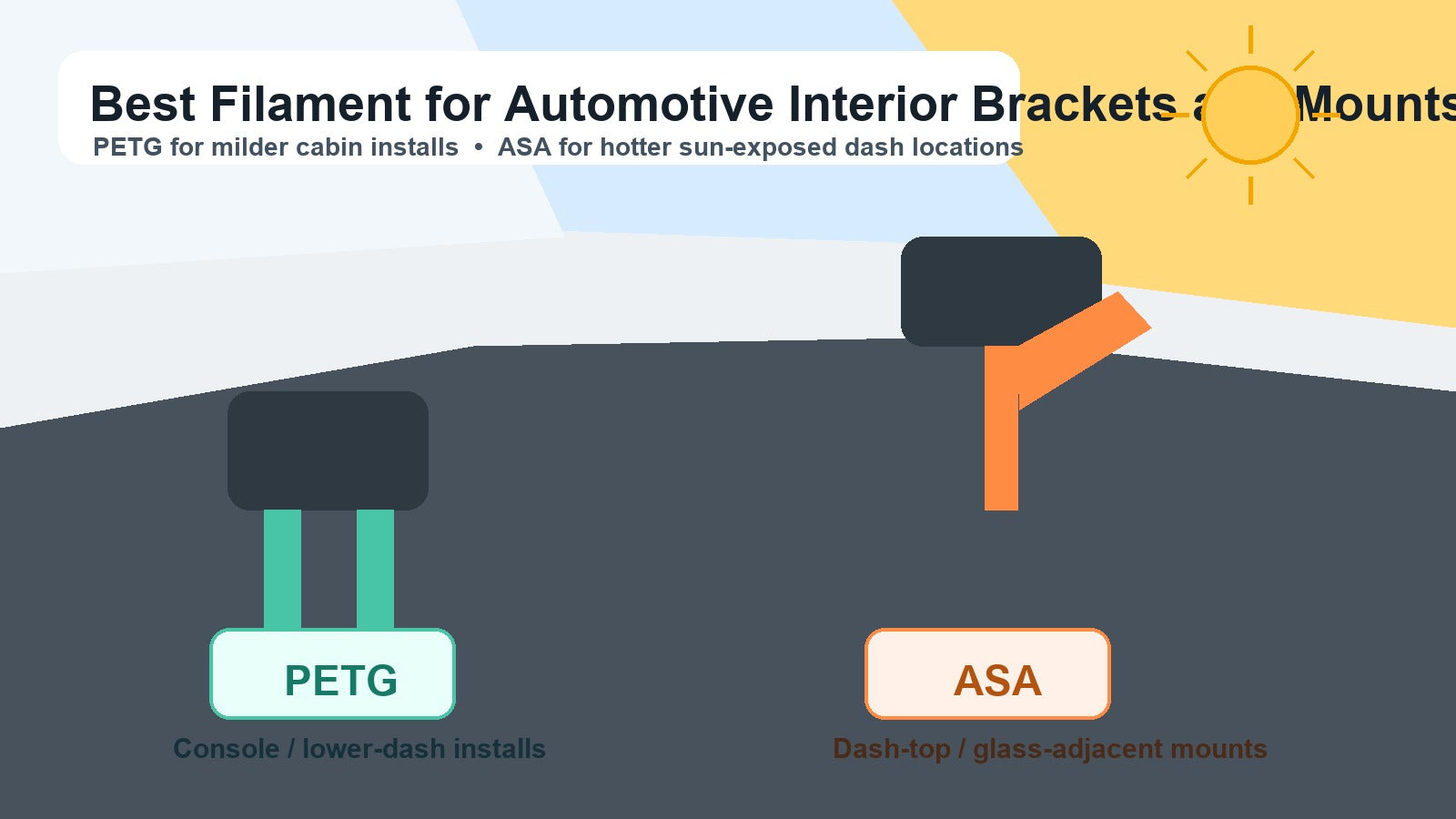

Direct answer: use PETG for shaded, lightly loaded car-interior brackets that are easy to inspect and replace; use ASA for dashboard or rear-glass sun, repeated parked-car heat, sustained bending load, hidden installation, or costly trim removal. ASA supplies the better heat-and-UV margin of these two families. PETG supplies the easier workflow when the actual cabin zone and load never use that margin.
Recommendation: choose from the installed zone, not a generic cabin temperature. Record direct sun, local surface heat, load duration, lever length, fastener or adhesive, vibration, cleaners, inspection access, and failure consequence. Then heat-soak and cycle the complete assembly in a safe representative setup; a spool data point does not rate the bracket.
The material label cannot qualify the installed part. A car-interior bracket is a system made from the printed body, layer direction, fastener or adhesive, vehicle trim, device mass, cable pull, vibration, temperature cycles, cleaners, and service access. A thick PETG console clip can outlast a thin ASA cantilever. A clean ASA print can still fail if a screw boss relaxes, an insert pries layers apart, or the attachment damages trim.
Evidence boundary: GoodPrints did not hands-on test a particular spool, vehicle, bracket, adhesive, fastener, exposure cycle, or load for this page. Current manufacturer guidance supports the broad material tradeoff; it does not certify an exact automotive part, safe placement, temperature limit, load rating, or service life.
Affiliate disclosure: GoodPrints may earn a commission from qualifying purchases through the Amazon link on this page.
PETG or ASA? Compare the installed job
| Installed job | First material | Why | Proof or stop condition |
|---|---|---|---|
| Fit prototype removed after checking holes, trim, and cable routing | PETG | The easier workflow keeps iteration efficient. | A short fit check does not qualify a part left in the car. |
| Shaded console, footwell, under-seat, or cargo-side holder with low load | PETG | Low sun, short load path, and easy inspection reduce the environmental demand. | Retire it if fit, clamp force, flatness, or hole shape changes after hot cycles. |
| Upper-dash, rear-deck, or windshield-adjacent bracket left installed | ASA | Direct sun, hot surfaces, and repeated thermal cycles make shape retention more important. | Use the narrower dashboard-mount proof if it carries a phone, display, GPS, camera, or scanner. |
| Fleet module, sensor, cable, or control bracket behind trim | ASA when service heat is uncertain | Hidden drift, trim labor, and repeat downtime can cost more than the harder print workflow. | Freeze the accepted process and define inspection and replacement rules. |
| Airbag, restraint, steering, pedal, brake, visibility, battery, or high-current safety function | Neither by default | A general filament comparison cannot establish crash, electrical, fire, or vehicle-system safety. | Use approved hardware and consequence-appropriate engineering. |
Fingerprint the job before choosing a filament
The canonical decision is automotive interior bracket or mount + cabin heat, sun, vibration, sustained load, and service access + choose PETG or ASA. “Car part” is too broad. Record the exact zone, load, attachment, and failure consequence before comparing print settings or spool prices.
- Map the cabin zone. Separate dash top, windshield edge, rear deck, and dark sun-facing trim from console, footwell, under-seat, door-pocket, and cargo-side locations.
- Record what stays loaded. Include the device, module, wiring, connector force, cable pull, clip deflection, fastener preload, and distance from the bracket root.
- Name every temperature cycle. Count outdoor parking, defroster or heater airflow, vent proximity, seasonal cold, and cool-down before handling.
- List repeated motion. Road vibration, door closure, seat movement, cable service, adjustment, clip removal, and trim flex can turn a static-looking bracket into a fatigue job.
- Define the attachment. Screws, inserts, clips, adhesive pads, suction systems, factory holes, and trim interfaces each create a different first failure.
- Define failure before printing. Cracking is only one failure. Angle drift, rattling, loose retention, oval holes, peeled adhesive, damaged trim, blocked airflow, and a pinched cable all count.
- Price replacement access. A visible console clip and a hidden bracket behind an instrument panel should not share the same proof burden.
What current material guidance actually supports
Prusa's current PETG guide describes PETG as a technical material used for mechanical parts and says parts are suitable for interior and most exterior use below 80 C. That is useful family-level evidence for serviceable lower-cabin brackets. It is not a universal rating for every PETG brand, pigment, layer direction, thin arm, fastener interface, dashboard surface, or parked vehicle.
Prusa's current ASA guide positions ASA for outdoor technical parts because of UV and temperature resistance and describes temperature resistance up to 93 C. The same guidance warns about significant warping, high print temperatures, and potentially dangerous fumes. ASA therefore earns its place when the installed environment uses the extra margin, but it also requires a controlled printer and occupied-air plan.
The exact OVERTURE ASA linked on this page has separate instructions. OVERTURE's current product page lists a 240-270 C nozzle range, 70-95 C bed range, 30-50 mm/s print speed, fan off, 75 C for seven hours of drying, and an enclosed-printer requirement. Treat those as product-specific starting points. They do not qualify a finished car bracket and should not be copied to another ASA spool without checking its current instructions.
Choose PETG for cooler, visible, serviceable jobs
PETG is the efficient first choice when the bracket stays shaded, carries a modest load close to its base, and can be inspected without removing major trim. Console switch panels, low-mounted cable retainers, under-seat organizers, removable fit prototypes, and cargo-side holders are better PETG candidates than sun-facing device arms.
Use PETG's workflow advantage deliberately. Iterate hole positions and trim clearances, shorten the load path, add local walls around screws, and prove installation before committing to the final batch. If the location later proves hotter, the bracket remains bent under load, or replacement requires more labor than expected, reclassify the job instead of defending the first material choice.
Watch for slow movement rather than waiting for fracture. Measure hole spacing, clip opening, flatness, and device or module position before installation. A bracket that returns warm with retained bend, reduced clamp force, a loose insert, or an elongated hole has failed even if it still looks intact.
Choose ASA when heat, sun, and replacement labor dominate
ASA is the stronger default for dash-top, windshield-edge, rear-deck, sun-facing pillar, and fleet installations that remain in the vehicle through repeated outdoor parking. It also makes sense for hidden brackets when a small amount of heat-related drift would cause rattles, misalignment, wiring strain, or another expensive teardown.
Do not treat ASA as a design repair. A long arm still multiplies load at the root. A thin socket can relax. A screw can split layers. An adhesive can peel while the printed base remains sound. A dark part against a dark sun-loaded surface can experience harsher local conditions than the measured cabin air. The entire attachment and load path still require proof.
ASA changes the shop side of the decision too. Use the ASA enclosure guide for draft and warp control. An enclosure and ventilation solve different problems: one controls the print environment; the other addresses occupied-air exposure. Follow the filament maker's SDS and current handling instructions.
Keep this page distinct from nearby car-material decisions
- Phone, GPS, display, camera, or scanner arm high on the dash: use the dashboard-mount PETG-versus-ASA guide because device mass, cantilever leverage, sightlines, aiming joints, and release toward an occupant become the core system.
- Any unrelated printed item stored in a parked vehicle: use the hot-car material guide for the broader exposure question.
- Clips or trim on the vehicle exterior: use the automotive exterior clips and trim guide because weather, road debris, wash chemicals, and outside UV change the service condition.
- General functional parts outside vehicles: use the functional PETG-versus-ASA comparison rather than importing the car-specific answer into every application.
Design the load path before increasing infill
Shorten the lever and support the root
Move the supported object closer to the mounting plane when possible. Add broad transitions, fillets, ribs, or a second support point rather than leaving one thin neck to carry the moment. Keep decorative openings and seams away from the primary load path.
Orient layers for the installed force
A bracket can print cleanly while the installed load peels layers apart at the root or screw boss. Review bending, fastener clamping, clip opening, and removal separately. The functional-part orientation guide explains the broader tradeoff, but the real bracket still needs an orientation-specific proof.
Use walls and local structure before random infill
More infill does not automatically strengthen a thin boss, sharp corner, weak socket, or poorly oriented root. Prioritize appropriate walls, smooth transitions, and local material where force enters the print. Use the wall-thickness and perimeter guide for the slicer-side decision.
Qualify fasteners, inserts, clips, and adhesives separately
A heat-set insert can loosen, a self-tapping screw can split a boss, a printed clip can lose force, and an adhesive can peel or damage trim. Check installation damage, torque, local wall thickness, hot-cycle movement, removal, and what lies behind the attachment point. The heat-set insert material guide covers that narrower interface.
Run an eight-step installed bracket proof
- Freeze the candidate. Record filament brand, product, color, lot, dry state, printer, profile, orientation, walls, seam, hardware, attachment, vehicle, and cabin location.
- Inspect the cooled print. Reject under-extrusion, cracks, voids, warped bases, damaged clips, loose inserts, distorted holes, or support damage at a loaded face.
- Measure the unloaded geometry. Record hole spacing, base flatness, clip opening, arm angle, connector alignment, and critical clearances.
- Install safely while stationary. Confirm that the bracket does not affect airbags, restraints, pedals, steering, controls, visibility, vents, wiring, occupant movement, trim service, or sharp-edge exposure.
- Apply the representative load. Include the heaviest device or module, case, connector, cable pull, fastener preload, and normal adjustment or service motion.
- Expose a spare or safely parked assembly. Use representative normal sun and temperature cycles. Do not use a household oven, unattended heater, occupied closed vehicle, or a test that endangers people, pets, electronics, batteries, or the vehicle.
- Cool, unload, and remeasure. Check retained bend, hole growth, clip relaxation, insert movement, cracks, adhesive lift, surface damage, rattles, and alignment drift.
- Repeat and define retirement. One cycle proves little about long service. Establish inspection intervals and reject permanent movement, looseness, whitening, cracks, damaged trim, unsafe placement, or changed cable routing.
For fleet, customer, or repeat production, lock the accepted file, material, supplier, lot controls, printer, profile, orientation, hardware, installation, inspection, and replacement rule. If that proof burden costs more than the part is worth, compare ownership with a qualified print-service workflow.
Failure diagnosis: identify the first weak link
| Observed change | Check first | Decision |
|---|---|---|
| Arm or bracket keeps a new angle after a hot day | Cabin zone, sun, sustained load, lever length, root geometry, and material family | Shorten and support the load path; move from PETG to ASA only after identifying the heat-margin problem. |
| Hole grows or screw loosens | Preload, boss walls, washer or insert support, layer direction, and hot-cycle relaxation | Redesign the interface and repeat the installed proof; do not solve it with torque alone. |
| Clip loses retention without cracking | Required deflection, dwell time, layer direction, heat, and number of service cycles | Reduce permanent strain or choose a different clip or hardware strategy. |
| Bracket stays sound but adhesive lifts | Exact adhesive, trim material, surface prep, base curl, edge peel, heat, and removal requirements | Treat attachment as the failure; a stronger filament does not qualify the adhesive. |
| Crack starts at insert, screw, or sharp corner | Installation damage, stress concentration, local walls, seam, and layer opening force | Repair geometry and process before changing the whole material family. |
Safety and use limits
- Do not infer vehicle approval. A printable bracket is not certified for crash, restraint, airbag, steering, braking, pedal, visibility, battery, fuel, high-current electrical, or fire-safety service.
- Protect occupants and controls. Avoid sharp projections, blocked sightlines, blocked vents, pinched wiring, loose devices, and any placement that can interfere with normal operation or airbag deployment.
- Protect the vehicle. Do not drill, screw, bond, or heat near hidden wiring, airbags, ducts, modules, batteries, fuel systems, or structural parts without qualified information.
- Control printing exposure. Follow the current filament SDS and manufacturer guidance. An enclosure does not automatically provide occupied-air ventilation.
- Do not invent temperature ratings. Source guidance is material- or product-specific. Printed geometry, color, orientation, load, time, and local vehicle surfaces can change the result.
- Use a fail-safe. If release could injure someone, damage controls, short wiring, block vision, or create a loose object, use approved hardware and a consequence-appropriate backup.
Frequently asked questions
Should a hidden trim bracket use ASA even when it is shaded?
Often, but not automatically. Hidden placement increases replacement labor and reduces inspection access, so extra heat margin can be valuable. The actual load, local heat, clip geometry, layer direction, fastener, and trim interaction still need proof.
Can ASA save a bracket whose tape or fastener fails in heat?
No. The printed body, adhesive, screw boss, insert, clip, and vehicle trim are separate failure points. Qualify the whole attachment system at the installed temperature and load instead of upgrading only the filament.
How long should an installed car-bracket proof run?
Long enough to reproduce the meaningful heat soak, cool-down, vibration, handling, and sustained-load cycles of the job. Inspect position, creep, cracks, attachment movement, trim damage, and release behavior before approving repeat use.
Is PETG good enough for car interior brackets?
Often yes for shaded console, footwell, under-seat, door-pocket, and cargo-side brackets with low sustained load and easy inspection. It is a weaker default near hot glass, on the dash top, or behind trim where small movement creates expensive service.
Should every car bracket be ASA?
No. ASA earns its harder workflow when sun, heat, sustained load, hidden installation, or replacement cost uses the extra margin. PETG remains the more efficient choice for many cooler, visible, serviceable helpers.
Is a dashboard phone mount covered by this answer?
Use the dedicated dashboard-mount guide. A phone or display arm adds device mass, cantilever leverage, aiming joints, sightline risk, and release toward occupants, making it a narrower and higher-consequence system.
Does more infill stop heat creep?
Not by itself. Material, temperature, time, load, lever length, walls, orientation, root shape, bosses, inserts, and attachment all matter. Fix the load path and prove the installed geometry.
Can PLA be used for a temporary fit check?
It can be useful for a short, supervised geometry check outside harsh cabin heat. Do not leave the prototype installed or turn a successful fit check into a service claim.
Bottom line
Choose PETG for shaded, lightly loaded, visible car-interior brackets that are cheap to inspect and replace. Choose ASA when repeated sun and parked heat, sustained load, hidden installation, or service labor makes slow movement unacceptable.
Then qualify the whole system: printed body, orientation, fastener or adhesive, trim interface, device or cable load, temperature cycles, vibration, inspection, and retirement. Material family is the first gate, not the finished proof.
Official manufacturer sources
- Prusa PETG material guidance for mechanical-use and below-80-C family-level context.
- Prusa ASA material guidance for UV, temperature, warping, print-temperature, and fumes context.
- OVERTURE ASA product guidance for the exact linked spool's current print, drying, fan, and enclosure instructions.
