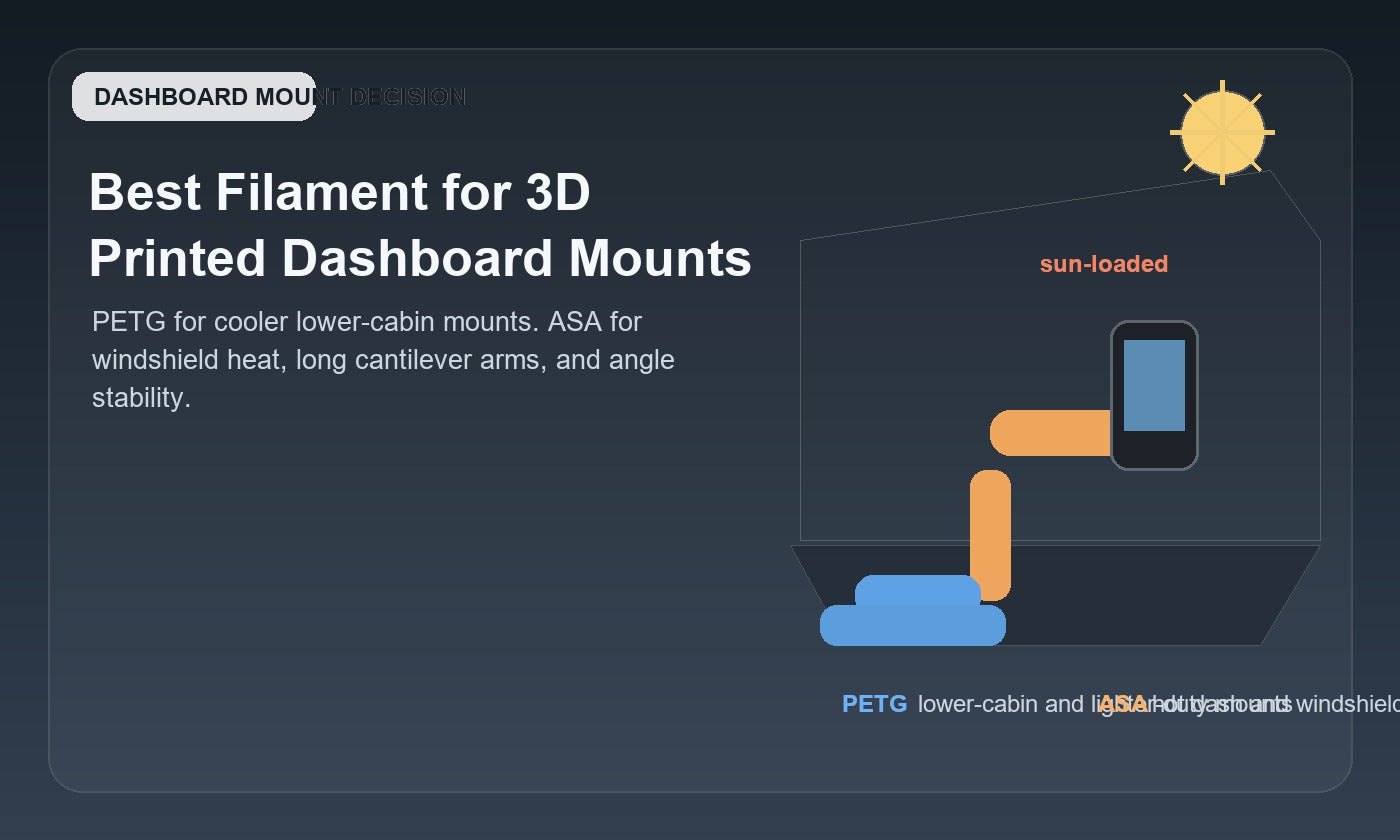

Direct answer: choose ASA for a 3D printed dashboard mount that sits near the windshield, remains in the vehicle while parked, or must hold its aim through repeated summer heat. Choose PETG for a shaded lower-cabin or center-console mount with a short arm, light device, easy inspection, and low-cost replacement. Use neither as an automatic answer for a mount that can obstruct the windshield, interfere with airbags or controls, release a heavy device toward an occupant, or create another safety or legal problem.
The material name is only the first decision. A dashboard mount is a system made from the printed base, arm, joint, fasteners or adhesive, vehicle surface, device mass, cable pull, vibration, sun exposure, and installation position. ASA provides the better heat and UV margin of these two families. It does not rescue a long weak cantilever, poor layer direction, undersized joint, unqualified adhesive, or unsafe placement.
Editorial scope: GoodPrints did not hands-on test a particular spool, vehicle, dashboard, adhesive, fastener, device, print orientation, or parked-car exposure for this page. Current manufacturer guidance supports the broad PETG-versus-ASA boundary, but it does not certify an exact mount. Check the current data for the exact filament and every component in the installed system.
Affiliate disclosure: GoodPrints may earn a commission from qualifying purchases made through the Amazon link on this page.
PETG vs ASA for dashboard mounts: the fast decision
| Mount job | Best first choice | Why | Stop condition |
|---|---|---|---|
| Temporary fit prototype removed after evaluation | PETG | The easier workflow can make sense while geometry is still changing. | Do not mistake a short fit check for parked-car qualification. |
| Shaded lower-console switch or cable holder with little leverage | PETG | Lower heat, low mass, short reach, and easy replacement reduce the demand. | Move away from PETG if the real location gets hotter or the part carries a sustained bending load. |
| Phone, GPS, display, scanner, or camera mount high on the dash | ASA | Windshield sun, parked heat, device mass, vibration, and visible angle drift make heat margin important. | Redesign if the arm is long, the joint slips, or placement affects sightlines, controls, or occupant safety. |
| Fleet or work-vehicle mount left installed through daily outdoor parking | ASA, then qualify the system | Repeat exposure and downtime make reproducibility, inspection, and replacement rules as important as material family. | Do not claim a service life from one successful print or one hot day. |
| Airbag-adjacent, windshield-obstructing, sharp, overhead, or high-consequence device mount | Neither by default | A generic filament recommendation cannot establish crash safety, legal placement, retention, or a rated assembly. | Use compliant, vehicle-appropriate hardware and qualified review. |
Why a dashboard mount is not just another car bracket
The top of a dashboard can receive direct solar load through the windshield while the vehicle is closed and stationary. That is a different service condition from a door-pocket clip, under-seat organizer, or shaded console bracket. The visible problem is often not a dramatic break. It is slow deformation: the arm drops, a ball-joint socket loosens, a base curls, the device starts shaking, or an adhesive pad peels because the printed backing no longer stays flat.
Device position multiplies the demand. The same phone or display produces more turning force at the mount root when it sits farther from the base. A cable pulled sideways can add a steady off-axis load. Road vibration and repeated adjustment add cycles. Dark filament, a dark dashboard, and a windshield-adjacent location can also create a harsher local condition than the cabin-air number suggests.
The car-interior bracket guide owns broader cabin brackets and mounts. The hot-car material guide covers parts left anywhere in a parked vehicle. This page remains narrower: device mounts on or near the dashboard where cantilever leverage, aiming, vibration, sightlines, and slow angle drift decide whether the part remains useful.
Run a seven-question exposure and consequence audit
- Where is the mount? Separate upper dash and windshield-adjacent positions from shaded console, footwell, seat-base, or lower-trim locations.
- Does it remain installed while parked? A mount removed with the device avoids some sustained load, but its base may still remain in the hottest location.
- What is the heaviest real device? Include case, cable, adapter, microphone, scanner head, camera, or other accessory rather than using the bare-device mass.
- How far is the device center from the base? A longer arm increases leverage at the root, joint, screws, inserts, adhesive, and dashboard interface.
- How is it attached? Adhesive pads, suction systems, screws, clips, vent interfaces, and vehicle-specific fasteners have different heat, surface, and removal limits.
- What movement is normal? Include road vibration, potholes, repeated aiming, cable tugging, control use, door closure, and the chance that someone grabs the mount while entering the vehicle.
- What happens if it moves or releases? A lightweight cable guide is not the same as a display blocking controls, a camera changing aim, or a device becoming a sharp loose object.
If the audit shows upper-dash sun, outdoor parking, a heavy device, long reach, frequent adjustment, hard-to-inspect attachment, and meaningful consequences, ASA is only the starting material choice. Shorten and strengthen the system, qualify the attachment, test representative samples, and use a replacement rule. If the audit shows shade, little leverage, low mass, easy inspection, and cheap replacement, PETG is usually the more efficient lane.
What current material guidance supports
Prusa's current PETG guide describes PETG as a printable technical material for mechanical parts and says its parts are suitable for interior and most exterior use at temperatures below 80 C. That supports PETG for many ordinary brackets, clamps, and serviceable lower-cabin helpers. It does not certify every PETG formulation, pigment, orientation, geometry, or dashboard location up to one universal temperature.
Prusa's current ASA guide positions ASA for outdoor technical parts because of UV and temperature resistance, describing temperature resistance up to 93 C in its material guidance. It also warns about significant warping, high print temperatures, and potentially dangerous fumes. That combination explains the buyer tradeoff: ASA is usually the better installed-material match near the windshield, but it demands a more controlled print and responsible ventilation.
The exact OVERTURE ASA linked on this page has its own current workflow. OVERTURE's product page lists a 240-270 C nozzle range, 70-95 C bed range, 30-50 mm/s print speed, fan off, 75 C for seven hours of drying, and an enclosed-printer requirement. Those are product-specific starting points, not universal ASA settings and not evidence that a finished dashboard mount is qualified.
Choose PETG for cooler, serviceable mount jobs
PETG is the sensible first choice for a short, shaded, lightly loaded mount that stays away from the windshield and can be inspected or replaced without consequence. Console switch panels, cable retainers, removable fit prototypes, and lower-cabin holders are better PETG candidates than a long phone arm on the dash top.
Do not upgrade the material before checking the load path. A compact PETG cradle can be a better complete design than a thin, decorative ASA arm. Record the actual location, shorten the reach, support the device close to the base, and keep the attachment visible. If PETG begins to retain an angle after unloading, the joint grows loose, the base is no longer flat, or the fit changes after hot parking, retire it rather than waiting for a full release.
Moisture and process variation still matter. Use the exact spool maker's current profile and drying guidance; the PETG dryer decision owns that workflow. For the broad material-family choice outside vehicles, use the functional PETG-versus-ASA guide.
Choose ASA when windshield heat is normal service
ASA earns its extra process cost for a mount that remains high in the cabin, receives direct sun, holds a device through repeated parking cycles, or must keep a stable viewing or camera angle. It is also the more honest starting point for outdoor-work vehicles where the mount is part of a repeatable fleet setup.
ASA does not make every dashboard idea sensible. A long arm can still creep. A thin socket can relax. A seam or layer interface can split. An adhesive can fail even if the printed base remains intact. A dashboard surface can be damaged by the wrong attachment. The exact device, vehicle surface, mount design, installation method, and consequence still control the decision.
ASA also changes the shop requirements. The ASA enclosure guide owns the printing decision. An enclosure controls drafts and thermal gradients; ventilation addresses occupied-air risk. They are related controls, not substitutes for each other.
Design the base, arm, joint, and attachment together
Keep the device close to the base
Reduce the cantilever before adding more material. A shorter arm decreases turning demand at the root and attachment. If reach is unavoidable, use a supported shape, broader load path, or second point of support rather than relying on one narrow neck.
Use generous root transitions
Sharp inside corners concentrate stress where the arm meets the base. Use sensible radii or gussets, avoid abrupt thickness changes, and keep decorative openings away from the primary load path. Do not let support damage or a seam define the most stressed section.
Orient layers for the actual bending direction
The easiest print orientation may align layer interfaces with the direction that opens the arm or socket. Review base peel, arm bending, joint expansion, and fastener clamping separately. The functional-part orientation guide explains the broader tradeoff, but a sacrificial test should still use the actual mount geometry.
Use walls and local structure before random infill
Increasing infill alone does not repair a weak root, thin socket, unsupported insert, or poor layer direction. Prioritize appropriate walls, local material around fasteners, smooth transitions, and a short load path. Use the wall-thickness and perimeter guide for the slicer-side decision.
Qualify joints and inserts separately
A ball joint, captive nut, heat-set insert, self-tapping screw, or printed thread can become the first failure even when the arm is sound. Check local wall thickness, insertion damage, loosening after heat cycles, and whether adjustment loads pry layers apart. The heat-set insert material guide covers that narrower interface.
The attachment can fail before the print
Do not treat an adhesive label, suction cup, clip, or screw as a generic constant. Adhesive performance depends on the exact product, dashboard material and texture, surface preparation, contact area, installation temperature, heat exposure, removal method, and device leverage. A stiff printed base that curls slightly can peel an adhesive from one edge. A strong adhesive can also mark or damage a dashboard surface.
Vent mounts and MagSafe adapters have a different load path because the vehicle vent, clip, magnetic interface, and airflow become part of the system; use the MagSafe vent-adapter material guide for that narrower intent. Never drill, screw, or bond into a vehicle area without understanding what lies behind it and how the installation affects airbags, wiring, trim removal, resale, and applicable rules.
Run an eight-step mount proof
- Freeze the candidate process. Record exact filament, color, dry state, printer, profile, orientation, walls, seam, joint hardware, attachment, and vehicle location.
- Inspect the cooled print. Reject under-extrusion, cracks, voids, weak bridges, support damage, distorted sockets, loose inserts, or a base that is not flat.
- Measure the unloaded geometry. Record arm angle, device position, joint fit, base flatness, and critical clearances before environmental exposure.
- Fit without creating a road hazard. Confirm sightlines, controls, vents, airbags, occupant movement, cable routing, and device release while the vehicle is safely stationary.
- Load the heaviest representative device. Include case and cable. Exercise normal aiming and handling without standing in the potential release path.
- Expose a spare or safely parked assembly. Use representative normal heat and sun conditions. Do not use a household oven, unattended heater, occupied closed vehicle, or a test that risks people, pets, batteries, electronics, or the vehicle.
- Cool, unload, and remeasure. Look for retained angle, socket relaxation, base curl, adhesive-edge lift, fastener movement, layer whitening, cracks, or changed fit.
- Repeat and define retirement. One cycle does not establish long-term service. Set inspection intervals and reject any permanent deformation, looseness, surface damage, unstable aim, blocked sightline, or attachment movement.
Do not turn one successful sample into a load rating, temperature rating, or service-life claim. Repeated fleet or customer use needs controlled production, material traceability, inspection, representative environmental evidence, and a consequence-appropriate qualification plan. If that discipline exceeds the value of printing the mount, use the printer-versus-service guide or compliant manufactured hardware.
Diagnose the first visible failure
| Symptom | Likely system question | First action |
|---|---|---|
| Arm keeps a lower angle after cooling and unloading | Heat, sustained bending, lever arm, section thickness, or material margin | Retire the part; shorten and support the arm before changing only infill. |
| Joint becomes loose while the base remains flat | Socket geometry, local walls, fastener preload, insert fit, or thermal cycling | Isolate and redesign the joint; do not blame the whole mount material first. |
| Adhesive lifts at one edge | Base curl, surface compatibility, preparation, contact area, heat, or leverage | Remove the load safely and follow the exact attachment maker's limits. |
| Layer crack or whitening appears at the root | Orientation, sharp transition, impact, seam, support damage, or under-extrusion | Retire it and change the load path and process before reprinting. |
| Mount stays intact but aim changes on rough roads | Joint friction, vibration, device mass, cable pull, or attachment compliance | Test the joint and attachment separately with the actual device and cable. |
Frequently asked questions
Is PETG safe for a phone mount on the dashboard?
Not as a universal answer. PETG can fit a shaded, short, light-duty, inspectable mount, but a windshield-adjacent phone arm left in a parked car is a stronger ASA case. Placement, device mass, leverage, attachment, and consequence still require proof.
Will ASA stop a dashboard mount from sagging?
ASA improves the heat-margin side of the decision, but it cannot guarantee the geometry. A long cantilever, thin socket, poor orientation, weak joint, or failing adhesive can still move. Redesign and representative proof remain necessary.
Should I use 100% infill?
Not automatically. Root transitions, walls, layer direction, joint structure, fastener support, base flatness, and lever arm can matter more than filling the entire interior. Change one variable at a time and test the actual mount.
Can I test the mount in an oven?
Do not use a household food oven or an improvised unattended heater. It can create fumes, damage electronics, distort unrelated parts, and fail to reproduce solar loading or the vehicle attachment. Use a controlled, consequence-appropriate method and keep people, pets, batteries, and valuable property out of the test.
Can I sell a dashboard mount after one hot-car test?
No. One sample does not establish batch consistency, aging, vibration endurance, attachment compatibility, legal placement, or service life. Repeated or customer-facing use needs traceable process controls and a qualification plan matched to the consequence.
Bottom line
Use ASA for a real windshield-adjacent dashboard mount that stays in the parked vehicle; use PETG for shaded, lower-cabin, light-duty mounts that are easy to inspect and replace. Then treat material as one control in the complete system. Shorten the arm, support the root, orient layers for the real load, qualify the joint and attachment, protect sightlines and occupant safety, run representative heat-and-load cycles, remeasure after cooling, and retire the mount at the first sign of permanent movement.
Official manufacturer sources
- Prusa PETG material guide for mechanical-part, temperature, printability, and process boundaries.
- Prusa ASA material guide for outdoor, UV, temperature, warping, enclosure, and fumes guidance.
- OVERTURE ASA product page for the exact linked product's current print and drying guidance.
