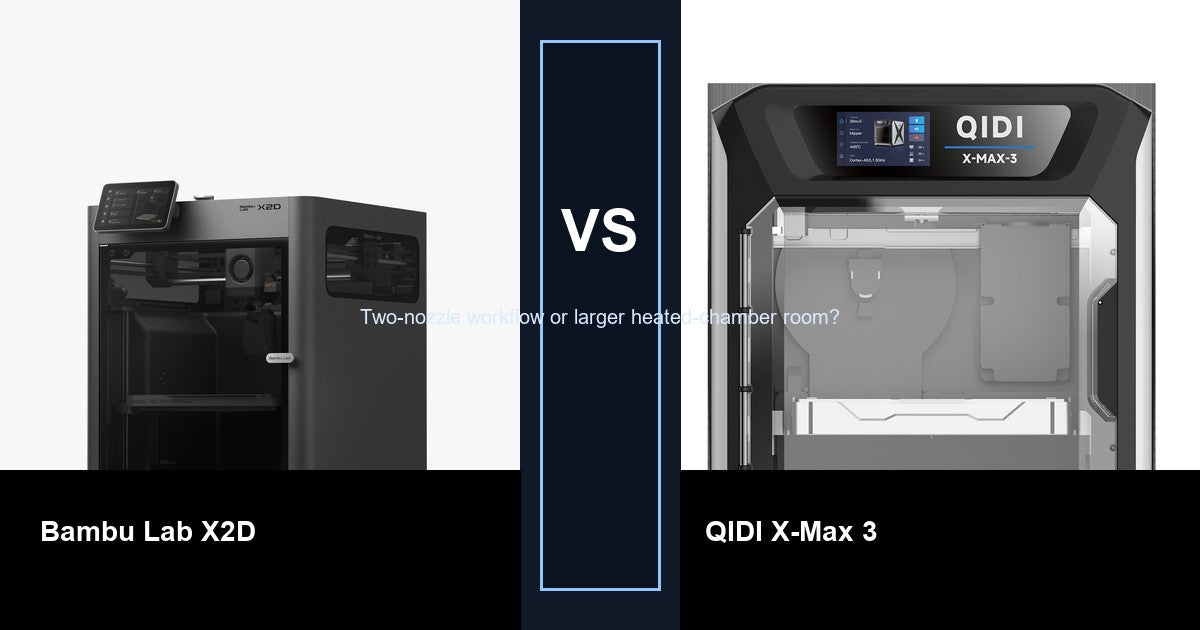

Direct answer: Buy the Bambu Lab X2D when your parts already fit a 256 mm-class printer and a second nozzle will repeatedly reduce support cleanup, material changes, or color-work waste. Buy the QIDI X-Max 3 when your recurring constraint is physical size: its stated 325 x 325 x 315 mm build volume gives substantially more one-piece room than the X2D's stated 256 x 256 x 260 mm main-nozzle volume. This is a workflow upgrade versus a capacity upgrade, not a simple premium-versus-budget choice.
Disclosure: This page may contain affiliate links. If you buy through them, GoodPrints may earn a commission at no extra cost to you.
Quick comparison: dual nozzles or 325 mm capacity?
| Decision point | Bambu Lab X2D | QIDI X-Max 3 |
|---|---|---|
| Stated build volume | 256 x 256 x 260 mm for main-nozzle printing | 325 x 325 x 315 mm |
| Primary reason to buy | Recurring dual-nozzle support or paired-material work | Larger one-piece enclosed parts |
| Machine posture | Mid-size dual-nozzle workflow step-up | Larger heated-chamber enclosed workhorse |
| Best-fit queue | Support-sensitive fixtures, fitted parts, labels, and repeat two-material jobs | Large housings, guards, ducts, trays, panels, and fixtures |
| Main overbuy warning | You like dual-nozzle possibilities but cannot name recurring qualifying jobs | Your real models already fit comfortably inside 256 mm |
| Choose it when... | Workflow friction costs more than part splitting | Part splitting and assembly cost more than single-nozzle limits |
The X2D's quoted volume is the main-nozzle figure. Always check the actual sliced job for the selected nozzle, purge behavior, supports, brims, and edge clearance. A headline build volume is not a promise that every nominally fitting model is sensible to print in that orientation.
Run a 10-job bottleneck audit before buying
Review the last ten representative jobs you printed, outsourced, split, or declined. Score each job in two columns.
- Size cost: Did a dimension cross 256 mm? Count splitting, alignment features, bonding, post-processing, assembly time, and the risk of a visible or weak seam.
- Workflow cost: Did a second nozzle materially improve the job? Count support-interface cleanup, manual material changes, purge waste, surface damage, and jobs avoided because support removal was too risky.
If several jobs cross 256 mm and can fit the X-Max 3 envelope, the QIDI branch has a measurable reason to exist. If the parts fit but cleanup or paired materials repeatedly consume labor, the X2D has the stronger case. If neither column shows recurring cost, both machines may be overbuy.
Use the X2D dimensions guide to check the smaller envelope, then compare your files in the slicer rather than shopping from volume numbers alone.
Where the Bambu Lab X2D wins
Support-material workflow is the actual upgrade
The X2D wins when tool separation changes the finished part or the labor required to release it. That includes support interfaces on fitted surfaces, hard-to-reach cavities, customer-facing faces, and repeat jobs where manual swaps or cleanup are already expensive. Read the X2D support-material capability guide if that is the main buying claim you need to prove.
It keeps advanced workflow in a familiar desktop envelope
The X2D makes sense when the normal part queue fits a 256 mm bed and you do not want a physically larger printer merely to gain capability. Its advantage is not hidden large-format capacity. It is the second-nozzle path inside a mid-size machine class.
It is easier to defend when utilization is visible
Count qualifying jobs, not interesting ideas. If a second nozzle changes several jobs every month, the purchase can be tied to labor, scrap, and accepted work. The X2D buyer-fit guide and X2D overbuy check are the better next reads when that utilization is still vague.
Where the QIDI X-Max 3 wins
Its 325 mm XY envelope solves a problem dual nozzles cannot
A second nozzle cannot make a 300 mm housing fit a 256 mm bed. The X-Max 3 is the stronger choice when larger covers, guards, ducts, fixtures, trays, or panels recur often enough that one-piece output removes real design and assembly work.
The heated-chamber posture fits the larger functional-material lane
The QIDI branch is easier to justify when larger enclosed ABS, ASA, or other temperature-sensitive work is central to the queue. That still does not remove ventilation, filament-condition, profile, geometry, and validation requirements. A heated chamber is process capability, not automatic part approval.
It can simplify the part before it simplifies the printer workflow
Fewer splits can mean fewer fasteners, adhesive joints, registration features, finish steps, and weak seams. When those costs dominate, larger single-nozzle output can be more valuable than a more sophisticated two-nozzle process.
Open the QIDI X-Max 3 review for the broader ownership lane or the X-Max 3 worth-it check when size is attractive but utilization is uncertain.
Materials do not erase the size-versus-workflow decision
Do not reduce this comparison to a list of filament names. For PETG and other mainstream functional work, filament condition, feed stability, profile control, and part design may matter more than either headline advantage. For moisture-sensitive or abrasive materials, drying, wear hardware, and the exact filament maker's guidance become part of the operating plan.
The X2D has the clearer argument when paired materials or support interfaces are the recurring need. The X-Max 3 has the clearer argument when larger temperature-sensitive parts are the recurring need. If your material plan is still only “maybe nylon later,” do not use that possibility to justify either printer.
Three buyer scenarios
Large single-piece guards and housings every week
Choose the QIDI X-Max 3 if the models fit its envelope and the 256 mm class would force regular splits. Validate a representative large part before making the printer a production default.
Normal-size fixtures with difficult support interfaces
Choose the X2D when the parts fit comfortably but cleanup quality and labor are the recurring bottlenecks. Prove the actual model-and-support material pair, not merely a colorful demo.
A small shop with only occasional oversized or dual-nozzle work
Neither machine is automatically justified. A mainstream enclosed printer plus occasional outsourced large or specialist parts may use capital and floor space better. Compare buying a printer versus using a service before turning edge cases into permanent hardware.
Final recommendation
Buy the Bambu Lab X2D when the last ten jobs show recurring support, paired-material, or material-change friction and those parts already fit the 256 mm class. Buy the QIDI X-Max 3 when the same audit shows recurring parts beyond 256 mm that fit its 325 x 325 x 315 mm envelope and one-piece output removes meaningful assembly work.
If you cannot point to repeated jobs in either lane, keep the simpler machine or outsource the exceptions. The winning printer is the one that removes the cost you already have.
Common questions
Which printer is bigger?
The QIDI X-Max 3. Its stated build volume is 325 x 325 x 315 mm. The X2D's stated main-nozzle volume is 256 x 256 x 260 mm.
Which is better for support material?
The X2D has the stronger buying case when recurring support-interface work is the reason for upgrading. Confirm the exact material pair and sliced workflow before treating the second nozzle as automatic savings.
Which is better for large ABS or ASA parts?
The X-Max 3 is usually the more logical branch when the parts genuinely need its larger enclosed envelope. Material choice still requires ventilation, filament-condition control, suitable profiles, and representative-part proof.
Should I buy the X-Max 3 just in case I need more room?
No. Measure actual models and count recurring oversize jobs. Unused build volume adds footprint and ownership overhead without returning value.
Should I buy the X2D just in case I need dual nozzles?
No. Count jobs where tool separation changes cleanup, scrap, surface quality, or accepted work. Possibility alone is a weak reason to buy a specialized workflow.
