If a digital caliper gives you a different number every time you measure the same 3D printed feature, do not start changing CAD clearances or slicer compensation yet. First clean the jaws, check zero, control your measuring pressure, and test whether the reading repeats on a rigid reference.
Small differences can come from the tool, the technique, or the print itself. The goal is to separate those causes before one questionable measurement turns into five unnecessary test prints.
Availability checked September 14, 2026: The previously linked Fowler Economy caliper listing did not expose an active purchase path, so the model remains here as unlinked editorial context.
Short answer
Start by closing the clean jaws gently and confirming zero. Then measure the same rigid object five times at the same location. If the numbers repeat, your caliper is probably showing a real technique or part-geometry problem. If the readings continue to wander, inspect the battery, slider, jaw faces, and frame before trusting the tool for tolerance decisions.
A better-known mid-range caliper such as the Fowler Economy model makes sense when an ultra-cheap tool feels loose, inconsistent, or difficult to trust, but it is not a substitute for good measurement technique or formal calibration.
Why caliper readings change
Digital calipers are simple to use, but 3D printed parts are not perfect gauge blocks. Layer lines, seams, elephant foot, flexible walls, textured surfaces, and warm plastic all create opportunities for the jaws to land differently. A few hundredths of a millimeter can be technique noise. A larger or repeatable miss may point to the tool, the print, or the model.
| What you see | Likely cause | First check |
|---|---|---|
| Zero changes after closing | Dirty jaws, slider play, battery, or tool fault | Clean, re-zero, and repeat on a rigid reference |
| Reading changes with hand pressure | Flexible print or inconsistent jaw force | Use light, repeatable pressure |
| Only printed holes read inconsistently | Layer texture, ovality, seam, or wrong jaw angle | Measure at several rotations and depths |
| Every object reads differently each pass | Tool or technique problem | Run the five-reading repeatability test below |
1. Clean the jaw faces
A strand of filament, resin dust, adhesive residue, or a chip on either jaw can shift the zero and every reading that follows. Wipe the measuring faces with a clean lint-free cloth. Do not sand or aggressively scrape precision surfaces. Close the jaws gently, hold them toward a light, and look for debris or an obvious gap.
This is the fastest check because a contaminated jaw can imitate both a bad caliper and an oversized part.
2. Check zero without squeezing
Close the outside jaws with light thumb pressure and press zero. Open and close them several times. The display should return consistently. Squeezing hard can flex a light frame or teach you a pressure habit that compresses thin printed walls later.
If zero returns only when you force the jaws closed, stop. That is not a stable baseline for fit work.
3. Control jaw pressure and alignment
Calipers do not apply a fixed measuring force. Your hand does. On a rigid metal part that may be easy to ignore; on TPU, a thin PLA wall, or a hollow section, extra pressure can visibly change the number.
- keep the beam square to the feature
- use the same light pressure each time
- avoid measuring directly on a Z seam or obvious blob
- take several readings around a hole or cylinder
- let hot prints cool before making final fit decisions
4. Decide whether the print is actually irregular
A caliper can be consistent while the part is not. Printed holes may be slightly oval. Outside walls may bulge near corners. The first few layers may carry elephant foot. A seam can add a local high spot. Measure at multiple heights and orientations before calling the whole part oversized.
If the error is concentrated at the bottom edge, use the elephant-foot troubleshooting guide. If holes, slots, and overall dimensions miss in a repeatable pattern, use the dimensional-accuracy and hole-fit guide.
5. Run a five-reading repeatability test
- Choose a clean, rigid object with parallel faces. A smooth metal block or quality bearing is better than a layered print.
- Clean the caliper jaws and confirm zero.
- Measure the same location five times, fully opening the jaws between readings.
- Write the numbers down instead of relying on memory.
- Repeat with a second rigid object and, if available, a known reference.
Tight grouping suggests the tool is repeatable enough for ordinary bench diagnosis. A consistent offset may require calibration or a better reference. Random drift points back toward technique, battery condition, contamination, slider play, or a tool that should not be trusted for small tolerance decisions.
6. Check the battery and slider behavior
A weak battery can cause display trouble on some digital calipers. Replace it with the correct fresh cell if the display flickers, resets, or behaves strangely. Move the slider through its range and feel for binding, grit, or unusual looseness. Do not flood the scale with lubricant; follow the maker's care instructions.
If the jaws are damaged, the slider has obvious play, or repeatability remains poor after basic checks, replacement is usually more sensible than pretending a zero button fixes a mechanical problem.
When the Fowler Economy caliper makes sense

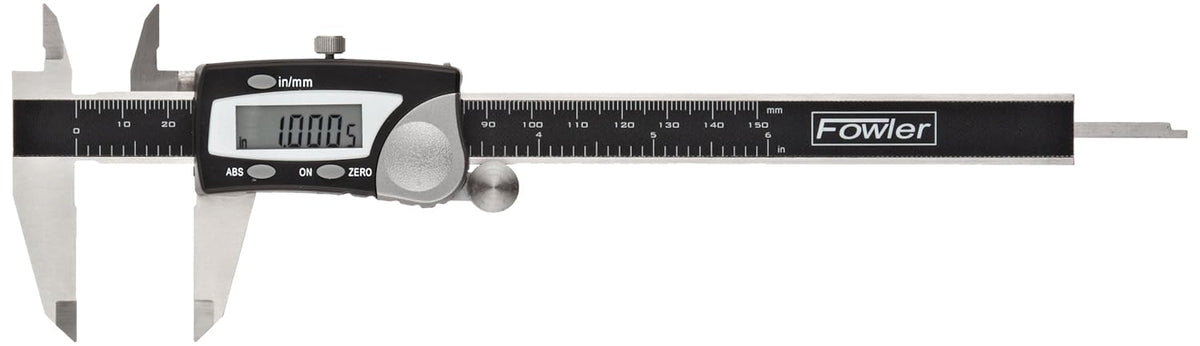

The Fowler Stainless Steel Frame Economy Digital Caliper is a sensible upgrade candidate for makers who want a recognizable industrial-tool brand without moving directly to premium Mitutoyo pricing. Its 6-inch / 150 mm stainless-frame format and common inch, millimeter, and fraction-style workflow fit printed-part sizing, hardware checks, hole verification, and printer setup work.
Choose it when your current bargain caliper is the weak link, you measure functional parts often, and a known-brand middle lane matches the level of work. Skip it if your present tool repeats reliably or if you need traceable inspection, documented calibration, or production QA. Those jobs require a more serious metrology plan than an Amazon bench purchase.
What a new caliper will not fix
- warped parts or lifted corners
- mechanical backlash, loose belts, or skipped steps
- incorrect CAD clearances
- over-extrusion or first-layer squish
- flexible features compressed by poor technique
- a need for certified or traceable measurement
The tool helps you identify the error. It does not make the printer accurate by itself.
A better fit-check workflow for 3D printed parts
- Measure the mating hardware or original part before editing the model.
- Identify the exact critical features: hole, pin, slot, wall, lid, or mounting distance.
- Print a small fit coupon when possible instead of the entire part.
- Measure the coupon in several places after it cools.
- Change one variable: CAD clearance, hole compensation, flow, or first-layer correction.
- Record the result so the next part starts from evidence, not memory.
This workflow is slower than guessing for the first five minutes and much faster over the next five prints.
Who should buy the Fowler?
It is a sensible fit for makers printing brackets, enclosures, adapters, replacement parts, jigs, and hardware-facing components who have outgrown an inconsistent starter caliper. It also fits small shops that want one recognizable mid-range measurement tool at each printer or assembly bench.
Who should skip it?
Skip it if you measure only decorative prints, already own a reliable tool, or require formal calibration records. Also skip any upgrade until you confirm that your current inconsistency is not simply dirty jaws, excessive pressure, or an irregular printed surface.
Frequently asked questions
How much variation is normal when measuring a 3D print?
There is no universal number because geometry, layer height, surface texture, material, jaw pressure, and feature stiffness all matter. The useful test is repeatability on a rigid reference, followed by several measurements on the printed feature.
Should I zero a digital caliper before every measurement?
Confirm zero frequently, especially after cleaning the jaws, changing the battery, moving the tool, or seeing an unexpected result. Re-zeroing should not be used to hide a tool that fails to return consistently.
Can I calibrate a digital caliper with a 3D printed block?
No. A printed block is useful for process checks, but it is not a trustworthy calibration standard. Use an appropriate known reference and follow the tool maker's guidance when calibration confidence matters.
Why do inside-jaw hole measurements change?
The jaws may be tilted, sitting at different depths, crossing layer texture, or measuring a slightly oval hole. Rotate the part or caliper, keep the beam square, and compare multiple readings.
