If a FlashForge AD5X starts producing rough walls, softer corners, wider lines, or dimensions that drift after carbon-fiber, glow, wood-fill, or other abrasive filament, nozzle wear is a credible suspect. It is not proof. Wet filament, a partial clog, a loose nozzle assembly, the wrong profile, and ordinary extrusion trouble can look similar. The useful move is to test the nozzle before compensating for a worn opening with more flow, more heat, or increasingly strange slicer settings.

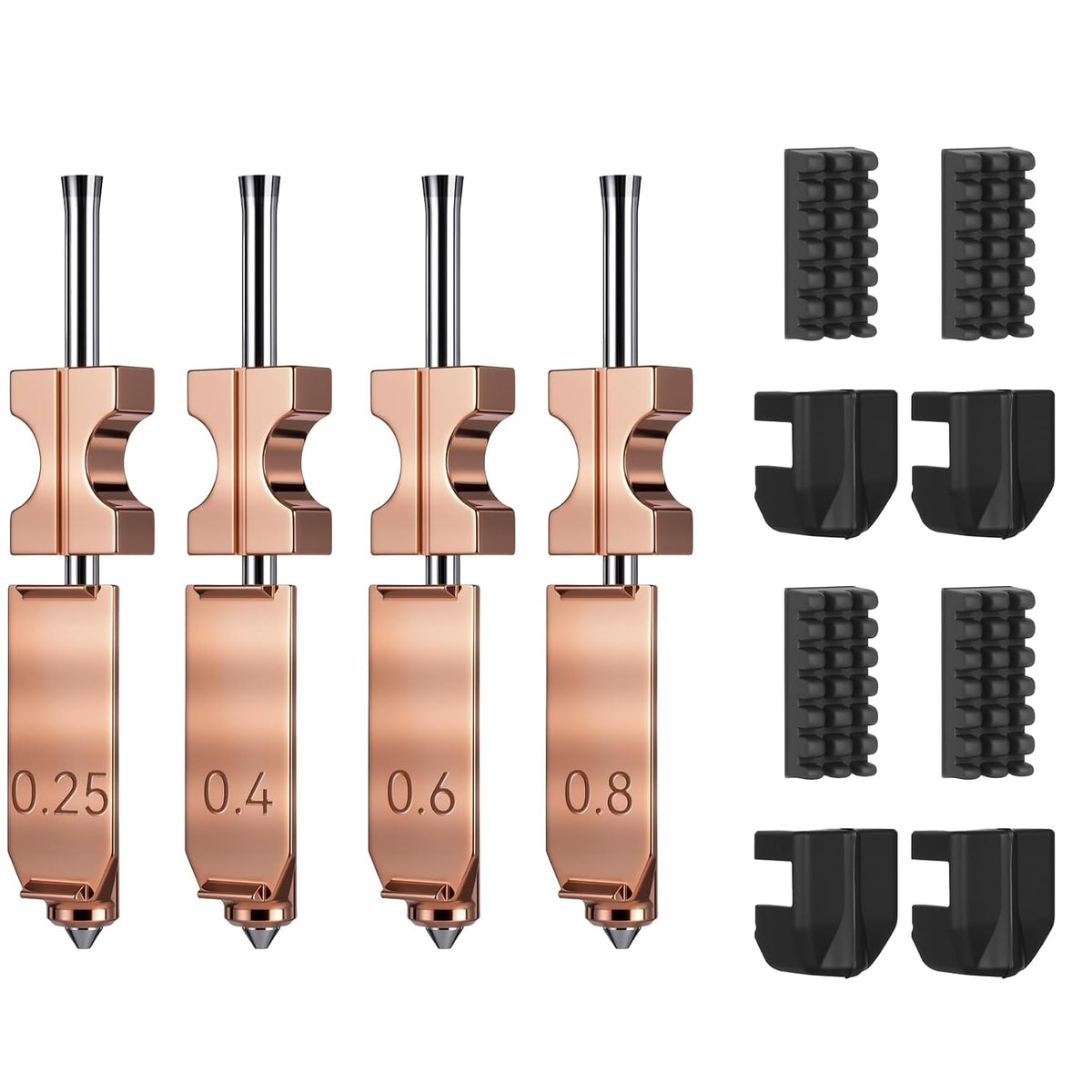

The bank-backed product for a confirmed wear problem is the AD5X four-size hardened-steel quick-swap nozzle kit on Amazon. The listing includes complete AD5X assemblies in 0.25, 0.4, 0.6, and 0.8 mm, plus silicone covers and a nozzle wiper. It makes sense when the current assembly is actually worn or when an AD5X owner needs a known-size spare. It does not make a wet spool dry, clear every clog, or make a 0.25 mm opening suitable for filled filament.
Affiliate note: GoodPrints3D may earn a commission from qualifying Amazon purchases. Recommendations are based on problem fit; price, bundle contents, and availability can change.
Short answer: compare against a known-good nozzle before retuning
Nozzle wear usually appears as gradual drift rather than one dramatic failure. A formerly reliable profile starts making broader extrusion lines, small text loses definition, walls measure slightly heavy, corners look softer, and top surfaces become harder to close. Abrasive particles can enlarge or distort a softer nozzle opening over time, so the machine may still extrude while behaving as if its nozzle diameter has quietly changed.
Save the current profile, load a dry known-good spool of ordinary material, clean the extrusion path, and print a small baseline model. Then install a verified compatible known-good AD5X assembly of the same nominal diameter and repeat the exact test. If line definition, dimensions, and surface consistency recover without changing the profile, the old nozzle was likely contributing. If the failure remains, keep troubleshooting instead of buying more nozzles.
Match the symptom to the more likely cause
| What you see | Most useful suspicion | First test |
|---|---|---|
| Detail and dimensions drift gradually after abrasive use | Nozzle wear | Repeat the model with a known-good same-size assembly |
| Popping, bubbles, pits, or suddenly heavy stringing | Moisture | Compare with dry filament at unchanged settings |
| Thin flow, clicking, or intermittent starvation | Partial clog or feed resistance | Inspect the path and follow FlashForge cleaning guidance |
| Failure begins immediately after selecting another diameter | Wrong nozzle or slicer profile | Confirm installed diameter and machine profile agree |
| Plastic collects above or around the hotend | Leak, seating issue, or failed cover | Stop and inspect cold; do not call it normal nozzle wear |
| Only one filament brand prints poorly | Material condition or profile mismatch | Run a known-good control spool |
What abrasive filament actually changes
Filled filaments carry particles through a small opening under pressure. Carbon fiber, glass fiber, glow pigments, metal-fill additives, and some wood blends can be much harder on a conventional nozzle than ordinary PLA or PETG. The wear rate varies with the material, nozzle construction, temperature, throughput, and total filament used. There is no honest universal “replace after this many hours” number.
A worn nozzle does not always clog. The opposite can happen: the outlet grows or loses its intended shape, so extrusion becomes less controlled. The slicer still calculates flow for a 0.4 mm opening while the physical tip no longer behaves like the original 0.4 mm part. That mismatch can blur detail and disturb dimensions without generating a printer error.
Hardened steel is a practical wear-resistant choice, but it is not magic. It commonly needs a different temperature or flow calibration than a softer, more thermally conductive nozzle, and it can still clog if a filled material is pushed through an opening that is too small for its particles. Follow the filament maker's minimum-nozzle guidance.
Run this controlled AD5X nozzle-wear test
- Preserve the evidence. Save the slicer project and photograph the rough print before changing anything.
- Confirm the installed diameter. Make sure the AD5X and slicer are using the same nozzle size. A 0.6 mm assembly with a 0.4 mm profile creates a diagnosis problem all by itself.
- Use a dry control spool. Choose ordinary, known-good non-filled filament. If necessary, dry it according to its maker's guidance.
- Inspect the cold assembly. Look for residue, damage, a torn silicone cover, or plastic where it should not be. Follow FlashForge's safety and removal instructions.
- Print a baseline. Use a small model with outside dimensions, fine text, straight walls, and a flat top surface. Record temperature, speed, flow, and measured dimensions.
- Swap only the assembly. Install a known-good compatible AD5X assembly with the same nominal diameter. Do not change flow, temperature, retraction, and speed at the same time.
- Repeat the exact file. Compare surface finish, line definition, measurements, and extrusion consistency.
- Calibrate after diagnosis. If the replacement fixes the drift, tune the hardened assembly and material combination. If it does not, return to moisture, clog, feed, motion, and profile checks.
Rule out a partial clog
A clog usually reduces or interrupts flow, while wear more often changes the geometry of otherwise continuous flow. Reality can be messier: abrasive particles can wear a nozzle and also lodge in it. Clicking, weak purge strands, under-filled lines, or flow that recovers briefly after cleaning all point toward restriction.
Use the cleaning procedure FlashForge specifies for the AD5X assembly. Do not drive an oversized needle through the opening, drill the tip, or use a torch; those methods can damage the nozzle, heater, sensor, or intended bore. If a known-good same-size assembly restores steady flow, retiring the suspect assembly is often safer than repeatedly forcing debris through it.
Rule out wet filament
Abrasive and fiber-filled materials can also be moisture-sensitive, so “it started after carbon fiber” does not automatically mean wear. Popping, sizzling, steam-like wisps, tiny pits, foamy extrusion, and a dramatic rise in stringing put moisture higher on the list. Dry the spool at the material maker's specified conditions, then repeat the same test.
If drying restores the print while the same nozzle remains installed, the nozzle was not the main cause. If a dry control spool still shows the gradual detail and dimensional drift, a same-size assembly comparison becomes more informative.
Do not fix nozzle wear with flow compensation forever
Increasing flow can fill gaps caused by weak extrusion, but it cannot restore a worn outlet's shape. A large positive flow correction may hide one symptom while worsening wall dimensions, corners, seams, and top surfaces. Likewise, lowering line width or changing retraction around a physically altered opening builds a fragile profile that only works with the worn part.
Use calibration to account for the normal behavior of a sound hardened nozzle, not to preserve a consumable that no longer behaves like its nominal diameter. Replacement creates a cleaner baseline and makes future profiles easier to understand.
Choose the right diameter from the four-size kit
0.25 mm: fine detail, not the default for filled material
The smallest assembly is for fine non-filled materials and small features. It has the least particle clearance and the highest clog risk with many filled filaments. Do not interpret “hardened steel” as permission to ignore a filament maker's minimum nozzle diameter.
0.4 mm: general-purpose baseline
This is the familiar everyday size for ordinary PLA and PETG. Some filled filaments allow it and others recommend larger. Check the spool guidance before using it as an abrasive-material default.
0.6 mm: useful filled-material and stronger-layer lane
A 0.6 mm opening often gives particles more room and trades fine detail for more robust extrusion and thicker lines. It is a sensible test lane when the material maker supports it and the model does not depend on tiny features.
0.8 mm: throughput and broad-line work
The largest included size favors thicker layers, broad walls, and faster volumetric output, subject to the AD5X hotend's real melt capacity. A larger opening does not guarantee every “high flow” speed; calibrate temperature, maximum volumetric flow, cooling, and layer height for the material.
When this AD5X nozzle kit is the right fix
The kit makes sense when a controlled same-size swap shows that the old assembly caused gradual quality or dimensional drift, when a clog-damaged assembly needs replacement, or when an AD5X owner genuinely uses multiple diameters. Complete quick-swap assemblies reduce the need to rebuild one hotend for every size change, while hardened-steel tips better match regular abrasive use than a soft everyday nozzle.
It is a weaker buy for someone who prints only standard PLA through a healthy stock 0.4 mm assembly. It is also the wrong product for Adventurer 5M or 5M Pro owners unless the current listing independently confirms fit; the stored bank record lists this kit for the FlashForge AD5X only.
If the A/B test confirms wear or you need a same-machine spare, the AD5X hardened quick-swap kit provides the listed 0.25, 0.4, 0.6, and 0.8 mm options in one purchase. Verify the exact live variant, bundle contents, and printer compatibility before ordering.
What a new hardened nozzle will not fix
- wet or degraded filament
- a blocked PTFE path, slipping feeder, or tangled spool
- incorrect nozzle-size selection in the slicer or printer
- loose motion hardware, belt problems, or ringing
- a hotend leak, failed heater, or temperature-sensor fault
- warping, dirty build plates, or first-layer Z-offset problems
- an unrealistic flow rate for the material and hotend
Frequently asked questions
Can I see nozzle wear with my eyes?
Severe damage may be visible, but small bore changes are difficult to judge without suitable magnification and a reference. A controlled print comparison with a known-good same-size assembly is usually more useful than eyeballing the opening.
Does hardened steel last forever with carbon-fiber filament?
No. It is more wear-resistant than ordinary soft-metal options, but life depends on material abrasiveness, volume, temperature, and operating conditions. Treat every nozzle as a consumable and track behavior over time.
Should I use the 0.25 mm hardened nozzle for carbon fiber?
Usually not unless the filament maker explicitly supports that opening. Small nozzles clog more easily with particles. Many filled materials call for 0.4 or 0.6 mm minimums, and 0.6 mm is often the safer practical lane.
Why did a hardened nozzle need a different temperature?
Nozzle materials transfer heat differently. A hardened-steel assembly may need its own temperature and flow calibration. Make modest changes after establishing that the nozzle and filament are healthy.
Will these fit the FlashForge Adventurer 5M?
Do not assume so. The stored Amazon listing is for the AD5X. Similar-looking quick-swap assemblies are not proof of cross-printer compatibility.
