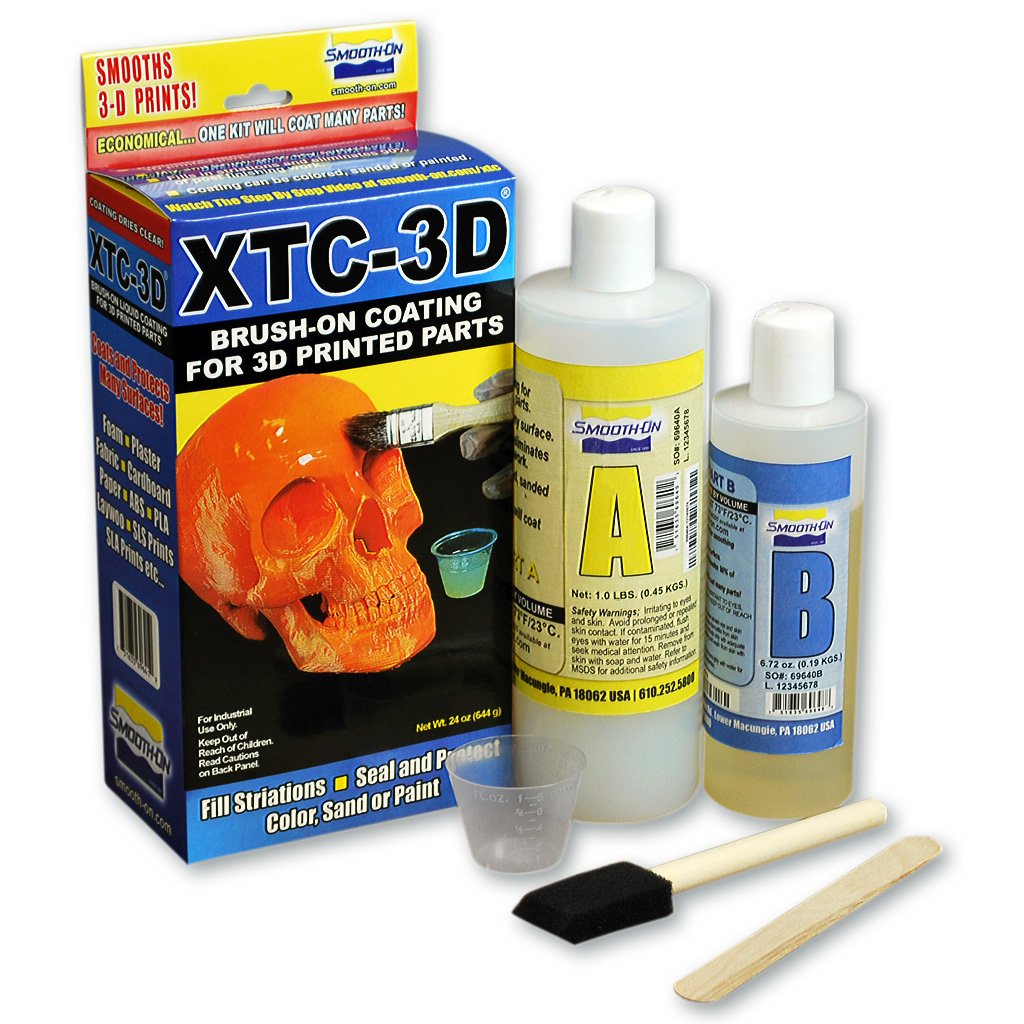

Smooth-On XTC-3D is a two-part epoxy coating for makers who want a hard, glossy, self-leveling skin over a rigid 3D print. It is most convincing on props, display pieces, masters, and larger decorative parts where brushing on a coating can save time compared with sanding every layer line. It is a much weaker fit for tight-tolerance parts, flexible prints, food-contact items, or anything that must keep crisp surface detail.
The current Amazon listing describes a clear coating for SLA, SLS, PLA, ABS, wood-filled material, powder-printed parts, and other rigid media. It specifies a 2A:1B mix ratio by volume, about 10 minutes of working time, a hard cure in roughly 3.5 hours, and an 80D Shore hardness. Smooth-On also says the epoxy self-levels, wets out evenly, and can cover without leaving brush strokes.
Those specifications explain the appeal, but they also define the buying decision. XTC-3D is not a wipe-on polish. It is a short-pot-life coating that adds material to the surface, can pool in recesses, and requires a controlled mixing, application, curing, and safety workflow.
Short answer
XTC-3D makes sense when the finish matters more than exact dimensions and when the shape is easier to coat than to sand. A broad helmet shell, prop body, sculpture, display stand, or mold master can be a good candidate. The coating can bridge shallow layer texture and leave a durable glossy surface that is ready for further finishing after it cures.
Skip it when the part has press fits, threaded features, small lettering, sharp texture, drainage holes, living hinges, or dimensions that cannot tolerate a coating. Sanding, filler primer, spot putty, resin designed for a different workflow, or a better print orientation may give more control with less risk.
What problem does XTC-3D solve?
Layer-line removal becomes slow when a print has large compound curves, recessed areas, or a surface that is awkward to reach with sandpaper. XTC-3D changes the job from removing high spots to filling low texture with a liquid coating. That can reduce repetitive sanding on the right geometry and create a continuous shell over several joined print sections.
It is also useful when the buyer wants a sealed-looking, glossy finish rather than the softer appearance of filler primer. The cured surface can provide a firm base for later sanding and painting, though the final adhesion and finish still depend on compatible materials, clean preparation, full cure, and the coating system used afterward.
The product does not repair bad geometry, hide severe seams by itself, or guarantee a paint-ready result in one coat. Deep gaps, under-extrusion, rough supports, large stair steps, and misaligned joints still need correction before coating.
The biggest advantage: self-leveling coverage
The listing's main promise is a coating that wets the surface uniformly and levels without obvious brush marks. On a well-prepared print, that can turn fine layer texture into a smoother continuous surface while the epoxy is still fluid. It also makes brush access less punishing than hand-sanding every contour.
Self-leveling does not mean self-controlling. Gravity continues to move the coating after the brush leaves. A heavy coat can sag, collect along a lower edge, soften a corner, close a small hole, or bury shallow engraving. Rotating the part during the early cure may help on some shapes, but it also creates handling risk and can move material into a different unwanted area.
The best candidates have broad surfaces, generous radii, and details large enough to survive added thickness. A small test print made with the same material, layer height, colorant, filler, and paint plan is far cheaper than discovering incompatibility on a finished prop.
The 10-minute working time changes the workflow
The listing states a working time of about 10 minutes. That is short enough that preparation needs to happen before Parts A and B meet. The print should be cleaned, dry, supported, and positioned. Brushes, mixing cups, measuring tools, protective equipment, drip protection, and a safe cure location should already be ready.
Large batches are tempting on a large print, but a short working time can make them heat up and thicken before the surface is complete. Smaller controlled batches may reduce waste and give the applicator more time, provided every batch is measured at the listed ratio and blended as directed. Do not change the ratio to slow or speed the cure.
Buyers should treat the 24-ounce kit as a supply of timed coating sessions, not as one long open container of paint. The real yield depends on part area, surface texture, coat thickness, waste left in cups and brushes, and how many small batches are mixed.
Surface thickness is both the feature and the limitation
XTC-3D works by leaving a cured film on the print. That is why it can reduce visible layer texture, and it is also why dimensional parts need caution. A coating on both sides of a slot changes the available clearance. A coated peg grows. Threads become tighter. Text becomes shallower. Mating faces can stop sitting flat.
Masking may protect critical areas, but masking liquid epoxy is not automatically clean or easy. The edge can build a ridge, and removing tape at the wrong time can tear or distort the finish. If function depends on a dimension, keep that surface out of the coating plan or machine it back after full cure only when the design and safety process allow it.
Where it fits best
Props and costume shells
Helmets, armor panels, prop bodies, and larger curved shells are strong candidates because the finish is visually important and the broad shapes can be tedious to sand. The added shell may also make a light display piece feel more substantial. Wearable items still require a fully cured, compatible finish and careful treatment of skin-contact areas, edges, ventilation openings, and attachment points.
Display models and sculptures
Stylized forms with large features can benefit from the glossy continuous surface. Highly detailed miniatures usually cannot: a coating thick enough to hide layers may also round eyes, scales, panel lines, or engraved texture.
Masters for molds or casting work
A sealed, smoother master can reduce downstream finishing, but mold-making compatibility must be tested as a complete system. The print material, cured coating, release agent, mold rubber, cure schedule, and surface preparation all matter. Follow the manufacturers' current technical guidance rather than assuming that two products are compatible because each works separately.
Joined multi-part prints
A coating can help unify a surface after joints have already been bonded, filled, and leveled. It will not pull misaligned parts into position or reliably fill a large seam. Do the structural and geometric repair first; use the coating as a finish layer.
Where it is usually the wrong tool
- gears, bearings, sliders, snap fits, threads, and calibrated fixtures
- small text, fine texture, miniatures, and crisp mechanical detail
- flexible TPU parts or components designed to bend repeatedly
- food-contact, medical, child-use, or high-temperature applications without specific approved documentation
- parts that cannot be positioned safely while a liquid coating levels and cures
- jobs where a matte finish is desired without additional sanding or topcoating
Safety and workspace requirements
This is a chemical coating workflow, not an ordinary craft-paint step. Read the current Smooth-On technical bulletin and safety data sheets for both components before opening the kit. Follow the manufacturer's requirements for ventilation, gloves, eye protection, clothing, mixing tools, spill control, storage, cleanup, and disposal. Keep the materials away from children, pets, food areas, flames, and surfaces that cannot be protected.
Do not use a printer enclosure as a casual curing chamber. A cure setup must account for temperature limits, ventilation guidance, drips, contamination, and the fact that uncured material should not contact printer belts, heaters, electronics, build plates, or motion components.
Plan the cure location before mixing. The coated part needs stable support and enough clearance that it cannot be knocked over, touched, or exposed to dust during the working and curing window.
Preparation matters more than the brand of brush
A coating will preserve contamination as efficiently as it preserves detail. Remove loose dust, support scars, strings, grease, and sanding residue using methods compatible with the print material and Smooth-On's instructions. Let any cleaning process dry fully. Repair seams and obvious defects first.
Support the part from an area that can tolerate a witness mark or can be finished later. Think through where runs will collect and how the lower edge will be handled. Cheap disposable brushes and mixing tools may be appropriate, but shedding bristles, dirty cups, or inaccurate volume marks can ruin the surface.
XTC-3D versus filler primer and sanding
Filler primer and sanding offer gradual control. The maker can see high and low spots, repeat thin coats, preserve selected details, and stop when the surface is good enough. The process creates dust and takes labor, but it is familiar and forgiving.
XTC-3D can cover broad complex surfaces faster, avoids sanding every recess at the start, and produces a harder glossy shell. It adds mixing pressure, chemical-handling requirements, cure time, and greater risk of pooling. Many high-quality finishes use both approaches: correct the print, apply a controlled coating where it helps, then sand and paint the cured surface as the finish plan requires.
XTC-3D versus improving the print itself
A finer layer height, better orientation, tuned extrusion, cleaner seams, and a different model split can reduce the amount of post-processing needed. Those changes cost machine time or design effort but preserve more dimensional control. A coating should not become the default fix for print settings that are visibly wrong.
Choose XTC-3D when the printed geometry is already sound and the remaining issue is surface finish. If the part is weak, warped, under-extruded, or poorly aligned, fix the manufacturing problem first.
Buying checks before you order
- confirm the listing is the XTC-3D 20, 24-ounce kit you expect
- download and read the current technical bulletin and safety data sheets
- verify compatibility with the print material, fillers, paints, primers, and mold system
- decide which features cannot tolerate added coating thickness
- make sure the workspace can support safe mixing, application, curing, and disposal
- buy or prepare accurate volume-measuring tools for the listed 2A:1B ratio
- plan small batches around the approximately 10-minute working time
- print a representative test coupon before coating the final part
Who should buy it?
- prop and costume makers finishing broad rigid shells
- artists coating display prints with large surface features
- model makers preparing a master where the full material system has been tested
- shops that value brush access more than exact final dimensions
- experienced finishers with a suitable chemical-handling and cure area
Who should skip it?
- buyers expecting a no-prep, no-safety-setup smoothing liquid
- makers coating functional fits, threads, flexures, or fine detail
- anyone without a suitable work and cure location
- users who would get enough control from filler primer and sanding
- people who have not confirmed compatibility for the whole finish system
Final take
Smooth-On XTC-3D is a specialized finish that can save real labor on the right rigid shape. Its self-leveling behavior and hard cure are valuable when a prop, display part, or master has broad surfaces that are miserable to sand. The 2A:1B measuring requirement, short working time, added thickness, pooling risk, and chemical-handling needs make it a deliberate process rather than a universal shortcut.
Buy it when you can point to a specific coating-friendly part and have the workspace to test and apply it correctly. Skip it when tolerances, fine detail, flexibility, or a simpler finishing method matter more. The strongest reason to choose XTC-3D is not that it can cover layer lines; it is that its coating workflow fits the geometry and finish standard of the job.
Affiliate link: Check Smooth-On XTC-3D on Amazon.
Frequently asked questions
Does XTC-3D melt layer lines?
No. It covers the print with a self-leveling epoxy film. The layer texture remains underneath while the cured outer surface becomes smoother.
Can it be used on PLA?
The current listing names PLA among compatible rigid print media. Test the exact filament, additives, color, preparation, and finish system on a small sample before committing a finished part.
Will one coat make a print paint-ready?
Not always. Print quality, coat thickness, drips, seams, dust, and the desired finish can require further curing, sanding, priming, or topcoating.
Is it good for miniatures?
Usually not. A coating heavy enough to reduce layer texture can soften the fine features that make a miniature readable.
Can leftover mixed material be saved?
Do not expect mixed epoxy to remain usable beyond its stated working time. Mix only what can be applied safely and follow the manufacturer's storage and disposal instructions for both mixed and unmixed material.
