The Micro Swiss MK10 All-Metal Hotend Kit is worth buying when a verified-compatible FlashForge Creator Pro, Wanhao, QIDI, or related legacy printer is still mechanically sound but its PTFE-lined hot zone has become the maintenance or temperature bottleneck. It is a focused conversion, not a universal hotend and not a complete prewired toolhead.
The kit replaces the hot-zone liner path with a bi-metal thermal barrier and includes a plated-brass 0.4 mm MK10 nozzle plus thermal compound. That makes the Micro Swiss MK10 kit on Amazon a strong fit-first upgrade for owners who want a known component set and are prepared to retune temperature, PID control, retraction, and nozzle height afterward.
Affiliate disclosure: GoodPrints3D earns from qualifying Amazon purchases. This review uses the stored Amazon listing and manufacturer-backed fit and specification data. It does not claim a long-term bench test of every compatible printer revision.
Micro Swiss MK10 review verdict
Buy it for a compatible legacy MK10 toolhead when you want the PTFE liner out of the melt zone without redesigning the carriage. The value is not a magical surface-quality increase. The value is a defined all-metal conversion, a plated nozzle, a broader replacement-nozzle path, and less dependence on a temperature-sensitive liner at the nozzle interface.
Keep the stock hotend if the printer is a reliable PLA-only machine and the liner is healthy. Skip this kit if the heater block, thermistor, cartridge, heatsink fan, wiring, or carriage also needs replacement; a broader rebuild may be better value. Most importantly, skip it when the exact model or toolhead revision cannot be confirmed.

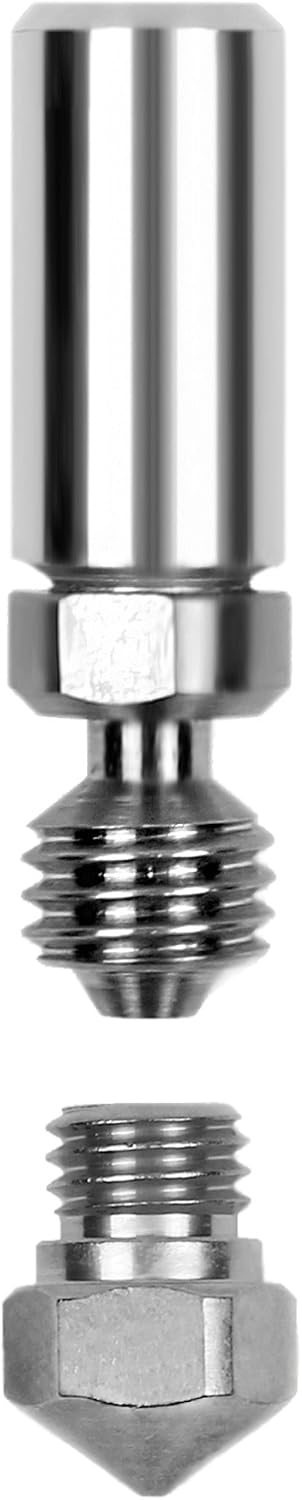

What comes in the Amazon kit
- Micro Swiss all-metal thermal tube for the compatible MK10 conversion
- Plated-brass, wear-resistant 0.4 mm MK10 nozzle
- Thermal compound for the manufacturer-directed interface
This is not a complete hotend assembly. The existing printer still supplies the heater block, heater cartridge, thermistor, heatsink, fan, wiring, and mounting hardware unless the live listing explicitly says otherwise. Inspect those parts before ordering. Installing precision conversion parts around a cracked block or weak fan only moves the failure downstream.
The compatibility list matters more than the MK10 label
Micro Swiss lists this conversion for FlashForge Creator Pro, Creator X, and Dreamer; Wanhao Duplicator 4S, 4X, D9, and i3; Monoprice Maker Select v2; Cocoon Create; QIDI Tech I; Dremel 3D20; and several PowerSpec MK10 machines. That is unusually useful fit guidance for older hardware, but it is still a starting point rather than permission to assume every printer marketed as MK10 uses identical geometry.
Used machines are the biggest caution. A previous owner may have changed the block, heat break, heatsink, or nozzle family. Compare the installed components with the current listing photos and manufacturer diagram. Check threads, thermal-tube length, block orientation, nozzle standard, carriage clearance, and whether the machine has a factory or aftermarket toolhead.
Buy only after these checks
- The exact printer model appears on the current fit list.
- The installed toolhead has not been converted to a different hotend standard.
- The heater, thermistor, block, heatsink, and fan are reusable and safe.
- You can perform the required hot tightening without twisting heater or sensor wires.
- You are willing to recalibrate rather than reuse every stock slicer value unchanged.
How the bi-metal barrier changes the hotend
The thermal barrier uses stainless steel in the hotter lower section and aluminum above it. Stainless steel restricts heat travel better than a simple aluminum throat, while the aluminum upper portion helps conduct unwanted heat toward the heatsink. The goal is a more controlled transition between molten and solid filament without a PTFE liner extending into the hot zone.
That helps with liner durability and higher-temperature workflows, but all-metal does not mean clog-proof. PLA can soften too high in the transition zone when heatsink airflow is poor or retraction is excessive. A clean fan path and conservative retraction become more important, especially on direct-drive MK10 carriages.
Micro Swiss MK10 vs the stock PTFE-lined hotend
| Decision | Micro Swiss all-metal | Stock PTFE-lined MK10 |
|---|---|---|
| Best use | Mixed materials and hot-zone liner elimination | Dependable moderate-temperature PLA work |
| Hot-zone liner | No PTFE at the melt zone | PTFE remains a wear and temperature-limited interface |
| PLA tuning | May need lower retraction and stronger cooling discipline | Often forgiving with established stock profiles |
| Installation | Conversion, hot tightening, and recalibration required | No change when the current assembly is healthy |
| Cost logic | Pays for fit confidence and a known nozzle ecosystem | Costs nothing until liner service or material needs change |
For a broader selection guide, see the best MK10 all-metal hotend upgrade guide. This review focuses on whether the Micro Swiss kit's ownership tradeoffs make sense after fit has been established.
Installation is straightforward, but sealing is not optional
Photograph wire routing, fan direction, block orientation, and dual-nozzle height before disassembly. Unload filament, heat the old assembly only as needed to loosen plastic-sealed parts, then follow the printer and kit safety instructions. Power should be disconnected whenever the procedure does not specifically require heat.
The critical mechanical detail is the internal seal. The nozzle must meet the thermal tube inside the heater block. Merely tightening the nozzle against the outside of the block can leave a hidden gap that fills with molten plastic. A small visible space between the nozzle hex and block can be normal when the internal junction is correct.
Support the heater block with the right tool during the final manufacturer-directed hot tightening. Do not let the block rotate against the heater or thermistor wires. Apply thermal compound only where instructed; it does not belong in the filament path. On dual-extruder machines, recheck both nozzle heights so the inactive nozzle does not drag across the print.
Plan on retuning after installation
- PID tune the hotend if the firmware supports it, then confirm stable temperature control.
- Reset nozzle or first-layer height because the replacement tip may not sit at the old position.
- Start with dry, familiar filament and a small calibration part rather than a long print.
- Retune retraction conservatively. Excessive pullback can move softened PLA into the cooler transition zone.
- Verify flow at realistic speed before increasing temperature to chase a throughput limit.
Change one variable at a time. Raising temperature, retraction, speed, and flow together makes it impossible to distinguish heat creep from a sealing problem, damp filament, or an older heater reaching its practical output limit.
Material fit: where the upgrade earns its keep
PLA
PLA remains compatible, but it is not the strongest reason to convert a healthy printer. Good heatsink airflow and restrained retraction matter. If a PLA jam appears only after several layers, inspect cooling and pullback before assuming the nozzle is defective.
PETG and ABS
These are more convincing use cases because the all-metal path removes reliance on PTFE at the hotter interface. The printer's firmware, thermistor, enclosure, bed, and electrical limits still control what is safe; the conversion does not override them.
Nylon and filled materials
The hotend is only one part of an engineering-material workflow. Nylon also demands dry storage and suitable bed and chamber conditions. The included plated-brass nozzle offers better wear resistance than plain brass, but frequent carbon-fiber, glass-filled, glow, or other abrasive printing is a better match for a compatible hardened MK10 nozzle.
Nozzle options are a practical long-term advantage
The included 0.4 mm nozzle is the sensible baseline. Micro Swiss supports an MK10 nozzle range from small detail sizes through much larger openings, with hardened alternatives available for abrasive filament. That is useful for an older printer because future replacements do not have to come from an unknown generic assortment.
A larger nozzle does not automatically make a legacy machine fast. Slicer line width, layer height, temperature, speed, and volumetric flow must change together, and the original heater may become the bottleneck. A 0.6 mm nozzle can still be worthwhile for stronger walls and fewer clog-prone abrasive jobs even when peak speed stays moderate.
Common problems after the conversion
- Plastic leaking around the block: stop and inspect the internal nozzle-to-tube seal.
- PLA jams after warming up: confirm fan direction and airflow, then reduce retraction distance.
- Temperature oscillation: verify PID tuning plus heater and thermistor seating.
- Weak extrusion only at high speed: test slower before adding heat; the melt system may be at its flow limit.
- Second nozzle drags: align both tips on a dual-extruder carriage after the new nozzle height is established.
- Filled filament wears the tip: move to the appropriate hardened nozzle and recalibrate temperature and flow.
Is the Micro Swiss MK10 kit worth the price?
It is worth the premium over a generic heat break when the printer already earns its bench space and the owner wants a narrow, documented upgrade. The purchase buys more than a metal tube: it buys a defined bi-metal design, a plated nozzle, a compatibility list, and a replacement-nozzle path. Those details reduce the guesswork that can turn a cheap legacy-printer repair into repeated teardown.
It is poor value when the machine needs a heater, thermistor, fan, block, wiring, and carriage work at the same time. Total the complete recovery cost before treating the hotend kit as the only expense. A reliable stock PLA machine also does not need conversion simply because all-metal sounds newer.
Final recommendation
The Micro Swiss MK10 All-Metal Hotend Kit is a strong, specific upgrade for a verified-compatible FlashForge Creator Pro, Wanhao, or related MK10 printer whose PTFE-lined hot zone is limiting materials or creating repeat maintenance. It preserves the existing toolhead architecture while providing a known thermal barrier and nozzle ecosystem.
Confirm the exact model and installed hardware, budget time for careful assembly and retuning, and keep expectations grounded: this is a durability and material-path upgrade, not an automatic speed or print-quality multiplier. If that matches the problem you are solving, check the current Micro Swiss MK10 kit price and variant on Amazon.
Frequently asked questions
Is this a complete replacement hotend?
No. The stored kit includes the all-metal thermal tube, plated-brass 0.4 mm nozzle, and thermal compound. Existing heater, thermistor, block, heatsink, fan, and wiring must be checked separately.
Does it fit every FlashForge Creator Pro?
The manufacturer lists Creator Pro compatibility, but used machines and different toolhead revisions still deserve a physical comparison. Verify the live listing and installed hardware before buying.
Will it print PLA?
Yes, with appropriate cooling and retraction. An all-metal throat can be less forgiving of excessive pullback or weak heatsink airflow than a healthy PTFE-lined setup.
Do I need a hardened nozzle for carbon-fiber filament?
The included plated-brass nozzle is wear resistant, but routine abrasive printing is better served by a compatible hardened MK10 nozzle. Also confirm the entire printer can safely handle the required material temperature.
