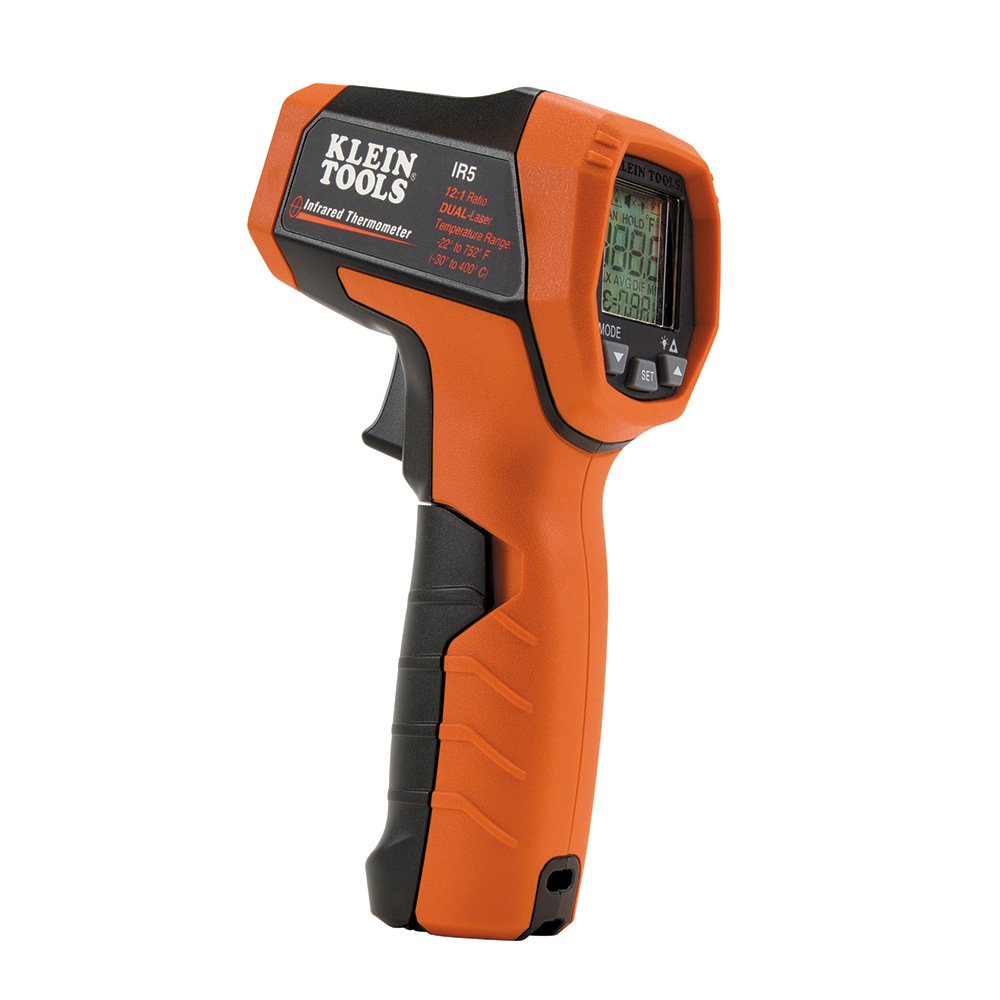

The Klein Tools IR5 is for the maker who has outgrown temperature guesses but does not need a thermal camera. It gives you a fast, non-contact way to compare build-plate zones, check dryer housings, find unusually warm motors, and map enclosure surfaces. Its adjustable emissivity and dual-laser targeting make it more useful than the cheapest point-and-read thermometer, but those features only pay off when you understand what the tool is actually measuring.
This review is based on the current product listing and the measurement jobs that matter around a 3D printing bench. The Amazon listing identifies a 12:1 distance-to-spot ratio, a range from -22 to 752 degrees Fahrenheit (-30 to 400 degrees Celsius), dual-laser targeting, adjustable emissivity from 0.1 to 1.0, and max, min, average, and difference modes. It also lists high and low alarms, a backlit display, automatic scanning, 6.6-foot drop protection, a pouch, and batteries.
Short answer
The IR5 makes sense when you want repeatable surface-temperature comparisons across several materials and locations. It is a strong fit for checking whether one region of a build plate behaves differently from another, comparing dryer and dry-box surfaces, examining enclosure hot spots, and documenting before-and-after changes during maintenance.
It is probably more tool than you need for an occasional sanity check on a matte surface. It is also the wrong tool if you need true contact temperature, air temperature, internal material temperature, or a full thermal image. An infrared thermometer reads emitted infrared energy from the surface in its field of view; it does not see through a panel or tell you the temperature deep inside a spool.
What problem does the IR5 solve?
Printer dashboards report what a thermistor measures at its installed location. That can be very different from the question you are trying to answer. A bed sensor does not show whether the front-left surface is cooler than the center. A dryer set point does not prove that the outer shell or every part of a spool chamber has reached the same condition. A stepper motor can feel hot by hand without giving you a repeatable number.
The IR5 lets you take quick surface readings without touching a moving, electrically live, or awkwardly placed component. The most useful result is often not one absolute number. It is the pattern:
- center versus corners on the same build surface
- one enclosure panel versus another
- the same motor before and after a maintenance change
- a dryer surface at the start, middle, and end of a cycle
- one machine versus an identical machine under the same job
Those comparisons can narrow a troubleshooting path before you start replacing parts.
Why adjustable emissivity matters
Infrared thermometers infer temperature from radiation leaving a surface. Different materials emit and reflect infrared energy differently. Matte paint, many plastics, textured coatings, glass, polished metal, and shiny metal do not behave the same way. A reading can look precise on the display while still being misleading because the emissivity setting does not suit the target.
The IR5 allows emissivity adjustment from 0.1 to 1.0. That gives a careful user more control than a fixed-emissivity budget thermometer. It does not remove the need for method. If you need better confidence, consult reliable emissivity guidance for the surface, keep the angle and distance consistent, and compare the result against a contact probe or a known reference patch where safe.
Shiny metal deserves extra caution because reflected heat from the room, the operator, or a nearby heater can distort the result. On a suitable stationary surface, a consistent piece of high-emissivity reference tape can create a more repeatable target. Do not apply tape where it could detach into motion hardware, damage a coating, contaminate a print surface, or violate the machine maker's instructions.
What the dual lasers actually do
The lasers help you aim and judge the measurement area. They do not measure temperature, improve the sensor's accuracy by themselves, or make a tiny distant target readable. The 12:1 distance-to-spot specification is the important limit: as you move farther away, the instrument averages a larger area.
For printer work, get close enough that the measured spot stays completely on the target. A reading aimed at a small stepper motor from across the room may include the cooler frame and background. A build-plate reading taken too far away can average the plate with clips, rails, or surrounding structure. The dual-laser layout helps make that boundary easier to judge, which is useful when mapping several repeatable points.
Where it helps around a 3D printer
Build-plate comparisons
Use a consistent grid and measure the same surface at the same angle and distance. You are looking for meaningful differences between zones, not proof that the printer's displayed bed temperature is wrong. Surface coating, airflow, edge losses, warm-up time, and heater design can all affect the map.
Do not treat an IR reading on reflective or translucent build surfaces as laboratory truth. Glass can reflect room energy, and coated spring steel can behave differently depending on finish. If the decision is safety-critical or calibration-critical, confirm with a suitable contact method.
Enclosures and electronics spaces
The IR5 can compare enclosure panels, vents, power-supply housings, and electronics covers without opening a running machine. That can help identify a blocked vent, a new hot area, or a change after moving a printer. It cannot read the air temperature through the enclosure wall, and it cannot see through a clear door. Pointing at a window measures the window surface and reflections, not the component behind it.
Motors, bearings, and mechanical troubleshooting
A motor or bearing housing that runs noticeably warmer than its matching counterpart can be a useful clue. Compare like with like under the same job, speed, room conditions, and runtime. One reading alone cannot diagnose belt tension, current settings, lubrication, bearing damage, or a failing motor, but a repeatable trend can tell you where to inspect first.
Filament dryers and storage areas
You can compare exterior dryer surfaces, vents, spool-chamber walls, and cabinet locations. This helps reveal uneven heating or a storage shelf sitting near an unexpected heat source. It does not measure moisture content, and it does not prove the filament core has reached a target temperature. Pair dryer checks with time, material-specific temperature limits, and humidity monitoring.
Modes that add real bench value
- Maximum and minimum: useful while scanning a plate or enclosure to locate the warmest and coolest observed surfaces.
- Average: helpful when you want a broad comparison without recording every instant by hand.
- Difference: useful for checking spread across a surface or comparing the current scan against its extremes.
- High and low alarms: useful for repeated checks where you care about crossing a chosen surface-temperature threshold.
- Backlit display: easier to read inside a dim enclosure area or under a printer shelf.
These features matter most in a repeatable process. If every reading is taken from a different distance, angle, surface finish, or warm-up time, extra display modes only organize inconsistent data.
Who should buy it?
- owners maintaining several printers who want a fast comparison tool
- makers troubleshooting bed-zone, enclosure, dryer, or motor temperature differences
- small print farms documenting a baseline before and after maintenance
- buyers who work across materials with different surface emissivity
- workshops that want one durable non-contact thermometer for printers and other equipment
Who can skip it?
- casual owners who only need an occasional rough spot check
- anyone expecting a thermal image rather than one measured area at a time
- jobs requiring air, internal, nozzle-melt-zone, or true contact temperature
- buyers who will not account for emissivity, reflective surfaces, and spot size
- people mainly trying to verify filament moisture rather than surface temperature
IR5 versus a cheaper infrared thermometer
The case for spending more is not simply that the temperature range is wide. Around a printer, adjustable emissivity, clearer targeting, scan statistics, alarms, and drop protection are the stronger reasons. Those features make the IR5 easier to use as a repeatable workshop instrument instead of a novelty point-and-read gadget.
A basic infrared thermometer can still be enough when you always measure the same matte target from close range and only care about a rough comparison. If your workflow never uses emissivity adjustment or scan modes, the IR5's extra controls will not improve the decision.
IR5 versus a thermal camera or contact probe
A thermal camera is faster for finding patterns across an entire plate, enclosure, or electronics cabinet. It also costs more and still requires emissivity awareness. The IR5 is slower because you scan one area at a time, but it is compact and well suited to targeted checks.
A contact probe is the better choice when the actual surface temperature at one defined point matters more than speed, provided the probe can be attached safely and correctly. For air temperature, use an air sensor placed in the relevant location. For filament moisture, use drying history, humidity data, print behavior, and material guidance rather than assuming temperature alone answers the question.
Important safety and measurement limits
The listing states that the IR5 is not a medical device and is not intended for people or animals. The aiming lasers also require care: never point them at eyes, reflective paths, or people. Follow the included instructions and any applicable workplace rules.
Non-contact measurement does not make a machine safe to approach while moving or energized. Keep hands, loose clothing, and the tool away from belts, fans, toolheads, exposed mains wiring, and heated components. If a printer must be opened for diagnosis, follow the manufacturer's shutdown and service procedure.
Finally, do not use one IR reading as the sole basis for changing thermal-protection settings, heater limits, motor current, or other safety controls. Confirm suspicious results with the right measurement method and service documentation.
Buying checks before you order
- confirm the listing is the Klein Tools IR5 with dual lasers and 12:1 optics
- decide whether adjustable emissivity will improve the surfaces you actually measure
- check whether targeted spot readings are enough or a thermal camera would save more time
- plan a consistent measurement grid or baseline before troubleshooting
- keep a contact probe or trusted reference method available for higher-confidence checks
- store the tool in its pouch so the lens stays clean and protected
Final take
The Klein Tools IR5 is a capable middle ground between a basic temperature gun and a thermal camera. It fits a 3D printing bench best when the operator wants repeatable surface comparisons, uses adjustable emissivity deliberately, and understands the limits of distance-to-spot ratio and reflective targets.
Buy it for structured troubleshooting across beds, dryers, enclosures, motors, and workshop equipment. Skip it if you only need occasional rough checks, need air or internal temperature, or want an instant full-frame heat map. The IR5 earns its place through controlled comparisons, not by turning one laser reading into absolute truth.
Affiliate link: Check the Klein Tools IR5 dual-laser infrared thermometer on Amazon.
Frequently asked questions
Can the IR5 verify a printer's nozzle temperature?
Not reliably as a substitute for the printer's sensor or a properly installed contact measurement. The nozzle is small, shiny, and surrounded by other hot surfaces, making spot size and emissivity difficult to control.
Can it measure enclosure air temperature through a clear door?
No. It reads infrared energy from the window surface and reflections. Use an air-temperature sensor inside the enclosure for chamber-air measurements.
Does dual-laser targeting mean two temperature sensors?
No. The lasers are aiming aids that help indicate the measurement area. They do not take the temperature reading.
Is it useful for checking a heated bed?
Yes, especially for comparing zones on the same surface with a consistent method. Surface coating, reflectivity, angle, distance, and emissivity can affect the absolute reading.
Can it tell whether filament is dry?
No. It can check accessible surface temperatures around a dryer or storage area, but it does not measure moisture content inside filament.
