Buy a matched commercial anti-backlash nut for a working Z axis or motion system; do not make generic PETG or TPU the loaded thread. A documented POM/polyacetal or purpose-made engineered-polymer nut is the sensible default when its screw diameter, lead, number of starts, flange, mounting holes, travel, preload, and load direction match the machine. A named wear-grade or tribological filament can justify a low-consequence experiment, and a conditioned nylon can justify a controlled prototype, but neither is interchangeable with an engineered nut assembly. PETG belongs in fit checks and light prototypes. TPU belongs only in a separate compliant feature if the design explicitly calls for one, not in the load-carrying lead-screw thread.

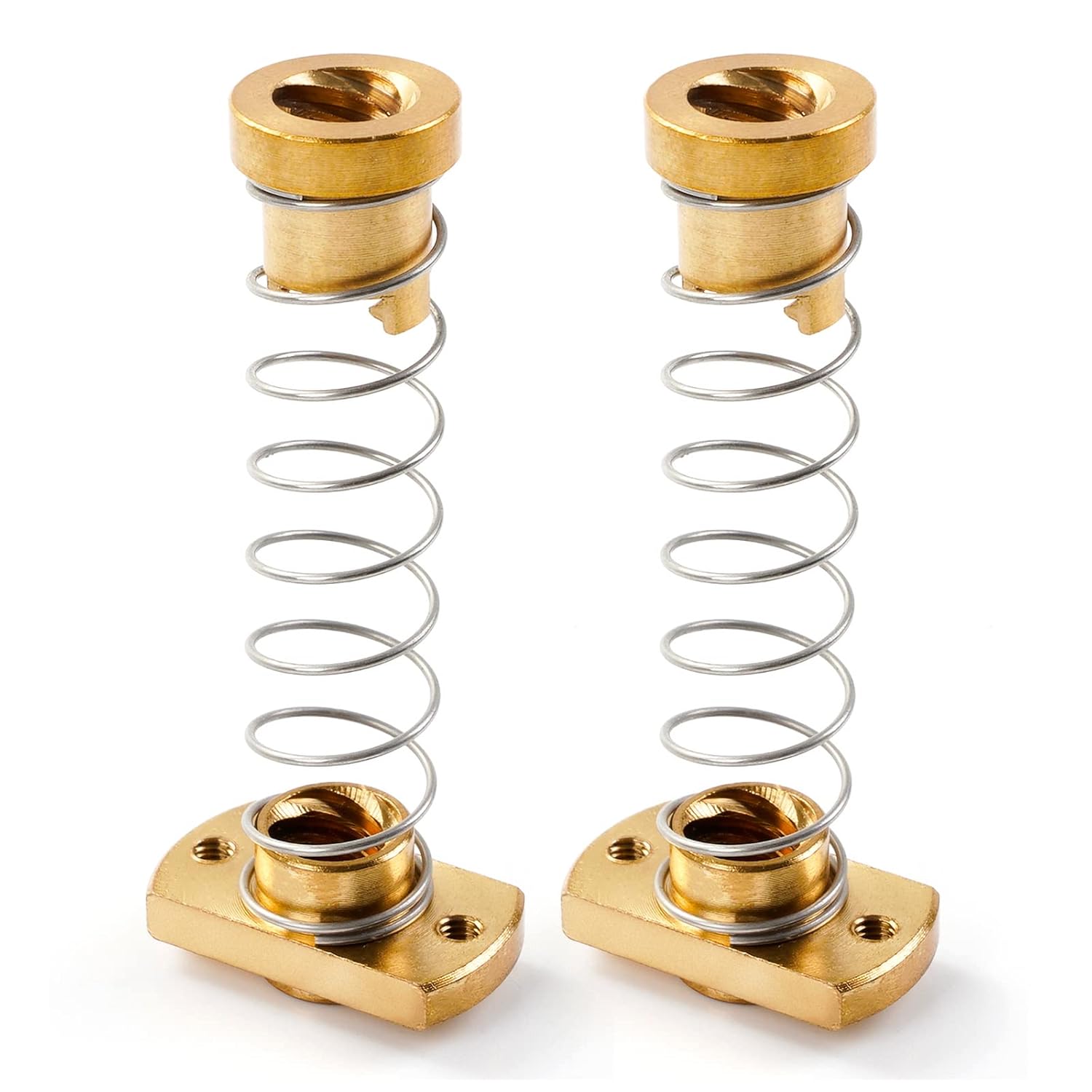

The HICTOP part originally reviewed here is one example of a spring-loaded desktop-printer upgrade, not proof that every Ender 3, CR-10, T8 screw, or Z-banding symptom needs an anti-backlash nut. Diagnose binding, screw straightness, couplers, wheels or rails, gantry alignment, lubrication, and extrusion first. If the original machine uses a plain nut and gravity keeps the axis loaded on one flank, adding spring preload can raise drag without fixing the real fault.
Availability note: the original HICTOP two-pack did not show a usable purchase path at the last product check. The existing links point to a clearly labeled 3Dman T8 spring-loaded alternative. Verify the exact screw lead and pitch, number of starts, flange pattern, spring travel, installation clearance, and printer instructions before ordering.
Affiliate disclosure: GoodPrints may earn a commission from qualifying purchases made through the Amazon link below, at no extra cost to you.
What this upgrade is really trying to fix
Anti-backlash nuts exist to reduce play between the lead screw and the nut assembly. On older or heavily used Ender-class machines, that extra movement can show up as less predictable Z travel, annoying inconsistencies between layers, or a printer that feels harder to keep dialed in over time.
If your machine still prints well overall but the Z system feels a little loose, this kind of part can make sense. It belongs in the same maintenance lane as bed-stability parts, replacement hotend hardware, and other low-cost fixes that keep an older printer worth using.
Should you print an anti-backlash lead-screw nut?
Usually no: buy the screw-and-nut system as a matched motion component. The nut is not just a threaded shape. Thread form, lead, starts, flank contact, preload, drag torque, alignment, wear rate, temperature, lubrication, and axial load all affect whether the axis reverses cleanly without binding or losing steps. A printed sample that turns freely by hand is only a geometry check.
| Choice | Defensible role | Main stop rule |
|---|---|---|
| Matched POM/polyacetal or engineered-polymer nut | First choice for working motion when the manufacturer specifies the screw, nut, load, speed, preload and torque envelope | “POM-like” is not a specification. A molded polyacetal nut made for one screw does not validate a generic POM-filled filament on another. |
| Named wear-grade or tribological filament | Low-consequence custom prototype when the exact filament has relevant wear data and the finished thread can be inspected and replaced | Supplier data for a filament or molded nut does not rate your printed layer direction, thread surface, preload, screw finish, load, speed or life. |
| Nylon | Controlled prototype where toughness matters and the exact grade is dried, printed, conditioned and measured in the installed humidity state | Moisture and conditioning can change dimensions and friction. Do not release a thread fit measured only in the dry, fresh-off-printer state. |
| PETG | Fit, flange, mounting-clearance and assembly prototypes with little duty and easy inspection | Do not infer low wear, stable preload, low drag or useful cycle life from easy printing or apparent toughness. |
| TPU | A separate bumper, dust feature or deliberately modeled compliant element outside the loaded thread | Keep it out of the drive thread. Compliance, friction and deformation make generic TPU a poor precision lead-screw nut. |
Anti-backlash is an assembly decision, not a filament ranking
Haydon Kerk's current KHD anti-backlash assembly guidance is useful because it publishes the variables hobby discussions often omit: lead versus pitch, critical speed, maximum load, efficiency, drag torque, torque to move the load, screw straightness, and extra drag from misalignment. It also identifies a self-lubricated polyacetal nut in a matched screw assembly. That is evidence for buying a designed system, not permission to label any printed “POM-like” part equivalent.
PBC Linear's current lead-screw assembly explanation describes a controlled thread-forming process, screw straightening, surface treatment, constant-force nut design, matched motor assembly, metrology, and load/life testing. igus likewise sells a specific wear-resistant polymer anti-backlash nut. Three manufacturers arriving at engineered, matched systems is the important pattern: performance belongs to the screw, nut, preload and test method together.
- Match lead, pitch and starts. An 8 mm diameter label is incomplete. On a multi-start thread, lead and pitch are not the same, and the wrong geometry can feel plausible for a partial turn while damaging the flank.
- Set preload for the actual load direction. Too little preload leaves lost motion; too much raises drag torque, heat, wear and stall risk. Do not stretch a spring or shim a split nut by guesswork.
- Align the axis before blaming clearance. A bent screw, skewed motor, rigid top constraint, racked gantry, dry guide, loose wheel or rail, or off-axis nut mount can turn added preload into binding.
- Use the specified lubrication route. A self-lubricating commercial polymer, a coated screw and a desktop-printer brass nut can require different maintenance. Random oil can collect debris or attack nearby materials.
- Keep the nut replaceable and inspectable. Design the mount so wear debris, thread splitting, spring travel, flange cracks, loose fasteners and changing axial play can be seen before position is lost.
Qualify the finished axis, not a loose printed nut
- Record the screw diameter, lead, pitch, number of starts, surface condition, straightness, supported length, nut mount, moving mass, maximum axial load, travel, speed, acceleration, ambient temperature, contamination and lubrication plan.
- Measure axial play at the carriage under a defined reversing load before the change. Also record motor current or driver setting, full-travel time, noise, skipped steps, warm motor temperature and any binding positions.
- Install the candidate without forcing the screw off-axis. Confirm free travel by the machine maker's safe procedure before powered cycling. Do not use hand feel alone as a torque or alignment measurement.
- Run representative full-stroke reversals, holds and direction changes through the actual load and temperature range. Recheck axial play, repeat position, driver faults, motor temperature, nut temperature, debris and thread condition at planned intervals.
- After nylon conditioning or environmental exposure, repeat the fit and drag checks. For PETG, tribological filament or any printed thread, inspect layer cracks, polished or torn flanks, ovalization, spring-seat creep, preload loss and screw scoring.
- Set acceptance and retirement limits before service. Stop if drag rises, the motor or driver runs outside its approved condition, the axis binds, preload travel is exhausted, debris grows, the screw scores, or position error exceeds the machine's need.
The Z-banding diagnostic guide is the right first stop when the symptom is a repeating wall pattern. The bushings and wear-surfaces guide covers the broader nylon-versus-PETG-versus-TPU sliding decision, while the dimensional-accuracy guide covers printed fit. Keep this page focused on the anti-backlash assembly and its preload, torque and thread-life problem.
When not to print the nut
Use specified commercial motion hardware for unattended equipment, hidden wear, high duty, valuable payloads, injury risk, guarding, lifting, vertical loads that can fall, medical or laboratory positioning, or any system where a stall or lost position creates more than a cheap reprint. For a low-consequence custom mount or surrounding fixture, document the load path and acceptance method through the material-before-quote checklist. The GoodPrints quote route and JC Print Farm production route can support a frozen, inspectable printed component, but neither turns a generic filament thread into a rated motion nut.
Why this buyer case is distinct
GoodPrints3D already covers nearby ownership fixes like the CCTREE silicone leveling columns review, the uxcell feeler gauge review, and the SKR Mini E3 V3 review. This page sits in a different lane: tightening Z-axis mechanics before you start blaming firmware, slicer settings, or whole-machine age for every vertical artifact.
That makes it a distinct buyer case from bed-leveling tools, electronics upgrades, or nozzle-maintenance gear. It is about lead-screw control and motion repeatability on printers that still deserve to stay in service.
Who this makes the most sense for
- Ender 3, Ender 3 Pro, Ender 3 V2, and CR-10 owners chasing Z-axis slop or vertical inconsistency
- owners refreshing an older printer instead of replacing it outright
- makers doing a low-cost mechanical tune-up before moving into larger upgrades
- buyers who want a focused fix for lead-screw play rather than a giant parts order
Who should skip it
- buyers whose print issues are clearly coming from belts, wheels, frame alignment, extrusion problems, or bad slicer settings instead of Z backlash
- owners who do not have a compatible lead-screw setup
- users expecting one cheap part to solve every surface-finish problem on a worn printer
What looks strong
- clear fit for common Ender 3 and CR-10 ownership maintenance
- cheap enough to justify as part of a focused tune-up pass
- distinct buyer intent tied to Z-axis hardware rather than generic accessory clutter
- easy to pair with other low-cost stability and setup upgrades on older machines
Tradeoffs worth knowing
- it only helps if backlash is actually part of the problem
- installation is still a hardware task, so it appeals more to owners comfortable opening the machine up
- this is a refinement part, not a guaranteed cure for every layer artifact
Where it fits in a smarter Ender-class refresh
For a lot of older open-frame printers, the best upgrades are not glamorous. They are the cheap mechanical fixes that make the machine easier to trust again. If you are already checking bed stability, tramming tools, and Z consistency, an anti-backlash nut pack fits that refresh path better than another random accessory buy.
That is especially true on printers that still earn bench space because they are serviceable, moddable, and easy to keep alive. A small Z-axis hardware correction can be a better spend than jumping straight to expensive electronics or replacing the whole machine too early.
Editorial take
The HICTOP Anti Backlash Nut pack looks like a solid review candidate because it solves a real ownership problem for one of the biggest installed bases in desktop FDM. This is not a trendy add-on. It is exactly the kind of low-cost maintenance part that matters when a printer is still useful but has started feeling a little loose around the edges.
For Ender 3 and CR-10 owners who already suspect Z play is part of the issue, this is a buyer-relevant part with a believable maintenance case. For everyone else, it is easy to overestimate what the part can do.
Should you buy it?
Buy it if your Ender-class printer has clear Z-axis play or you are doing a focused tune-up on an older machine that still prints enough to justify small maintenance upgrades. Skip it if your problems point more toward frame alignment, extrusion, bed setup, or motion tuning elsewhere.
Affiliate link: Check the 3Dman T8 anti-backlash alternative on Amazon.
Frequently Asked Questions
What does an anti-backlash nut do on a 3D printer?
It reduces play between the lead screw and the nut assembly so Z-axis movement can feel tighter and more repeatable.
Will this fix every kind of Z banding or layer inconsistency?
No. It only helps if backlash in the lead-screw system is part of the problem. Other issues can come from frame alignment, wheels, belts, extrusion, or slicer settings.
Who gets the clearest value from this part?
Owners of older Ender 3 and CR-10 style printers doing low-cost mechanical maintenance get the strongest buyer case.
