Direct answer: the BIGTREETECH SKR Mini E3 V3.0 is a strong Ender 3 board upgrade when a mechanically sound compatible printer needs quieter integrated TMC2209 drivers or a documented Marlin or Klipper path. It is not an automatic speed or print-quality fix, and it is the wrong board when independent dual-Z control or unresolved mechanical and wiring repairs are the real requirement.
Recommendation: buy board-only for Marlin or when a compatible Klipper host is already available. Buy a board-plus-host bundle only when Klipper is the defined goal and every included component fills a missing role. Before power-up, verify the exact printer revision, mounting, input voltage, heater and fan outputs, thermistors, probe, screen, connector pinout, polarity, firmware and recovery file.
SKR Mini E3 V3.0: the decisive upgrade facts
| Upgrade gate | Published fact | Buy when | Choose another path when |
|---|---|---|---|
| Controller and drivers | STM32G0B1 with four integrated TMC2209 drivers | A compatible older printer needs quieter, documented control electronics | More independent motor channels or replaceable drivers are required. |
| Power and fit | 12 or 24 V input; Ender-style mounting is not universal wiring compatibility | Mounting, voltage, loads, connectors, polarity and insulation all match | Any electrical or pinout question remains unresolved. |
| Firmware | Marlin runs on the board; Klipper requires a compatible external host | The exact configuration and recovery path are documented before flashing | A generic firmware file is being treated as universal. |
| Dual-Z limit | Two Z motor sockets share one Z driver | Shared dual-Z wiring meets the design | Independent left-right gantry tramming is required. |
| Performance reality | The board changes control capability, not frame, belts, rollers, hotend or extrusion health | The base machine passes mechanical, heater and wiring inspection | Deferred repairs plus board, host and screen approach replacement-printer value. |
| Bundle decision | Host, storage, power and cable are separate Klipper system requirements | Every bundle item is needed and compatible | A host already exists or Marlin is the intended endpoint. |
Use the Klipper setup guide and Klipper ownership test before choosing firmware. Compare the SKR Mini E3 plus BTT Pi bundle only when a host is missing; move to the Manta M4P lane when independent expansion matters more than replacement-board simplicity.
Source, safety and disclosure: controller, driver, power and configuration posture were rechecked September 16, 2026 against the current BIGTREETECH documentation and Klipper reference config. Disconnect mains power, verify wiring and polarity, protect conductors and strain relief, and do not energize unresolved work. This is manufacturer-documented buyer analysis, not hands-on electrical testing. GoodPrints may earn a commission at no extra cost to you.
Fast verdict
- Buy the board for an older compatible Ender whose mechanics, heaters, and wiring are worth keeping.
- Buy a board-plus-host bundle only when you actually want Klipper and do not already own a compatible host.
- Skip it when a quiet capable board is already installed, the real faults are mechanical, or the upgrade stack is approaching replacement-printer money.
- Verify the exact printer and wiring. “Drop-in style” does not mean one firmware image or connector assumption fits every Ender-family variant.
SKR Mini E3 V3.0 buyer fit at a glance
| Your situation | Best move | Why |
|---|---|---|
| Healthy older Ender, noisy or limited stock board | SKR Mini E3 V3.0 is a strong fit | It keeps a familiar board footprint while adding integrated TMC2209 drivers and current expansion options. |
| You want Klipper and own no host | Consider the board + BTT Pi bundle | The board runs Klipper firmware, but Klipper also needs a separate host. |
| You already own a Raspberry Pi, BTT Pi, or other host | Prefer board-only value | A second host adds cost without solving another problem. |
| Printer needs rollers, wiring, hotend, bed, and board work | Price a replacement printer first | A control-board upgrade does not erase the rest of the repair backlog. |
What the SKR Mini E3 V3.0 actually changes
BIGTREETECH's current documentation describes the V3.0 as an Ender 3 replacement board built around the STM32G0B1RET6 microcontroller. It uses four onboard TMC2209 drivers in UART mode, accepts 12 or 24 V input, measures 103.75 by 70.25 mm, adds a third PWM-controlled fan output, uses Micro-USB, and includes protected thermistor inputs.
Those details matter more than a generic “32-bit upgrade” label. The useful gains are quieter stepper control compared with older noisy stock boards, controllable fan behavior, a documented probe path, display options, and a board that has established Marlin and Klipper support. The official BIGTREETECH SKR Mini E3 documentation is the right place to confirm the current pinout, jumpers, display rules, and firmware process before wiring anything.
The board does not create a faster printer by itself. Speed and surface quality still depend on the frame, motion system, hotend flow, cooling, extrusion, firmware tuning, and the acceleration the machine can actually control. Quieter drivers are a real ownership improvement; they are not evidence that a mechanically tired printer is suddenly precise.
Which printers are the safest fit?
The clearest buyer lane is an older Ender 3, Ender 3 Pro, or Ender 3 V2 with stock-style electronics architecture. The current bundle listing also names the Ender 5. Treat every model beyond the original Ender 3 target as a compatibility check, not a promise.
Before ordering, record the printer model and revision, power-supply voltage, board mounting, display connector, probe type, fan voltage, endstop wiring, thermistor type, heater wiring, and any existing dual-Z or direct-drive changes. A board can physically mount and still need different firmware, connector work, or accessory configuration.
Do not assume the modern Creality Ender 3 V3 belongs in the same drop-in lane because its name contains Ender 3. Newer printer generations can use different electronics, wiring, screens, and motion architecture. Match the exact machine, not the family nickname.
Marlin or Klipper?
Choose Marlin when you want the simpler board swap
Marlin makes sense when the goal is quieter operation, a stable local printer, and support for the machine's existing display and accessories without adding a separate host. BIGTREETECH provides firmware resources, but the exact configuration still needs to match the printer, probe, screen, thermistors, axis directions, limits, and any hardware changes.
A precompiled file is not permission to skip the safety checks. Confirm homing direction, endstops, heater and thermistor behavior, fan outputs, and movement at low risk before heating or running a full print.
Choose Klipper when you want the host-based workflow
Klipper can be the better lane when you want a web interface, macros, input-shaping workflow, easier configuration iteration, and a host-based control stack. The board does not run that whole stack alone. It needs Klipper firmware on the microcontroller and a separate host running the rest of Klipper.
Klipper's current generic configuration for this board specifies the STM32G0B1, an 8 KiB bootloader, and USB communication, then directs users to copy the compiled file as firmware.bin to an SD card. Use the current Klipper board configuration and the site's Klipper setup guide rather than treating an old video as timeless wiring documentation.
If you are still deciding whether the software change is worth maintaining, read Is Klipper Still a Good Solution for 3D Printing? before buying the host hardware.
Choose the exact firmware path before you buy the board
Direct answer: buy the SKR Mini E3 V3.0 only if you can identify the exact board revision, printer, probe and homing wiring, screen, and USB-or-UART control path before flashing. The board name alone is not a firmware specification. A file can be genuine BIGTREETECH firmware and still be wrong for the connected printer or the way its Z endstop and probe are wired.
| Firmware lane | What the official files actually establish | Buy-or-stop gate |
|---|---|---|
| Marlin, stock Ender 3 wiring | BIGTREETECH lists an Ender 3 image without BLTouch support. | Use it only when the exact machine, endstops, thermistors, fans, heaters, display, axis directions, limits, and wiring match. A modified machine needs a controlled configuration, not a hopeful filename match. |
| Marlin with BLTouch | The official V3.0 folder separates normal BLTouch use from a different image that uses BLTouch for Z homing. | Stop until probe power, signal, deploy behavior, Z-min or probe input, homing direction, safe-Z position, and failure behavior are documented for the installed wiring. |
| Klipper over USB | Current Klipper's board config calls for STM32G0B1, an 8 KiB bootloader, USB communication, and an SD-card flash named firmware.bin. |
Build from a recorded current source revision, confirm the MCU appears by its actual serial ID, and edit the printer configuration for the real machine before motion or heat. |
| Klipper over USART2 | BIGTREETECH documents USART2 as a separate communication build and host configuration path. | Do not flash the UART path merely because the cable fits. Confirm voltage, TX/RX crossing, common ground, host serial-console changes, and recovery access first. |
The provenance check matters because BIGTREETECH's own V3.0 Klipper README says its downloadable precompiled images were built from a Klipper source commit dated March 10, 2022. That makes them documented reference artifacts, not evidence that a binary is current in 2026. The safer ownership test is whether you can record the source revision and build options, keep the known-good configuration, and reproduce the image later. If not, staying on a correctly configured Marlin build or replacing the machine may be the better decision.
Marlin filenames also encode real hardware choices. BIGTREETECH publishes separate Ender 3 files for no BLTouch, normal BLTouch connection, and BLTouch used for Z homing, and requires the selected image to be renamed firmware.bin for the board's SD-card bootloader. Read the current BIGTREETECH V3.0 Marlin notes; do not infer that one file covers every Ender-branded revision or modification.
For Klipper, use the current official SKR Mini E3 V3.0 configuration as a pin-map and build starting point, not a finished printer profile. The sample includes motion, thermistor, heater, current, limit, and geometry values that must be checked against the actual printer. BIGTREETECH's V3.0 Klipper notes additionally separate USB and USART2 builds. Record which lane you chose so a later recovery does not silently change the communication path.
Commission in failure-safe stages. With motors and heaters still disabled, confirm the board identity, configuration source, connection method, and recovery media. Then verify room-temperature sensor readings and manually trigger each endstop and probe while watching state. Test one axis at low speed with enough clearance to cut power, verify direction before homing, and confirm fan outputs. Only then test one heater at a time under direct observation, with plausible temperature rise, stable control, and an immediate shutdown plan. Do not leave the first heated cycle unattended.
Use-limit boundary: firmware success does not certify mains wiring, DC terminals, heater current, thermal protection, probe reliability, motion clearance, or fire safety. Do not energize damaged conductors, loose strands, uncertain polarity, unmatched fan voltage, unknown thermistors, or an unverified heater circuit. If the board revision, wiring, or recovery path cannot be proven, stop and use qualified repair help or choose another printer.
Evidence boundary: rechecked October 15, 2026 against BIGTREETECH's current V3.0 Marlin and Klipper repository notes plus Klipper's current official V3.0 board configuration. These documents establish file choices and build parameters; they do not prove that a generic image is safe for a modified printer or that GoodPrints performed this installation.
Board-only versus the BTT Pi bundle

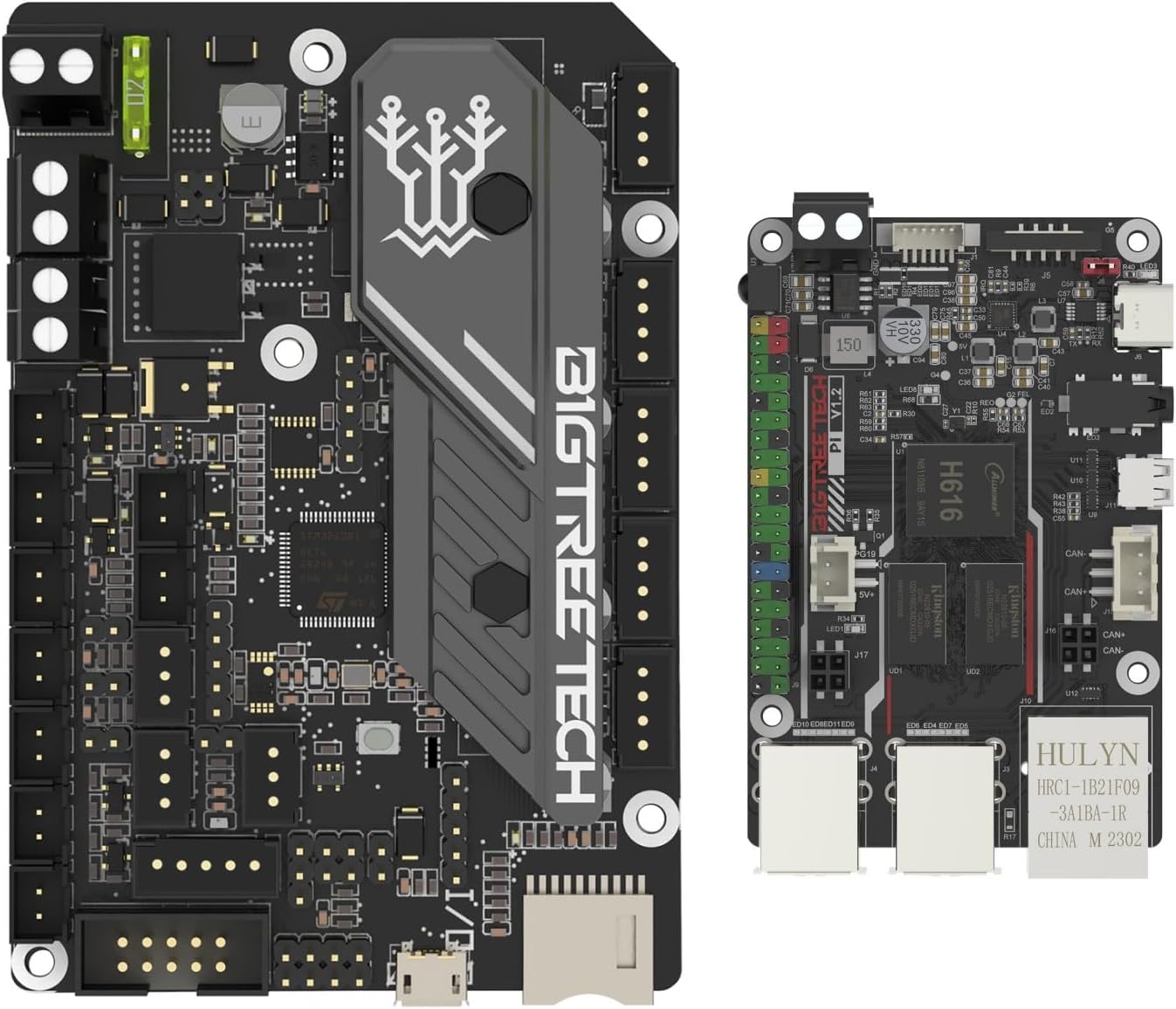

The live Amazon link on this page is a bundle containing the SKR Mini E3 V3.0 and BTT Pi V1.2. That is useful when you want a Klipper host and board together. It is unnecessary when you plan to stay on Marlin or already own a suitable host.
This distinction fixes a common buying mistake: “Klipper compatible” describes the board's firmware path, not an all-in-one computer on the board. The separate SKR Mini E3 V3.0 and BTT Pi starter-kit review owns the full bundle decision. This page remains the canonical board-fit review.
Check the current listing contents again at purchase time. Bundle components and availability can change even when the ASIN stays live. View the currently validated SKR Mini E3 V3.0 + BTT Pi V1.2 bundle.
Dual Z, probes, fans, and screens
Two Z connectors are not independent dual-Z control
BIGTREETECH lists X, Y, ZA, ZB, and extruder motor interfaces, but the board has four onboard TMC2209 driver channels. The two Z motor connectors therefore do not turn this into a five-driver board with independent left-right Z tramming. They are useful for a shared dual-Z arrangement, but buyers who need independently controlled Z motors need a board with another driver channel and the matching firmware plan.
Probe and sensorless-homing choices need exact configuration
The board documents BLTouch connectivity and sensorless homing. BIGTREETECH also warns that selecting sensorless homing for an axis means the external endstop cannot be used for that function. Decide which method the machine will use, set the jumpers and firmware accordingly, and test homing where you can cut power immediately.
Display support is not universal
The official documentation lists TFT options and the original Ender 3 LCD12864-style display path. If the reason for upgrading is mainly the interface, the BIGTREETECH TFT35 E3 review is the narrower screen decision. Do not buy a screen merely because the connector appears to fit; confirm mode, cabling, firmware, and enclosure space.
When a Manta board makes more sense
The SKR Mini E3 V3.0 is strongest when you want a familiar Ender-oriented board and separate host choice. A Manta-style board makes more sense when the project is becoming a deeper Klipper-first rebuild with integrated compute-module planning, more custom wiring, or a less stock machine architecture. The Manta M4P V2.2 review covers that branch without pretending it is the easier drop-in option.
Installation risk is part of the buying decision
- Photograph and label every stock connection before removing the old board.
- Disconnect mains power and do not work on energized electronics.
- Inspect wire ends and terminals. Loose strands, damaged connectors, and poorly terminated high-current wires are not firmware problems.
- Match fan voltage to supply voltage. BIGTREETECH notes that the fan operating voltage follows the board's input supply.
- Verify motion and endstops cold before enabling heaters.
- Verify thermistor readings at room temperature before commanding heat, then watch the first heating test closely.
- Keep a rollback plan. Save the working configuration, firmware source, and wiring record.
If that process sounds unreasonable for the value left in the printer, the right verdict may be to skip the board. A safer replacement can be better value than turning a worn entry-level machine into an open-ended electronics project.
Final verdict
The SKR Mini E3 V3.0 is worth it for a mechanically healthy older Ender 3 that you intend to keep. Its integrated TMC2209 drivers, documented firmware support, fan control, probe path, and familiar form factor make it a credible modernization board.
It is not worth it as a reflex purchase. Skip it when the printer already has quiet capable electronics, when the faults are mechanical, when you need more independent motor channels, or when the total rebuild cost is close to a cleaner replacement.
For Klipper, buy the current board-plus-BTT-Pi bundle only if you need both pieces. For Marlin or an existing host, look for board-only value and verify the exact listing before checkout.
Frequently asked questions
SKR Mini E3 V3.0 questions that change the 2026 verdict
Does the SKR Mini E3 V3.0 make an Ender 3 faster?
Not by itself. TMC2209 drivers and current electronics can improve noise and control, while safe speed still depends on the frame, motion, hotend flow, cooling, extrusion, firmware tuning and the acceleration the real machine can hold.
Does the board include Klipper?
No complete Klipper system lives on the board alone. The microcontroller runs Klipper firmware and a separate compatible host runs the main Klipper service, interface and configuration workflow.
Should I buy the board alone or the BTT Pi bundle?
Buy board-only for Marlin or when a suitable host already exists. Buy the bundle when Klipper is the goal and the exact host, storage, power supply, cable, enclosure, firmware and support path are all needed.
Can the two Z sockets perform independent gantry leveling?
No. The two Z motor sockets share one Z driver. They can support a shared dual-Z arrangement, but independent left-right correction requires separate driver control and compatible firmware configuration.
Is it plug and play in every Ender 3?
No. Verify the exact printer and revision, mounting, input voltage, heaters, fans, thermistors, motor and endstop wiring, probe, display, connectors and firmware. Similar family names do not guarantee the same electronics.
What must pass before the first heated print?
With a safe power-cut plan, verify visual wiring, polarity, grounding, fusing, idle behavior, endstops, low-risk axis direction, homing, thermistor readings, heater response and thermal protection before progressing to fans, extrusion, first layer and a representative part.
When should I replace the printer instead?
Price replacement when the machine also needs major motion, wiring, bed, hotend, heater, screen or host work, when downtime matters, or when the upgraded platform still misses required size, material, safety or support outcomes.
