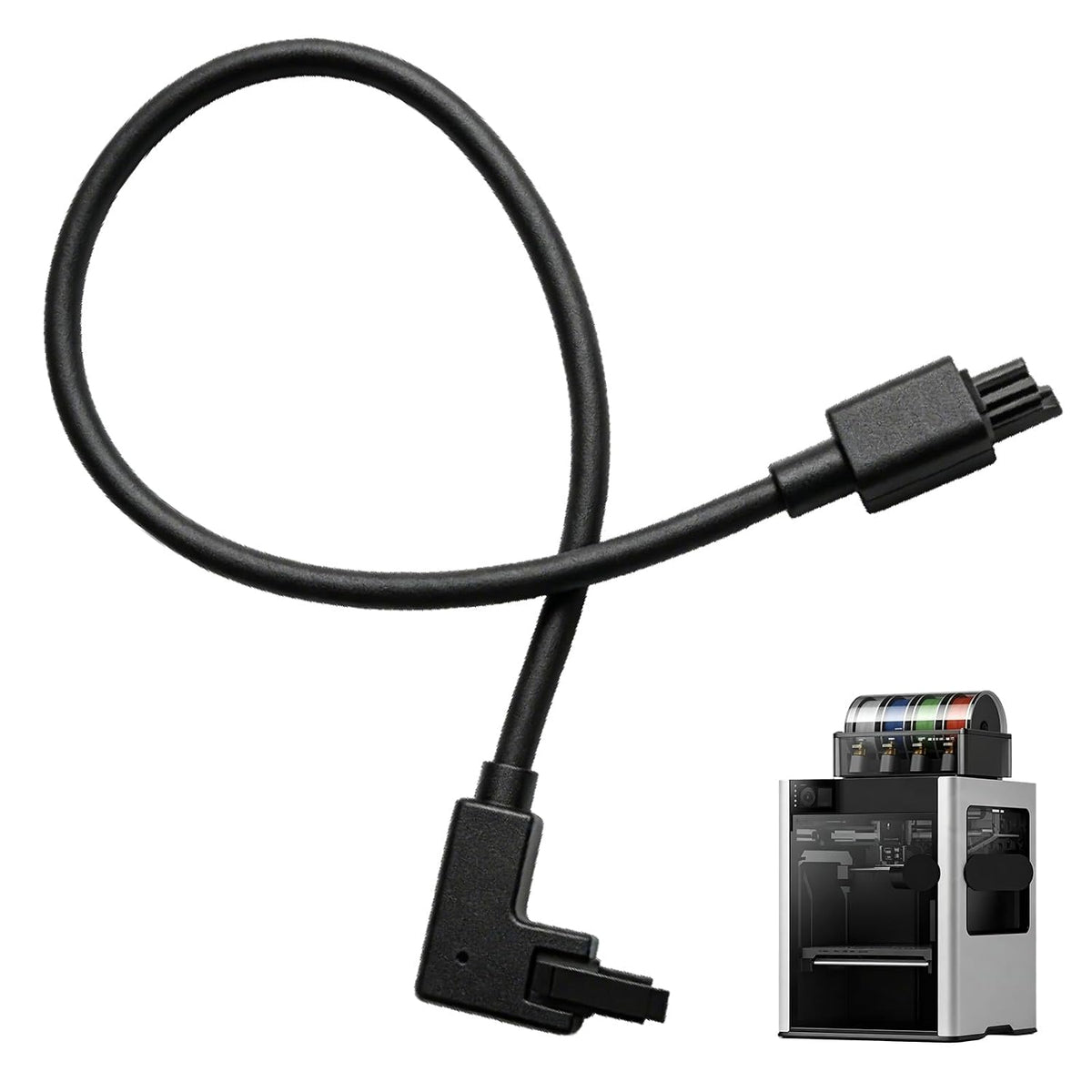

The CASHINE 4-pin 260 mm AMS cable is a narrow but useful replacement part for Bambu Lab X1- and P1-series AMS setups. It does not improve print quality, dry filament, or repair the PTFE feed path. Its job is simpler: restore the short electrical and communication link used at compatible printer, AMS buffer, or AMS hub connection points.
That narrow scope is also the main buying caution. Bambu AMS wiring includes different pin counts and lengths, and the common 6-pin cables are not interchangeable with this short 4-pin lead. This review is based on the listed specifications and connector role, so the right purchase starts with matching the failed cable rather than buying by printer name alone.
Short answer
Buy the CASHINE 4-pin 260 mm AMS cable when the cable you are replacing is visibly the same short 4-pin type and your route matches the listed X1, X1C, P1P, or P1S AMS, buffer, or hub connection. Skip it when your machine needs a 6-pin 510 mm or 1500 mm lead, when the route needs more than 260 mm, or when the real fault is in the PTFE path, hub, buffer, or AMS itself.
What this cable actually solves
- a damaged, pinched, or unreliable short AMS bus lead in a compatible connection position
- a missing 260 mm interconnect during an AMS hub or buffer reassembly
- an intermittent electrical or communication path that has already been isolated to the cable
- a spare-cable gap for owners who want the printer-side AMS wiring back online without waiting for a larger accessory kit
It does not carry filament. The PTFE tubes and pneumatic fittings handle the physical feed path. If filament is binding, retracting poorly, or failing at a connector while the AMS remains detected normally, inspect the tube path before treating an electrical cable as the fix.
The fit check matters more than the brand name
The Amazon variant reviewed here is listed as a 4-pin, 260 mm cable for Bambu Lab P1S, P1P, X1, and X1C systems. That is useful compatibility context, but it is not enough by itself. The same printer family can use different AMS bus cables at different points in the system.
Before ordering, disconnect power, photograph both ends of the existing cable, count the electrical contacts, measure the routed length, and note which devices the cable connects. A four-contact plug should be replaced with the same connector style and keying. A longer 6-pin lead is a different part even if a listing mentions the same printer.
Where the CASHINE cable fits best
- Bambu X1 or P1 owners replacing a known-bad short 4-pin AMS bus cable
- multi-AMS setups where a hub or buffer route needs the listed 260 mm interconnect
- repair benches that have already ruled out PTFE drag, loose tubes, power cycling, and a failed hub or buffer
- owners comfortable matching connectors and cable routing before purchase
If the larger issue is expansion layout rather than a damaged wire, the Bambu AMS expansion guide separates electrical routing, PTFE routing, hub placement, and service access before another part gets added.
Who should skip it
- A1 and A1 Mini owners troubleshooting an AMS Lite path; AMS Lite hardware is a different system
- buyers whose original lead has six contacts rather than four
- setups that need a 510 mm or 1500 mm route instead of a short 260 mm cable
- owners chasing a filament jam, worn PTFE tube, damaged pneumatic fitting, or spool-feeding problem
- anyone who has not yet identified which cable or component is actually failing
A practical troubleshooting sequence before buying
- Power the printer down fully. Do not reseat an AMS bus cable while the system is energized.
- Inspect both connectors. Look for bent contacts, damaged latch features, debris, strain, or a plug that is not fully seated.
- Inspect the whole cable. Check for pinches behind the printer, sharp bends near the hub or buffer, and damage caused by moving equipment.
- Reseat and retest. If the fault disappears when the cable is moved, an intermittent lead is plausible, but also inspect the sockets for looseness.
- Separate electrical symptoms from filament symptoms. Detection or communication loss points toward the bus path; drag and loading resistance point toward PTFE routing or mechanics.
- Match the replacement exactly. Confirm four pins, 260 mm length, connector orientation, and the same start and end points.
How it compares with the alternatives
The safest alternative is the matching Bambu Lab cable when it is available for the exact connection position. That route offers the clearest documentation and fit. The CASHINE option makes sense as a budget replacement when its connector count, keying, and length visibly match the failed lead.
A 6-pin 510 mm cable is not an upgrade to this part; it serves a different connection and routing need. The 1500 mm version is for a longer placement problem, not a reason to coil extra wire into a short route. Buy the cable the system uses, not the one with the most length.
Value verdict
This is the kind of inexpensive spare that can be worth keeping only when it matches your installed system. A correct cable can restore an otherwise healthy AMS path with little drama. An incorrect cable is pure shelf clutter and can tempt unsafe connector improvisation.
The CASHINE 4-pin 260 mm AMS cable therefore earns a qualified recommendation: good for a confirmed like-for-like X1/P1 AMS bus-cable replacement, poor as a guess-first troubleshooting purchase.
Common questions
Does this cable fit every Bambu AMS setup?
No. The listing names X1- and P1-series systems, but buyers still need to match the 4-pin connector, 260 mm length, and exact connection position. AMS Lite hardware and common 6-pin AMS cables are different.
Can it fix filament feeding problems?
Only when the feed failure is caused by loss of electrical communication through this cable. It will not fix a tight PTFE bend, a worn tube, a clogged hub, a spool that cannot turn, or a mechanical feeder fault.
Is a longer AMS cable better?
No. Cable length should match the route. Excess length adds clutter and strain-management work, while a cable with a different pin count is not a substitute at all.
Is it worth buying as a spare?
Yes for a repair-heavy X1/P1 setup after you confirm that the installed system actually uses this exact short 4-pin type. Otherwise, document the cables in your own layout first and stock the part you can identify.
Bottom line
The CASHINE cable is a sensible budget repair part for a very specific job: replacing a short 4-pin, 260 mm AMS bus connection in a compatible Bambu X1- or P1-series setup. It is not universal, and that is the entire review in one sentence. Match the pins, length, keying, and route; then it makes sense. Guess from the printer name alone, and it does not.
