The Andonstar AD246S-M Plus is a full digital microscope station for buyers who need magnified bench work on a screen, not a tiny handheld scope for occasional curiosity. Its best GoodPrints lane is close inspection: checking damaged circuit boards, connector solder joints, nozzle wear, first-layer texture, small printed features, and debris in parts that are hard to judge with the naked eye. Its weaker lane is ordinary print monitoring, where a camera or a simple inspection light costs far less and covers the job better.

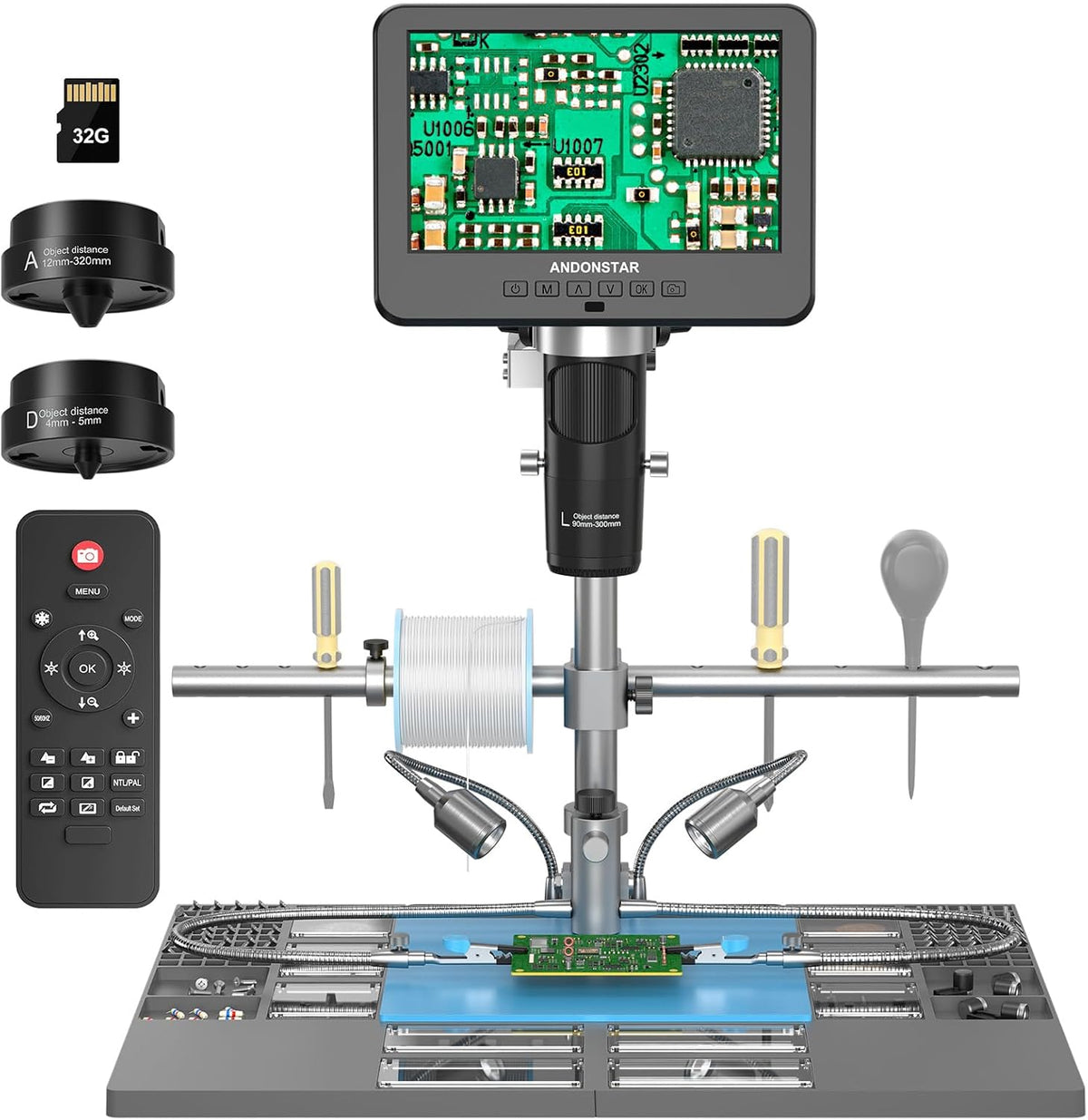

The current Amazon listing identifies the AD246S-M Plus as a 7-inch HDMI digital microscope with three interchangeable lenses, 2160P video recording, a 32 GB card, an extended work base, component trays, helping hands, a tool holder, adjustable lighting, and PC software for Windows. That makes it much closer to a small inspection station than a single-purpose USB microscope.
This is a buyer-fit review based on the listed configuration and the work it is designed to support. Magnification figures on digital microscopes depend on lens choice, sensor output, screen size, viewing distance, and digital zoom. The useful question is not whether the largest number on the box sounds impressive. It is whether the field of view, working distance, stand, lighting, and image output fit the work on your bench.
Short answer
Buy the Andonstar AD246S-M Plus if you regularly inspect or repair small parts and want a self-contained screen, a repair-oriented lens, HDMI output, recording, and fixtures in one station. It can earn its footprint for printer-electronics repair, soldering, nozzle and hotend inspection, failure documentation, miniature work, and other tasks where both magnification and hands-free positioning matter.
Skip it if you only want to photograph a rough first layer twice a year, watch prints remotely, or inspect large finished parts. A phone macro lens, inspection camera, strong task light, loupe, or lower-cost single-lens microscope may solve that narrower problem with less setup and less bench space.
What problem does this microscope solve?
Many printer problems are visible but not easy to diagnose at normal scale. A nozzle can have an uneven opening, baked-on polymer, or damage that looks minor until extrusion becomes inconsistent. A controller board can have a lifted pad, cracked joint, stray filament, or connector fault that hides between components. A first layer can look merely rough from arm's length while magnification reveals repeating ridges, gaps, dragged debris, or local surface contamination.
The AD246S-M Plus puts that detail on its own screen while leaving room under the lens for tools. That separation matters. A handheld microscope can show detail, but it is difficult to hold the scope, stabilize the part, keep focus, and manipulate tweezers or a soldering iron at the same time. The Andonstar package tries to solve the whole positioning problem with a stand, work base, clamps, storage, and lighting.
The three-lens design is the main buying argument
The listing separates the lenses by job. Lens L is the lower-magnification repair lens, listed for soldering and repair work. Lens A covers broader object inspection such as coins, plants, and stones. Lens D is intended for prepared biological slides. GoodPrints buyers will probably spend most of their time with Lens L, because working distance and a useful view of the tool area matter more than extreme enlargement during printer repair.
Lens A broadens the station beyond electronics. It can help inspect print surfaces, engraved text, small gears, miniature details, insert seats, layer seams, and material defects. Lens D is the specialist extra. It may be useful for education or slide work, but it should not drive the purchase unless that lane matters to you.
Changing lenses requires removing and installing screws according to the listing. That is not the same convenience as turning a zoom ring through one continuous optical range. Buyers who switch tasks constantly should account for the changeover. Buyers who mostly leave the repair lens installed may barely notice the tradeoff.
Why working distance matters more than headline magnification
Soldering, probing, scraping residue, and repositioning a small part all require physical space between the lens and the work. A microscope can deliver a huge enlarged image yet be nearly useless for repair if the lens crowds out the iron, hot-air nozzle, tweezers, or hands.
The listing gives Lens L the repair role and reports different magnification ranges depending on whether the image is viewed on the built-in screen or a larger HDMI display. Treat those numbers as configuration-dependent. For bench work, judge the lowest useful magnification, field of view, focus range, and tool clearance first. Enough context to see where the tip is moving is usually more valuable than a highly enlarged view of one tiny surface patch.
Where it helps on a 3D-printing bench
Nozzle and hotend inspection
Magnification can reveal a misshapen nozzle opening, scratches from aggressive cleaning, polymer stuck around the tip, a loose strand near a heater block, or residue that keeps being dragged through the first layer. Inspect only after the hotend is powered down and safely cooled unless the microscope, printer, and work procedure are specifically designed for energized inspection. The screen should never become an excuse to put hands or plastic accessories near hot or moving hardware.
First-layer and surface diagnosis
A saved close-up can help distinguish too much squish, not enough squish, periodic extrusion variation, debris, or a worn build surface. The microscope does not replace a bed mesh, feeler check, extrusion calibration, or representative test print. It supplies evidence when two failure modes look similar from normal viewing distance.
Printer-electronics repair
Fan connectors, thermistor leads, endstop wiring, damaged pads, and small controller-board components are natural microscope jobs. The helping hands and larger base can be useful when the board or wire needs to stay still. Disconnect power, discharge equipment as directed, observe electrostatic precautions, and follow the machine maker's service guidance. A magnified image does not make live mains or high-current repair safe.
Small printed features and assemblies
The system can help inspect miniature pins, text, gear teeth, snap-fit damage, insert pockets, layer starts, and tiny support scars. That is useful for failure analysis and quality documentation. It is less useful for measuring the full dimensional accuracy of a large part; a calibrated caliper, micrometer, optical comparator, or coordinate measurement method may be the right tool there.
Documentation and repeatable comparisons
The listing says the station can capture photos and video to the included 32 GB card. Saving a before-and-after view can support maintenance records, customer communication, repair notes, and comparisons between print settings. Keep the lens, lighting, angle, magnification, and part position consistent if you want two images to say something meaningful.
The 7-inch screen versus HDMI output
The built-in screen keeps the station self-contained. It avoids tying up a laptop and can reduce the delay between placing a part and seeing it enlarged. Seven inches is enough for many repair tasks, but it is not a huge workspace. Fine inspection, group demonstrations, or extended sessions may be easier on a larger external display.
HDMI output is therefore more than a specification checkbox. It lets the buyer place a larger monitor at a comfortable height, share a view during training, or see a wider image without leaning toward the microscope. Verify the display input, supported output mode, cable path, and available bench space before buying. A large monitor can improve viewing while making a small bench feel much more crowded.
Lighting can make or break the image
The listing describes eight light-intensity levels and includes a bottom-light stage for slide work. More light is not always better. Shiny solder, machined nozzles, smooth filament, and glossy prints can throw harsh reflections back at the camera. Lowering intensity, changing the part angle, diffusing light with a safe nonflammable method, or adding side lighting can reveal more texture than pushing the built-in LEDs to maximum.
Color and exposure also affect what the image seems to show. Do not judge heat damage, contamination, filament color, or surface finish from the screen alone unless the lighting and camera settings are controlled. For defect detection, consistent lighting often matters more than cinematic color.
Stand, base, and helping hands
The Plus configuration adds an extension base that the listing says increases the station area by 230 percent, along with storage boxes, a tool holder, and rotatable helping-hand clamps. These additions target the biggest weakness of many inexpensive microscopes: the optics may work, but the stand and work area fight the user.
A larger base can support boards, small assemblies, nozzles, and fixtures without balancing everything on a narrow plate. Component bins reduce the odds of losing screws and connectors during a teardown. Clamps can hold wire or a lightweight board, although they are not automatically safe for every hot, heavy, delicate, or energized part.
The downside is footprint. Measure the base area, vertical clearance, monitor swing, cable exit, and room needed for your hands before ordering. A capable station that must be packed away after every five-minute inspection may see less use than a simpler tool that stays ready.
PC software and measurement claims
Andonstar lists Windows software for measurement, photo capture, and video capture. On-screen measurement can be useful for comparisons only when the system is calibrated for the exact lens, focus distance, output resolution, and magnification state. Change the working distance or digital zoom and the calibration can change.
Do not treat a software dimension as metrology-grade by default. Verify it against a traceable reference at the same setup, repeat the reading, and use a suitable physical gauge when a tolerance controls fit, safety, customer acceptance, or machine performance. The microscope is strongest as an inspection and documentation tool; measurement is a bonus lane that requires discipline.
Andonstar AD246S-M Plus versus a USB microscope
A basic USB microscope wins on price, storage, and portability. It may be enough for photographing nozzle damage, checking a PCB, or showing a classroom sample. Its weaknesses are often stand stability, short working distance, computer dependence, lag, and awkward tool access.
The Andonstar wins when you want a dedicated screen, a heavier station, HDMI, multiple lenses, recording, and repair fixtures. Pay for that bundle only if those parts solve recurring work. If the scope will live in a drawer, the lower-cost tool is the more honest buy.
Andonstar AD246S-M Plus versus a stereo optical microscope
A good stereo microscope provides true optical depth cues and very low perceived latency, both of which can make delicate hand work feel more natural. It can also be expensive, bulky, and less convenient for recording or sharing the image.
The Andonstar offers screen-based ergonomics, capture, HDMI output, and a broader accessory bundle. It does not create true stereoscopic depth from a single camera view. Buyers doing daily microsoldering should compare a stereo optical system before assuming a high digital magnification number is the better tool.
Where this station may be overkill
- remote print monitoring that needs a network camera rather than magnification
- routine part measurement already handled by calipers and gauges
- rare nozzle checks that a loupe or phone macro attachment can cover
- large-part inspection where field of view matters more than tiny detail
- buyers with no permanent bench area for the stand, display, lights, and cables
- users who need true stereo depth for long daily repair sessions
Buying checks before you order
- confirm the listing is the AD246S-M Plus configuration with the 7-inch screen and three lenses
- make sure Lens L's repair-oriented view and working distance fit your main task
- measure the base, height, monitor position, and tool-access space on your bench
- check whether your external monitor has the required HDMI input
- verify current Windows software compatibility if measurement or PC capture matters
- decide whether the included clamps can safely hold the parts you work on
- budget for controlled side lighting or diffusion if reflective surfaces dominate your work
- compare a stereo microscope if depth perception is central to the job
Who should buy it?
- makers who regularly repair printer electronics or small assemblies
- operators documenting nozzle wear, first-layer defects, and fine print features
- benches that need one station for inspection, recording, and occasional solder support
- educators or teams that benefit from showing the microscope image on a larger display
- buyers who will use both the built-in screen and the repair-oriented fixtures
Who should skip it?
- buyers who only need a print-monitoring camera
- occasional users who can solve the job with a loupe or low-cost USB scope
- small benches where the station cannot stay assembled
- repair specialists who know they need optical stereo depth
- anyone buying mainly because the 2000x headline sounds better than a lower number
Final take
The Andonstar AD246S-M Plus makes sense when inspection is a recurring bench workflow rather than an occasional novelty. Its real value is the combination of a repair lens, self-contained screen, HDMI output, recording, adjustable stand, larger base, clamps, and tool storage. That bundle can turn close inspection from an awkward phone-and-flashlight exercise into a repeatable station.
It is not a universal upgrade for every printer owner. Magnification does not replace electrical safety, calibration tools, dimensional gauges, or sound repair technique. The three-lens kit also asks for space and setup that a simple loupe does not. If you regularly diagnose fine defects or repair small hardware, the station has a clear job. If you only need occasional close-up photos, buy less equipment and keep the bench open.
Affiliate link: Check the Andonstar AD246S-M Plus on Amazon.
Frequently asked questions
Can the Andonstar AD246S-M Plus inspect 3D-printer nozzles?
Yes, the repair-oriented lens can help reveal residue, wear, and opening damage on a safely removed or cooled nozzle. It cannot prove internal flow condition or replace a controlled extrusion test.
Can it measure printed features accurately?
The listed Windows software supports measurement, but reliable results require calibration at the exact lens, distance, and magnification used. Verify critical dimensions with a suitable physical gauge or calibrated measurement system.
Does it work without a computer?
The built-in 7-inch screen and included card support self-contained viewing and capture according to the listing. A Windows PC is relevant for the listed measurement and capture software, while HDMI supports a larger external display.
Which lens is best for soldering and printer repair?
The listing assigns Lens L to soldering and repair. Its lower magnification range is intended to preserve more working distance and context around tools than the higher-magnification slide lens.
Is 2000x useful for printer maintenance?
Usually not as the main mode. Printer maintenance benefits more from a stable image, enough working distance, and a field of view that includes the tool and component. The highest listed magnification is tied to the slide-oriented lens and large-display configuration.
