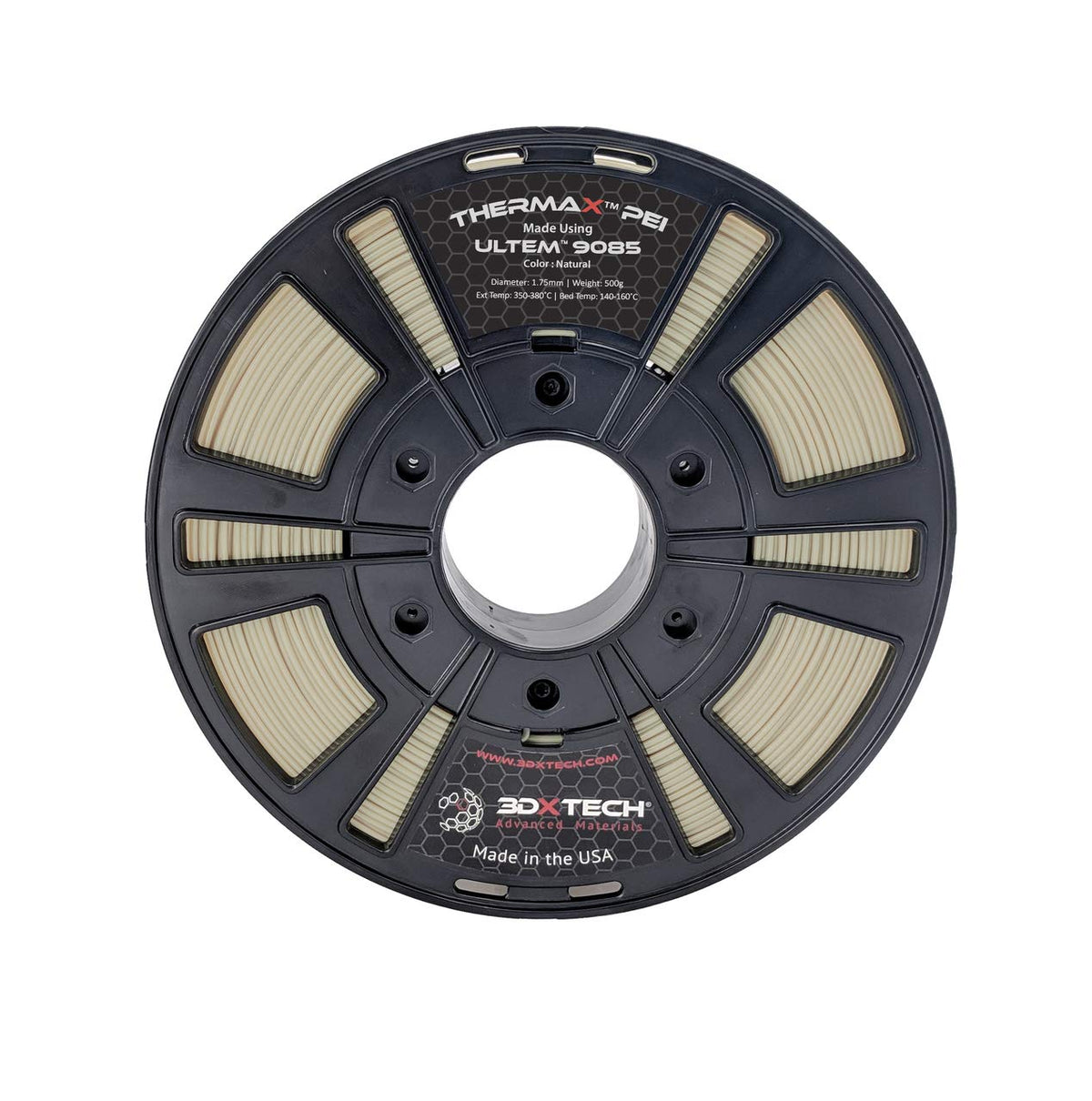

Short answer: 3DXTECH ThermaX PEI made with ULTEM 9085 is for experienced users who already own a genuinely high-temperature 3D-printing platform and need a material class built for demanding heat, flame, electrical, or transportation-adjacent applications. It is not a premium substitute for ordinary PLA, PETG, ABS, or even most polycarbonate jobs. The buying decision starts with printer capability, process control, and documentation needs—not with the filament's headline strength.
This review explains what the 500 g ThermaX PEI spool can solve, who can realistically use it, what supporting equipment it asks for, and where a less demanding engineering filament is the better purchase. Buyers should verify the current manufacturer's technical data, safety guidance, printer requirements, and listing details before ordering because material grade alone does not guarantee that a printed part meets any regulated standard.
What problem does this filament solve?
Most desktop filaments are selected by balancing printability, stiffness, toughness, appearance, and moderate heat resistance. PEI belongs in a different lane. The reason to consider it is that an application has requirements ordinary thermoplastics cannot comfortably satisfy, and the printer plus post-print workflow can support the material. Typical buyer questions involve high service temperatures, dimensional stability, flame behavior, electrical insulation, chemical exposure, or low-smoke requirements.
That does not mean every PEI print automatically delivers those properties. Published resin data is measured under controlled conditions, often on molded test specimens. FDM parts add layer interfaces, voids, toolpath direction, moisture history, thermal cycling, and machine-specific variation. A buyer should treat the spool as an input to a qualified process, not as a certificate attached to every object that comes off the build plate.
For a capable shop, that distinction is useful rather than discouraging. ThermaX PEI creates a path to test high-temperature jigs, electrical fixtures, ducting prototypes, protective covers, tooling aids, and specialized end-use concepts without immediately moving to injection molding. The value is access to the material family in a small 500 g format, provided the user can generate trustworthy process evidence.
Who is the right buyer?
The strongest fit is an operator with a printer explicitly designed for high-temperature polymers. That generally means more than a hot nozzle rating on a product page. The machine needs an appropriate hot end, temperature-capable sensing and wiring, a build surface the manufacturer supports, a heated environment or chamber strategy, controlled cooling, and motion components that tolerate the conditions of a long job.
It also fits engineering teams that can run coupons before parts. A serious evaluation should include dimensional checks, layer-adhesion tests, visual inspection, mass tracking, and application-specific loading. If the part protects people, controls equipment, carries a critical load, or enters a regulated environment, the printed process needs professional qualification. A familiar material name does not remove that responsibility.
This is a poor first engineering filament. Someone still learning enclosure temperature, extrusion calibration, moisture control, or warping diagnosis will get more useful experience from ABS, ASA, nylon, or polycarbonate. Those materials are already demanding enough to expose gaps in the printer and workflow while costing less per failed setup.
Printer capability is the first hard gate
Before buying, compare the current 3DXTECH processing guidance with the printer's sustained—not momentary—limits. Confirm the hot end can hold the recommended extrusion range for the duration of the job. Check that the thermistor or other temperature sensor remains accurate there, that thermal protection is configured correctly, and that every part near the hot zone is rated for the environment.
The bed and chamber matter because a hot extrusion temperature alone does not prevent internal stress. A part can look acceptable for the first several layers and then split, curl, or release as its height increases. Large flat parts, tall walls, sharp corners, and thick-to-thin transitions are particularly unforgiving. A small unenclosed printer with an upgraded heater cartridge is not automatically a PEI printer.
Build-surface compatibility needs equal attention. High-performance polymers can adhere too weakly and warp, or bond so strongly that a surface is damaged during removal. Use only a surface and release method supported by the filament and printer suppliers. Start with a small coupon, let it cool as directed, and inspect both the part and plate before scaling up.
Drying and storage are part of the process
Moisture is a major source of misleading failures in advanced filament. A wet spool can produce popping, rough extrusion, bubbles, stringing, reduced layer quality, and inconsistent mechanical results. Those symptoms may resemble a bad temperature profile or inadequate motion tuning, leading the operator to change several settings while the actual problem remains in the material.
Use the manufacturer's current drying instructions rather than copying a nylon or PETG routine. Confirm that the dryer can reach and hold the required temperature safely, and use a separate thermometer if process confidence matters. After drying, keep the spool in a sealed low-humidity path to the printer. A long exposed feed route can undo careful preparation during an extended print.
Label the spool with opening date, drying cycles, and test results. The 500 g format makes this especially important because failed setup prints can consume a meaningful share of the material. A small log turns each coupon into reusable process knowledge instead of another anonymous scrap.
How to qualify a first profile
Begin with a geometry that tests the process without hiding it. A thin-walled box can reveal corner lift and wall consistency. A stepped coupon can expose heat buildup and dimensional drift. A small tensile-style or bend coupon printed in more than one orientation can show how strongly the result depends on layer direction. Include a simple dimensional artifact that can be checked with a calibrated caliper.
Change one variable at a time. Establish drying state, chamber condition, bed preparation, and nozzle configuration before comparing extrusion temperature or speed. Record actual machine conditions rather than only slicer targets. A profile that works after a long preheat may fail when the operator starts the same job from a cold machine.
Inspect the purge and first layers closely. Uneven flow, visible bubbles, or intermittent under-extrusion should stop the test before an expensive model is started. Verify extrusion consistency at the intended flow rate, then move to representative wall thickness and geometry. A tiny calibration cube cannot reproduce the stress in a large housing or long fixture.
Once a profile appears stable, print a section of the real part that includes a corner, opening, boss, and mating feature. This is more informative than producing a full object immediately. Measure it after cooling and again after any approved conditioning or post-processing step. The part's final dimensions—not its appearance while still warm—are what matter.
Nozzle and wear considerations
The Amazon listing identifies ThermaX PEI as being made with ULTEM 9085, but buyers should verify whether the exact current product contains reinforcement or other additives before selecting a nozzle. Base polymer, fillers, pigments, and manufacturer formulation can change wear and handling requirements. Follow the current data sheet rather than assuming every PEI spool behaves identically.
Nozzle material must also tolerate the intended temperature without introducing compatibility problems. Confirm the complete hot-end stack, not just the nozzle tip. Heater block, heat break, sensor, heater, retaining hardware, and any internal liner all need to belong in the same temperature class. If the printer maker does not support the configuration, the safer answer is a different machine or material.
Part design matters more than the material label
High-performance filament cannot rescue a design that ignores FDM anisotropy. Orient the part so the main load does not simply peel layers apart. Use generous radii at stress transitions, avoid unnecessary thick masses, and place seams away from loaded edges where possible. Bosses and fastener interfaces need enough material around them, but excessive local thickness can worsen shrink stress.
Plan supports and removal before slicing. A complex support forest made from the same expensive polymer can consume much of a 500 g spool. Soluble or breakaway support may require material combinations and machine capability that are not straightforward at PEI processing conditions. Sometimes splitting the model, adding designed interfaces, or machining a secondary feature after printing gives a cleaner and more repeatable result.
Threaded connections deserve testing. Heat-set inserts, captive nuts, directly printed threads, and machined threads each load the surrounding polymer differently. Do not carry over insertion temperatures or torque values from PLA. Use sacrificial samples and define a controlled assembly method before working on the final part.
Where this spool makes sense
A 500 g PEI spool makes the most sense for small, high-value parts where the material class directly answers an environmental requirement. Examples can include high-temperature inspection fixtures, electrical isolation components, specialized brackets inside warm equipment, duct or airflow prototypes, tooling aids, and validation models for future production processes. Every example still depends on measured conditions and application-specific qualification.
It can also make sense for a lab comparing materials. Printing the same controlled coupon in polycarbonate, nylon, PEI, and another candidate can show whether the advanced material offers enough benefit to justify its machine and handling cost. That is a much stronger buying reason than choosing PEI because it sounds more capable on paper.
Where it is overkill or the wrong tool
ThermaX PEI is excessive for ordinary printer upgrades, organizers, shop trays, display pieces, prototypes that only need visual fit, and most room-temperature jigs. PETG, ASA, ABS, nylon, or polycarbonate can often meet those needs with easier processing, cheaper iterations, and a larger pool of proven desktop profiles.
It is also the wrong purchase when the printer cannot meet the full process envelope. Buying a spool first and discovering that the chamber, bed, hot end, or dryer is insufficient is an expensive way to plan a machine upgrade. Build a compatibility checklist before ordering and include the cost of failed coupons, power, warm-up time, ventilation, maintenance, and replacement build surfaces.
Do not use a printed PEI part as an automatic substitute for a certified commercial component. Flame, smoke, electrical, aerospace, transportation, and food-contact claims involve more than resin family. Geometry, print orientation, additives, color, contamination, and process history can all matter. If certification is required, obtain the relevant documentation and use a qualified manufacturing route.
Verdict
3DXTECH ThermaX PEI made with ULTEM 9085 is a credible specialty buy for operators who already have the right high-temperature printer, drying workflow, and test discipline. It gives a capable shop a manageable amount of advanced material for coupons, small fixtures, demanding prototypes, and process evaluation. In that context, the 500 g spool can answer questions that mainstream filament cannot.
For most desktop owners, it is not the next step after ABS or polycarbonate. The machine requirements, moisture control, warping risk, setup cost, and qualification burden are part of the product. Buy it when a defined service condition justifies the whole workflow, not merely because PEI ranks above familiar filament on a temperature chart.
