Direct answer: If an ASA part splits along a printed layer, stabilize the print environment before chasing retraction or replacing hardware. First confirm that the break follows a layer plane. Then restore the filament and printer maker's supported ASA baseline, remove drafts and abrupt cooling, separate base warping from weak bonding, prove extrusion consistency, and reduce geometry-driven stress. Treat moisture only when the spool shows supporting evidence.
This guide covers one exact failure: an ASA wall or feature separates along one or more printed layer boundaries during printing, cooling, removal, assembly, or use. It does not cover a base corner lifting from the plate, a random impact fracture across layers, hairs between travel moves, or a crack that began at a screw hole because the fastener was overtightened. If only the bottom lines are open, use the ASA first-layer-gap guide.
Editorial scope: This workflow uses current manufacturer guidance and does not claim hands-on testing. ASA formulations, printers, chambers, nozzles, profiles, and part loads vary. Keep temperature, cooling, drying, ventilation, and service changes inside the exact printer and filament makers' supported limits.
Safety: Follow the printer and material makers' ventilation guidance. Do not defeat thermal protections, seal electronics into an unsupported hot environment, or use a cracked part in a safety-critical load path without appropriate engineering validation.

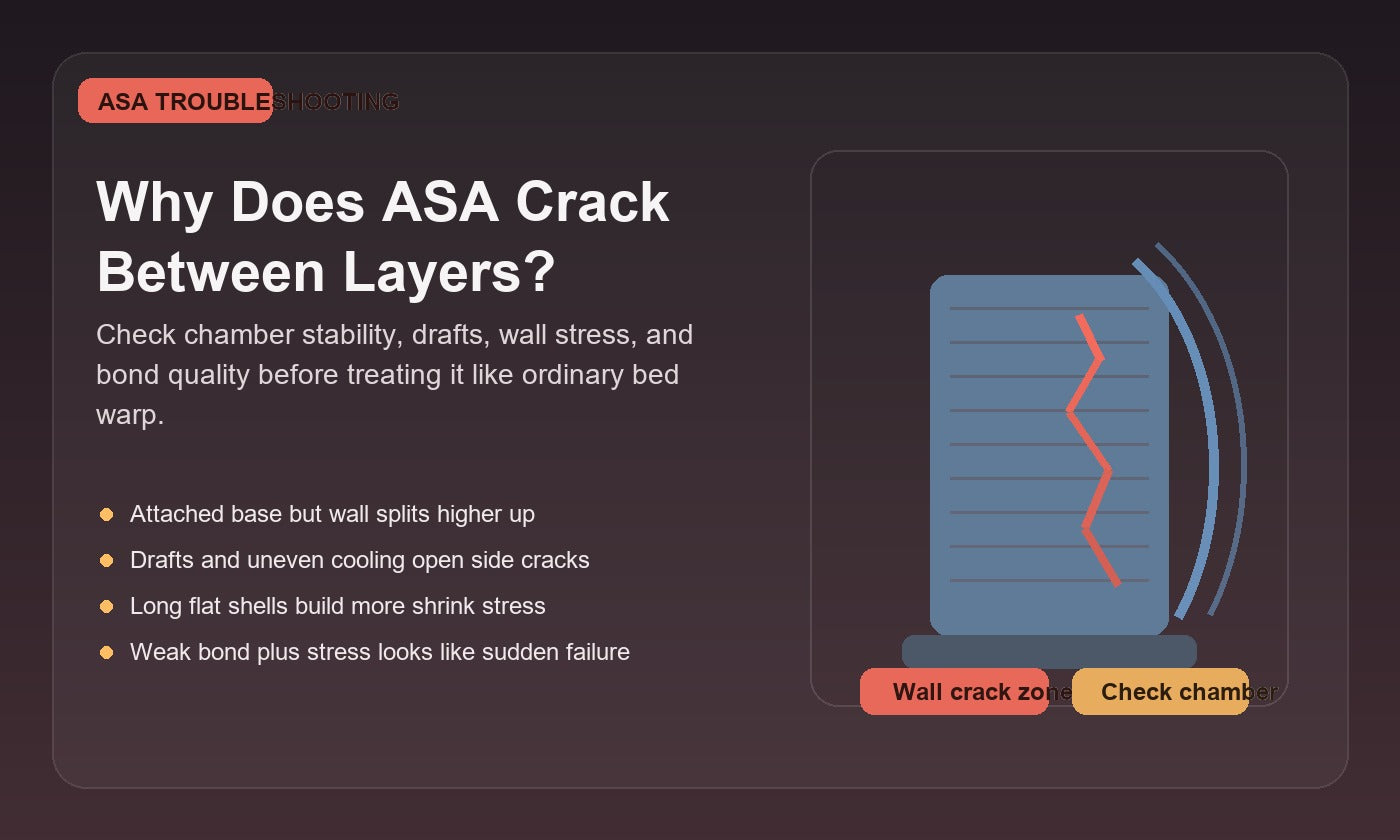

Confirm that the ASA crack is between layers
Let the part reach room temperature before handling it. Photograph the crack, mark its start and end, and compare it with the visible layer lines. A layer-bond failure usually travels mostly parallel to the build plate. A base corner that curls upward first is a warping problem. A fracture that cuts diagonally through several layers can instead indicate impact, a sharp stress concentration, or a load that the geometry cannot carry.
Preserve the failed project as evidence
Save the exact project file and record the printer, enclosure state, ASA product, material preset, nozzle diameter and material, layer height, wall count, part orientation, cooling, temperature, speed, flow-related overrides, spool exposure history, and when the split appeared. Do not reslice from memory; the failing slice is the baseline.
Match the fracture pattern to the first useful check
| What you observe | Leading hypothesis | First clean proof |
|---|---|---|
| Long split on one plane, often on the draft-facing side | Unstable environment or directional cooling | Repeat the same wall with the supported enclosure state and draft source removed |
| Crack begins above a lifted corner or bowed base | Base warp is loading the wall | Prove a flat base before changing bond settings |
| Several weak planes plus thin, intermittent, or rough extrusion | Bond or feed instability | Compare a steady purge and simple wall using the supported baseline |
| Split starts at a hole, notch, thin section, or abrupt wall change | Geometry-driven stress concentration | Repeat with a radius, gradual transition, or different orientation |
| Part prints intact but opens during uneven cooling | Residual thermal stress | Hold the supported environment stable and allow controlled cooling |
| Popping, bubbles, rough lines, or exposure-linked decline accompanies the split | Spool condition may be contributing | Repeat before and after the filament maker's drying process |
Check 1: restore the supported ASA baseline
Remove forgotten experimental overrides and select the exact printer-and-filament starting profile when one exists. Prusa's current ASA guide treats enclosure, drafts, fan use, temperature, warping, fumes, and moisture as connected controls. That is why an isolated temperature number copied from another machine is weak evidence.
Change one variable from a known state
Print two unchanged small walls first. If they do not agree, the process is not stable enough for fine tuning. Inspect nozzle condition, feed resistance, loose hardware, and profile selection before interpreting a one-off result. Keep temperatures within the exact makers' limits rather than escalating heat until a crack disappears.
Check 2: stabilize the enclosure, drafts, and cooling
ASA shrinks as it cools. A door opening, room vent, exhaust stream, cold window, or aggressive part fan can cool one region faster than another. The result can be a split on the colder side even when the same nominal profile worked on a smaller or differently oriented part. Use the ABS/ASA enclosure decision when the machine itself is the unresolved constraint.
Map the direction of the failure
Note whether the split repeatedly faces the door, fan, vent, or room opening. Use the printer maker's supported enclosure and ventilation arrangement, keep the room disturbance consistent, and test the same geometry. Do not improvise a blanket or unapproved enclosure around electronics. If the crack changes sides when the part rotates, geometry or toolpath becomes more likely; if it stays on the room-facing side, investigate the environment.
Check 3: separate wall splitting from base warping
A lifting corner pulls on every layer above it. The visible wall crack can be a secondary release point, so raising nozzle temperature or adding walls may hide the symptom without correcting the load. Inspect the cooled base on a flat surface and use layer-by-layer photographs if the failure happens during printing.
Prove the base before tuning bond strength
Prusa's current warping guide links shrinkage control with surface preparation, enclosure, drafts, geometry, and related slicer choices. If a corner or long edge lifts first, use the dedicated ASA warping workflow. Return here only after the same test holds a flat base.
Check 4: prove bond quality and extrusion consistency
With the environment and base stable, compare adjacent lines and layers. Thin streaks, intermittent flow, a rough purge, or several weak planes point toward feed or extrusion instability. A consistent-looking wall that splits only at a particular transition points more strongly to local cooling, a toolpath change, or geometry.
Test heat, cooling, and speed separately
Use only modest changes within the printer and filament makers' supported ranges. Test one supported nozzle-temperature step, one supported fan change, or one wall-speed reduction while holding everything else fixed. Keep a change only if repeated walls improve without sagging, dimensional drift, surface damage, or a new base-warp problem.
Rule out a partial feed problem
Check spool drag, the filament path, extruder grip, nozzle condition, and whether a steady purge is repeatable. If extrusion is thin or intermittent across walls and infill, use the under-extrusion workflow. Do not diagnose a clog from one cracked wall alone.
Check 5: reduce geometry-driven thermal stress
Tall thin walls, abrupt thickness changes, large flat panels, sharp internal corners, holes close to edges, and heavy sections attached to light sections cool and shrink differently. More walls can strengthen a sound design, but they can also add material and thermal stress without removing the original concentration.
Use slicer preview and the part's load direction
Prusa's current layers-and-perimeters guide documents wall, shell, top, bottom, and related strength controls. Inspect where perimeters start, stop, change speed, or meet sparse regions. When the split begins at a notch or hole, test a radius, a gradual thickness transition, a local reinforcement, or an orientation that does not put the working load directly across printed planes.
Check 6: treat spool condition as evidence, not a reflex
Move moisture forward only when the same spool declined after exposure and the crack arrives with popping, bubbles, rough or inconsistent lines, excess stringing, or unstable extrusion. Follow the exact ASA maker's drying instructions, then protect the spool during the repeat. A storage bag or dry box does not prove that a wet spool has been restored.
Repeat the same slice after the approved process
If drying improves line consistency and layer strength together, spool condition contributed. If the fracture stays at the same draft-facing side or geometric transition, return to that stronger evidence. For a spool-condition decision without a layer crack, use the ASA moisture guide.
Apply only the fix supported by the proof
- Draft-linked split: use the supported enclosure and ventilation arrangement and remove the directional disturbance.
- Lifted base before the split: solve the ASA warping branch first.
- Weak planes plus unstable extrusion: correct the proven feed, profile, temperature, cooling, or speed issue one variable at a time.
- Crack at a notch or thickness jump: reduce the stress concentration or change orientation.
- Crack appears during uneven cooldown: keep the supported environment stable and allow controlled cooling before removal.
- Exposure-linked popping and rough lines: use the filament maker's drying process and repeat the same test.
Run one controlled ASA wall test
Use a small repeatable wall that includes the same failure-triggering feature when practical. Print two unchanged baselines, allow both to cool fully, photograph them from the same angle, and label enclosure state, room conditions, temperature, cooling, speed, orientation, wall strategy, and spool state. Choose the leading branch and print two more copies after changing only that variable.
Define a passing result before tuning
Accept a change only when repeated cooled samples stay closed and retain the required dimensions, surface quality, base flatness, and load performance. Save the winning project. Return every failed branch to baseline before testing the next one. A single intact cosmetic sample is not proof for a loaded production part.
Avoid these common failed fixes
- Raising nozzle temperature first: it can mask a draft, warped base, or geometry problem and may create new defects.
- Turning the fan off without checking the maker profile: cooling needs vary with machine, material, bridges, and geometry.
- Adding walls blindly: extra material does not remove a sharp notch, bad orientation, or unstable environment.
- Drying every spool before observing it: require an exposure timeline or extrusion symptoms, then run the same-slice proof.
- Changing heat, fan, speed, walls, and orientation together: the result cannot identify the working control.
- Using another printer's ASA recipe: chamber behavior, cooling hardware, hotend, nozzle, and profile assumptions differ.
Choose the next troubleshooting branch
If a base corner lifts before the wall opens, use the ASA warping branch. If open-travel hairs are the real symptom, use the ASA stringing branch. If an overhang curls into the nozzle, use the ASA overhang-curl branch. For broad diagnosis across several defects, use the quality-problem map.
ASA layer-crack questions
Should I raise ASA nozzle temperature first?
No. Confirm the crack pattern and stabilize the environment and base first. Then test one modest supported temperature step while cooling, speed, geometry, and spool state stay fixed.
Does ASA require an enclosure?
Many ASA workflows benefit from a stable enclosed environment, but follow the exact printer and filament makers' guidance. Do not improvise an unsafe enclosure or defeat ventilation and thermal protections.
Why did the ASA crack after printing?
The part can retain thermal stress and open while different regions cool at different rates. Record when and where it begins, keep the supported environment stable through cooldown, and separate this from removal force or a lifted base.
Can more walls stop ASA delamination?
Only when wall strategy is the proven limit. More walls will not correct a directional draft, unstable extrusion, lifted base, sharp stress concentration, or unsupported temperature choice.
Can wet ASA cause weak layers?
It can contribute when exposure-linked decline appears with popping, bubbles, rough lines, stringing, or inconsistent extrusion. Prove it with the same slice before and after the exact filament maker's approved drying process.
