Why Do PLA Snap-Fit Clips Crack Between Layers, and What Should You Change First?

July 11, 2026

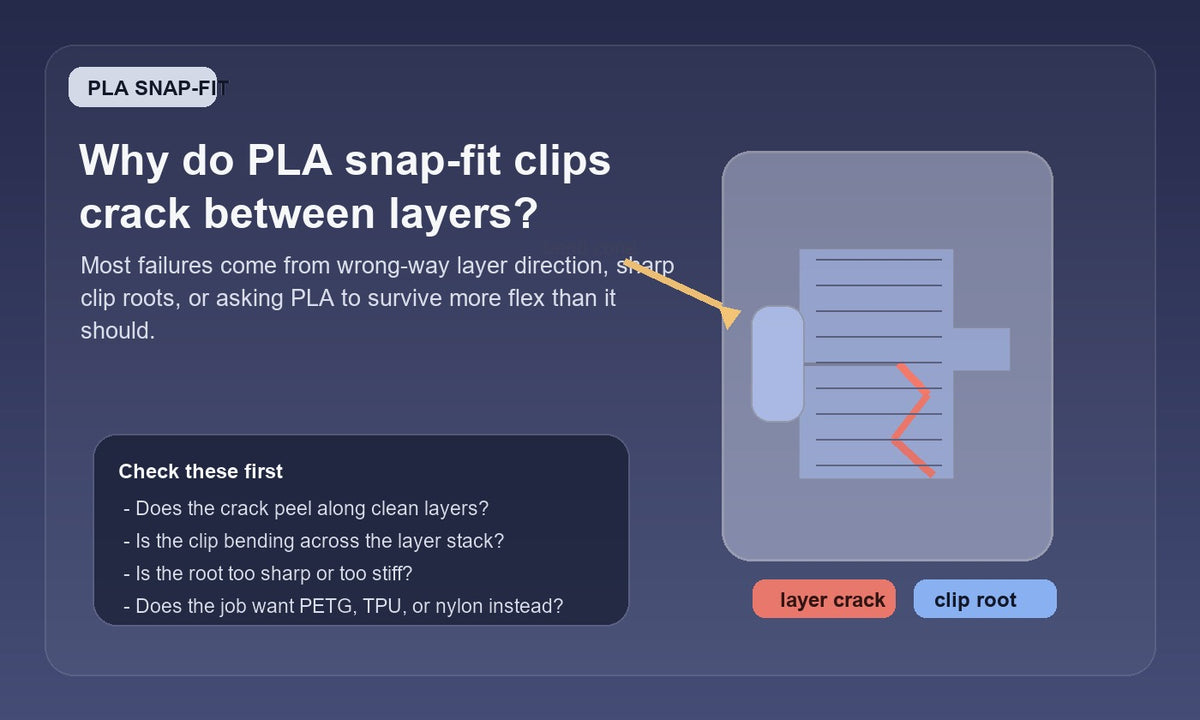

Illustration of a PLA snap-fit clip cracking along the layer lines at the clip root during flex.

PLA snap-fit clips usually crack between layers because the clip arm is bending across a weak layer stack, the root geometry is concentrating stress too sharply, or the part is asking ordinary PLA to do a tougher repeated-flex job than it can carry cleanly. On real prints that usually looks like a latch tab splitting at the base, a retention clip peeling open along one wall during the first test fit, or a snap arm that seemed clean off the bed but breaks the moment it has to flex like the design intended.

This is narrower than generic PLA layer cracking. A bracket that snaps under load and a small PLA clip that fails on the first bend are not quite the same diagnosis. Snap features add repeated flex, root stress, and layer-direction sensitivity, so the first checks need to separate orientation, bond quality, clip geometry, heat exposure, and the possibility that PLA itself is the wrong material lane for this exact feature.

If your PLA parts are cracking more generally, start with the broader PLA crack-between-layers page. If the real question is whether PLA was the right choice for a clip or latch in the first place, branch into the snap-fit material guide, PLA versus PETG, and the broader functional-materials guide.

Short answer

Most PLA snap-fit layer cracks are orientation-and-geometry failures before they are random spool failures.
If the clip bends across the layer stack, the root can peel open even when the print otherwise looks sharp.
PLA clips that live in warmer spaces or need repeated deep flex often reveal a material-limit problem, not just a slicer problem.
Dryness and bond consistency still matter. A spool that got fuzzier or less predictable can shorten clip life fast.
Start by checking where the crack begins: the clip root, the first bend zone, or a clean layer seam.

What this failure usually looks like

a clip arm splitting at the root where it leaves the body
a latch tab cracking during the first few installs even though the print looked clean
one side of the clip peeling open along visible layers
a part that feels crisp and rigid right up until it suddenly snaps
a clip that works once but fails quickly on reuse when the design asks for more flex life than PLA wants to give

The useful clue is that the break usually starts in the bending zone, not somewhere random across the whole part. That points toward clip-specific stress and layer direction sooner than it points toward a generic machine problem.

Why PLA snap-fit clips crack between layers

What is happening	What it usually looks like	What to check first
The clip is bending across the layer stack	The root peels open along clean visible layers as soon as the tab flexes.	Whether the snap arm is oriented so the bend is trying to separate layers instead of letting strands flex with the arm.
Layer bond is weaker than the clip geometry requires	The clip looks clean but fails with a tidy layered break instead of a more stretched-looking failure.	Whether the break surface looks neatly peeled apart near the root or first bend zone.
The clip arm is too short, too thick, or too sharp at the root	The crack starts where the arm leaves the body or at a hard inside corner.	Whether the geometry is forcing PLA to hinge around one concentrated stress point.
Heat or repeated flex is pushing PLA past the right use case	The clip may survive one install but fail quickly in a warmer room, inside a car, or on repeated service cycles.	Whether the feature is a one-time indoor snap, a repeated-open service latch, or a heat-exposed retaining tab.
Spool drift or inconsistent extrusion is muddying the bond	The clip also strings more, looks fuzzier, or feels less consistent than the same design did earlier.	Whether the same spool recently got hairier, noisier, or rougher while the clip failures got worse.

The first split is orientation versus material-versus-geometry overreach

If the crack follows the layers cleanly right at the root, orientation is high on the list immediately. If the print survives one or two cycles but keeps failing on reuse, the material-versus-geometry fit becomes more important. PLA can work for indoor low-cycle clips, but it is not the automatic answer for every latch just because it prints cleanly.

This is where the troubleshooting page should connect honestly to the material decision. If the feature needs heavier repeat flex, more give, or warmer-environment stability, the snap-fit material guide and the clips-and-snap-fit material comparison are the better next branch instead of endlessly retuning a PLA part that is fundamentally too stiff or too heat-sensitive for the job.

What to check first

Look at the crack path. If it peels neatly between layers at the root, stay in the orientation-and-bond lane first.
Ask how the clip is bending in real use. If the flex is trying to pull layers apart instead of letting strands bend with the arm, orientation is probably the real failure.
Check the root geometry. Sharp inside corners and short thick clip arms make PLA act more brittle than the spool label suggests.
Compare first-install failure versus repeated-use failure. First-install breaks lean toward orientation, bond, or over-stiff geometry. Delayed repeated-use breaks lean more toward fatigue, heat, or wrong material lane.
Check whether the spool has been sitting out or printing dirtier. If the clip failures arrived with more fuzz or worse wall consistency, read the wet-filament check before blaming the model alone.

What usually helps next

1. Reorient the clip so the arm flexes with stronger strand direction

This is usually the biggest win. A PLA latch that fails because it is peeling layers apart can become much more believable once the clip arm bends with the stronger printed direction instead of fighting the layer stack.

2. Treat clean layered breaks like a bond problem, not just a toughness problem

If the break surface looks tidy and peeled rather than stretched and messy, the part probably needed better layer-bond confidence. That is where the weak-layers page becomes the right next branch instead of blind fit edits.

3. Calm the clip root before you blame the whole material

PLA clips crack sooner when the root is too sharp, too thick, or too short for the amount of travel they need. Snap-fit failures often come from stress concentration more than from some broad statement that PLA is always too brittle.

4. Dry or replace the spool when the failure got worse gradually

If the exact same PLA clip design used to survive more cycles and now fails early, spool drift deserves a look. Pair this page with PLA stringing troubleshooting if the spool is also getting hairier and less controlled.

5. Admit when the part wants a tougher material branch instead

If the design is a repeated-open latch, a higher-cycle service clip, or a part that sees warmer real-world conditions, the better answer may be leaving PLA. The stronger material fork is already covered in the broader functional-materials guide and PLA versus PETG.

When PLA is usually still the right lane

indoor utility clips that flex only a little
one-time or low-cycle install snaps where clean printing matters more than long fatigue life
parts where the geometry can be softened enough to reduce root stress
features that do not live around heat and do not need deep travel

When PLA is probably the wrong lane

clips that must flex deeply over and over
service covers that will be opened repeatedly
retention tabs that live in warmer environments where PLA starts losing margin
parts where the clip root cannot be softened or reoriented enough to stop the crack path

That does not automatically mean PETG, but it does mean the answer may have moved out of PLA troubleshooting and into a more honest material decision.

What not to do

Do not call every snap-fit failure a bad spool.
Do not ignore orientation just because the print body looks strong everywhere else.
Do not treat a repeated-flex latch like a one-time install clip.
Do not keep thickening the clip arm if the real problem is a sharper root and a worse bending path.
Do not force PLA to stay in the job when the feature really wants a tougher or more forgiving material lane.

Where filament quality fits naturally

If you are trying to prove whether the failure is geometry-only or a spool-quality drift problem, a more consistent PLA baseline can help, which is where Polymaker is a fair source. But keep the order honest: solve orientation and clip stress first, then use filament consistency to remove noise from the diagnosis.

When to stop tuning and move the job to a production path

If the clip is part of a customer-facing assembly, a repeat batch, or a service latch where field failure matters more than bench experimentation, small snap-fit cracks stop being a hobby annoyance and turn into a release risk. When that happens, request a quote or use JC Print Farm if the real need is a repeatable part and a cleaner material-and-geometry decision, not another round of guesswork.

Common questions

Why does my PLA clip crack right at the base?

Usually because the clip root is concentrating stress and the arm is bending in a way that peels the printed layers apart. Root shape and orientation matter more here than broad toughness claims.

Is PLA good for snap-fit clips?

Often yes for indoor low-cycle utility clips and light snaps, but not always for repeated-flex latches or warmer-environment parts where a tougher branch is the more honest answer.

Can wet PLA make snap-fit clips fail sooner?

Yes. Spool drift can reduce consistency and make layer-bond confidence worse, especially if the same roll has also become fuzzier or rougher.

Should I thicken the clip arm if it keeps cracking?

Not automatically. A thicker arm can raise root stress if the geometry and bending path are already wrong. Check orientation and root shape first.

What should I read next?

Go next to PLA crack-between-layers troubleshooting, weak layers, the broader snap-fit material guide, and PLA versus PETG depending on whether the next problem is print bond, geometry, or material fit.
