Why Do PETG Snap-Fit Clips Crack Between Layers, and What Should You Change First?

July 10, 2026

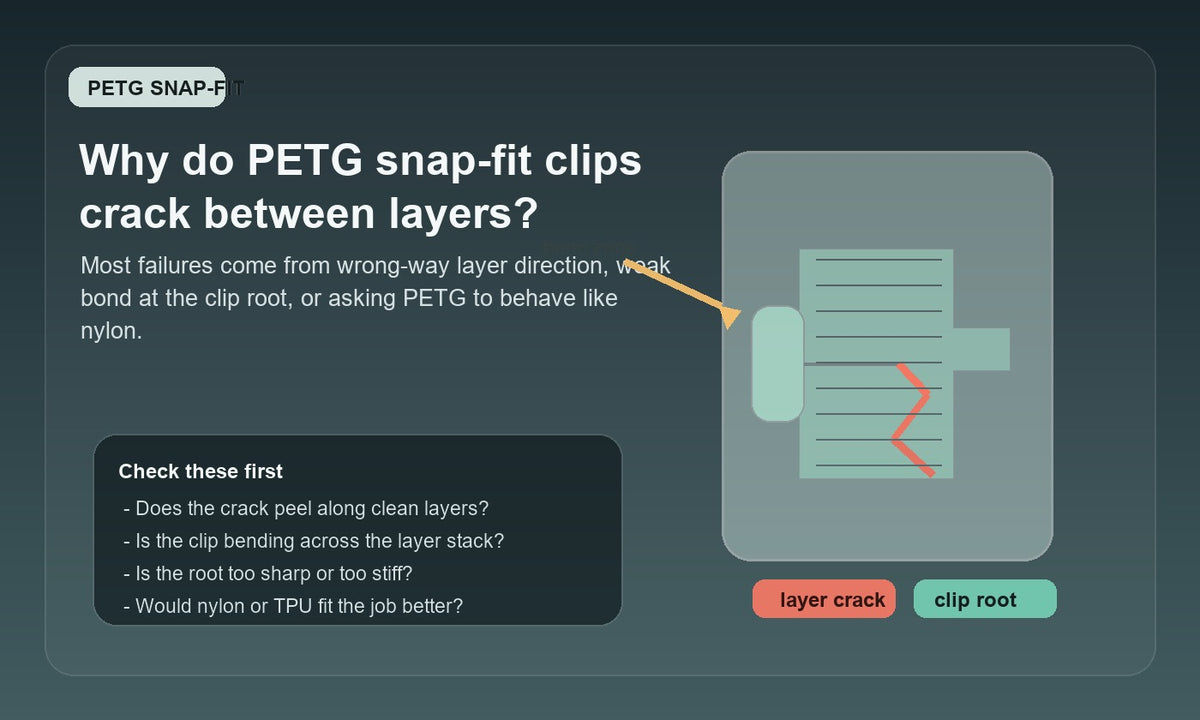

Illustration of a PETG snap-fit clip cracking along the layer lines at the clip root during flex.

PETG snap-fit clips usually crack between layers because the clip arm is flexing across a weak layer stack instead of along a stronger strand direction, or because the part needs more bond strength and less stiffness concentration than the current print is giving it. On real parts that usually shows up as a latch tab splitting at the root, a clip arm opening along one wall after the first few flexes, or a part that seemed fine on the printer but fails the moment you actually use the snap feature.

This is narrower than generic PETG layer cracking. A normal bracket that splits under load and a PETG snap-fit that cracks on the first deflection are not quite the same diagnosis. Snap features add repeated bending, tight root stress, and direction-sensitive weakness, so the first checks need to separate orientation, bond quality, geometry stiffness, moisture drift, and the possibility that PETG itself is the wrong lane for the job.

If your PETG parts are cracking more generally, start with the broader PETG crack-between-layers page. If the real question is whether PETG was the right material for a latch or clip in the first place, branch into the snap-fit material guide and the narrower PETG versus TPU versus nylon snap-fit page.

Short answer

Most PETG snap-fit layer cracks are orientation-and-geometry failures before they are mystery filament failures.
If the clip bends across the layer stack, the root can peel open even when the print otherwise looks clean.
Wet or inconsistent PETG can make the failure worse by reducing bond confidence and making the clip arm less repeatable.
Some clips are simply asking PETG to behave like nylon. If the feature needs heavier repeated flex, PETG may be the wrong branch.
Start by checking where the crack begins: the clip root, the first bend zone, or the layer seam.

What this failure usually looks like

a clip arm splitting at the root where it leaves the body
a latch tab cracking on the first few test fits even though the print looked clean off the bed
one wall of the clip peeling open along visible layer lines
a PETG snap that survives one install but fails on repeated reuse
a part that feels too rigid and suddenly lets go instead of flexing through the move

The useful clue is that the failure usually happens in the bending zone, not randomly across the whole part. That points you toward clip-specific stress and layer direction sooner than it points you toward a generic machine problem.

Why PETG snap-fit clips crack between layers

What is happening	What it usually looks like	What to check first
The clip is bending across the layer stack	The root peels open along clean layer lines as soon as the tab flexes.	Whether the snap arm is oriented so the bend is trying to separate layers instead of flexing with them.
Layer bond is weaker than the clip geometry requires	The clip looks fine but fails with a tidy layered break rather than a tougher stretched-looking failure.	Whether the break surface looks peeled apart, especially near the root and first flex zone.
The clip arm is too stiff or too sharp at the root	The crack starts right where the arm leaves the body or at a sharp inside corner.	Whether the geometry is forcing PETG to hinge around a small concentrated stress point.
Moisture drift or spool inconsistency is muddying the bond	The clip also strings more, feels less consistent, or cracks sooner after the spool has been sitting out.	Whether the same spool recently got stringier, noisier, or rougher while the snap failures got worse.
PETG is being asked to do a more nylon-like job	The clip needs heavier repeated flex life than a warmer tougher rigid plastic usually gives.	Whether the part is a one-time install snap, an occasional service latch, or a repeatedly flexed retention feature.

The first split is orientation versus material-versus-geometry overreach

If the crack follows the layers cleanly at the root, orientation is high on the list immediately. If the print survives a little use but keeps failing after repeated flexes, the material-versus-geometry fit becomes more important. PETG is often fine for everyday utility clips, but it is not the automatic answer for every snap feature just because it prints tougher than ordinary PLA.

This is where the troubleshooting page should connect honestly to the material decision. If the clip needs harder repeat flex and fatigue life, nylon or TPU may be the better lane instead of endlessly retuning a PETG part that is fundamentally too rigid in that shape.

What to check first

Look at the crack path. If it peels neatly between layers at the clip root, stay in the orientation-and-bond lane first.
Ask how the clip is bending in use. If the flex is trying to pull layers apart instead of letting strands bend with the arm, orientation is probably the real failure.
Check the root geometry. Sharp inside corners and short thick clip arms make PETG act more brittle than the spool label suggests.
Compare first-install failure versus repeated-use failure. First-install breaks lean toward orientation, bond, or over-stiff geometry. Delayed repeated-use breaks lean more toward fatigue and wrong material lane.
Check whether the spool has been sitting out. If the clip failures arrived with more strings or worse surface consistency, read the wet-filament check before blaming the model alone.

What usually helps next

1. Reorient the clip so the arm flexes with stronger strand direction

This is usually the biggest win. A PETG latch that fails because it is peeling layers apart can become much more believable once the clip arm bends with the part's stronger printed direction instead of fighting the layer stack.

2. Treat clean layered breaks like a bond problem, not just a toughness problem

If the break surface looks tidy and peeled rather than stretched and ugly, the part probably needed better layer bond confidence. That is where the weak-layers page becomes the right next branch instead of random fit edits.

3. Calm the clip root before you blame the whole material

PETG clips crack sooner when the root is too sharp, too thick, or too short for the amount of travel they need. Snap-fit failures often come from stress concentration more than from some broad statement that PETG is bad.

4. Dry or verify the spool when the failure got worse gradually

If the exact same PETG clip design used to survive a few cycles and now fails early, moisture drift or spool inconsistency deserves a look. Pair this page with PETG stringing troubleshooting if the spool is also getting hairier and sloppier.

5. Admit when the part wants nylon or TPU instead

If the design is a repeated-open latch, a higher-cycle service tab, or a clip that must flex deeply without creep or crack risk, the better answer may be leaving PETG. The stronger material fork is already covered in the snap-fit material guide.

When PETG is usually still the right lane

utility clips that flex only a little
warmer indoor parts where plain PLA feels too brittle or heat-sensitive
one-time or low-cycle install snaps that need some toughness but not heavy fatigue life
parts where the geometry can be tuned to reduce root stress

When PETG is probably the wrong lane

clips that must flex deeply over and over
thin latch arms with aggressive retention travel
service covers that will be opened repeatedly
parts where the clip root cannot be softened or reoriented enough to stop the crack path

That does not automatically mean the part should be nylon, but it does mean the answer may have moved out of PETG troubleshooting and into a more honest material decision.

What not to do

Do not call every snap-fit failure a bad spool.
Do not ignore orientation just because the print body looks strong everywhere else.
Do not treat a repeated-flex latch like a one-time install clip.
Do not keep thickening the clip arm if the real problem is a sharper root and worse bending stress.
Do not force PETG to stay in the job when the feature really wants nylon or TPU.

Where filament quality fits naturally

If you are trying to prove whether the failure is geometry-only or a spool-quality drift problem, a more consistent PETG baseline can help, which is where Polymaker is a fair source. But keep the order honest: solve orientation and clip stress first, then use filament consistency to remove noise from the diagnosis.

When to stop tuning and move the job to a production path

If the clip is part of a customer-facing assembly, a service latch, or a repeat batch where field failure matters more than bench experimentation, small snap-fit cracks stop being a hobby inconvenience and turn into a release risk. When that happens, request a quote or use JC Print Farm if the real need is a repeatable part and a cleaner material-and-geometry decision, not another cycle of guesswork.

Common questions

Why does my PETG clip crack right at the base?

Usually because the clip root is concentrating stress and the arm is bending in a way that peels the printed layers apart. Root shape and orientation matter more here than broad toughness claims.

Is PETG good for snap-fit clips?

Often yes for everyday utility clips and lower-cycle snaps, but not always for harder repeated-flex latches where nylon or TPU is the more honest material lane.

Can wet PETG make snap-fit clips fail sooner?

Yes. Moisture drift can reduce consistency and make layer-bond confidence worse, especially if the spool has also become stringier or rougher.

Should I thicken the clip arm if it keeps cracking?

Not automatically. A thicker arm can actually raise root stress if the geometry and bending path are already wrong. Check orientation and root shape first.

What should I read next?

Go next to PETG crack-between-layers troubleshooting, weak layers, the broader snap-fit material guide, and the PETG versus TPU versus nylon clip page depending on whether the next problem is print bond, geometry, or material fit.
