Why Do ABS Seam Bumps Happen, and What Should You Change First?

June 29, 2026

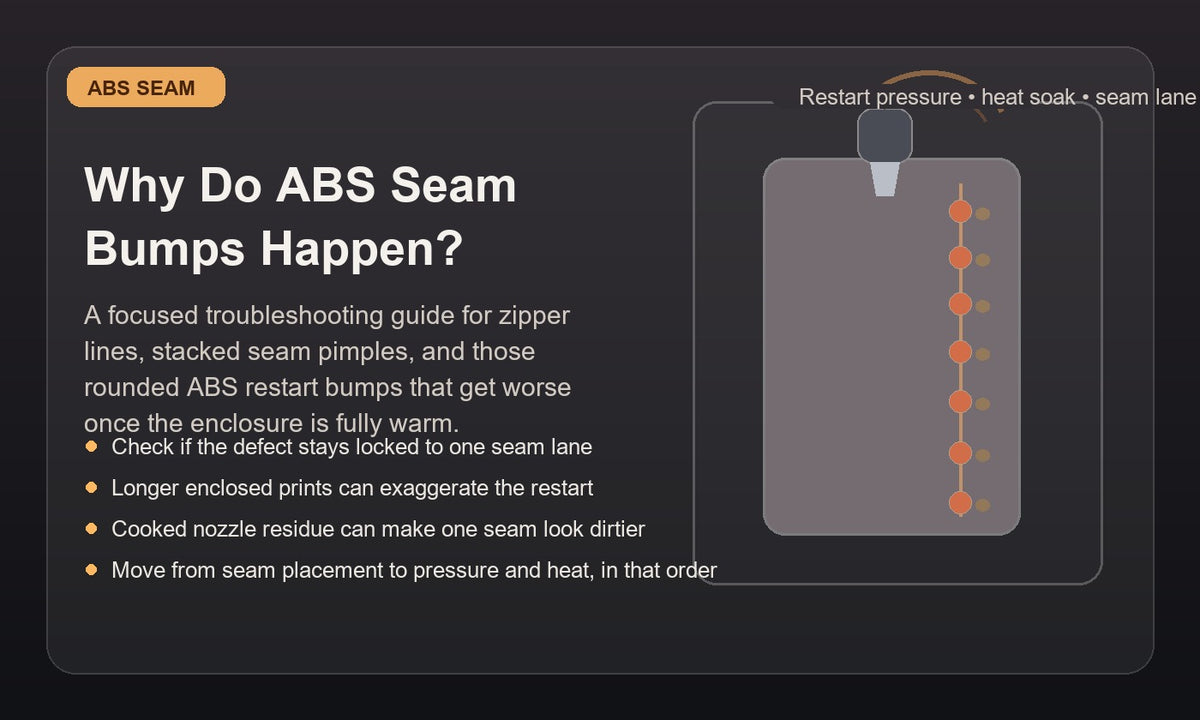

Illustration of an ABS 3D print with a visible vertical seam line of rounded bumps on a wall near a hot nozzle inside an enclosed printer.

ABS seam bumps usually happen because restart pressure keeps unloading at one repeated layer-change point while the material is still a little too hot, too soft, or too loaded to leave a clean restart. On real prints that often means the seam is stacked on one visible face, the enclosure is keeping the restart oozy, or a tiny bit of nozzle residue is being folded into the same spot over and over.

This page is for the exact symptom where ABS leaves one visible zipper line, stacked seam pimples, or a raised ridge on one wall. If the bumps are scattered around the part instead of lining up, go to ABS blobs or zits. If the print is leaving hairs between features, compare with ABS stringing. If the bigger defect is layer splitting or corner lift, branch into ABS layer cracking and ABS warping.

Short answer

ABS seam bumps usually mean the layer restart is too loaded, too hot, or too visible.
If the marks stack into one repeatable line, treat it as a seam problem before you call it random wall-quality trouble.
Warm enclosed printing can make ABS seam defects look heavier because the restart stays soft longer and snaps off less cleanly.
Nozzle residue can exaggerate the seam by feeding a tiny booger or sticky tail into the same restart point each layer.
The first checks are seam placement, restart pressure, enclosure-soaked ooze, and nozzle cleanliness.

What this defect usually looks like

one visible zipper line climbing the same wall of the part
stacked rounded bumps that catch light more than the rest of the wall
a seam that looks worse on smooth housings, flat side panels, or curved outer shells
tiny string tails or glossy restart dots feeding into the same seam lane
one ugly cosmetic face while the rest of the ABS print still looks structurally fine

The biggest clue is repeatability. If the marks keep landing in one disciplined column, you are usually looking at restart behavior, not random extrusion instability. If the marks are scattered more broadly, step sideways into ABS blobs or zits instead.

Why ABS seam bumps look different from generic seam bumps

ABS seam defects often look rounder and heavier than a cooler-running material because the nozzle is working in a warmer environment and the restart can stay soft for longer. That does not mean the profile is ruined. It means a basic seam fault gets visually amplified when the chamber, part, and hotend surroundings have all heat-soaked.

Compared with the broader general seam-bumps guide, the ABS version needs a narrower diagnosis split:

enclosure heat matters more because ABS restarts can stay soft and oozy in a warm chamber
restart pressure matters more because one repeated seam lane can become a visible cosmetic scar fast
nozzle residue matters more because cooked ABS can keep folding into the same layer-start point
cosmetic face choice matters more because ABS is often used for housings, brackets, and visible utility parts where one bad face stands out

What usually causes ABS seam bumps

What is happening	What it usually looks like	What to check first
Restart pressure is piling up at the same location	A neat vertical line of repeated bumps forms where each layer begins or ends.	Whether the seam is intentionally or effectively landing in one lane on the visible wall.
Enclosure heat is keeping the restart too soft and oozy	The seam looks glossier, rounder, and heavier later in the print once the chamber is fully warm.	Whether the seam gets uglier on longer prints or looks cleaner in the first third than the last third.
A small string tail or nozzle booger is being folded into every restart	Each seam mark looks a little lumpy or irregular instead of like one cleaner controlled scar.	Whether the nozzle tip has cooked residue or a tiny hanging tail when outer walls restart.
Seam placement is landing on the worst possible cosmetic face	The print is usable, but the front face or outside radius keeps showing the defect too clearly.	Whether hiding or relocating the seam would make the part acceptable even before deeper tuning.
What looks like seam bumps is actually broader wall contamination	The bumps start in a seam lane but also appear elsewhere with inconsistent size and spacing.	Whether the problem really stays locked to one seam or spreads into random wall zits and travel-exit blobs.

ABS seam bumps often get worse after the chamber heat-soaks

That is one of the useful ABS-specific clues. A short part can look acceptable, then a taller print develops a fatter seam once the enclosure, nozzle surroundings, and part body have all been sitting in warmer air for a while. If that pattern shows up, the issue is not just seam placement. It is seam placement plus a hotter restart baseline.

If the seam is modest on early layers and heavier on later ones, keep enclosure-soaked ooze near the top of the list before you start changing every extrusion transition setting you can find.

Do not confuse a seam lane with random blobs

ABS seam bumps are narrower than a general blobs-or-zits problem. The seam page is for one controlled restart lane. The blobs page is for scattered bumps, travel-exit ooze, or random raised dots that do not stay disciplined. That distinction matters because one asks you to diagnose restart behavior, while the other asks you to diagnose broader wall contamination and ooze behavior.

If you are not sure which branch you have, ask one question first: Do the defects stack into one repeated line? If yes, stay here. If no, use ABS blobs or zits.

Nozzle residue can turn a mild seam problem into an ugly seam problem

ABS likes to cook onto the nozzle tip and then reappear exactly where you least want it: at a visible layer restart. That is why a seam can look much dirtier than the underlying pressure problem really is. If the nozzle is carrying residue, your next test is partly measuring contamination, not just seam tuning.

If the same residue is leaving darker flecks or cooked streaks elsewhere, compare with burn marks and dark blobs.

What to check first

Confirm that the defect really is a seam lane. One repeated vertical line points to restart behavior, not random wall noise.
Watch whether the seam gets worse later in the print. That is a strong hint that enclosure heat is amplifying restart ooze.
Inspect the nozzle before the next comparison test. Cooked ABS residue can make a reasonable seam look worse than it really is.
Question seam placement before deeper tuning. If the seam is on the front cosmetic face, the part may look far worse than the process actually is.
Branch into neighboring ABS pages if the symptom spreads. Use ABS blobs or zits, ABS stringing, ABS layer cracking, and rough ABS top surfaces if you are seeing multiple defects at once.

What usually helps next

Treat seam placement as a diagnosis tool first, not just a cosmetic preference.
Lower the effective restart heat burden if longer enclosed prints are making the seam glossier and fatter.
Clean the nozzle before re-testing so cooked ABS is not being folded into the restart point.
Separate neat seam bumps from broader wall zits before changing settings that affect the whole profile.
Use the ABS enclosure and drying context when needed if the print environment or spool behavior is making the seam harder to read: ABS enclosure decision and ABS drying decision.

Common questions

Why do ABS seam bumps line up in one vertical row?

Because that is usually the layer-start or layer-end point. A little extra restart pressure keeps unloading in the same place each layer.

Can enclosure heat make ABS seam bumps worse?

Yes. A warm chamber helps ABS overall, but it can also keep the restart softer and oozier, which makes the seam look rounder and more obvious.

Are ABS seam bumps the same as blobs or zits?

Not exactly. Seam bumps stay in one repeated lane. Blobs or zits are broader and more random. They overlap visually, but they are not the same diagnosis path.

Why does the seam look worse on smooth housings and curved covers?

Because visible outer faces catch light across the raised seam more clearly. The same defect can look minor on a rough utility bracket and very obvious on a smooth cover.

What should I read next?

Go next to ABS blobs or zits, ABS stringing, ABS warping, ABS layer cracking, burn marks and dark blobs, and the quality-problems hub depending on whether the next clue is restart pressure, heat-soaked ooze, residue, or a broader wall-finish problem.
