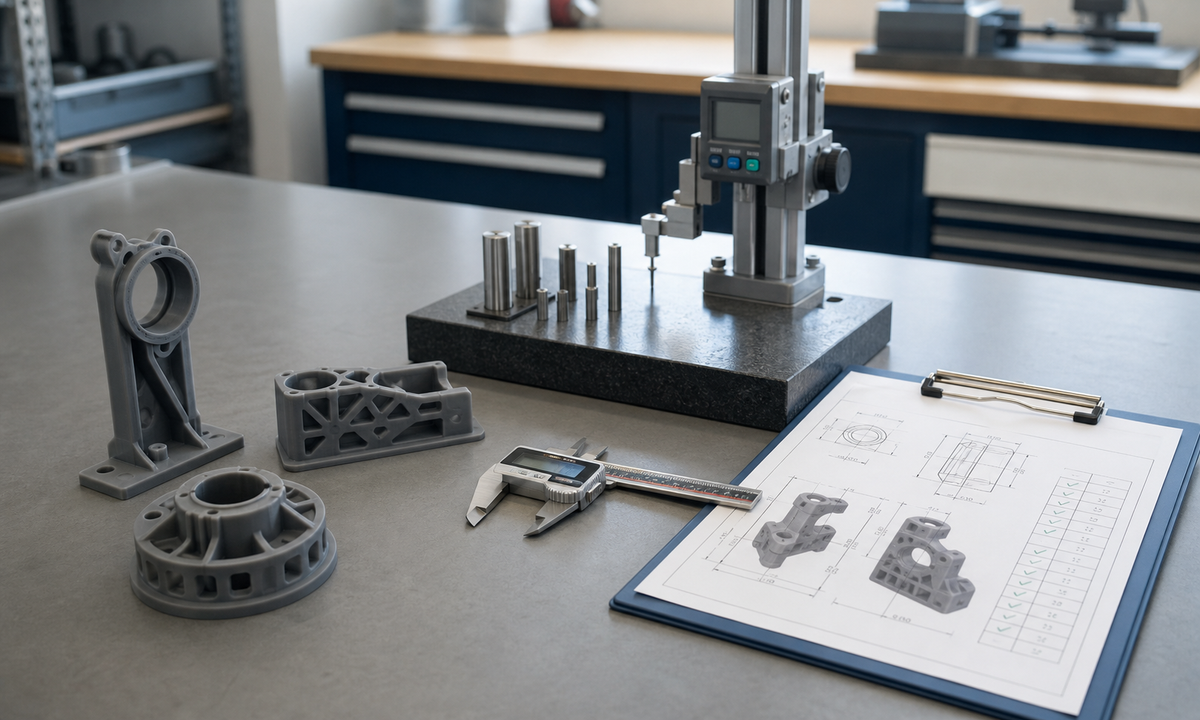

Ask for a dimensional inspection report when specific measured features control whether custom 3D printed parts can be accepted, assembled, or repeated. Do not request one merely because the part is important. The quote should identify the controlled features, nominal values and limits, inspection condition, method, sample size, reporting format, and what happens when a result is outside the agreed range.
For a simple visual prototype, a report can add cost without answering the real design question. For a fit-critical replacement part, first article, pilot batch, or recurring production order, a compact report tied to the correct file revision can turn a vague "looks good" approval into usable evidence. The right document is usually a focused record of critical features, not a measurement dump of every edge in the CAD model.
Quick answer: match the evidence to the decision
| Buyer decision | Usually useful evidence | Common overreach |
|---|---|---|
| Is the design direction worth continuing? | Prototype fit or function notes, photos, and a few targeted checks | Paying for a full inspection report before the design is stable |
| Can this exact production setup be released? | First-article report for named critical features plus the real fit or function test | Treating a generic printer accuracy claim as part-specific evidence |
| Did this batch stay within the approved baseline? | Agreed sampling report, lot identity, and exception record | Assuming one measured unit represents every part without a sampling rule |
| Does the shipment conform to the released order? | Dimensional evidence when required, receiving checks, and any separate conformance statement | Expecting a certificate of conformance to contain measurements that were never quoted |
If the buyer cannot name the decision the report will support, the scope is not ready. Start with the custom 3D printed part tolerance guide, then choose only the evidence needed to release or receive the real job.
A dimensional report is not the same as a tolerance promise
A tolerance defines the acceptable variation around a requirement. An inspection report records what was checked and what was observed under an agreed condition. A report cannot rescue an unclear requirement after the parts are made. If the quote says only "high accuracy," a table of measurements may still leave both parties arguing about what should have passed.
Define the nominal value, upper and lower limits or other pass rule, and the feature reference before production. For process-specific planning, use the separate guides to realistic FDM tolerances and realistic resin tolerances. Those pages help screen feasibility. The supplier still has to accept, qualify, or reject the actual feature requirement on the quoted part.
Choose the critical features before asking for measurements
Inspection becomes useful when it follows the assembly and failure risk. Mark the few holes, slots, mounting distances, sealing faces, bearing seats, overall envelopes, or alignment features that can stop the part from doing its job. Give each one an unambiguous identifier on a drawing, marked view, or inspection list.
A blanket request to "inspect all dimensions" creates several problems. CAD models can contain many derived surfaces without a defined datum or accessible measurement path. Some dimensions describe shape but do not control acceptance. Others may require equipment, fixtures, or methods that cost more than the printed part. Focused inspection gives the operator a better chance to price the real work and gives the buyer a report that someone can actually review.
State the delivered condition in which the part will be measured
FDM parts can change with cooling, conditioning, moisture, annealing, support removal, drilling, sanding, or insert installation. Resin parts can change through washing, support removal, post-cure, rest time, sanding, coating, or assembly. A number measured before those steps may not represent the delivered part.
State whether inspection happens after normal post-processing, after full resin cure, before or after secondary machining, with inserts installed, at room condition, or in another defined state. If appearance work changes a fit surface, connect dimensional approval to the surface-finish expectations guide instead of treating finish and geometry as separate promises.
Match the inspection method to the feature
Calipers are useful for accessible outside dimensions and simple spacing, but they are not the right tool for every requirement. Pin gauges may be more useful for holes. A controlled mating component may be better for an assembly interface. A surface plate and height setup may help with a reference distance. Complex geometry may require optical or coordinate measurement that the supplier does not normally offer.
The quote should identify the method at a level appropriate to the risk. It can name the tool or gauge, measurement points, datum or reference, part support, applied force when relevant, and whether the result is dimensional or functional. A flexible clip squeezed by caliper jaws and a rigid bracket measured between hard faces are not equivalent inspection situations.
Use a fit test when a number alone cannot prove function
Some requirements are easier to defend with the real mating part, fastener, connector, gauge, or assembly motion. A hole may measure inside an agreed range yet still fail because of entry shape, depth, support scars, or alignment with a second feature. A snap may hit its nominal spacing but require too much force or crack after repeated cycles.
When function controls acceptance, ask for both the minimum useful measurement and the controlled fit test. The report can record the measured feature and the pass condition, such as assembly with the buyer-supplied mating component without forcing, interference, or visible damage. The guide on sending mating hardware before a quote helps decide what physical evidence belongs with the job.
Decide how many parts the report must represent
A first article report normally speaks to the inspected first article, not automatically to every later unit. A batch report can cover every part or an agreed sample, but the sample rule should be explicit. Quantity, build grouping, consequence of failure, process maturity, and cost all affect the right scope.
Ask whether the report covers one setup article, the first item from each build, a stated number from each lot, every unit, or another agreed plan. Also define how parts are selected. Measuring only the best-looking unit is different from a predetermined or representative sample. If later repeat orders matter, record the sampling basis with the released production baseline.
Separate first-article evidence from production release
A measured sample can show that one part met the named checks. It does not automatically authorize a full quantity, lock packaging, approve every cosmetic condition, or release a new file revision. The approval record should say exactly what the sample proved and whether the buyer is releasing production.
Use the first-article approval guide to tie the report to the file, material, process assumptions, finish state, accepted deviations, and written release. Use the separate production sign-off guide when technical evidence and commercial authorization must stay clearly separated.
Specify what the report should include
A useful dimensional report does not need to be elaborate. It should be traceable enough that the buyer can tell what was measured, against which requirement, on which part and revision, and with what result. A practical report can include:
- buyer or job identifier, part number, part name, and controlled file or drawing revision;
- material and delivered condition when either affects the inspection meaning;
- sample or serial identifier, quantity inspected, batch or build reference, and inspection date;
- feature identifier, nominal value, allowable limit, observed result, and pass/fail disposition;
- measurement method, tool or gauge, and reference condition when those are important to interpretation;
- functional fit-test result when the requirement is not adequately represented by a number;
- deviation, concession, rework, or hold reference for any result that does not meet the agreed rule;
- the person or role completing the inspection and the buyer role authorized to accept exceptions.
Ask for units and decimal precision that fit the real requirement. Extra decimal places do not create extra process capability, and a report should not imply certainty beyond the method used.
Keep a certificate of conformance separate
A certificate of conformance is usually a supplier statement that the delivered work conforms to named requirements. A dimensional inspection report supplies measured evidence for specified features. One document can reference the other, but buyers should not assume a certificate contains raw measurements or that a measurement table attests to every material, packaging, quantity, or documentation requirement.
Use the guide on certificates of conformance for custom 3D printed parts to decide whether a separate attestation is justified. If both are needed, list both deliverables in the quote and purchase order so the supplier can price and prepare them before shipment.
Price the inspection work before production starts
Inspection consumes planning, setup, measurement, review, and recordkeeping time. Custom fixtures, gauges, external lab work, complex optical measurement, or one-report-per-unit scope can cost more than a simple caliper check on a few first-article features. The supplier also needs to know whether a failed result triggers sorting, rework, replacement, or buyer review.
Put the report scope in the quote instead of asking for it after the batch is complete. The quote-approval guide helps keep inspection, approval, and delivery assumptions visible. A low unit price based on no formal inspection is not comparable to a price that includes controlled evidence and exception handling.
Define what happens when a result is outside the limit
A report that shows an out-of-limit value is information, not a disposition. Decide whether the affected part is held, remeasured, reworked, replaced, sorted from the batch, or submitted for a written buyer concession. State who can approve an exception and whether that approval applies to one unit, one lot, or future orders.
Do not let an emailed "looks okay" quietly change the drawing or tolerance baseline. Record the exact deviation and scope of acceptance. If the requirement itself changes, update the controlled file, drawing, quote, or production release instead of making the inspection report carry an undocumented engineering change.
Make the report useful at receiving
Receiving should be able to match the report to the shipment, part number, revision, quantity group, and any marked sample. The report should not arrive as an unlinked PDF with no clear relationship to the cartons or packing list. If a batch is split across shipments, define whether one report covers the whole lot or each shipment receives its own evidence.
The broader guide to receiving checks for custom 3D printed parts covers identity, count, condition, packaging, fit, and hold decisions. Dimensional evidence supports that process; it does not replace shipment identity and damage checks.
Buyer-ready wording for a quote request
Please quote a dimensional inspection report for the critical features identified on drawing revision [revision]. Inspect [sample rule] after [delivered condition]. Record feature ID, nominal, limits, observed result, method or gauge where noted, and pass/fail disposition. Hold affected parts and request written direction from [buyer role] before shipping any result outside the agreed limit. The report must identify the inspected part or sample and the related batch or build.
Adapt the wording to the actual risk. It is an operational starting point, not a substitute for engineering, quality-system, regulatory, or contract requirements. If the organization uses a controlled report template or formal first-article process, send that requirement before pricing.
Common mistakes to catch
- Requesting a report without naming the features or acceptance limits.
- Measuring the part before cure, cleanup, conditioning, or secondary work when the buyer will receive it afterward.
- Using calipers for a feature that needs a gauge, reference setup, or functional assembly test.
- Assuming one inspected sample proves every unit and every later reorder.
- Confusing a dimensional report with a certificate, material record, or regulatory approval.
- Adding inspection after the batch is made and expecting the original price and schedule to stay unchanged.
- Recording an out-of-limit result without defining hold, concession, rework, or replacement authority.
- Saving the report without the part revision, sample identity, batch reference, or delivered condition.
Send a quote packet that makes inspection quoteable
Include the controlled file, marked drawing or feature list, material, quantity, prototype or production stage, critical limits, mating hardware or gauge information, delivered inspection condition, sampling rule, report format, exception authority, destination, and timing. The guide to what to send for a custom 3D printing quote covers the rest of the commercial packet.
JC Print Farm can help separate useful critical-feature evidence from expensive paperwork that does not change the release decision. When the file, features, limits, quantity, sampling plan, and timing are clear, send the job through the tracked quote request.
Frequently asked questions
Does every custom 3D printed part need a dimensional report?
No. Use one when measured evidence affects acceptance, production release, receiving, or repeatability. Visual prototypes and low-risk utility parts may need only targeted fit checks or buyer review.
Is a first-article inspection report the same as a full batch report?
No. A first-article report normally describes the inspected first article and proposed production setup. A batch report follows the separate sampling or every-part rule agreed for released production.
Can a functional fit test replace dimensions?
Sometimes it is the strongest acceptance test, especially for a real mating interface. Keep the minimum useful dimensions when they help diagnose drift, preserve reorders, or distinguish several possible causes of a failed fit.
Should the supplier report every dimension in the CAD model?
Usually not. Ask for the dimensions that control fit, function, envelope, or release. Derived geometry without a defined reference, method, or acceptance purpose can add cost while producing weak evidence.
Can a dimensional report prove the material is correct?
No. It can record the material stated for the inspected part, but material identity, lot traceability, technical data, or conformance records are separate requirements that must be defined and quoted when needed.
What if the supplier cannot perform the requested measurement?
Ask whether a functional gauge, buyer-supplied mating part, external inspection service, design change, or different manufacturing process is appropriate. A credible "this method is not available or defensible" is better than a report built on unsuitable measurement.
