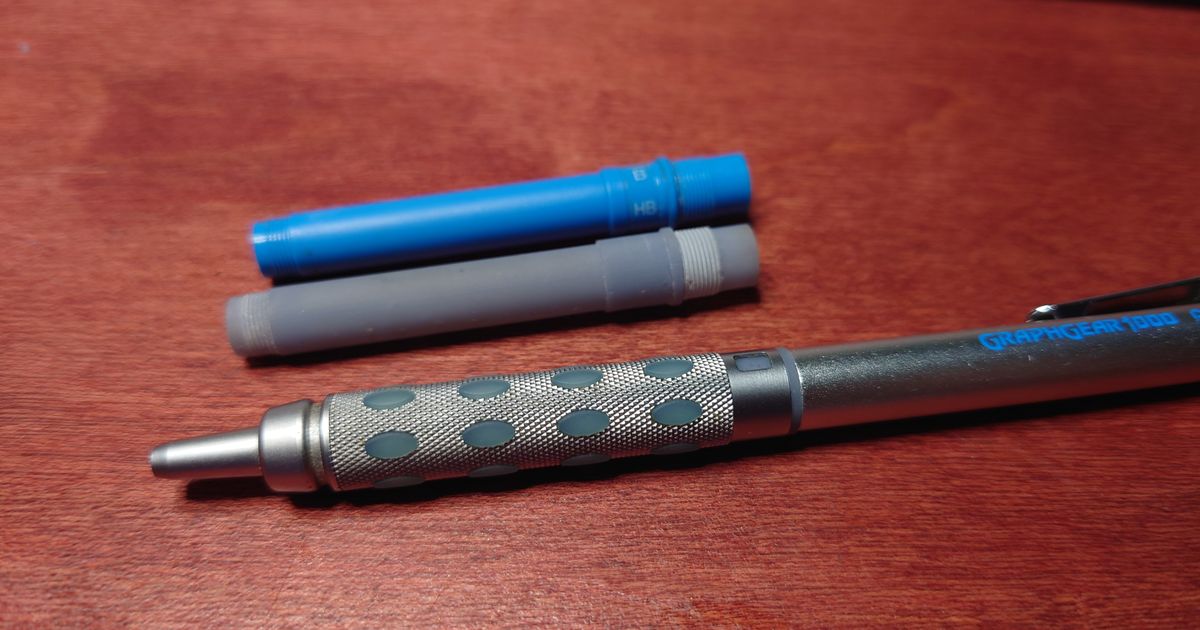

Pentel GraphGear 1000 replacement lower barrel on Printables earns attention because it fixes a failure on a tool people actually like enough to keep. The GraphGear 1000 has a strong reputation as an everyday drafting pencil, but the lower plastic barrel is also a known weak point. When that section cracks, the pencil can feel loose, sharp, or unreliable even though the rest of the mechanism still works fine.
That makes this a strong GoodPrints3D article. The use case is immediately understandable, the repair target is specific, and the value proposition is better than a generic desk accessory: save a favorite pencil you already know and use.
Direct source review exposed roughly 18 likes, 602 downloads, 2 makes, around 3,318 visible views, 10 public collections, 5 comments, and 2 ratings averaging about 3.5 on Printables. Those are solid public signals for a narrow office-and-maker repair file rather than a novelty post.
What problem this model solves
When the lower barrel breaks on a mechanical pencil, the damage is small but the user experience falls apart fast. Grip comfort gets worse, the structure around the tip feels compromised, and a pencil that still writes accurately starts feeling disposable. This model goes after that exact failure instead of throwing away the rest of the tool.
- replaces a broken lower body section on the Pentel GraphGear 1000
- keeps a favorite drafting pencil in use longer
- offers a cleaner fix than glue on a stressed grip area
- turns a common weak-point failure into a focused replacement job
Why this file is worth noticing
A lot of replacement-part files are useful only if you already own the exact product and already know the exact break. This one still works editorially because the failure is easy to explain: an otherwise good pencil breaks at one body section and the model restores that section. Readers do not need a long mental leap to understand the point.
It also fits GoodPrints3D's repair lane well because the original product is good enough to justify saving. That matters. Nobody wants to outsource a printed fix for a tool they already hate. They will do it for a pencil they actually prefer for drawing, drafting, note-taking, or workshop marking.
Who gets the most value from it
- students and office users who already rely on a GraphGear 1000
- makers and shop users who keep a mechanical pencil at the bench
- artists, drafters, and hobby designers who prefer this pencil's feel
- anyone who wants to repair a known weak point instead of buying another full pencil immediately
When a replacement body part makes sense
This kind of fix makes sense when the internal mechanism, clip, and general pencil performance are still good. If the tool still advances lead well and the real issue is one cracked structural shell section, a printed replacement is a believable path. If the pencil has multiple failures, bent internal parts, or worn-out internals, replacing the whole pencil may still be the better call.
- check the internals first: if the lead-advance system still works, a body repair is more worthwhile
- look at the break pattern: clean crack zones are easier to justify than heavily worn or deformed assemblies
- compare fit expectations honestly: a printed replacement can restore use without promising factory-perfect feel
- think about the alternative cost: if you already know this is your preferred pencil, saving it can be the better move
Why this works as an outsourced print
This is a classic one-off repair part. Most people who need it do not want to buy a printer, tune settings, and test multiple tries just to save one pencil body. They want the part. That makes the handoff into a print service feel natural instead of forced.
If you need a print service to make the file for you, JC Print Farm is the broader path for one-offs and small batches built from supplied models.
When ordering one makes sense
Ordering makes sense when the pencil is otherwise worth keeping, the break matches this replacement area, and you would rather restore a tool you already like than replace it on principle. It also makes sense for people who keep specific writing tools in rotation for drafting, bench notes, or field markups and do not want to re-learn a different grip and balance.
If you want this model made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes excludeCommercialUsage: false, which is an encouraging public signal, but this pass did not independently confirm the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does this replacement part fix?
It replaces the lower barrel section on a Pentel GraphGear 1000 when that part cracks or fails while the rest of the pencil is still usable.
Why is this a good GoodPrints3D candidate?
Because it solves a specific, believable repair problem on a tool people actually like enough to keep using, which makes the repair and ordering story easy to trust.
Is a printed replacement better than gluing the broken barrel?
Often yes, especially when the break sits in a grip or stress area that gets handled constantly. A replacement part can be cleaner and more stable than a glued crack.
Who is most likely to want this?
GraphGear 1000 owners who already know they prefer the pencil for drafting, notes, or workshop use and do not want one cracked body section to end its life.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
