Use PLA Pro for most rigid indoor jig and fixture handles. Choose PETG when the handle may sit in a hot vehicle, see a warmer shop, or take rougher knocks. Use TPU mainly as a comfort or high-friction grip over a rigid core, not as the only load-bearing handle.
The material name does not make a handle safe. The fastener interface, layer direction, wall thickness, root fillets, load path, temperature, and proof load usually matter more than a small difference between two competent filaments. A carry handle for a heavy fixture needs a more conservative design and test than a light drawer pull or sled-positioning grip.
This is an evidence-based material decision, not a hands-on test or a load rating. Filament formulations and printing guidance change. Confirm the current documentation for the exact spool and qualify the finished handle for its real fixture, environment, and consequence of failure.
Jig-handle material verdict at a glance
| Handle job | Best starting point | Main reason | Prove before use |
|---|---|---|---|
| Indoor sled handle or fixture pull | PLA Pro | Rigid feel, simple printing, and good positional control | Root cracks, screw-seat damage, and repeated pull cycles |
| Mobile jig stored in a vehicle or warmer space | PETG | More useful temperature and impact margin than the PLA-family default | Heat soak, creep at fasteners, and grip deflection |
| Comfort grip or non-slip sleeve | TPU over a rigid core | Soft contact and friction without making the whole handle vague | Sleeve retention, twisting, tearing, oil, and cleaner exposure |
| Heavy carry handle or overhead lift point | Do not choose by filament alone | Failure consequence and load path dominate the decision | Engineered attachment, guarded proof load, inspection, and safe fallback |
Start with the handle's actual job
A jig handle can mean four different things: a positioning grip that moves an unloaded sled, a pull that actuates a fixture, a carry handle that supports the fixture's mass, or a soft contact surface that improves comfort. Those are not interchangeable. Write down the expected pull direction, maximum load, cycle count, storage temperature, chemical exposure, glove use, acceptable flex, and what happens if the handle breaks.
This page owns the narrow handle decision. Use the broader shop-jigs and fixtures material guide for bases, fences, blocks, and fixture bodies. Use the fixture-knob and jig-hardware guide when threaded knobs, adjustment hardware, or wear around inserts is the real question.
Choose PLA Pro for a crisp, rigid indoor handle

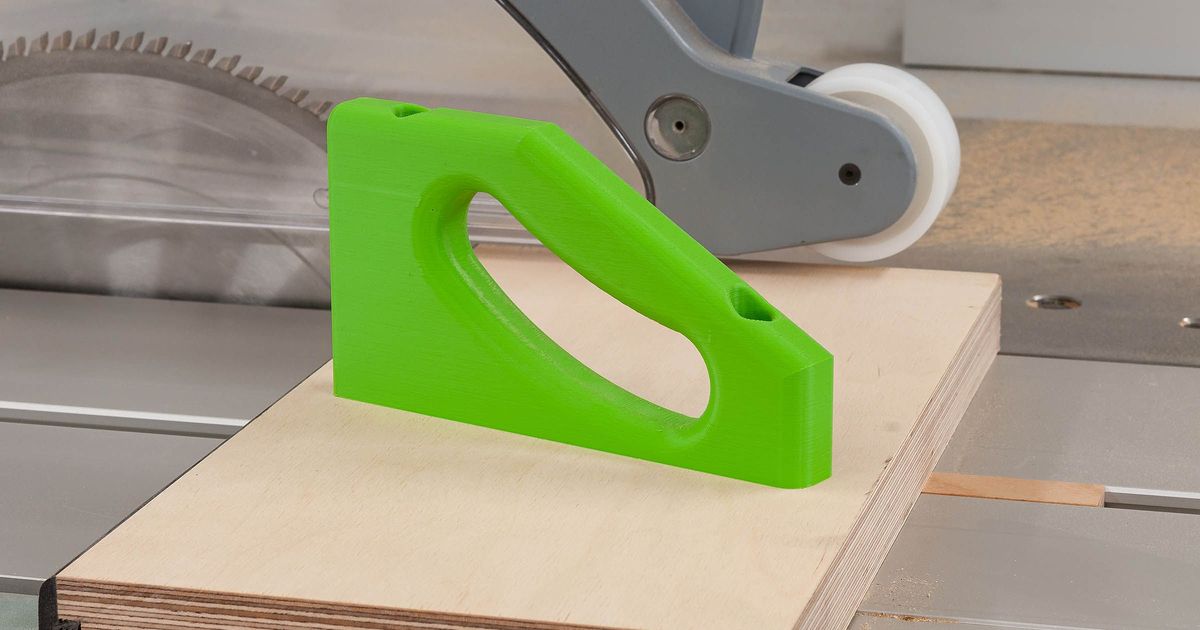

PLA Pro is the best default when the fixture stays indoors, the handle benefits from a solid feel, and the design avoids sustained heat. It suits sled-positioning grips, light fixture pulls, indexing handles, and carry grips for modest loads that have been proved on the finished assembly.
Do not treat every PLA Pro as the same formulation. Follow the exact spool maker's temperature, cooling, drying, and speed guidance. More importantly, design the handle root for the load. Use generous fillets, enough wall thickness, a broad attachment footprint, and a print orientation that does not ask a small layer boundary to carry the entire pull.
PLA Pro becomes a weaker choice when the jig may remain in a closed vehicle, near a heater, in direct sun through glass, or under a sustained clamping load at an elevated temperature. The dedicated PLA Pro decision guide covers the broader step up from ordinary PLA.
Choose PETG when heat and rough handling need more margin
PETG is the calmer starting point for mobile field fixtures, shop handles that may be dropped, or jigs stored where a PLA-family handle's temperature margin is uncomfortable. It can also make sense around repeated knocks and less controlled handling.
That does not make PETG automatically stronger in every handle. A PETG grip can flex more than a stiff PLA Pro grip, and sustained stress around a screw or insert can still produce creep. Tune the geometry around the actual acceptance criterion: thicker roots for stiffness, larger washers or captured hardware for load distribution, radiused transitions, and adequate edge distance around fasteners.
Moisture and print quality matter. Wet or poorly tuned PETG can create inconsistent extrusion and weak-looking evidence. Follow the exact maker's conditioning guidance, then print and test the representative handle. Use the functional PETG guide when the whole fixture rather than only the handle is under review.
Use TPU as a grip layer, not a universal handle body
TPU earns its place when soft contact, friction, vibration isolation, or glove comfort is the problem. The most useful design is often a rigid PLA Pro or PETG core with a replaceable TPU sleeve, wrap, or inset. The rigid part carries the load; the flexible part improves the hand interface.
A one-piece TPU handle can feel vague, twist around fasteners, stretch under pull, and make accurate fixture positioning harder. Hardness labels also do not describe the whole formulation. Wall thickness, infill, geometry, print direction, and the exact TPU grade change the feel. Prove sleeve retention and check whether oils, coolants, cleaners, dust, and heat alter the grip.
For clamp contact instead of hand comfort, route to the clamp pads and soft jaws guide. The functional TPU guide owns the broader flexible-part decision.
Geometry and attachment usually decide whether the handle survives
- Use a broad root. A narrow neck creates a stress concentration even when the grip itself is thick.
- Add generous fillets. Sharp inside corners are poor places to ask a printed part to carry repeated pull loads.
- Distribute fastener load. Through-bolts, washers, captured nuts, or correctly installed inserts can be easier to inspect than a screw biting into a thin printed wall.
- Orient the load deliberately. Do not place the most important tension path across a small, weakly supported layer boundary without proof.
- Prevent rotation. Two fasteners, keyed geometry, or a locating shoulder can keep the handle from working a single screw loose.
- Protect the hand. Round edges, recess hot or sharp hardware, maintain clearance from cutters and pinch points, and check glove fit.
If the fixture's critical feature is a drill bushing or edge guide, use the dedicated drill-guide material page or router-template material page. A good handle cannot compensate for the wrong material at the cutting interface.
Run a finished-handle proof before trusting the jig
- Define the job. Record normal load, guarded proof load, pull direction, cycles, temperature, cleaners, gloves, and failure consequence.
- Freeze the build. Record spool, lot, conditioning, printer, nozzle, profile, orientation, walls, infill, fasteners, inserts, and torque method.
- Inspect before loading. Reject visible under-extrusion, cracks, poor insert seats, damaged holes, or warped attachment faces.
- Mount the real hardware. A loose bench sample does not test the screw seats, root, fixture face, or anti-rotation design.
- Load it in a guarded setup. Keep people clear, increase load gradually, and watch root deflection, layer opening, fastener movement, and fixture damage.
- Cycle the normal motion. Repeat the real pull or carry action enough to expose loosening, grip twist, and growing cracks.
- Test the environment. Heat-soak or condition a representative assembly when storage temperature or chemical contact changes the decision.
- Reinspect and repeat. Mark the acceptance limit, inspect at a defined interval, and print a second accepted handle before standardizing the design.
When a printed handle is the wrong risk
Do not use an unqualified printed handle as a lifting point for people, a safety restraint, an overhead load point, a machine guard latch, or another application where a surprise break can cause serious injury. Use a rated commercial component or an engineered system when the consequence demands traceable material, controlled production, inspection, and a documented load rating.
Even on ordinary shop fixtures, keep hands away from blades, cutters, pinch points, and stored-energy mechanisms. A handle should improve the operator's position; it should not invite a hand into the hazard zone.
Frequently asked questions
Is PLA Pro strong enough for a jig handle?
Often, for a rigid indoor handle with conservative geometry and a proved attachment. The label alone is not evidence. Test the finished handle and fixture under the real load direction and repeated motion.
Is PETG always better than PLA Pro for shop handles?
No. PETG can provide useful heat and impact margin, while PLA Pro may deliver the crisper rigid feel an indoor positioning handle needs. Choose from the environment and acceptance criteria.
Can the whole handle be TPU?
It can for light, deliberately flexible grips, but TPU is usually better as a sleeve or contact layer when the handle must position or carry a rigid fixture. Test twist, stretch, retention, and fastener behavior.
Should a carry handle use heat-set inserts?
Only if the insert, surrounding geometry, installation, fastener engagement, torque, and load path are qualified together. A through-bolt and load-spreading hardware may be easier to inspect for some designs.
Bottom line
Start with PLA Pro for a rigid indoor jig handle, move to PETG when heat or rough handling creates a real requirement, and reserve TPU for a soft grip over a rigid core unless flexibility is intentional. Then prove the complete handle, attachment, and fixture. Geometry, orientation, fasteners, temperature, and failure consequence matter more than the most impressive filament label.
