Best Filament for 3D Printed Fan Blades and Impellers: PETG, ASA, Nylon, or PC?

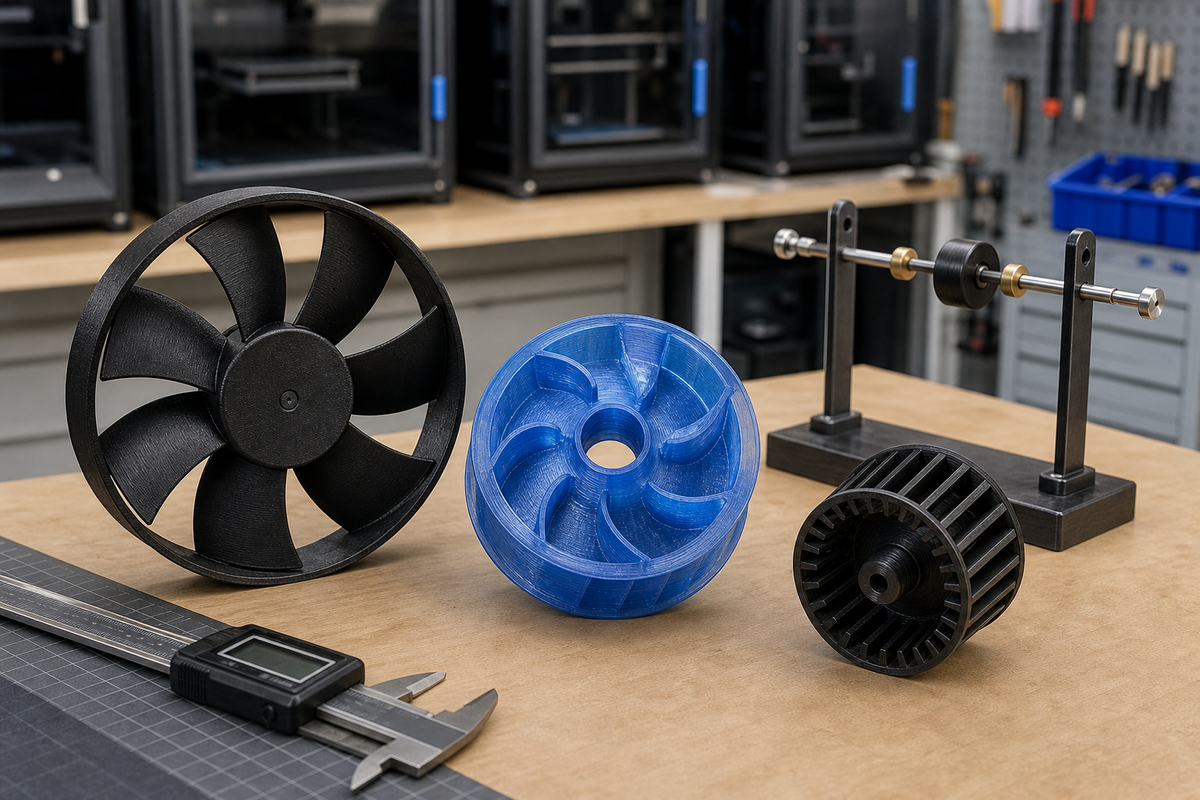

Black and blue 3D printed axial fan blade and centrifugal impellers with a digital caliper and balancing stand on a print-farm workshop bench.

PETG is the best practical starting point for most low-speed, noncritical 3D printed fan blades and small impeller prototypes because it combines useful toughness, manageable printing, and better temperature margin than PLA. Choose ASA when the rotor will see sunlight, outdoor air, or sustained warmth. Use a well-controlled nylon when repeated impact, fatigue, or resilient blades matter more than maximum dimensional simplicity. Consider polycarbonate only when the actual grade, printer, drying process, hub design, and test plan can justify its higher heat capability. For a high-speed fan, blower, pump, vehicle, appliance, or any rotor whose failure could injure someone or damage valuable equipment, use an OEM-rated rotor or a professionally engineered and contained part instead of treating desktop FDM as a drop-in replacement.

A rotating part is a different material problem from a stationary duct. The blade is repeatedly loaded, the hub concentrates stress, small mass differences create vibration, temperature changes fit at the shaft, and one weak layer can release a fragment with substantial energy. The strongest filament on a product page is not automatically the safest rotor. Geometry, layer orientation, voids, balance, speed, chemical exposure, mounting, and containment often dominate the result.

This guide helps choose a material for prototypes, test rigs, low-energy air movers, educational models, custom low-speed blowers, and qualified shop equipment. It does not certify a printed rotor for a specific RPM, pressure, fluid, food-contact, medical, aviation, automotive, mains-powered, or safety-critical application.

Quick recommendation by rotor use

Low-speed indoor prototype: start with PETG, use a generous hub, print a balance-friendly design, and run it behind a guard.

Outdoor fan or warm ventilation equipment: use ASA when UV, weather, and sustained warmth are credible, provided the printer can produce strong, low-warp layers.

Resilient blade or impact-prone shop rotor: evaluate dry nylon, then condition and rebalance it in the real use environment.

Higher-temperature enclosed airflow: consider a qualified PC grade only after verifying chamber control, layer strength, hub retention, and temperature at load.

High-speed or consequential equipment: buy the rated replacement or commission an engineered process. Material selection alone is not a rotor qualification.

PETG vs ASA vs nylon vs PC at a glance

Decision factor PETG ASA Nylon PC
Best lane Low-speed indoor prototypes Warm, sunny, or outdoor air Fatigue and impact tolerance Qualified higher-temperature work
Printing burden Moderate Enclosure and ventilation needed Drying and dry feed are critical High chamber and adhesion burden
Dimensional behavior Predictable after profile tuning Good if warping is controlled Moisture and compliance need control Strong potential, difficult process
Weather resistance Useful but not the first UV choice Best of these defaults Grade dependent; moisture matters Grade dependent
Main warning Creep and limited heat Warping and weak layer bonds Conditioning changes dimensions Process failure can erase material upside

Why a fan blade is harder than a fan shroud

A shroud, duct, or airflow guide is mainly a stationary heat, fit, and environment problem. A rotor adds cyclic loading and stored rotational energy. Every start and stop twists the hub. Every revolution pulls blade mass outward. Every imbalance applies a repeating load to the bearing, shaft, housing, and printed hub. That is why the separate fan-shroud and air-duct material guide can reasonably default to ordinary PETG or ASA more often than this page can.

Do not transfer a successful duct profile directly to a rotor and assume the result is qualified. A cosmetically clean blade can hide a poor hub bond, an internal void, a seam at the highest-stress location, or moisture-generated porosity. A printed guard also does not automatically contain a released blade; containment has to be designed and tested for the energy involved.

Why PETG is the best starting material for low-speed prototypes

PETG is a useful first material because it is less brittle than standard PLA, handles ordinary workshop temperatures better, and is available in consistent grades that most modern printers can process well. For a slowly rotating demonstrator, benchtop air mover, or geometry proof, that balance often matters more than chasing the highest published tensile number.

PETG is not a universal production rotor material. It can creep around a press fit, soften in a hot enclosure, string across thin passages, and flex enough to alter blade-tip clearance. Keep the hub thick, avoid relying on one printed key, use mechanical retention appropriate to the shaft, and measure the assembly again after it has sat under clamp or fastener load. If ordinary PETG is too flexible, the PETG-CF versus PETG guide explains the stiffness trade, but a filled grade adds abrasive processing and does not remove the need for balance and containment.

When ASA is the better fan or impeller material

ASA earns its place when sunlight, rain, outdoor intake air, a warm equipment cabinet, or hotter exhaust makes PETG's environment margin questionable. It is the strongest practical default here for a weather-exposed low-speed fan, provided the exact temperature stays within the selected grade's verified capability. The broader heat-resistant filament guide helps separate moderate warmth from a truly high-temperature requirement.

The problem is process sensitivity. A warped ASA rotor is not merely ugly; it can be unbalanced and can lose tip clearance. Poor chamber temperature or too much cooling can create weak layer bonds at the blade root. Print in an appropriate enclosure, manage emissions and ventilation, allow the part to cool slowly, and reject a rotor that rocks on a flat reference, shows root cracks, or needs heavy post-print force to fit the shaft.

When nylon makes sense

Nylon is attractive for blades that may strike light debris, flex through repeated starts, or need more fatigue tolerance than rigid easy-print materials provide. It can also work well for small blower wheels where resilience is useful and a validated hub insert owns the shaft connection. The nylon worth-it guide covers the larger question of when that toughness is worth the workflow.

Moisture is a rotor-control issue, not just a surface-finish issue. Wet nylon can print with bubbles and internal weakness. After printing, the part can absorb moisture and change mass, stiffness, and dimensions. Dry before printing, feed from a controlled container, document the conditioning state used for balance, and retest after the rotor has lived in its actual environment. If the layers crack during development, fix the process using the nylon layer-cracking guide before considering any speed test.

When polycarbonate is worth the burden

PC can provide a valuable combination of heat resistance, stiffness, and impact capability, but the word polycarbonate covers many blends with different printing and service behavior. It belongs in a rotor discussion only when the real measured temperature makes PETG and ASA inadequate and when the printer can produce strong, repeatable layers through the hub and blade roots.

A difficult PC print with partial layer bonding is worse than a well-made ASA part used inside ASA's limits. Use the exact filament maker's drying, bed, nozzle, chamber, and annealing guidance. Verify whether annealing changes bore size or balance. Test the delivered geometry, not the CAD promise. For an elevated-temperature rotor with meaningful consequences, a molded or machined engineering material with traceable properties is usually the more credible path.

Why PLA and PLA Pro are usually prototype-only choices

PLA can produce crisp blades, sharp airfoil edges, and excellent dimensional prototypes. PLA Pro improves handling toughness and may be entirely reasonable for a hand-spun model, airflow visualization prop, or brief low-speed fit test in a cool room. Its weakness is thermal margin and brittle failure behavior. Motor heat, bearing heat, a sunny window, or a warm enclosure can change the hub before the blade looks visibly melted.

Use PLA-family rotors to prove geometry when the test is controlled and guarded. Do not let a successful five-minute room-temperature run become an undocumented production approval. Move to the material and manufacturing process that fits the real environment before release.

Axial fan blades and centrifugal impellers fail differently

An axial fan pulls air roughly along the shaft direction. Its long blades can flex, flutter, and concentrate stress where a thin airfoil joins the hub. A centrifugal impeller turns flow outward through curved vanes; it adds close shroud clearances, a back plate, vane-to-plate joints, and strong outward loading around the eye and hub. A blower wheel with many narrow vanes also magnifies any print defect repeated around the circumference.

Design the material decision around the actual rotor. A flexible nylon axial blade might survive contact but lose pitch under load. A stiff ASA impeller might hold clearance but crack where a warped vane meets the plate. PC might tolerate temperature but still fail at a poorly bonded hub seam. There is no honest universal RPM rating for a material name without geometry, process, environment, and test evidence.

Speed changes the risk faster than intuition suggests

Rotational loads rise sharply as speed increases. Doubling RPM does not merely double the seriousness of an imbalance or the outward force on a blade. That is why a rotor that seems calm on a slow test cannot be assumed safe at full motor speed. Overspeed testing, if justified at all, belongs in remote, instrumented containment with an engineering test plan.

Record the motor's no-load speed, controlled operating speed, acceleration behavior, airflow restriction, rotor mass, radius, shaft interface, and maximum credible temperature. Do not use a software speed command as the only limit if a controller fault can drive the motor faster. When an application cannot tolerate blade release, the safest material choice is often a rated commercial rotor.

Layer orientation and seam placement matter more than infill percentage

Layered parts are anisotropic. A blade root loaded across weak layer interfaces can fail while the same filament survives when the load runs through continuous roads. Orient the rotor so the hub, blade roots, and plates have the strongest practical load path, then inspect the exact slicer preview. Avoid putting a sharp seam, restart defect, or sparse transition at every blade root.

More infill cannot repair a weak shell-to-hub connection. Use generous walls, smooth fillets, gradual section changes, and enough top and bottom structure to make the hub and vane interfaces continuous. A fully dense-looking slice can still contain start-stop defects or poor fusion. Qualification coupons should reproduce the same orientation, thickness, cooling, seam logic, and material condition as the actual rotor.

The hub and shaft connection deserve separate engineering

Most printed rotors do not fail in the middle of a broad blade. They loosen, split, or creep around the shaft. A small set screw can act like a wedge. A press fit can relax. A heat-set insert can concentrate stress or soften the surrounding polymer during installation. A printed keyway can place a notch at the most heavily loaded bore.

Prefer a proven mechanical interface with a generous hub and positive axial retention. Metal hubs, clamping collars, captured nuts, through-bolts, and balanced inserts may be appropriate depending on speed and direction, but every added component changes mass distribution. The material guide for pulleys and rollers covers related bore, creep, and rotating-hardware tradeoffs. Verify runout after assembly and after the first thermal cycle.

Balance is a release requirement, not a finishing preference

A rotor can match CAD and still be unbalanced because one blade carries a seam, a support scar, a denser patch, a moisture pocket, or a slightly different radius. Static balancing can reveal a heavy side on some narrow rotors, but it does not replace dynamic balance for wider impellers or higher speeds. Adding random glue, screws, or deep sanding marks without a controlled method can trade one defect for another.

Weigh parts on an appropriate scale, measure radial and axial runout, inspect blade-to-blade geometry, and use the balance method required by the application. Remove material only from designated balance pads or use a documented correction feature. Never sand a thin blade root casually. After correction, reinspect minimum wall, surface cracks, hub fit, and mass retention. If the rotor cannot be balanced repeatably, change the design or process instead of raising speed.

Tip clearance, runout, and distortion affect both safety and airflow

A warped fan can strike its guard. An impeller with axial runout can rub the volute. Too much clearance lowers pressure and efficiency; too little leaves no room for thermal growth, bearing play, moisture-conditioned nylon, or printer variation. Measure the cooled and conditioned rotor at several angles, not just one blade.

The custom FDM tolerance guide explains why a universal printer accuracy number cannot define a functional fit. Specify bore, hub face, outside diameter, axial runout, radial runout, blade-tip envelope, and the condition in which each will be inspected.

Heat, chemicals, and moisture can change the answer

Measure the actual air, motor, bearing, and nearby surface temperatures after the system reaches steady state. Intake air may be cool while the hub sits beside a warm motor. Exhaust air can carry oil mist, cleaning vapor, humidity, or process dust. A water-pump impeller introduces immersion, pressure, cavitation, and chemical compatibility that this general air-moving recommendation does not resolve.

Ask the filament supplier for relevant chemical and thermal data for the exact grade, then apply a realistic margin. Outdoor service pushes the decision toward ASA, wet nylon service demands conditioning control, and solvent exposure may eliminate all four candidates. Do not infer food, potable-water, medical, or flammability compliance from polymer-family marketing.

Qualification plan for a printed rotor

Gate Evidence to capture Stop condition
Print inspection Material lot, dry state, mass, roots, seams, void indicators Crack, bubble, warp, incomplete bond, unknown material
Dimensional check Bore, diameter, runout, tip envelope, shaft fit Rub risk, rocking hub, forced assembly
Balance check Method, correction, residual result, final mass Unstable result or uncontrolled correction
Guarded low-speed test RPM, vibration, sound, current, temperature Rub, rising vibration, hub movement, crack
Loaded thermal test Steady temperatures, airflow restriction, runout after cooling Creep, imbalance, clearance loss
Life checkpoints Cycles or hours, hub torque, cracks, mass, balance trend Any unexplained change or missed inspection

Guarding and containment are part of the system

Test behind a guard that prevents contact and is designed for the credible fragment path. Keep people out of the plane of rotation. Use remote start, controlled speed ramping, an emergency stop, and instrumentation that does not require leaning over the rotor. A decorative grille is not necessarily containment.

If the machine needs a custom cover, the machine-guard material guide helps choose a stationary protective part, but a printed cover still needs application-specific impact and access design. Never assume matching the rotor material makes the guard strong enough.

When printing a fan blade or impeller makes sense

Printing is useful for checking envelope, shaft fit, blade count, airflow direction, sensor clearance, housing geometry, low-speed educational models, and experimental air-path concepts. It can also support a controlled low-energy custom machine where replacement parts are unavailable and the owner can qualify, guard, inspect, and retire the rotor.

It is overkill when an inexpensive rated fan already meets the airflow need. It is the wrong shortcut when the part belongs to a furnace, dryer, vehicle, drone propulsion system, medical device, occupied appliance, flammable-vapor system, high-pressure blower, or high-speed tool without the engineering evidence required for that equipment.

What to send a print farm for a rotor prototype

Send the STEP file when available, the shaft and retention details, intended RPM range, motor speed ceiling, direction of rotation, airflow or pressure target, maximum measured temperatures, chemical exposure, expected hours or cycles, guard arrangement, balance requirement, and the dimensions that control runout and clearance. State clearly whether the request is a geometry prototype, a low-speed functional test part, or a released production component.

A serious supplier should not invent an RPM rating from the filament name. JC Print Farm can help produce controlled prototypes and small batches when the material, file revision, inspection points, and test ownership are defined. The small-batch 3D printing service guide shows how to package that request without turning an experimental rotor into an unspoken safety promise.

Bottom line

Use PETG as the default for low-speed indoor fan and impeller prototypes, ASA for warmer or outdoor airflow, nylon when resilience and fatigue justify moisture control, and PC only for qualified higher-temperature work. Then treat material choice as the beginning: design a strong hub, preserve layer strength, measure runout, balance the finished assembly, test it behind containment, record temperature and vibration, and define retirement criteria. For high-speed or consequential equipment, a rated OEM or professionally engineered rotor is the right answer.
