Best Filament for PCB Standoffs: PLA Pro, PETG or Nylon?

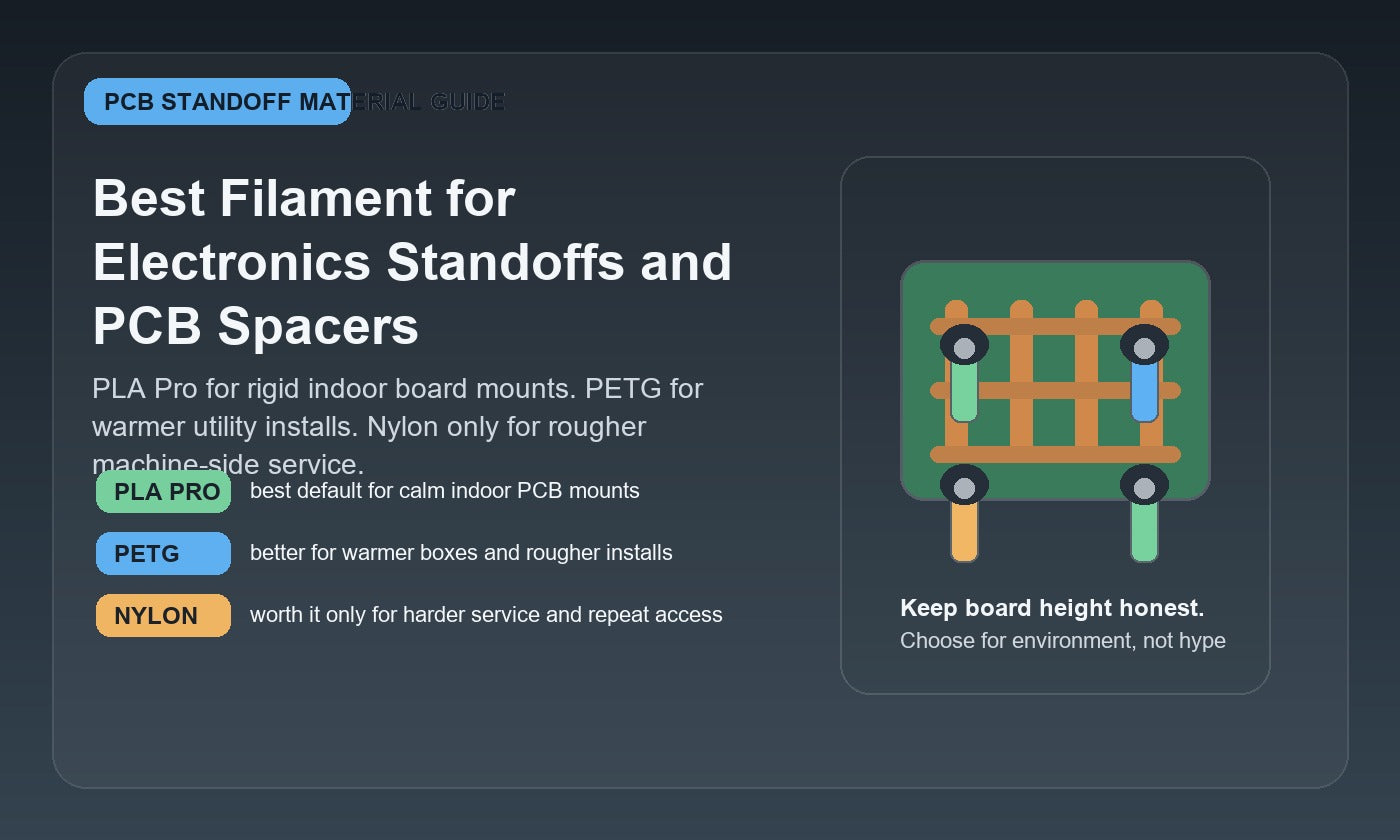

Illustrated material guide for 3D printed electronics standoffs and PCB spacers comparing PLA Pro, PETG, and nylon for indoor board mounts, warmer enclosures, and harder machine-side service.

Use a validated PLA Pro for most cool, indoor PCB standoffs and board spacers. Choose PETG when enclosure heat, moisture, or rough handling matters more than maximum rigidity. Choose nylon only when repeated service, vibration, impact, or wear creates a real qualification case. The word “electronics” does not make nylon the automatic premium answer.

Material is only one gate. Finished stack height, board clearance, screw load, insert geometry, local temperature, service cycles, and the consequence of a failed mount decide whether the part is acceptable. Ordinary printed filament must not be treated as certified flame protection, electrical insulation, or a substitute for a specified commercial standoff.

Disclosure: This page contains affiliate links. GoodPrints may earn a commission at no extra cost to you. This is a manufacturer-documented buyer analysis, not a hands-on electrical, flame, or durability test. Prusa’s PLA, PETG, and polyamide guidance was checked August 2, 2026.

Quick material decision

PCB mounting duty Start with Why Main stop condition
Indoor sensor board, controller, or project-box spacer Validated PLA Pro Rigid geometry and an easier print workflow can make stack height and hole alignment simpler to inspect. Local heat, screw load, impact, or safety requirements exceed the exact formulation and proof.
Warm utility enclosure, garage controller, damp area, or mobile kit PETG Useful toughness and temperature resistance with less process burden than nylon. Creep or compliance lets board height, connector alignment, or clamp load drift.
Repeatedly serviced machine-side mount or anti-rattle separator Qualified nylon Toughness and low-friction behavior may earn the moisture and printing workflow. Moisture conditioning, dimensional movement, or grade uncertainty defeats the fit.
Mains-voltage spacing, flame barrier, certified equipment, heavy connector load, or safety-critical control Specified commercial hardware Traceable material, recognized ratings, tolerances, and approved design rules matter more than print convenience. Do not approve from this guide or one desktop print.

What the published material guidance supports

Prusa describes PLA as easy to print and suitable for detailed parts while warning about brittleness and low temperature resistance. “PLA Pro” and “PLA+” are not universal formulations, so a tougher label does not prove a common heat, creep, flame, or electrical rating. Check the exact spool’s technical data and qualify the printed standoff.

Prusa’s PETG guidance identifies low warping, useful temperature resistance, and mechanical-part use. That supports PETG as the better fit for warmer or rougher electronics mounting, but it does not guarantee that a small post will preserve stack height under sustained screw load.

Prusa describes polyamide (nylon) as tough, low-friction, and temperature resistant while emphasizing moisture absorption and a harder workflow. Nylon belongs here when repeated service or wear justifies it—not because it sounds more advanced beside a PCB.

Buying shortcut for cool, low-consequence indoor board spacing: Matte Black AF PLA+ is a live GoodPrints candidate for rigid PCB standoffs, board spacers, and nonconductive mounting blocks when the enclosure stays temperature-controlled and the finished assembly passes clearance and clamp checks.

  • Good fit: dry indoor electronics, light static fastener loads, no routine flexing, and enough distance from hot components, power terminals, and exposed conductors.
  • Skip this shortcut: hot enclosures, high-voltage spacing, flame-rated or code-controlled assemblies, ESD-controlled hardware, vehicle heat, outdoor exposure, repeated service cycles, strong vibration, or safety-critical electronics.
  • Naming boundary: PLA+ and PLA Pro are not standardized material classes. Treat this spool as a candidate for the guide's rigid PLA-family branch, not as a certified electrical, ESD, flame, or high-temperature material.

Shop Matte Black AF PLA+ on GoodPrints

GoodPrints sells this live Shopify Collective product directly. Inventory can change; the product page is the current source for availability.

Start with PLA Pro for cool indoor board spacing

A validated PLA Pro is the clean first candidate for low-heat sensor boards, microcontroller carriers, project boxes, bench controllers, and enclosure standoffs that mostly stay installed. Small PCB mounts often care more about rigid alignment and consistent finished height than extreme impact resistance.

Use the PLA Pro decision guide to separate the category from ordinary PLA marketing. Reject PLA Pro when the local board, regulator, power supply, motor driver, enclosure, or surrounding room creates a temperature the exact grade and representative part have not passed. Also reject it when a connector, cable bundle, or heavy board turns the post into a lever.

Choose PETG for warmer or rougher enclosures

PETG is the honest middle lane for a garage controller, damp utility box, portable test kit, or enclosure that gets opened and handled. It usually asks less of the printer and material-control workflow than nylon. The tradeoff is that a more compliant part can feel less crisp and may move under sustained compression. Use the functional PETG guide to check whether that broader material lane fits the environment before qualifying the standoff.

Do not translate “more heat margin” into “safe at any electronics temperature.” Measure the local air and mounting-surface temperature during the worst credible operating condition. If the complete enclosure material is still undecided, use the electronics-enclosure material guide; this page owns only the narrower standoff and spacer decision.

Choose nylon for repeated service, vibration, or wear

Nylon starts to earn its workflow when a machine-side controller is opened repeatedly, a separator rubs during service, or vibration and impact repeatedly punish a brittle post. It may also fit a removable clip-like spacer better than a rigid static post. That is a qualification lane, not a blanket upgrade.

Use the nylon functional-parts guide before buying a spool. Drying, storage, conditioning, exact grade, printer capability, nozzle choice, and finished dimensions all matter. Filled nylon is a separate decision because fibers can change stiffness, abrasion, small-feature behavior, and nozzle requirements.

Separate the spacer from the enclosure and cable jobs

A PCB standoff sets board height and supports mounting points. It should not quietly inherit the jobs of the enclosure wall, cable restraint, heat shield, or soldering fixture. Use the PCB holder and soldering-jig guide when the part must grip a loose board during rework. Use the cable-clip and strain-relief guide when cable pull is the real load.

The broader spacers-and-shims guide covers stack-height correction, clamp load, wear, and outdoor spacing beyond electronics. Keeping these jobs separate prevents one material verdict from swallowing several different failure modes.

Audit board clearance and the load path

  1. Record the controlled dimensions. Specify finished standoff height, board-to-panel clearance, hole position, outside diameter, and allowable variation. CAD height is not accepted height.
  2. Inspect the board underside. Confirm that solder joints, component leads, test pads, vias, shields, and conductive hardware cannot contact the panel or a fastener after assembly, vibration, or deflection.
  3. Name every load. Include board mass, connector insertion, cable pull, fan vibration, transport shock, screw clamp, and service handling. Add another support or redesign the load path before asking a fancier polymer to rescue an overloaded post.
  4. Measure local temperature. Board hotspots can make the standoff environment warmer than the room or enclosure label suggests.
  5. Define the failure consequence. If a loose board could create a short, fire, exposed voltage, unsafe machine motion, or expensive damage, move to specified hardware and an appropriately qualified design process.

Choose the screw interface before the material

A clearance hole with a nut, a captive nut, a self-tapped printed hole, and a heat-set insert load the plastic differently. Tiny self-tapped posts can split; excessive tightening can dish or crush the top; a poorly placed insert can soften or bulge the wall. A washer or shoulder can spread load, while a metal commercial standoff can remove the printed post from the clamp path entirely.

If repeated disassembly is expected, compare a through-fastener or replaceable metal insert with printing new threads into every part. The heat-set-insert material guide covers that separate interface. Do not use an insert merely because it looks professional; preserve wall thickness, clearance, heat control, and board spacing.

Print and inspect the actual small feature

Small posts expose first-layer expansion, hole shrinkage, seam placement, cooling, over-extrusion, and minimum-feature limits. Print the final standoff geometry in the intended orientation with the intended printer, nozzle, profile, plate, and conditioned material. Let it cool before measuring.

Measure several samples at multiple points. Check finished height, hole diameter, outside diameter, perpendicularity, base flatness, and the board’s assembled clearance. Inspect layer bonding around the screw path and confirm that supports or cleanup did not notch the post. If the feature cannot be measured repeatably, the process is not ready for a batch.

If the standoff is part of an ESD-control plan, the material decision changes

Do not treat ordinary PLA Pro, PETG, or nylon as an ESD-control material, and do not treat an ESD-dissipative filament as automatically suitable electrical insulation. For an ordinary low-consequence board mount, choose among the three base material families using heat, screw load, vibration, moisture, wear, and service access. When a drawing or ESD-control plan specifies a resistance range, move to an exact ESD grade, print process, grounding path, measurement method, and release limit.

Polymaker's current Fiberon PETG-ESD documentation shows why the family name is not enough. Its ANSI/ESD STM11.11 printed-bar results change by nozzle temperature and specimen orientation: the reported values are around 107 ohms at 250 C, around 105 ohms at 270 C, and below 104 ohms at 290 C for the documented specimens. Polymaker also requires a hardened nozzle because the formulation is abrasive and says ESD behavior can change with humidity, temperature, dust, contaminants, surface abrasion, and environmental wear. Those are process- and part-specific boundaries, not a universal resistance rating for every printed post.

Board-mount requirement Material route Release evidence Do not infer
Mechanical spacing only; cool, dry, low-consequence assembly Use the PLA Pro, PETG, or nylon decision above. Do not pay for an ESD grade without an ESD requirement. Finished height, hole fit, clamp load, temperature, vibration, conductor clearance, and service-cycle proof. That a generic polymer family supplies a documented static-dissipative path.
Handling fixture, tray, jig, or mount inside a defined ESD-control program Choose an exact ESD grade and freeze the printer, nozzle, temperature, orientation, geometry, conditioning, and grounding design. Measure representative finished parts with the method, electrodes, voltage, environment, range, and traceability required by the governing ESD plan. That a spool label or one maker test transfers unchanged to a small printed standoff.
The standoff must act as insulation, preserve creepage, or support a working-voltage requirement Start with the electrical requirement and specified hardware or a qualified exact material and process. Keep the ESD path separate unless the design authority approves both roles. Dielectric, creepage, clearance, pollution, heat, flame, mechanical retention, and finished-assembly evidence. That surface resistivity proves dielectric strength, volume resistivity, safe voltage, flame behavior, or assembly approval.
Long service life, abrasion, cleaning, or uncontrolled humidity Add periodic resistance checks and a retirement limit to the ESD-control plan, or use qualified commercial hardware. Baseline and aged-part readings after the real cleaning, handling, heat, humidity, dust, and wear cycle. That the as-printed result remains unchanged for the life of the assembly.

Temperature is not an ESD tuning knob to turn by guess. The official results show that hotter printing lowered surface resistivity, but temperature also changes layer bonding, dimensions, small-hole fit, and the thermal load on the material and printer. Use the exact maker range as a starting boundary, qualify the actual geometry, and reject any process change that misses either the mechanical or ESD release limit. A hardened nozzle requirement also means the stock toolhead and feed path must be checked before purchase.

Use the Fiberon PETG-ESD review for the exact spool, printer-hardware, and measurement decision. Keep this PCB-standoff page as the route chooser: ordinary material for ordinary mechanical spacing; an exact ESD process for static-control work; an exact flame-qualified route when required; and specified commercial hardware when electrical or failure consequences exceed a desktop-material guide.

Official ESD source: Polymaker Fiberon PETG-ESD documentation and printed-bar surface-resistivity report, rechecked October 5, 2026. The published values describe the documented specimens and process conditions; they are not a certification of this standoff geometry or a substitute for the governing ESD and electrical requirements.

If flame performance is required, choose an exact qualified route

Do not promote ordinary PLA Pro, PETG, or nylon into a flame-rated job from the family name alone. The decision changes when a drawing, product standard, customer requirement, or risk review calls for a particular flammability classification. At that point, the buyer needs the exact material, color, printer and process scope named by the applicable certificate—or specified commercial mounting hardware—rather than the generic winner from this page.

Prusa's current PETG V0 documentation provides a useful example of why that distinction matters. It says Prusament PETG V0 was tested by UL using IEC 60695-11-10 and achieved UL94 V0 for both documented colors. The same page tells buyers to inspect the certificate for the printers on which that certification is valid and says the material is more hygroscopic than regular PETG. Those are exact-product and process boundaries, not evidence that ordinary PETG, another color, another printer, or an arbitrary desktop-print profile inherits the result.

Requirement Buyer route What still needs proof
Cool, low-consequence board spacing with no flame requirement Use the PLA Pro, PETG, or nylon workload decision above. Printed height, hole fit, clamp load, temperature, vibration, conductor clearance, and service cycles.
An exact flammability classification is required Start with the governing requirement and an exact certificate-backed material/process route; use commercial standoffs when that is the specified solution. Certificate scope, material and color identity, approved printer/process, part thickness and geometry, traceability, and finished-assembly acceptance.
Mains, code-controlled equipment, life safety, or high failure consequence Stop using this article as the approval basis and follow the qualified engineering and compliance path. Electrical insulation, creepage and clearance, ESD, mechanical retention, heat, fire enclosure, ingress, system certification, and applicable local rules.

A V-0 result addresses a defined vertical-burning test; it does not by itself certify a standoff as an electrical insulator, prove the complete assembly, set safe creepage or clearance, establish a working-load rating, or replace heat and fastener proof. For the enclosure-level material and process decision, use the electronics-enclosure filament guide. Keep this page focused on the board-spacing, fastener, heat, vibration, and service-life decision.

Official qualification source: Prusa PETG V0 documentation and certificate scope. Certificates and listed process scope can change; verify the current document that governs the exact build before purchase or production.

Run a representative board-mount proof

  1. Print at least three standoffs from the same conditioned material and intended process.
  2. Measure and label each sample after cooling; reject edge flare, weak layers, undersized holes, and leaning posts.
  3. Assemble the real board, fasteners, washers, inserts, panel, connectors, and cable routing using a documented tightening method.
  4. Operate the electronics under the worst credible normal load and measure local temperature rather than guessing from room temperature.
  5. Exercise connector insertion, cable pull, vibration, transport, and service access when those duties are real.
  6. Recheck board clearance, fastener retention, cracks, dish, tilt, and stack height after an early interval and a longer representative dwell.
  7. Define acceptance and replacement limits before producing the rest.

Change one variable at a time. If the post cracks at the screw, fix hole size, wall geometry, or tightening before switching material. If the board tilts in PETG, inspect clamp load and support layout before assuming nylon will be more dimensionally trustworthy.

Failure symptoms and the first check

Symptom Check first Likely decision
Post splits during assembly Pilot hole, outside diameter, wall count, seam, layer bonding, and screw type Fix the interface before buying a tougher spool.
Board height changes after warm operation Local temperature, screw compression, support count, and exact grade Repeat the heat-and-load proof or use specified hardware.
Connector use flexes the PCB Support placement and connector load path Add support near the connector; material alone is not the fix.
Fastener loosens after vibration Clamp strategy, insert or nut retention, plastic creep, and service procedure Redesign retention and validate the assembly.
Nylon fit changes between builds Drying, storage, conditioning, extrusion, and exact formulation Control material state before tuning dimensions.

Buy one spool only after the electrical and temperature lane is clear: choose Matte Black AF PLA+ for crisp, low-risk board spacing in cool indoor assemblies. Stay with PETG for a modest heat and handling step-up, qualified nylon for repeated service or vibration, and specified commercial hardware or certified material when voltage, flame, ESD, compliance, or failure consequences matter.

Before repeating the part, print the smallest standoff and thinnest boss, install the real board and fasteners, verify creepage and clearance against the governing design requirements, torque to the actual assembly limit, and run the worst credible temperature, vibration, and service-cycle exposure. Reject cracks, whitening, crushed layers, thread pullout, board rocking, loosened hardware, heat distortion, or lost conductor clearance.

Check current Matte Black AF PLA+ availability

A passing standoff is a material, geometry, print, fastener, board, voltage, and environment system - not a certification supplied by the spool label.

Final verdict

Use a validated PLA Pro for most cool indoor PCB standoffs, PETG for warmer or rougher enclosures, and qualified nylon only for a proven repeated-service, vibration, or wear case. Measure the printed stack height, prove the complete board mount under its real heat and loads, and stop at specified commercial hardware when electrical, flame, certification, or safety consequences exceed what a desktop print can responsibly qualify.

FAQ

Is PLA Pro safe next to a PCB?

“Next to a PCB” is not a complete requirement. Check the exact formulation, local temperature, board clearance, voltage, flame requirements, and failure consequence. Ordinary PLA Pro labeling does not prove a certified electrical or flame barrier.

Is PETG better than PLA Pro for every electronics enclosure?

No. PETG can earn the choice in warmer or rougher service, while a validated PLA Pro can provide crisper rigid alignment in a cool indoor box. The complete enclosure and the smaller standoff are separate decisions.

Should PCB screws thread directly into a printed post?

Only after the pilot hole, wall geometry, screw, tightening procedure, service cycles, and representative samples pass. A through-fastener, captive nut, insert, or commercial standoff may be more repeatable.

Does nylon stop vibration problems?

Not by itself. Support placement, connector loads, cable restraint, fastener retention, and board mass define the load path. Nylon may fit a qualified repeated-service or wear job, but it cannot rescue poor mounting geometry.

Can a printed standoff be used around mains voltage?

Do not approve it from a generic filament guide. Creepage, clearance, enclosure, flame behavior, exact material recognition, hardware, applicable standards, and a qualified electrical design process must control that decision.
