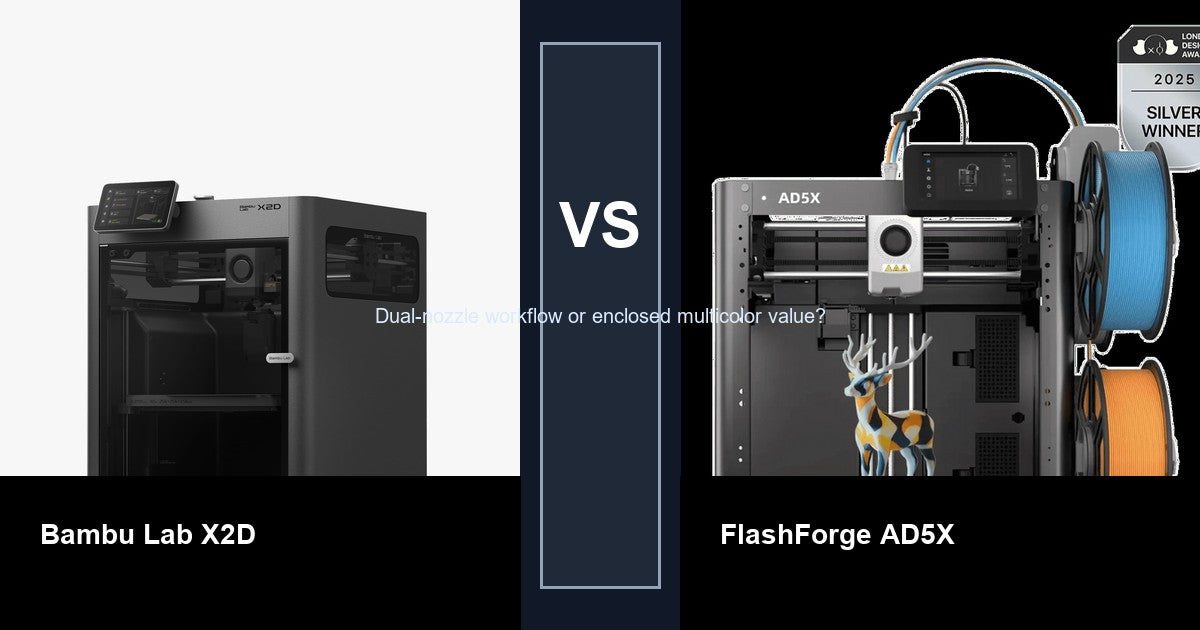

Buy the Bambu Lab X2D if a second nozzle will regularly handle support interface material, a second functional material, or faster two-material changes. Buy the FlashForge AD5X if the main goal is lower-cost four-color printing through one nozzle and you can accept its smaller build area and stock open-frame configuration.
These printers do not solve multicolor in the same way. The X2D is an enclosed dual-nozzle machine with a 256 x 256 x 260 mm main-nozzle build volume. The AD5X is a 220 x 220 x 220 mm single-extruder CoreXY printer whose integrated IFS switches among as many as four loaded colors. FlashForge sells an enclosure kit separately, so the stock AD5X should not be described as an enclosed printer.
Disclosure: GoodPrints3D may earn a commission from qualifying purchases. This comparison uses current manufacturer information and buyer-workflow analysis; it does not claim hands-on testing, and prices, bundles, firmware, and specifications can change.
The decision in 30 seconds
- Choose X2D when soluble or breakaway support interfaces, two-material parts, enclosure-first ownership, or the larger 256 mm platform appears repeatedly in the queue.
- Choose AD5X when most jobs are ordinary PLA or PETG color changes, 220 mm is enough, and a lower-cost single-nozzle IFS workflow is the honest requirement.
- Do not buy either from the color count alone. Count the jobs that require separate nozzles, the jobs that only need sequential color swapping, and the jobs that do not fit the smaller plate.
| Decision point | Bambu Lab X2D | FlashForge AD5X |
|---|---|---|
| Print architecture | Main and auxiliary nozzles | One extruder/nozzle with IFS filament switching |
| Manufacturer-listed build volume | 256 x 256 x 260 mm for main-nozzle printing | 220 x 220 x 220 mm |
| Stock enclosure | Yes | No; FlashForge sells a separate enclosure kit |
| Color/material method | Two-nozzle separation plus compatible filament-management options | Up to four loaded colors through one nozzle via IFS |
| Best first buyer | Support-material and two-material workflow buyer | Budget-conscious four-color PLA/PETG buyer |
| Main overbuy risk | Paying for a second nozzle that the queue rarely uses | Treating single-nozzle color switching or an add-on enclosure as equivalent to X2D architecture |
First, correct the enclosure assumption
The AD5X is often grouped with enclosed multicolor machines because its frame looks contained and FlashForge offers an enclosure path. The current AD5X product page, however, lists the printer separately from the AD5X enclosure kit. The stock-machine comparison is therefore enclosed X2D versus open AD5X, not enclosed versus enclosed.
That difference matters for temperature-sensitive materials, drafts, fumes, noise expectations, and total purchase cost. An add-on enclosure can change the AD5X setup, but it does not turn its single-nozzle IFS architecture into the X2D's dual-nozzle workflow. Check the exact bundle in the cart rather than assuming every AD5X listing contains the same hardware.
Where the Bambu Lab X2D wins
Separate nozzles can solve a real support-material job
The X2D earns its premium when the main nozzle prints the part and the auxiliary nozzle repeatedly handles a support interface or a second compatible material. That separation can reduce the number of material changes and keep the job logic cleaner than asking one nozzle to purge between every role. It does not make every two-material combination safe or automatic; material adhesion, temperature compatibility, purge strategy, and the auxiliary-nozzle limits still need qualification.
The main-nozzle platform is larger
Bambu's current X2D specifications list 256 x 256 x 260 mm for main-nozzle printing, versus the AD5X's listed 220 x 220 x 220 mm. That is about 35% more nominal plate area and 60% more rectangular build volume. Those percentages do not promise that every dual-nozzle job can use the whole main-nozzle envelope; check the current mode and slicer limits before buying around one edge-case part.
The enclosure is part of the stock machine
If drafts, repeated ABS/ASA-class work, or a more contained installation are central to the purchase, the X2D starts from the stronger hardware position. Read the current X2D materials guide before treating enclosure alone as proof that every engineering filament belongs in the normal queue.
Where the FlashForge AD5X wins
Four-color printing is the simpler value story
FlashForge positions the integrated IFS around as many as four colors. For signs, character models, labels, teaching pieces, and ordinary decorative work, that can be the more relevant capability than paying for a second nozzle. The AD5X still changes material through one nozzle, so the queue should budget for purge waste and color-change time instead of assuming four loaded colors mean four independent tools.
It is easier to justify when 220 mm is enough
A smaller platform is not automatically a disadvantage. If the last 20 representative parts all fit comfortably inside 220 x 220 x 220 mm, the X2D's larger envelope has not yet earned money. The AD5X case becomes stronger when the actual jobs are modest in size and the buyer wants accessible color output more than support-interface separation.
It keeps the first purchase focused
The AD5X is the cleaner route for a buyer who wants one machine, four-color IFS, and a lower entry burden. Keep the comparison honest by adding the enclosure kit, camera, spare surfaces, replacement nozzles, and material-handling accessories only if the real setup needs them. A cheaper base machine can stop being the cheaper complete cell when optional hardware is treated as mandatory after purchase.
Dual nozzle and single-nozzle IFS are not interchangeable
The X2D's second nozzle is valuable when keeping two print roles physically separate changes support cleanup, material contamination, or swap frequency. Bambu's current X2D product guidance also makes the boundaries clear: the auxiliary nozzle is not simply a second copy of the main system, third-party filament behavior can differ, and flow-dynamics calibration applies to the main nozzle. Buy the actual supported workflow, not a vague promise that every filament can run through either side identically.
The AD5X IFS solves a different problem. It automates which loaded filament reaches one extruder. That is useful for color, but it does not provide simultaneous independent toolheads or a dedicated support nozzle. If most jobs only change color at visible regions, AD5X architecture may be enough. If the queue repeatedly needs a separate support interface throughout the model, X2D architecture has the stronger case.
Run a ten-job proof test before spending
- Choose ten jobs that represent the next three months, not ten aspirational demo files.
- Mark every job that exceeds 220 mm on any axis. Those jobs create a direct X2D-size argument.
- Mark every job that genuinely benefits from a separate support-interface or second-material nozzle. Those jobs create the dual-nozzle argument.
- Mark every job that only needs two to four colors through one nozzle. Those jobs strengthen the AD5X case.
- Record the material and whether the stock open AD5X configuration is appropriate. Price the official enclosure path only where needed.
- Estimate color-change or material-change events, purge, cleanup, and operator touch time instead of comparing headline speed.
- List required add-ons for each complete cell: filament system, enclosure, camera, spare plate, dryer or storage, ventilation, and bench space.
- Reject any material pairing that lacks documented compatibility or a controlled proof print.
- Run one representative sliced job through the current slicer profiles and note usable area, predicted changes, purge, and time.
- Choose the less expensive complete workflow that clears the queue with margin. If neither architecture pays back, keep the current printer.
Buyer scenarios
- Functional parts with support interfaces every week: choose X2D, subject to exact material compatibility and auxiliary-nozzle limits.
- Four-color PLA signs and character models under 220 mm: choose AD5X unless another requirement changes the decision.
- Regular larger fixtures or housings: X2D has the stronger size case, but verify the exact part orientation and printing mode.
- ABS/ASA-class work from day one: favor the stock enclosed X2D path or price the AD5X enclosure and ventilation setup explicitly.
- Mostly single-color PETG: neither multicolor method has earned the purchase on its own. Compare a simpler enclosed or single-nozzle path first.
Who should buy each printer?
Buy X2D if the second nozzle, larger main-nozzle build volume, and stock enclosure solve recurring jobs you can name. Use the X2D buyer-fit guide and support-material workflow guide to test that branch.
Buy AD5X if 220 mm is enough and four-color IFS output matters more than separate nozzles or a stock enclosure. Use the AD5X buyer-fit guide and AD5X materials guide to check the smaller value path.
Common questions
Is the FlashForge AD5X enclosed?
Not in its stock configuration. FlashForge sells a separate AD5X enclosure kit. Confirm the exact bundle because seller listings can package hardware differently.
Does the AD5X have four nozzles?
No. FlashForge lists one extruder. Its IFS can manage up to four loaded colors that feed through the single-nozzle print path.
Is X2D automatically better for every multicolor print?
No. X2D architecture is more valuable when two-nozzle separation solves a repeated workflow. For ordinary four-color single-nozzle work on parts that fit 220 mm, the AD5X can be the more proportionate purchase.
Which printer wastes less filament?
There is no honest universal answer without the sliced job. Tool assignment, color order, purge settings, support strategy, model geometry, and number of changes determine waste. Compare the same representative file in current profiles.
Related reading
- Bambu Lab X2D review
- FlashForge AD5X review
- Best alternatives to the X2D
- Best alternatives to the AD5X
- Bambu Lab X2D vs P2S
- FlashForge AD5X vs Centauri Carbon 2 Combo
- Is the Bambu Lab X2D worth it?
One support purchase that can fit either path
If the representative queue uses moisture-sensitive PETG, TPU, support filament, or composites, solve that material condition separately from the printer architecture. The Polymaker PolyDryer is a focused one-spool dry-then-store option; the PolyDryer review explains when that narrower routine is enough and when a larger recovery dryer is more appropriate.
Do not let the accessory decide the printer. Choose X2D for proven dual-nozzle, size, and enclosure needs or AD5X for proven four-color single-nozzle value, then add drying only when the actual filament requires it.
