Direct answer: buy the Anycubic Photon Mono M7 Pro when larger supported parts, fuller batches, resin-temperature control, or automatic resin handling solve a recurring constraint; buy the Elegoo Mars 5 Ultra when compact work already fits and a smaller tilt-release workflow is the better match. The M7 Pro's nominal 223 x 126 mm plate has about 2.36 times the X-Y area of the Mars 5 Ultra's 153.36 x 77.76 mm plate, but unused area is not useful output.
Recommendation: slice ten representative supported jobs on both machines. Choose the M7 Pro when several jobs need its 223 x 126 x 230 mm volume or its resin-control features. Choose the Mars 5 Ultra when the same accepted parts fit its 153.36 x 77.76 x 165 mm volume without extra plates. Do not let 14K-versus-9K naming decide finished quality by itself.

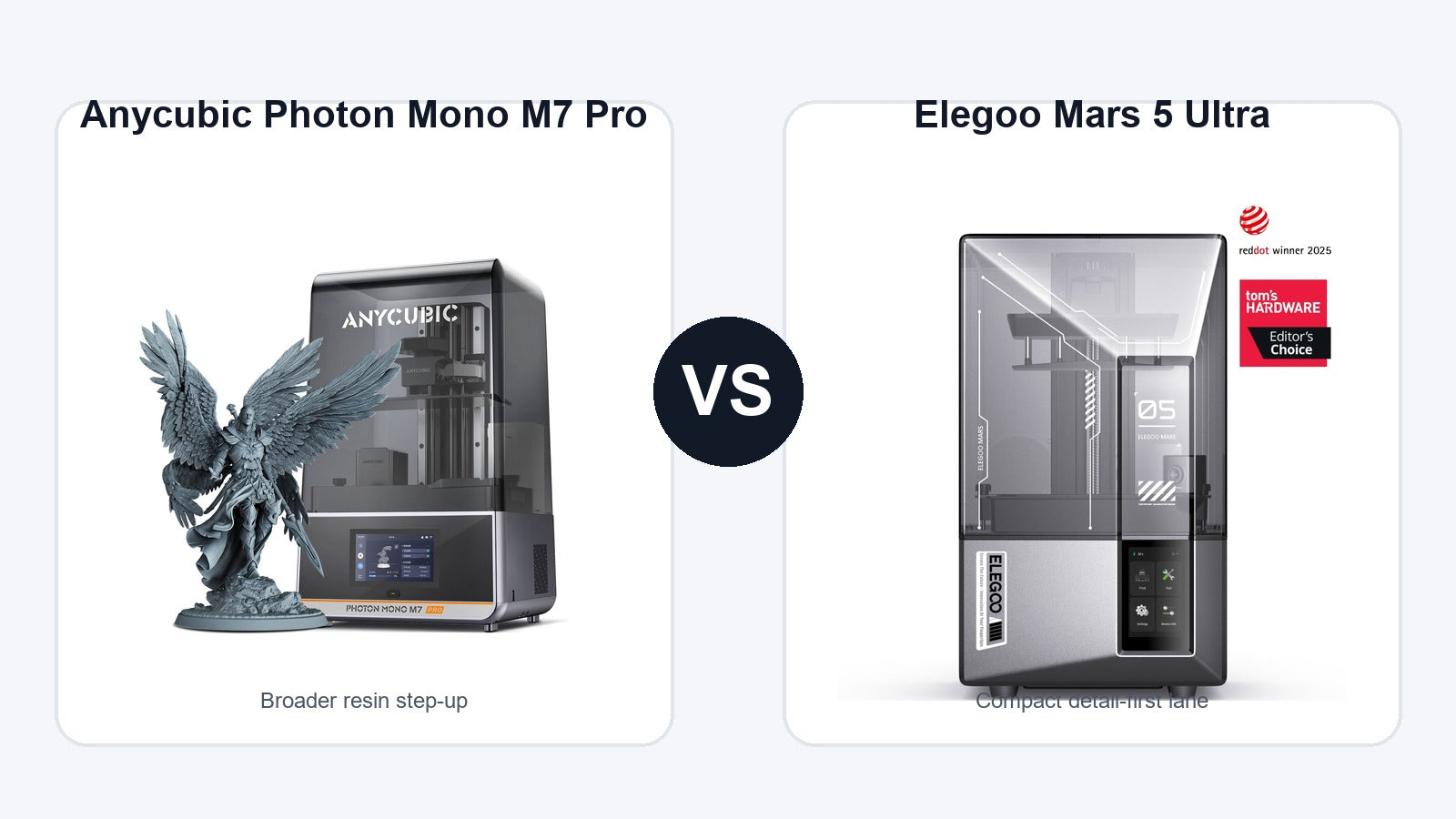

M7 Pro vs Mars 5 Ultra: the deciding specs
| Decision | Anycubic M7 Pro | Elegoo Mars 5 Ultra | Buying rule |
|---|---|---|---|
| Nominal build volume | 223 x 126 x 230 mm | 153.36 x 77.76 x 165 mm | Use supported-file fit and parts per plate, not volume labels alone. |
| Resin workflow | Dynamic temperature control plus automatic resin-management features | Compact tilt-release workflow with automatic leveling and monitoring features | Pay for controls only when they address a documented operating limit. |
| Best-fit queue | Mixed sizes, larger supported geometry, or fuller repeat batches | Miniatures and other compact detail-heavy parts | Count accepted parts and complete cycles, including wash and cure. |
| Resolution label | 14K-class screen label | 9K-class screen label | Compare representative cured parts; screen count alone is not a quality verdict. |
Use the M7 Pro ownership review and Mars 5 Ultra review for the single-printer case. Compare Saturn 4 Ultra versus Mars 5 Ultra when a larger Elegoo is the real alternative, and size the wash-and-cure workflow before buying extra printer capacity.
Source and disclosure: build-volume and workflow claims were rechecked October 6, 2026 against Anycubic's current Photon Mono M7 Pro page and Elegoo's current Mars 5 Ultra page. This is manufacturer-documented buyer analysis, not hands-on testing. GoodPrints may earn a commission from qualifying purchases at no extra cost to you.
Use the M7 Pro review or Mars 5 Ultra review for the single-printer ownership view. If neither lane is right, compare the M7 Pro with the Saturn 4. Resolve wash-and-cure capacity and ventilation before increasing printer throughput.
Buy the Anycubic Photon Mono M7 Pro when its much larger plate, dynamic resin-temperature control, or automatic resin refill and withdrawal will improve real batches. Buy the Elegoo Mars 5 Ultra when your queue is mostly miniatures and other compact parts, because its smaller build volume, tilt-release system, and lower overbuy risk make it the more disciplined detail-first choice.
This is not a simple better-versus-worse matchup. The M7 Pro is the broader serious-desktop platform; the Mars 5 Ultra is the compact specialist. The right machine is the one whose build area and workflow features remove measured constraints without outrunning your wash, cure, ventilation, and inspection capacity.
The decision in 30 seconds
Buy the Photon Mono M7 Pro if: you repeatedly need more than the Mars 5 Ultra's 153.36 × 77.76 mm plate, print in a cool or variable room, or will use automatic resin management during repeat batches.
Buy the Mars 5 Ultra if: miniatures, tabletop pieces, jewelry-scale prototypes, and other compact parts dominate the queue and its 153.36 × 77.76 × 165 mm volume already fits them.
Delay either purchase if: safe resin handling, ventilation, washing, curing, or waste control is unresolved. More printer capacity does not fix an incomplete resin bench.
Disclosure: GoodPrints may earn a commission from qualifying links on this page. This comparison uses manufacturer-published specifications and workflow claims; it does not claim hands-on testing.
Quick comparison
| Decision point | Anycubic Photon Mono M7 Pro | Elegoo Mars 5 Ultra |
|---|---|---|
| Printer lane | Broader serious-desktop MSLA platform | Compact detail-first MSLA platform |
| Manufacturer-listed build volume | 223 × 126 × 230 mm | 153.36 × 77.76 × 165 mm |
| Screen specification | 14K monochrome LCD | 9K monochrome LCD |
| Release approach | Conventional vertical release within Anycubic's high-speed workflow | Tilting resin-vat release system |
| Resin-temperature control | Dynamic temperature-control resin vat | No integrated heated-vat system is listed for this model |
| Resin handling | Automatic resin refill and withdrawal are listed | Standard manual fill and drain workflow |
| Best fit | Mixed part sizes, repeat batches, variable room conditions | Miniatures and compact detail-heavy jobs |
| Main overbuy risk | Paying for plate room and controls that do not change accepted output | Outgrowing the compact plate after the queue becomes broader |
Do not turn 14K versus 9K into the verdict. Resin, exposure, supports, orientation, optics, release behavior, washing, curing, and inspection can matter more than the headline resolution label. Use a representative part and acceptance standard instead of assuming the larger number guarantees the better finished result.
Where the Photon Mono M7 Pro wins
The M7 Pro wins first on usable capacity. Its manufacturer-listed X-Y plate area is more than twice that of the Mars 5 Ultra, and it also offers more Z height. That can change how many parts fit in one batch, whether a model prints without aggressive orientation, and how often a larger job must be split. The advantage matters only when real files use it.
It also has the stronger temperature-and-resin-management case. Anycubic lists dynamic temperature control plus automatic resin refill and withdrawal. Those features can reduce operator work or process drift when the room is cool, resin use is high, or repeat plates make manual level checks a recurring task. They are much harder to justify for occasional low-density miniature plates.
Read the Photon Mono M7 Pro review for the machine-specific case. If you need a similar-size alternative without choosing around the compact Mars lane, compare the Saturn 4 Ultra vs Photon Mono M7 Pro.
Where the Mars 5 Ultra wins
The Mars 5 Ultra wins when compact work is the actual workload, not merely today's first project. Its smaller volume is enough for many miniatures, tabletop pieces, small figurines, jewelry-adjacent prototypes, and compact engineering mockups. In that lane, the larger M7 Pro plate can add cost and bench scale without improving the accepted part.
Elegoo's tilt-release system, automatic leveling, camera monitoring, and mechanical checks also form a coherent compact workflow. They do not remove the need for exposure tests or careful support strategy, but they make the Mars 5 Ultra more than a stripped-down budget choice. It is a current detail-first machine whose limits are easiest to accept when jobs stay small.
Use the Mars 5 Ultra review for the single-printer view. Read Who Should Buy the Mars 5 Ultra? when the compact-machine boundary is still unclear.
Run a ten-job plate-use audit
List the next ten resin jobs you are genuinely likely to print. For each job, record the part bounding box, number of copies, preferred orientation, expected resin use, room temperature, wash-and-cure time, and the cost of a failed plate.
- Mark every job that exceeds 153.36 × 77.76 × 165 mm.
- Count jobs where the M7 Pro changes plate count, orientation, or support risk.
- Mark batches that have already drifted because resin temperature was inconsistent.
- Record whether automatic refill would prevent a real interruption or merely save one check.
- Time washing, support removal, drying, curing, and inspection for one full representative plate.
- Compare the feature value with failed-plate cost and operator attention, not just purchase price.
If the larger volume, temperature control, or refill system changes several rows, the M7 Pro has a defensible payback case. If the queue fits the Mars plate and those workflow rows stay empty, the Mars 5 Ultra is the cleaner buy.
Throughput means accepted parts, not advertised speed
High-speed claims depend on resin, layer height, geometry, settings, and acceptance standards. Measure complete cycle time from file release through washed, cured, and inspected parts. A printer that exposes a plate faster can still lose the workflow if support failures rise or finished plates wait for post-processing.
The M7 Pro's larger plate can create a larger cleanup wave. Before choosing it for throughput, confirm the wash container, cure capacity, drying space, inspection station, and operator time can absorb the batch. The Mars 5 Ultra can be faster in the only sense that matters when its smaller plate matches the downstream bench.
Current U.S. offer check: does the M7 Pro earn the premium?
The live manufacturer stores checked September 22, 2026 showed an available no-add-on Photon Mono M7 Pro at $459 and an available Mars 5 Ultra at $269, a $190 gap before tax, shipping, resin, washing, or curing equipment. That makes the Mars the value default unless the M7 Pro changes accepted output or recurring labor.
- Capacity proof: pay more when several of the next ten supported jobs exceed the Mars 5 Ultra plate, need fewer splits, or produce meaningfully more accepted copies on the M7 Pro.
- Process proof: pay more when resin-temperature control addresses a measured cool-room or consistency problem, not merely a hypothetical future use.
- Labor proof: pay more when automatic refill and withdrawal remove repeat operator work across real batches.
If those rows stay empty, keep the $190 for resin handling, ventilation, spares, and a correctly sized wash-and-cure workflow. If two or more rows recur, the M7 Pro premium has a defensible job to do. Treat this as a dated checkout snapshot, not a permanent list-price claim.
Price the complete resin bench
Include wash-and-cure capacity, gloves and eye protection, ventilation appropriate to the resin and workspace, spare film and vats, cleaning supplies, waste handling, resin inventory, and enough bench area to separate dirty and clean stages. The larger printer can also require larger containers and more resin held in process.
If post-processing is undersized, start with Do You Need a Wash and Cure Station?. If workspace exposure is unresolved, read Do You Need Ventilation for Resin 3D Printing? before treating either machine as ready to install.
Three common buyer scenarios
The miniature maker with a compact queue
Choose the Mars 5 Ultra. Its plate is easier to keep busy with small parts, while the tilt-release and monitoring features provide a current workflow without forcing a broader resin setup.
The small shop with mixed part sizes
Lean M7 Pro when the audit shows repeated plate-fit, orientation, temperature, or resin-level constraints. Requalify representative parts and the whole wash-and-cure process; a richer feature set is not automatic process validation.
The buyer worried about future growth
Do not buy capacity on anxiety alone. Use real files or bounding boxes from the next ten likely jobs. If only one speculative part needs the larger machine, splitting or outsourcing that job may cost less than scaling the entire resin bench.
When another resin printer makes more sense
- You want a larger Elegoo lane: compare the Saturn 4 Ultra vs Mars 5 Ultra.
- You want a lower-cost larger-format step: read the M7 Pro vs Saturn 4.
- You want a heated owner-controlled alternative: compare the M7 Pro vs Uniformation GKtwo.
- You mainly want miniatures and are still deciding on the process: read Is a Resin 3D Printer Worth It for Miniatures?.
Choose the next step
- If the larger resin-workflow branch still needs a direct benchmark, compare the M7 Pro with the Saturn 4 Ultra, or compare printer ownership with using a print service.
- If finished resin parts matter more than owning the wash, cure, ventilation, and handling workflow, use JC Print Farm while process, material, tolerance, or production planning still needs review, or request a quote once the file, quantity, requirements, and timing are defined.
Final recommendation
Buy the Photon Mono M7 Pro when its broader plate, heated-resin control, and automatic resin management solve measured constraints. It is the more capable platform, but those capabilities should change batch fit, repeatability, or operator time before they decide the purchase.
Buy the Mars 5 Ultra when compact detail-heavy work dominates the queue. It is the better default for miniature-scale jobs that fit its listed volume, especially when a larger plate would only increase cost, resin held in process, and post-processing pressure.
M7 Pro vs Mars 5 Ultra buying questions
Which printer is better for miniatures?
Choose the Mars 5 Ultra when the supported miniatures and the needed quantity fit its plate and compact workflow. Choose the M7 Pro when a larger batch layout, taller supported work, or its resin-control features repeatedly improve accepted output. The screen-resolution label alone does not settle the result.
Does the M7 Pro always finish a batch faster?
No. Printer exposure and release are only part of the cycle. Supports, failures, removal, washing, curing, inspection, and the capacity of the post-processing cell can erase a nominal printer-speed advantage.
Which printer needs the larger wash-and-cure setup?
The M7 Pro is more likely to create larger parts or fuller cleanup waves, but the correct station comes from the actual supported geometry and batch, not the printer name. Verify the basket, platform, load, fluid, ventilation, and transfer path.
Frequently asked questions
Which printer has the larger build area?
The M7 Pro does. Its 223 x 126 mm nominal plate area is about 2.36 times the Mars 5 Ultra's 153.36 x 77.76 mm area, and it also offers 230 mm of Z height instead of 165 mm. That matters only if supported parts or repeat batches use the extra room.
Is the Mars 5 Ultra the better miniature printer?
It is the cleaner buy when miniatures and other compact detail-heavy parts dominate and already fit its plate. A 9K or 14K label alone does not decide finished detail; resin, exposure, support strategy, release behavior, washing, curing, and inspection still control accepted output.
What should you budget beyond the printer?
Budget for ventilation, gloves and eye protection, resin handling, washing, curing, waste control, replacement film, and inspection. Start with the wash-and-cure guide and resin ventilation guide before treating printer price as complete bench cost.
Which printer is better for a cold room?
The M7 Pro has the stronger manufacturer-listed case because it includes dynamic resin-temperature control. You still need to confirm the room, resin, ventilation, and validated exposure process are suitable.
Is 14K automatically better than 9K?
No. Those labels describe screen resolution, not the complete finished-part process. Compare representative cured parts under the same acceptance standard instead of choosing on the headline number alone.
Is the M7 Pro always better because its plate is larger?
No. The larger plate matters only when supported parts or repeat batches use it. If the Mars 5 Ultra fits the real queue, the smaller resin volume, wash load, cure load, and bench footprint can be the better operating choice.
