3018 CNC PCB Jig on Printables fits the stronger GoodPrints useful-project lane because it is not just another bench accessory. It solves a real workflow problem for people milling circuit boards on small CNC machines: getting blank boards held in a repeatable position so swaps are quicker, alignment is easier to trust, and double-sided work is less annoying.
That matters because PCB milling on a 3018-class machine can get messy fast when every blank is taped down a little differently or nudged into place by eye. A printed jig turns the job from improvised setup into something closer to a repeatable fixture workflow, which is exactly the kind of model that makes outsourced production feel legitimate instead of novelty-driven.
Direct source review showed about 249 downloads, roughly 3,350 visible views, 68 likes, 40 public collections, 2 makes, and 2 ratings averaging about 5.00 on Printables. Those are solid public signals for a narrow but credible electronics-fabrication helper with clear use intent.
What problem this model solves

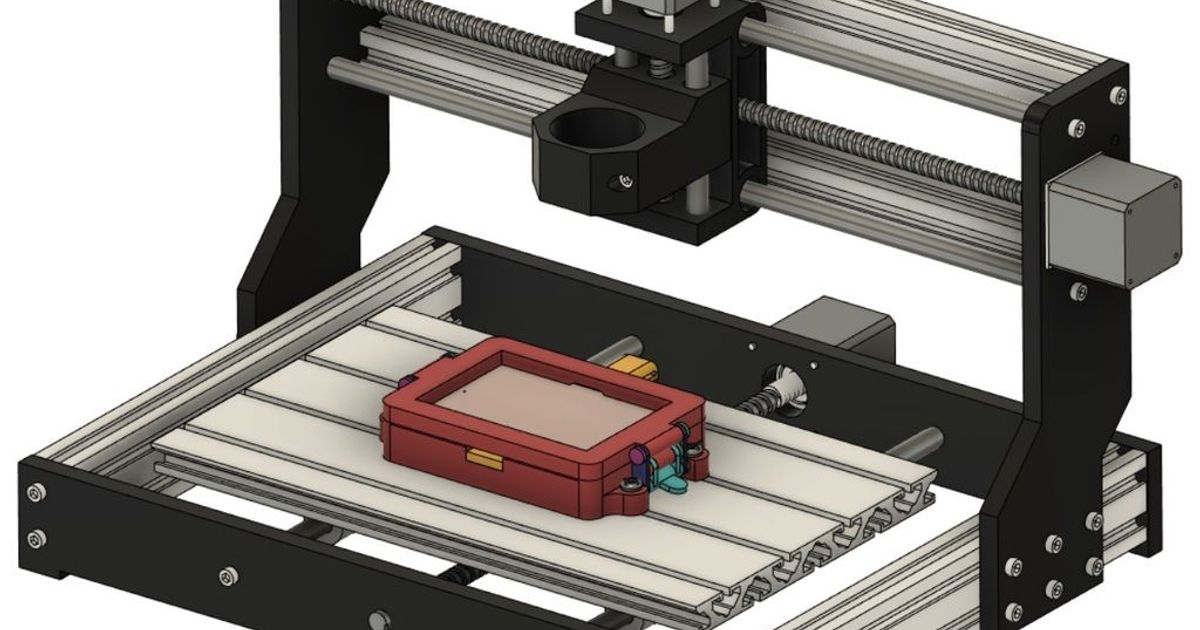

PCB milling asks for more consistency than many hobby jobs. If the board shifts, sits unevenly, or lands in a slightly different spot from the last blank, drilling, traces, and cut outlines can all go sideways. This jig is built around holding 70 x 100 mm PCB blanks on a 3018 setup so the work starts from a more controlled reference.
- helps hold PCB blanks in a more repeatable position on a 3018 CNC
- supports faster board swaps for iterative electronics work
- makes registration-sensitive jobs easier to manage
- gives small-shop users a believable one-off or batch print worth ordering
Why the design is worth noticing
The strongest angle here is workflow, not object hype. A jig like this makes sense when one board is never really just one board. Maybe you are isolating a prototype, remaking a damaged test piece, cutting a few variants, or trying to keep front-and-back operations from drifting. A simple fixture saves time, but more importantly it cuts down on avoidable alignment mistakes.
It also makes sense for people who own a small CNC but do not want to spend their shop time designing every fixture from scratch. Ordering a finished jig can be easier than pausing the electronics project to troubleshoot another setup aid.
Who gets the most value from it
This file is strongest for electronics hobbyists, repair tinkerers, school labs, maker spaces, and small-run developers using a 3018-class machine for prototype boards, adapter plates, or repeated milling experiments.
- small-batch PCB prototype runs
- double-sided board workflows
- repeat test cuts and drilling passes
- electronics classrooms and shared lab setups
How to use the article even if you never order the file
The larger lesson is that PCB milling reliability usually improves when fixturing becomes part of the plan instead of an afterthought. Before blaming the bit, spindle, or CAM output, check four things:
- blank size consistency: make sure each board starts from the expected dimensions
- reference orientation: use one clear corner or edge so every swap starts the same way
- tool clearance: confirm the jig does not block the cutter path or chip evacuation
- sacrificial strategy: know what part of the setup is meant to wear so the main fixture stays trustworthy
That framing is useful whether you print this exact jig or build your own fixture approach later.
Printing and use notes
- Confirm your machine format: 3018-style machines vary, so verify table, spoilboard, and hold-down assumptions before ordering.
- Check the target board size: this design is built around a specific blank footprint rather than being a universal electronics clamp.
- Use it as part of a system: fixture accuracy, zeroing, flatness, and tool sharpness all still matter.
- Batching can make sense: if a lab or maker space has multiple machines or fixture stations, ordering more than one may save setup time later.
If you need help turning a downloaded model into finished parts, JC Print Farm is the broader path for one-offs and small batches built from supplied files.
When ordering one makes sense
This model makes sense when you already have a 3018-class CNC workflow and the pain point is setup repeatability rather than machine ownership. It is especially credible for projects where a few boards need to come out cleaner and more consistently, but buying a commercial fixturing system would be overkill.
If you want this file made for you, use this quote link: Get this printed.
Choose the next move
- Already want this exact jig printed from the published file? Use the tracked quote path: Get this printed.
- Need the jig adapted for your board size, hole pattern, or small fixture batch? Use JC Print Farm.
- Still deciding whether a downloaded fixture file is worth ordering? Read How to choose downloaded 3D models that are actually worth outsourcing for printing.
- Still solving the wider bench workflow? Continue to CNC Clamp or Helping Hands PCB Holder.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is a positive signal, but this pass did not independently confirm the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the source terms are verified directly.
Common questions
What does this PCB jig help with?
It helps hold PCB blanks more consistently on a 3018 CNC so repeated swaps, registration, and small-board milling are easier to control.
When is a jig like this better than tape, improvised stops, or one-off clamping?
When you are cutting more than one board, chasing cleaner registration, or trying to stop setup drift from ruining small traces and edge alignment.
Why is this a strong outsourced-print candidate?
Because it is a job-specific fixture with obvious use value. Many readers would rather order a finished jig than stop an electronics project to print and dial in a setup aid themselves.
Who is this most useful for?
Electronics hobbyists, lab users, maker spaces, and prototype builders milling small circuit boards or similar flat blanks on 3018-class CNC machines.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
