Direct answer: the Creality SpacePi X4 filament dryer is worth it when four-spool throughput or two independently controlled temperature lanes clear a recurring queue. Buy the full X4 for repeated mixed-material or higher-temperature conditioning within each spool maker's limit; choose the X4L when all approved cycles stay at or below 75 C, a smaller dryer when one or two spools cover normal work, or sealed storage when moisture re-entry is the real failure.
Recommendation: use X4 for multispool production, paired material families with different programs, or repeated higher-temperature conditioning backed by the filament maker's instructions. Creality lists four-spool capacity, dual 200 W PTC chambers, 45-85 C, 1-48 hour cycles, active dehumidification and 360 W rated power. Two chambers mean two temperature lanes, not four independent zones.
| Decisive check | Full SpacePi X4 listing | Buy / skip rule |
|---|---|---|
| Capacity | Up to four spools in two chambers | Buy when three-plus loaded positions or both temperature lanes recur; otherwise downsize |
| Heat and time | 45-85 C; 1-48 hours; dual 200 W PTC heating | Follow the exact spool maker's safe drying limit; maximum heat is not the default |
| Spool envelope | Up to 200 mm diameter and 150 mm width listed | Measure recurring spools and verify free rotation, outlet and filament path |
| Bench and electrical | 382 x 290 x 270 mm; 5 kg; 360 W rated power | Allow loaded-spool, lid, cable, ventilation and service clearance; confirm regional power |
| Model boundary | Full X4 reaches a listed 85 C; X4L is a different Lite product with a listed 75 C maximum | Match the exact model before transferring settings or specifications |
Compare the SUNLU S4 versus SpacePi X4, then use the controlled drying workflow. Run the wet-filament diagnosis before blaming every print fault on moisture, and use the nylon dryer-versus-storage decision when nylon drives the purchase.
Check the current Creality Space Pi X4 listing on Amazon.
Source and disclosure: specifications were rechecked September 21, 2026 against Creality's official SpacePi X4 page. GoodPrints may earn a commission from qualifying Amazon purchases at no extra cost to you. This is manufacturer-sourced buyer analysis, not hands-on temperature-uniformity or drying-rate testing.

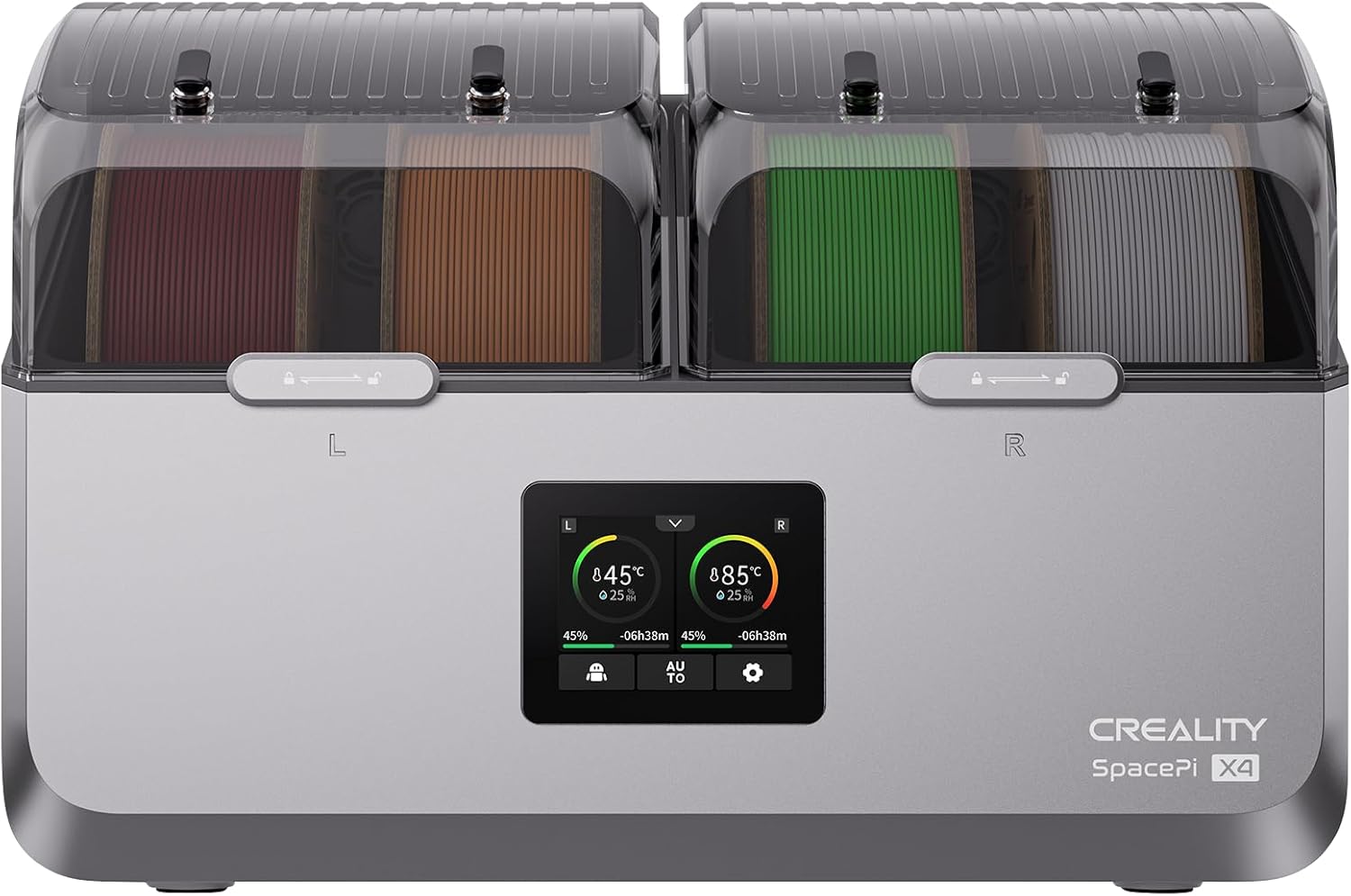

Creality Space Pi X4 at a glance
| Buyer question | Current listing answer | What to verify |
|---|---|---|
| How many spools? | Up to four, with dry-and-print routing | Every spool's diameter, width, core, and outlet path |
| How is heat controlled? | Two chambers with independent temperature control and dual 200 W PTC heaters | The selected chamber mode and safe temperature for each spool |
| Maximum listed temperature? | Up to 85 C | Spool heat resistance and current material guidance |
| Moisture handling? | Circulating hot air, active dehumidification, and desiccant-regeneration claims | Actual before-and-after print behavior, not the display alone |
| Best fit? | Busy mixed-material benches and four-spool workflows | Whether a smaller dryer would sit idle less often |
Verified X4 specifications that change the purchase
Creality's current full-X4 product page lists a 382 × 290 × 270 mm product size, 5 kg net weight, 45–85 °C temperature range, 1–48 hour drying timer, 360 W rated power, and regional 100–120 V or 220–240 V input versions. Those numbers matter more than the broad four-spool label because they determine bench fit, circuit planning, recovery range, and whether the unit is sensible for the actual material queue.
| Current full-X4 specification | Buyer meaning | Verify before buying |
|---|---|---|
| 382 × 290 × 270 mm; 5 kg | A substantial bench appliance, even before four loaded spools and outlet tubes. | Stable footprint, lid clearance, vents, controls, cables, outlet direction, and operator access. |
| 45–85 °C; 1–48 hours | Wide control range, but neither the maximum nor a preset proves the correct cycle for an exact grade. | Filament-maker guidance, spool heat resistance, starting moisture, load, and a before-and-after print. |
| 360 W rated power | The official parameter table should control electrical planning even though marketing also describes two 200 W PTC heaters. | Correct regional voltage, receptacle, cord placement, shared load, ventilation, and live manual. |
| Spools up to 200 mm diameter and 150 mm width | The corrected official fit envelope can include larger formats, but nominal kilograms do not prove rotation. | Flange diameter, total width, warped cardboard, loaded rubbing, outlet path, and actual filament diameter. |
| 1.75 and 2.85 mm filament; PTFE tube not included | The dryer supports common filament diameters but is not a universal ready-to-print feed kit. | Correct 4 mm tube where appropriate, connectors, bend radius, printer path, drag, and material-specific feed limits. |
Do not confuse the full X4 with the X4L. Creality describes the X4L as a Lite version with a 75 °C maximum. Confirm the exact model label, control interface, seller photos, regional power version, included parts, return path, and warranty instead of transferring the full-X4 specification to a similar-looking listing.
What the Space Pi X4 actually solves
The X4 solves two different bottlenecks. The first is capacity: four spools can be conditioned without moving them through a one-spool dryer in sequence. The second is temperature conflict: the two chambers can run different settings, so an everyday PETG lane does not have to share the same treatment as a more demanding nylon or PC lane.
That distinction matters. A large single-cavity dryer can hold several spools yet still force every spool into one temperature and time decision. The X4's buyer case gets stronger when the active rotation includes materials with genuinely different drying needs. If all four spools are ordinary PLA from the same environment, capacity may help, but the independent chambers are doing less useful work.
Four-spool capacity needs a real fit check
The current listing says the dryer supports 1 kg and 2 kg spools up to 200 mm in diameter and 150 mm in width, with 1.75 mm and 2.85 mm filament paths. Those limits should be treated as a fit envelope, not permission to assume every heavy or unusually shaped spool will load cleanly.
Measure the exact spools you plan to use, including flanges and any warped cardboard edge. Then check whether four loaded rolls can rotate without rubbing and whether each outlet path reaches the intended printer without a tight bend. A dryer can technically hold a spool while still creating poor feed behavior. The useful proof is smooth rotation and stable delivery during an ordinary print.
Why the dual chambers matter more than the headline temperature
The listing advertises up to 85 C, which places the X4 in a hotter recovery lane than many common-material dryers. That ceiling is relevant for buyers working with PA, PAHT, PC, and other moisture-sensitive engineering materials, but it is not a universal setting. Creality also warns that high-temperature drying requires heat-resistant spools.
Use the material maker's current guidance, the spool's heat limits, and a conservative proof cycle. Do not expose a low-temperature plastic or cardboard spool to the maximum just because the dryer can reach it. The independent chambers are often the more useful feature: one side can handle a hotter recovery job while the other follows a lower setting for PETG, TPU, or PLA.
What independent drying tests add - and what they do not prove
The useful evidence is direction, not a universal recipe: an independent 3D Printing Industry review reported cleaner extrusion and fewer moisture-linked defects after running four engineering-material examples in the X4. Its PAHT-CF example used 80 °C for 12 hours, PA6 used 80 °C for 10 hours, and PC and PA-GF used 80 °C for 8 hours. Those runs support the case for the X4's higher-temperature lane when a documented spool permits it; they do not prove that every nylon, polycarbonate, filled grade, color or spool should receive the same cycle.
| Outside test example | Reported change after drying | Buyer-use boundary |
|---|---|---|
| PAHT-CF, 80 °C for 12 hours | The review reported smoother surfaces, cleaner seams, less oozing and sharper bridging than its moist comparison. | Useful evidence for a recurring high-temperature conditioning queue, but only after the exact filament and spool maker authorizes the cycle. |
| PA6, 80 °C for 10 hours | The reported comparison had less stringing and oozing, a more uniform surface and better retained fit. | A visible improvement is not proof of final load capacity, fatigue life or dimensional acceptance; qualify the finished part separately. |
| PC, 80 °C for 8 hours | The review reported more uniform texture and cleaner layers, while support removal remained difficult. | Drying can remove one process variable without fixing support strategy, geometry, cooling, adhesion or an unsuitable printer. |
| PA-GF, 80 °C for 8 hours | The reported comparison showed cleaner support release, less stringing and a more uniform surface. | Filled-material results still depend on nozzle wear, feed path, printer capability and the exact grade; dryer temperature alone does not establish compatibility. |
Decision rule: buy the full X4 when three or four loaded positions, both independently selected chamber programs, or approved cycles above the X4L's 75 °C ceiling recur often enough to remove a real bottleneck. Do not buy it merely because one outside test improved: one or two spools favor a smaller dryer, and already-dry spools waiting on a shelf favor sealed storage.
Evidence boundary: checked October 22, 2026 against Creality's current SpacePi X4 product page and the independent 3D Printing Industry test report. GoodPrints did not perform these tests. Treat the temperatures and times as attributed examples, then follow the current instructions for the exact filament, spool and dryer revision.
Material fit: use the exact spool, not the family name
Creality lists PLA, PETG, ABS, ASA, PET, PA, PAHT, PC, PVA, PP, TPU, and variations as supported material families. That is a dryer-range statement, not a universal temperature chart. Exact grades, blends, fillers, support materials, spool polymers, and cardboard construction can require different handling. Use the filament maker's current drying guidance and stay within the spool's heat limit.
| Material lane | When X4 capacity helps | Boundary to prove |
|---|---|---|
| PLA and PETG | Four-color work, repeat production, or several open spools can justify throughput. | A smaller dryer plus sealed storage may be cheaper; use the PETG dryer-versus-storage decision before assuming continuous heat is necessary. |
| TPU and PVA | Separate chambers can keep flexible or support-material conditioning from controlling an everyday spool. | Dryness does not remove feed-path drag; prove outlet direction, tube path, hardness, and extrusion stability. |
| PA, PAHT, and PC | The full X4's hotter listed lane is most relevant when engineering spools create repeated recovery queues. | Follow the exact grade, protect the spool, and remember that dry filament does not supply printer enclosure, hotend, surface, or ventilation capability. Start with the nylon dryer-versus-storage decision. |
| ABS, ASA, PP, and other listed families | Capacity helps only after drying is shown to be a repeat constraint. | Do not infer printability, fume control, adhesion, shrinkage control, or an exact cycle from the dryer compatibility list. |
Creality recommends drying thoroughly before printing, then feeding through a 4 mm PTFE tube where appropriate. Its CFS guidance is similarly staged: dry in the X4, transfer to CFS, and use the X4 for the next batch. Treat direct-feed or automated-material-system compatibility as a route-specific proof, not as a promise created by a tube connector.
Drying is not the same as long-term storage
The listing describes active dehumidification, circulating hot air, automatic desiccant regeneration, and a one-way valve intended to reduce moisture return after drying. Those features can support a dry-and-hold workflow, but a heated dryer should not automatically become permanent shelf storage for every open spool.
Ask what happens after the cycle. If the spool goes straight into a printer, print-from-dryer routing may be useful. If it returns to a shelf for weeks, a sealed box or bag with maintained desiccant can be the simpler storage step. The broader guide to dryers, dry boxes, and sealed storage separates recovery from between-job protection.
SpacePi X4 vs X4L: buy the full X4 for heat and control, not capacity
Direct choice: both models hold four spools in two independently heated chambers, so capacity alone does not justify the full X4. Choose the full X4 when the work queue genuinely needs an 85 °C ceiling, active moisture exhaust, mixed-material presets, custom slots, fan-fault detection or TF-card firmware updates. Choose the X4L when every approved spool cycle stays at or below 75 °C and the simpler controls meet the job. A one- or two-spool dryer still makes more sense when the extra loaded positions and second temperature lane would sit idle.
| Buyer checkpoint | Full SpacePi X4 | SpacePi X4L | Decision rule |
|---|---|---|---|
| Heat and timing | 45-85 °C; 1-48 hours | 45-75 °C; 1-48 hours | Pay for X4 only when the exact filament maker and spool permit a required cycle above 75 °C. Maximum temperature is not a default. |
| Capacity and zones | Four spools; two independent chambers | Four spools; two independent chambers | Each chamber is one temperature lane. Four loaded spools do not become four independently selected programs. |
| Moisture path and sealing | Creality lists active dehumidification, built-in desiccant, a high sealing ring and a one-way valve. | Creality lists built-in desiccant and a high sealing ring; active dehumidification and the one-way valve are not listed in its comparison. | Choose X4 when active moisture removal matters during recovery. Neither machine replaces sealed long-term storage after the cycle. |
| Controls | 3.2-inch IPS touchscreen, chamber settings, mixed-filament support, My Drying presets and three custom slots | 3.2-inch LCD, auto drying and chamber-specific settings | Extra programs save setup time only when the bench repeatedly runs different documented cycles. |
| Alerts and serviceability | Creality lists silent mode, beep reminders, dual automatic LEDs, fan self-diagnosis and TF-card firmware upgrades. | Those additions are not listed in Creality's direct comparison. | A dash means Creality does not list the feature here; it is not proof about every regional revision. Confirm the exact SKU and current manual. |
| Electrical load | 360 W rated power | 340 W rated power; Creality says single-chamber mode can reduce energy use | Verify regional voltage, receptacle, cord, clearance and shared circuit. A 20 W nameplate difference should not decide the purchase by itself. |
| Spool envelope | Up to 200 mm diameter, 150 mm width, 1.75 or 2.85 mm filament | The same published envelope | Kilogram labels do not prove fit. Check flange diameter, width, warped cardboard, loaded rotation, outlet drag and spool heat resistance. |
| Overheat controls | NTC outlet sensor, PTC self-resetting fuse and overheat shutoff; X4 also lists fan-malfunction stopping. | NTC outlet sensor, PTC self-resetting fuse and overheat shutoff | Safety controls reduce defined failure risks; they do not authorize unattended operation or override current placement and supervision instructions. |
Qualification boundary: freeze the exact model, regional power version, chamber assignment, spool, material grade, temperature, time and outlet path after a representative part improves without spool deformation, drag, dimensional loss or surface damage. Requalify after firmware, supplier, color, spool or process changes.
Evidence boundary: rechecked October 8, 2026 against Creality's current full X4 page and X4L page with the manufacturer's direct comparison. This is a manufacturer-documented purchase analysis, not hands-on testing; confirm the exact regional listing and live manual before ordering or setting a cycle.
Space Pi X4 vs SUNLU S4, Chitu E1, and Space Pi Plus
| Dryer lane | Best reason to choose it | Main reason to choose differently |
|---|---|---|
| Space Pi X4 | Four-spool capacity plus two temperature lanes and hotter listed recovery | Overkill for one- or two-spool common-material use |
| SUNLU S4 | A four-spool comparison when one shared drying lane may be enough | Mixed temperatures and a higher listed ceiling are central needs |
| Chitu Systems E1 | Another four-spool workflow to compare on controls, fit, and value | You want the X4's exact dual-chamber feature set |
| Space Pi Plus | Two active spools cover the real workload | Four-spool multicolor or mixed-material work keeps creating a queue |
A five-question capacity audit before buying
- How many wet or actively printing spools are waiting on a normal week? Count real demand, not the collection on the shelf.
- How often do two materials need different drying temperatures at the same time? That is the clearest reason to pay for independent chambers.
- Do the intended spools fit the listed diameter and width limits? Check the actual rolls, not just nominal weight.
- Will filament feed cleanly from the dryer to each printer? Map outlet direction, bend radius, and bench placement.
- What happens after drying? Decide whether each spool prints immediately or moves into maintained sealed storage.
If the first two answers are weak, a smaller dryer is usually the better purchase. If all five are clear, the X4 is solving a defined workflow rather than buying capacity in advance.
Setup checks and a controlled proof cycle
Place the dryer on a stable surface with the vents and moving parts unobstructed. Confirm the power arrangement, chamber selection, spool rotation, outlet routing, and live instructions before heating. Use one known damp spool and one known-good control spool of the same material when possible.
Run the damp spool through the material maker's recommended recovery process, then print the same small diagnostic geometry with the same profile. Look for changes in popping, surface texture, stringing, extrusion consistency, and layer bonding. If the print still behaves wet, use the wet-filament troubleshooting guide before extending time or raising heat blindly.
Repeat the test with a second chamber only after the first path is understood. This separates dryer value from a simultaneous change in profile, nozzle condition, or feed resistance.
Do the safety controls make unattended drying a good idea?
No. Creality lists three failure controls for the X4: drying pauses if fan speed is abnormal or interrupted, a self-resetting PTC fuse disconnects at high temperature, and an air-outlet NTC sensor pauses drying when temperature is abnormal. Those controls are useful reasons to prefer the full X4 over an unknown heater box, but they are safeguards—not permission to ignore the current manual, regional voltage, outlet condition, clearance, spool heat limit, or the dryer while it is running.
The same distinction applies to moisture handling. Creality says the two dehumidifying fans expel moisture during drying without manual venting, while a one-way valve and automatically regenerated desiccant reduce moisture return after the cycle. That removes a manual venting step; it does not prove a spool is dry, guarantee indefinite storage, or replace a controlled before-and-after print check. Stop the cycle and inspect the unit if the fan stops, temperature behaves abnormally, the plug or outlet becomes hot, the spool deforms, or filament no longer feeds freely.
For a high-heat PA, PAHT, or PC workflow, the buyer decision is therefore broader than the 85 °C headline: verify the exact spool's heat resistance, use the filament maker's current time and temperature guidance, place the dryer on a stable unobstructed surface, and keep the process within the supervision and operating limits in Creality's current instructions.
What a larger dryer will not fix
The X4 cannot repair a worn nozzle, slipping extruder, damaged filament path, incorrect flow profile, or build-surface problem. Moisture can cause popping, rough texture, stringing, and inconsistent extrusion, but those symptoms are not exclusive to wet filament. Confirm that a known-good dry spool behaves differently before blaming every defect on storage history.
It also cannot make an unsuitable material safe for a printer. A dry nylon or PC spool can still require enclosure control, compatible hotend parts, ventilation, and a suitable build surface. Treat the dryer as one controlled step in the material workflow, not permission to ignore the printer's limits. The purchase is strongest when drying has already been identified as the bottleneck and weakest when it is being used as a substitute for diagnosis.
Who should buy the Space Pi X4?
- Four-spool multicolor users: several active rolls need conditioning and print-from-dryer access together.
- Mixed-material benches: separate chambers prevent one temperature decision from controlling every spool.
- Nylon and PC users: the listing-stated 85 C ceiling aligns with a hotter recovery lane, subject to material and spool limits.
- Small shops with recurring queues: dryer capacity has become a throughput constraint rather than an occasional inconvenience.
Who should skip it?
- Owners who usually dry one spool and store it afterward.
- PLA-only or light PETG users without repeated moisture symptoms.
- Buyers whose spools or bench routing do not fit the stated envelope.
- Anyone treating a dryer as a substitute for sealed storage, profile checks, nozzle maintenance, or feed-path diagnosis.
- Shops that cannot describe how the two independently controlled chambers would be used.
Frequently asked questions
What is the maximum temperature of the Creality SpacePi X4?
Creality lists a 45–85 °C range for the full SpacePi X4. The similar X4L Lite model has a manufacturer-listed 75 °C maximum, so confirm the exact model rather than relying on a family photo or shortened seller title.
Does the SpacePi X4 include PTFE tube?
The current official X4 page says the product does not contain PTFE tube. Price the correct routing parts separately and prove connector fit, bend radius, drag, and safe feed behavior for the printer and material.
Can the SpacePi X4 hold 2 kg, 3 kg, or 5 kg spools?
Creality frames compatibility by the physical envelope: no more than 200 mm spool diameter and 150 mm width, with 1.75 or 2.85 mm filament. A weight label alone is insufficient. Measure the actual spool and prove free rotation and outlet clearance.
Can you print directly from the SpacePi X4?
The X4 has top and rear outlet routing, but Creality recommends drying thoroughly before printing and then using a suitable 4 mm PTFE path. Direct printing still needs a controlled feed route and does not replace the printer's material, hotend, enclosure, or ventilation requirements.
Is the X4 better than a two-spool dryer?
Only when four active spools or two temperature lanes repeatedly remove a queue. If two spools cover the real work, the Space Pi Plus buyer-fit review is the cleaner comparison. If four spools matter, use the SUNLU S4 versus Space Pi X4 comparison.
Can SpacePi X4 run four different temperatures at once?
No. Creality lists two independently controlled chambers, so the machine provides two temperature lanes for four spool positions rather than four separate temperature zones.
Does 85 C mean every spool should be dried at 85 C?
No. Use the exact filament maker's current temperature and time guidance. Excess heat can deform a spool, damage material or create an unsafe process; the machine maximum is only an available ceiling.
Will every 1 kg spool fit?
Do not rely on mass alone. Creality lists up to 200 mm diameter and 150 mm width, but hub shape, spool deformation, loaded routing and free rotation still need a physical check.
Does SpacePi X4 replace dry boxes?
No. Drying removes moisture under a controlled cycle; sealed storage slows moisture return. A useful system often dries only the active queue and stores conditioned spools separately.
Is SpacePi X4 the same as X4L?
No. This review covers the full X4 with a listed 85 C maximum. X4L is a different Lite model with a listed 75 C maximum, so do not transfer specifications or expectations between them.
Can you leave the SpacePi X4 running unattended?
Do not treat the manufacturer-listed fan, fuse, and temperature-sensor pauses as approval for unattended operation. Follow the current manual, use the correct regional power version and a sound outlet, keep vents and moving parts clear, respect the spool's heat limit, and stop the dryer when fan, temperature, odor, plug, spool, or feed behavior is abnormal.
Does the cheaper X4L dry the same four spools as the full X4?
It has the same published four-spool, dual-chamber and 200 mm by 150 mm spool envelope, but not the same documented recovery ceiling or control set. X4L tops out at 75 °C and Creality does not list the full X4's active dehumidification, one-way valve, mixed-filament presets, custom slots, fan diagnostics or TF-card firmware upgrade in its direct comparison.
Is the full X4 automatically better for nylon or polycarbonate?
No. The 85 °C ceiling gives it a broader high-temperature lane, but the exact filament maker's cycle, spool heat resistance, starting moisture and finished-print result still control. Some grades may need another process, and neither a preset nor the display proves the spool is ready.
Final recommendation
Buy the Creality Space Pi X4 when four-spool capacity and two simultaneous temperature lanes solve a recurring, measured bottleneck. The current listing's 85 C ceiling, independent chambers, active dehumidification, and dry-and-print routing give it a coherent place on mixed-material and engineering-filament benches.
Buy smaller when capacity is mostly hypothetical. A one- or two-spool dryer plus disciplined sealed storage can be cheaper, easier to place, and used more consistently. The X4 earns its footprint when the workflow already needs it.
Check the current Creality Space Pi X4 price and availability on Amazon.
