Direct answer: an ADXL345 USB accelerometer board is worth buying when a mechanically sound Klipper printer needs measured resonance data for input shaping. Skip it when belts, pulleys, frame joints, toolhead, mount, cable path or extrusion are still inconsistent, or when the printer has no supported Klipper measurement workflow. It measures vibration; it does not repair the source.
Recommendation: verify the exact board, USB or MCU path, host support, Klipper configuration, rigid mount and axis orientation before ordering. Run Klipper's connection check, measure the required axes, save the resulting configuration, then compare the same ringing-sensitive part before and after. Remove the tuning if accepted output becomes worse.
ADXL345 USB: the five gates before you buy
| Gate | Pass condition | Stop or fix first |
|---|---|---|
| Firmware | Klipper is installed and the exact accelerometer connection path is supported. | A USB connector alone does not make the board universal or plug and play. |
| Mechanics | Belts, pulleys, frame, toolhead, wheels or rails and extrusion are stable and repeatable. | Calibration can describe a loose machine without making it mechanically sound. |
| Mount | The sensor is rigidly attached in a known orientation and the cable cannot tug or strike moving parts. | Foam tape, a flexible bracket or a moving cable can contaminate the measurement. |
| Measurement | Klipper's accelerometer query and resonance workflow complete cleanly for the axes the machine requires. | Do not copy another printer's frequency or shaper values as a substitute for measurement. |
| Validation | The same representative part shows less ringing without unacceptable smoothing, dimensional loss or new artifacts. | A completed command is not proof that the production result improved. |
Start with the input-shaping value test. Use the ringing and ghosting diagnosis before buying, and compare the BIGTREETECH Eddy USB review only when bed sensing rather than resonance measurement is the intended job.
Source and disclosure: the board-specific firmware and pin boundary was rechecked October 26, 2026 against BIGTREETECH's official ADXL345 repository and V2.0 sample configuration; the query, noise, resonance, calibration and smoothing boundaries were rechecked against Klipper's current resonance-measurement documentation. GoodPrints may earn a commission from qualifying purchases at no extra cost to you; this is source-backed buyer guidance, not hands-on testing of every board or printer.

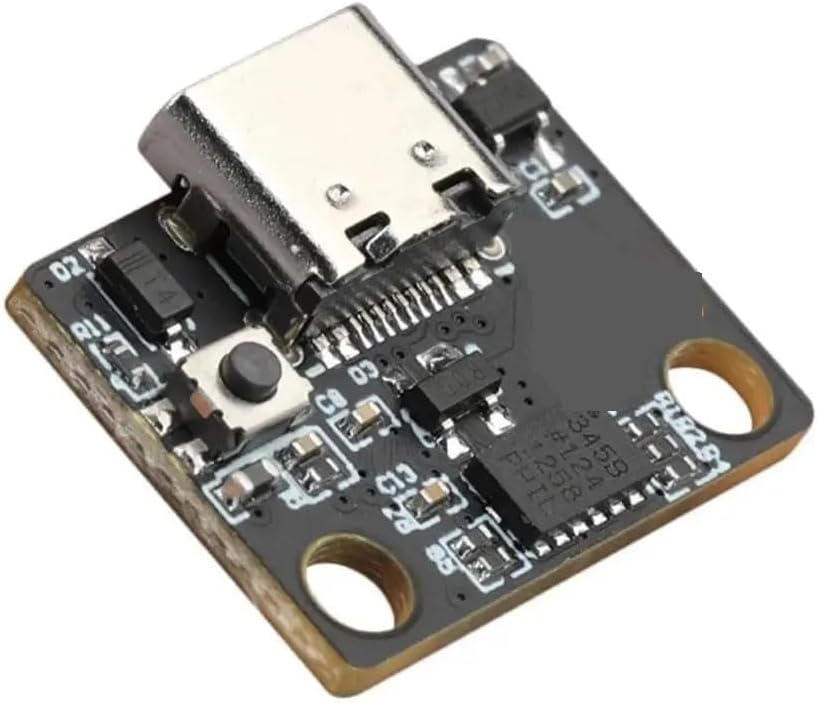

BIGTREETECH ADXL345 V2.0: verify the exact USB path
The current purchase path is for the BIGTREETECH ADXL345 V2.0, so use its board-specific setup rather than a generic bare-sensor wiring guide. BIGTREETECH's current sample expects Klipper firmware compiled for the board's RP2040 with USB. It identifies a USB serial path, maps the sensor to the V2.0's SPI pins, and includes example axis and probe-point values. That is a starting configuration, not a file to copy unchanged onto every printer.
| Check | What the official V2.0 sample shows | What you must verify |
|---|---|---|
| Firmware and transport | RP2040 firmware compiled with USB | Your host can build, flash, enumerate and reconnect the exact board |
| MCU identity | /dev/serial/by-id/usb-Klipper_rp2040_btt_acc-if00 |
Use the persistent ID actually reported by your host; do not assume the sample string exists |
| Sensor pins |
gpio9 chip select with the listed SPI1 pin map |
Keep this V2.0 mapping tied to the exact board revision instead of borrowing a generic ADXL345 configuration |
| Orientation and location |
axes_map: -x,-y,-z and probe_points: 100, 100, 20
|
Map the axes to your rigid mount and choose a safe reachable point for your machine |
| Functional proof | Klipper documents ACCELEROMETER_QUERY, MEASURE_AXES_NOISE, resonance tests and shaper calibration |
Stop on connection or noise faults, then validate the saved result on the same ringing-sensitive part and inspect smoothing |
Bed-slingers may require separately named accelerometer chips and a chip-qualified query, while a fixed-bed machine may use one sensor path. Cable clearance, mount stiffness, actual moving mass and axis orientation still belong to the printer-specific plan. USB simplifies the physical link; it does not erase firmware, Linux device, configuration or motion-safety work.
This ADXL345 accelerometer USB board is not a vanity add-on for printer owners chasing upgrades just to feel busy. It is a measurement tool for Klipper users who want resonance data, cleaner input shaping, and less guesswork when they push print speeds past the point where ringing starts showing up in real parts.
Availability note (August 1, 2026): the prior generic USB-board listing is unavailable, so the purchase paths now point to the BIGTREETECH ADXL345 V2.0. Its current listing names USB connection and Klipper input shaping; verify the mount and printer-side setup for your machine before buying.
What this product is really for
This board exists for one job: giving Klipper a way to measure printer resonance so input shaping can be tuned with real data instead of forum folklore. That makes it relevant for owners who already run Klipper, already care about motion quality, and already know that higher acceleration can expose weak tuning fast.
It belongs in a different buyer lane from maintenance tools like the Slice Engineering nozzle torque wrench, setup aids like the uxcell feeler gauge, or bed hardware like the BIQU MicroProbe V2.0. This is for motion tuning once the machine is already far enough along to benefit from it.
Why the buyer case is distinct
GoodPrints3D already covers hotends, probes, bed-adhesion tools, cleanup gear, and printer-control upgrades. An accelerometer board is different because it sits at the point where firmware tuning and hardware behavior meet. It is not a replacement part. It is a tuning instrument for owners who want cleaner motion on faster printers.
That makes it especially relevant for Voron builds, Ender-class machines that have already been upgraded into Klipper territory, and other tinker-heavy printers where ringing control matters more than stock simplicity.
Who this is for
- Klipper users who want to run input shaping with actual resonance measurements
- Voron, VzBot, and custom-build owners tuning for faster cleaner motion
- Ender-class modders who already moved beyond stock firmware and basic setup
- operators trying to stop guessing whether ringing comes from tuning, mechanics, or both
Who should skip it
- buyers not using Klipper or not planning to learn the input-shaping workflow
- owners still dealing with basic issues like bed leveling, extrusion trouble, or loose mechanics
- people expecting a small sensor board to fix sloppy frames, bad belts, or unrealistic speed targets by itself
- casual users printing slowly enough that motion tuning is not yet the real bottleneck
What looks strong
- clear fit for a real Klipper tuning workflow rather than random generic electronics clutter
- low-cost entry into resonance measurement compared with wasting time on blind speed tuning
- strong relevance for printers where motion quality matters more than stock convenience
- distinct enough from the current GoodPrints setup, hotend, probe, and maintenance coverage to justify its own review
Tradeoffs to keep in mind
- the value drops fast if you are not already committed to Klipper
- it helps measurement, not miracles, so mechanical problems still need real fixes
- the product matters most on faster or more heavily tuned printers, not every bench machine
Where it earns its keep
The clearest win is on a printer that is already mechanically decent and fast enough for resonance to become visible in prints. At that point, input shaping stops being theory and starts being a real print-quality lever. A board like this helps move tuning from vague guesswork toward repeatable measurement.
If your bigger problem is still bed setup, the MicroProbe review is more relevant. If hotend maintenance is the pain point, the torque-wrench and hotend reviews fit that lane better. This accelerometer board earns attention when motion tuning is the actual blocker.
Editorial take
For Klipper users who have already established a mechanically sound baseline, this board is a focused measurement tool for resonance tuning. It is easy to overbuy when loose hardware, extrusion faults, or a stock-firmware workflow is still the real constraint.
Should you buy it?
Buy it if your printer already runs Klipper and you want a low-cost way to measure resonance for cleaner input shaping. Skip it if your machine is still in basic-setup territory or if you are not planning to use the Klipper tuning workflow properly.
Affiliate link: Check the BIGTREETECH ADXL345 V2.0 on Amazon.
ADXL345 USB setup and validation questions
Does USB make an ADXL345 board plug and play?
No. The exact board, USB or MCU path, host, firmware, Klipper configuration, mount, axis orientation and cable behavior still need to match a supported documented setup.
Should the ADXL345 stay mounted after calibration?
Only when the board, mount and cable path can remain rigid and safe without adding unwanted moving mass or interference. A repeatable removable mount is reasonable for occasional measurement.
When should you run resonance calibration again?
Measure again after meaningful changes to moving mass, toolhead hardware, belt condition or tension, frame stiffness, sensor mount or motion mechanics. Revalidate the same part rather than assuming the old values still describe the machine.
Frequently asked questions
Does an ADXL345 improve print quality automatically?
No. It supplies resonance measurements that can inform Klipper input-shaper calibration. The result still depends on correct mounting, configuration, mechanics, test interpretation, and validation prints.
Is an ADXL345 useful only on a Voron?
No. The relevant boundary is a supported Klipper setup and a printer that benefits from measured resonance tuning. Voron machines are common users, but compatible Ender-class and custom machines can also qualify.
Should you fix belts and frame hardware before measuring resonance?
Yes. Input shaping should not hide loose hardware, damaged motion parts, frame instability, or poor belt condition. Establish a mechanically sound baseline first.
Is USB enough to prove this board will work with your printer?
No. Confirm the exact board revision, host connection, firmware path, Klipper configuration, mounting, and cable requirements before buying. A familiar connector does not guarantee a supported setup.
Will this fix ringing by itself?
No. It helps you measure resonance and tune more intelligently, but poor mechanics, loose belts, frame flex, and unrealistic speed targets still need direct attention.
Is this a better buy than another hardware upgrade?
Sometimes yes. If the printer already has decent hardware and the bigger limit is motion tuning, a measurement tool can be more useful than buying another part and guessing.
