QIDI Plus4 Size: 305 x 305 x 280 mm (Discontinued)

May 20, 2026

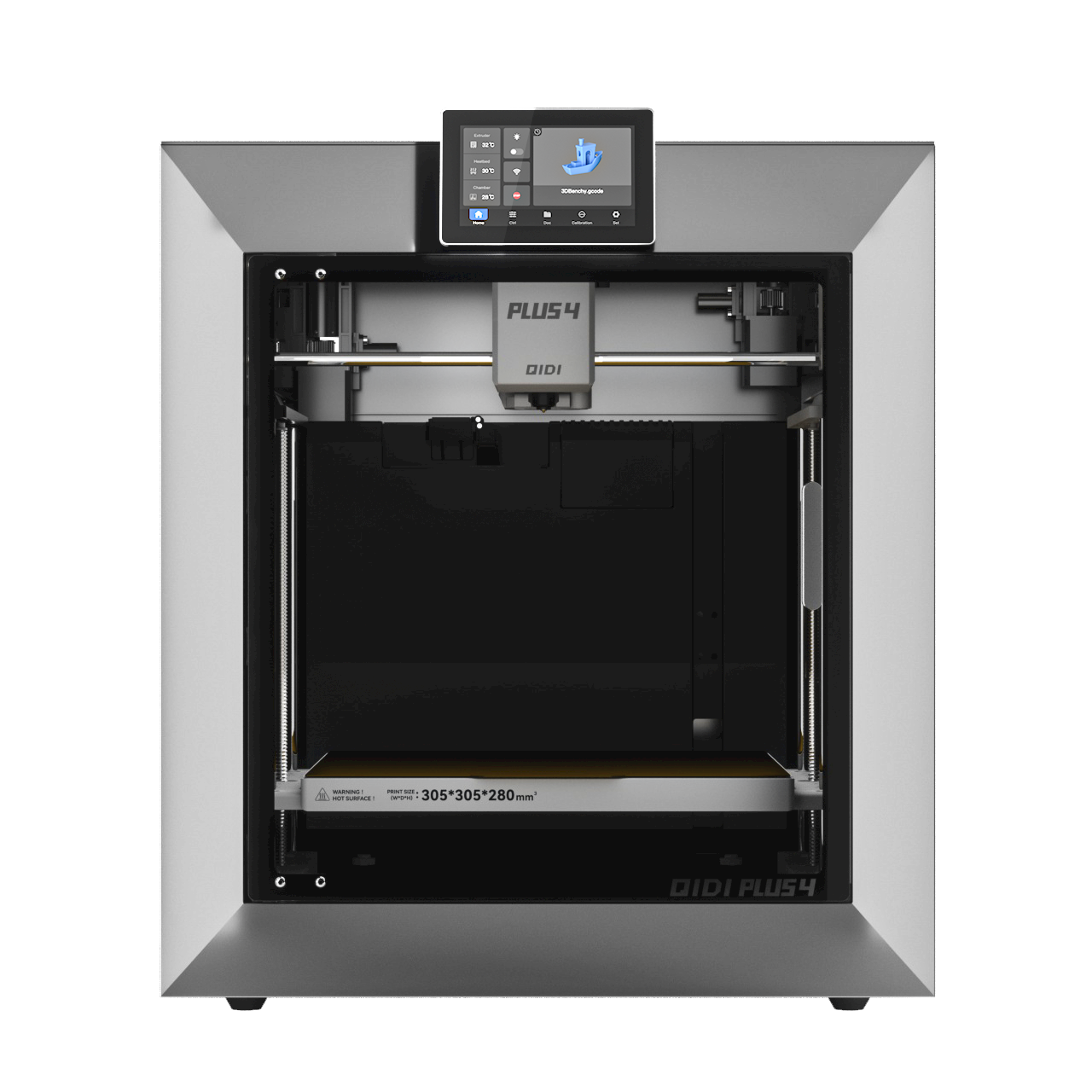

QIDI Plus4 for a build plate size and build volume buyer guide

Direct answer: QIDI Plus4 has a 305 x 305 mm advertised print area and a 305 x 305 x 280 mm build volume. That is the nominal printable envelope, not proof that every 305 mm edge or the full 280 mm height is usable after brim, supports, purge structures, tool clearance, and safe margins. It also does not establish the physical outer dimensions of a replacement sheet.

Recommendation: existing owners can keep using Plus4 when final supported slices fit and the machine remains serviceable. New buyers should know QIDI now marks Plus4 discontinued and identifies Plus5 as the direct successor. Choose a remaining or used Plus4 only after checking condition, included plate, firmware, support, returns, and price against the current 320 x 320 x 300 mm Plus5.

QIDI Plus4 size: exact dimensions and current successor

Size question	Published answer	What it means
Build plate / print area	305 x 305 mm advertised X-Y area	Use the final supported slice; edge clearance and process structures can reduce practical fit.
Build volume	305 x 305 x 280 mm	It adds 49 mm in X and Y and 24 mm in Z versus a 256 mm cube, with about 42% more nominal rectangular plate area.
Replacement plate	Require explicit Plus4 compatibility	Do not infer a sheet's physical outer dimensions, tabs, coating, or locator geometry from the 305 x 305 print-area claim.
Thermal context	Second-generation active chamber heating up to 65 C	Useful material context, but separate from size; exact grades still need drying, ventilation, profile, and finished-part proof.
Current successor	Plus5: 320 x 320 x 300 mm; QIDI cites 18% more volume	Plus5 adds 15 mm in X and Y and 20 mm in Z. Buy the larger lane only when representative slices use it.
Lifecycle	QIDI marks Plus4 discontinued	Audit seller, unit condition, included hardware, spare path, support, returns, and delivered cost before buying old stock or used.

Use the Plus4 review for the complete ownership decision, compare P2S versus Plus4 when current support and workflow matter, or open the Plus4 alternatives guide. Compare Plus4 versus X-Max 3 for the older larger lane, and use the current Plus4 worth-it check before accepting a discontinued-unit price.

Sources and disclosure: print area, build volume, chamber, lifecycle, and successor statements were rechecked October 12, 2026 against QIDI's current Plus4 page and Plus5 page. This is manufacturer-documented size and buyer analysis, not hands-on edge or maximum-height testing. Confirm the exact unit, plate compatibility, seller, support, and return terms. GoodPrints may earn a commission from qualifying links at no extra cost to you.

Fit check	Direct answer	Buyer meaning
Advertised XY print area	305 x 305 mm	49 mm more per axis and about 42% more nominal area than 256 x 256 mm
Advertised build volume	305 x 305 x 280 mm	Manufacturer specification; verify the final sliced job rather than relying only on the raw CAD box
Near-edge planning	Include supports, brim, purge or prime behavior, and clearance	The advertised envelope is a planning ceiling, not a guarantee that every edge-size job will slice
Versus 256 mm Bambu class	Use when the decision is extra room versus a smaller current enclosed default
Smaller QIDI route	Use when heated-chamber value matters more than one-piece capacity

Before buying around a near-limit part: export or obtain the actual model, orient it the way it will be printed, add the intended supports and adhesion aid, and slice it with the printer profile you expect to use. Check the complete toolpath for clearance, purge or prime behavior, and total height. A raw CAD bounding box can miss the support base, brim, or alternate orientation that decides whether the job really fits. If the part only fits by removing normal process margin, treat that as a failed fit check and compare the next larger route.

Use the next route that matches the real constraint: P1S size guide, P2S size guide, Q1 Pro size guide, Plus4 ABS and ASA fit. This keeps the size lookup separate from the broader printer, material, and workflow decisions.

Why buyers search this spec

Most readers looking up the QIDI Plus4 build volume are not collecting numbers for fun. They are usually trying to answer one of four buying questions:

Will my larger one-piece part fit without being split into sections?
Is the Plus4 actually a real size upgrade over the P1S, P2S, X1 Carbon, or Q1 Pro?
Should I buy the Plus4 because I need more room, or because I want a different enclosed materials workflow?
Am I still underestimating my size needs and should really move into a different larger-machine branch or use the current ownership-versus-service checkpoint instead?

Those are better buying questions than just memorizing one set of dimensions.

What the QIDI Plus4 size is good for

The Plus4 has enough room for the kinds of larger functional parts that start to feel cramped on mainstream enclosed desktop printers: wider machine covers, larger jigs and fixtures, roomier trays, broader organizers, bigger replacement panels, longer brackets, multi-part plate layouts, and shop hardware you would rather print in one go than split into assemblies.

That matters because bigger build volume is not just about making the biggest part possible. It also gives you more freedom with orientation, brim use, support clearance, and fitting multiple medium-size parts on one plate without everything feeling squeezed to the edges.

What the Plus4 build volume does not mean

The Plus4 is not automatically the right answer just because it is larger. If most of your work already fits cleanly on a smaller enclosed machine, the extra footprint can become bench cost, machine cost, and ownership overhead without changing your output much.

It also does not mean every awkwardly large project suddenly becomes a perfect desktop-printer job. Some parts are still better split intentionally, redesigned, or outsourced when the print time, material cost, surface risk, or repeatability pressure gets too high.

How the QIDI Plus4 size compares in the real shopping window

Against mainstream enclosed desktop machines

Compared with the machines buyers most often cross-shop here, the Plus4 is a real size step up. That is the big reason it belongs in a different branch from a P1S, P2S, X1 Carbon, or CORE One. If your parts fit comfortably on those machines, you should not buy the Plus4 just to feel safer. But if you keep ending up near the limits of that mid-size class, the bigger plate is genuinely useful.

Against the QIDI Q1 Pro

The Plus4 is also a real room upgrade over the smaller QIDI heated-chamber lane. That is why buyers who like the QIDI direction but feel constrained by the Q1 Pro size should usually study the Plus4 before jumping straight into a more expensive multi-tool or dual-nozzle branch.

Against larger premium branches

If your real buying question is not just size but also support-material workflow, multi-tool capability, or premium flagship features, then a comparison like X2D vs QIDI Plus4 or H2D vs QIDI Plus4 matters more than dimensions alone. Size can be the trigger, but it is not always the final reason one machine wins.

Who should care most about the QIDI Plus4 dimensions?

Buyers with one part that is too big for the mid-size enclosed class

If your project is just beyond the comfortable reach of a P1S-class or Q1 Pro-class machine, the Plus4 dimensions matter a lot. A real size step-up can save you from splitting a part, adding joints, or changing the design around the printer instead of around the job.

Buyers printing larger functional parts regularly

If your normal work includes broader fixtures, roomier machine-side helpers, larger bins or trays, or medium-large housings, the Plus4 size story is not a vanity spec. It can be the reason the workflow feels easier day after day.

Buyers deciding whether they need a bigger printer at all

Sometimes this page helps readers decide against the Plus4. If the biggest thing you print is still well inside the mainstream enclosed footprint, your better move may be the P2S, P1S, or another smaller enclosed branch with lower cost and lower bench demand.

What buyers often get wrong about this spec

They assume bigger always means better: a larger machine only pays off if your parts or batch layouts actually need it.
They use build volume to answer a materials question: if your real concern is ABS, ASA, or enclosed workflow, read the Plus4 ABS and ASA page instead of overloading one size number.
They ignore usable layout reality: nominal dimensions are not the same as carefree edge-to-edge printing once orientation, supports, and brim needs enter the picture.
They mistake a larger desktop machine for a universal production answer: some bigger-part work still belongs in a service workflow, especially when repeatability, throughput, or commercial deadlines matter more than ownership.

Should the QIDI Plus4 build volume push you toward buying it?

Yes, if size is the thing genuinely blocking your current short list. If your parts are repeatedly too large for the mainstream enclosed class, the Plus4 offers a real reason to move up.

No, if your work already fits well on a smaller machine and you are mainly chasing the comfort of bigger numbers. In that case, the smarter decision is usually to compare fit, workflow, and materials honestly rather than buying a larger printer by reflex.

If the Plus4 envelope is still marginal: use the ownership-versus-service checkpoint, then check whether the job fits a small-batch production workflow. While orientation, splitting, material, finish, inspection, or repeatability is still open, ask JC Print Farm about the real file.

If the job is ready to price: confirm the realistic FDM tolerance boundary, then use the quote-preparation checklist for the file revision, quantity, material, critical dimensions, finish, acceptance checks, delivery target, and timing before you request a production quote.

Bottom line

The QIDI Plus4 offers a 305 x 305 x 280 mm build volume.

The bigger buyer takeaway is that this is a meaningful size upgrade over the mainstream enclosed desktop class, but it only pays off when your parts actually need the room. If your jobs fit cleanly on smaller enclosed machines, the Plus4 can be overkill. If you keep fighting part envelope limits, the larger plate and roomier layout are exactly why this branch exists.

Frequently asked questions

QIDI Plus4 size FAQ

What is the QIDI Plus4 build volume?

QIDI lists 305 x 305 x 280 mm. Final supported slices may need brim, supports, purge structures, tool clearance, and safe edge margins inside that nominal box.

Is the QIDI Plus4 build plate exactly 305 x 305 mm?

305 x 305 mm is the advertised print area. Do not assume it is the physical outside dimension of every replacement sheet or that every edge point is usable for every process.

What replacement build plate fits QIDI Plus4?

Buy only a plate that explicitly states Plus4 compatibility and verify surface, tabs, locator geometry, coating, seller, and current listing details. Print-area dimensions alone are not a fit guarantee.

How much larger is Plus4 than a 256 mm printer?

Nominally it adds 49 mm in X and Y and 24 mm in Z, with about 42% more rectangular plate area. The useful gain depends on final orientation, supports, margins, and the actual job mix.

Is QIDI Plus4 discontinued?

Yes. QIDI's current product page marks it discontinued and names Plus5 as the direct successor. Existing owners can still use supported machines; buyers should audit the specific seller and support path.

How much larger is QIDI Plus5?

Plus5 is listed at 320 x 320 x 300 mm, adding 15 mm in X and Y and 20 mm in Z over Plus4. QIDI describes the total build-volume increase as 18%.

Should you buy a used or remaining QIDI Plus4?

Only when representative slices need its 305 mm area and the delivered price still makes sense after checking unit condition, plate, hotend, firmware, spare availability, support, returns, and a representative acceptance print.
