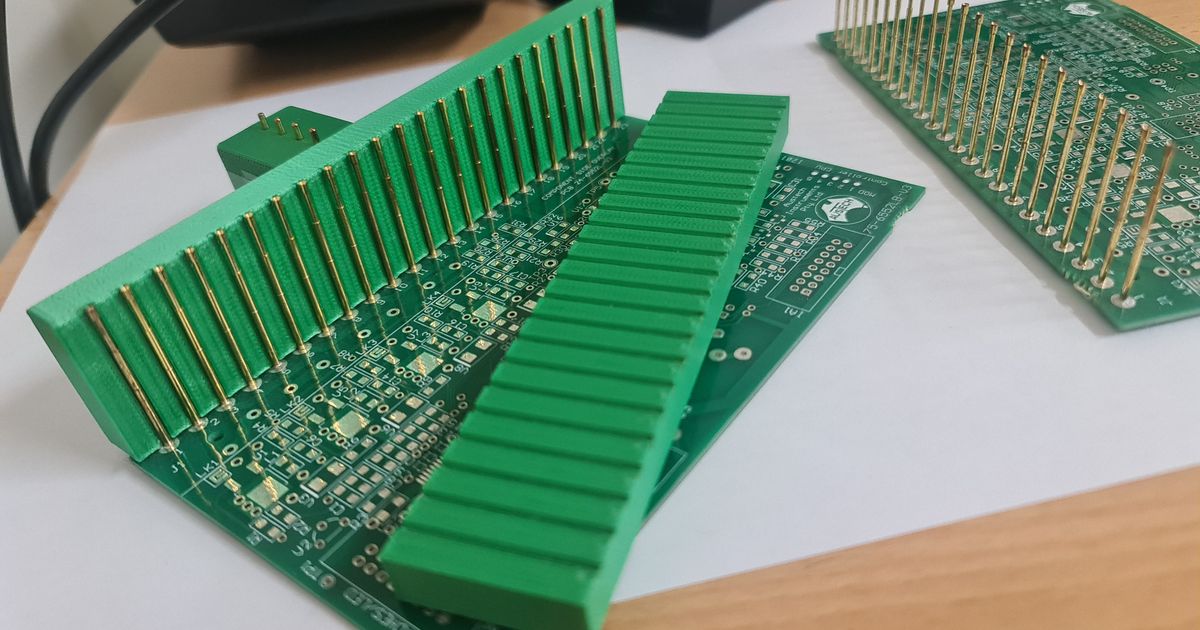

Pin holder jig for PCB on Printables is the kind of small bench tool that earns its keep by preventing annoying mistakes. Soldering header pins onto a board sounds easy until you are trying to keep several pins upright, parallel, and at the same height while also managing heat, solder, and part position. Without a guide, a simple board can end up with a connector that leans, sits crooked, or refuses to plug cleanly into the mating part later.
This model turns that pain point into a cleaner workflow. Instead of balancing loose pins by hand or improvising with cardboard, tape, or a spare breadboard, the jig gives the user a repeatable way to position pins before solder touches the joint. That is exactly the sort of useful file that makes outsourced printing feel credible: small, clear purpose, real bench value, and easy to understand from one image.
Direct source review showed about 45 downloads, roughly 785 visible views, 22 likes, 17 public collections, 0 makes, and 0 ratings averaging about 0.00 on Printables. Those are modest but believable public signals for a narrow electronics fixture whose value comes from saving setup time and reducing crooked assembly work rather than chasing mass novelty traffic.
If you are deciding whether a downloaded model is worth ordering, pair this with how to choose downloaded 3D models that are actually worth outsourcing, what to check on rights and permissions, and how to make sure a custom 3D printing quote covers the whole job before you approve it.
What problem this model solves
Header pins and similar through-hole connectors often shift while being soldered, especially on small boards, custom modules, and one-off electronics jobs where there is no dedicated assembly fixture. A pin-holder jig makes the alignment step less chaotic. It helps keep connector rows level and evenly presented so the finished board is easier to use, easier to stack, and less likely to need rework.
- helps keep header pins at a consistent insertion height before soldering
- reduces crooked connector rows that can make boards harder to plug into matching sockets
- gives hobby electronics builders a cleaner workflow than balancing parts by hand
- creates a believable outsource case for a tiny bench helper that many readers would not want to print-tune themselves
Why this design is worth noticing
The strong angle here is workflow control. Many electronics mistakes are not component failures; they are alignment mistakes made during assembly. A printed jig shifts the job from hand-balancing to repeatable setup, which is exactly where small printed tools can outperform improvised bench habits.
It also has broad compatibility as an article topic. Even readers who never use this exact file can immediately understand the lesson: if soldered connectors keep going in crooked, the right fix may be a positioning fixture, not more patience. That makes the post useful beyond the source link itself.
Who gets the most value from it
This kind of jig is strongest for electronics hobbyists, repair tinkerers, STEM classrooms, Arduino and Raspberry Pi builders, and anyone assembling small boards with pin headers, sockets, or repeated through-hole connector work. It is also a good fit for people doing short runs of the same small board where consistency matters more than speed alone.
How to use the article even if you never order the file
The useful takeaway is that connector alignment should be treated like a fixture problem, not just a soldering-skill problem. Before blaming your iron or your hands, check:
- insertion depth: are all pins set to the same height before you tack the first joint?
- board support: is the PCB stable, or are you fighting movement while you solder?
- tack sequence: are you locking one pin, checking squareness, then finishing the row?
- mating-fit check: can the finished header still seat cleanly in the destination board, socket, or enclosure?
That framing keeps the article useful even if the reader never clicks through for the exact file.
Ordering and printing notes
- Check connector style first: make sure the jig matches the header pitch and intended pin format for your board work.
- Think about tolerance: a bench jig for electronics needs predictable fit more than decorative surface quality.
- Use it as part of a process: tack one or two pins first, verify alignment, then complete the row.
- Keep heat away from the tool when possible: the value is in setup and positioning, not in turning the print into a soldering surface.
If you need help turning a downloaded file into a finished part, JC Print Farm is the broader service path for one-offs and small batches built from supplied models.
When ordering one makes sense
This file makes sense when you do enough board assembly or repair work to get annoyed by crooked headers, uneven pin height, or awkward hand balancing but not enough to justify buying a dedicated commercial fixture. It also makes sense when you want a clean little bench helper made accurately without spending time dialing in a printer for a one-purpose tool.
If you want this file made for you, use this quote link: Get this printed.
Ownership and print-offer note
The public Printables payload exposes `excludeCommercialUsage: false`, which is encouraging, but this pass did not independently verify the exact human-readable commercial-use wording on the live listing. Editorial coverage is clear, while production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
Common questions
What does a PCB pin holder jig help with?
It helps keep header pins and similar connector parts aligned at a consistent height before soldering so the finished board comes out straighter and easier to mate with other parts.
Why is this a good outsourced-print candidate?
Because it is a tiny bench fixture with a clear job and obvious value, which makes it easy to order as a one-off without owning or tuning a printer just for this task.
Who is this most useful for?
Electronics hobbyists, classrooms, repair tinkerers, and small-batch builders working with through-hole connectors, boards, and repeated header installation.
Can a print service make this exact file?
Editorially, yes. Commercial production rights for the exact file should still be treated as unclear until the live source terms are confirmed directly.
