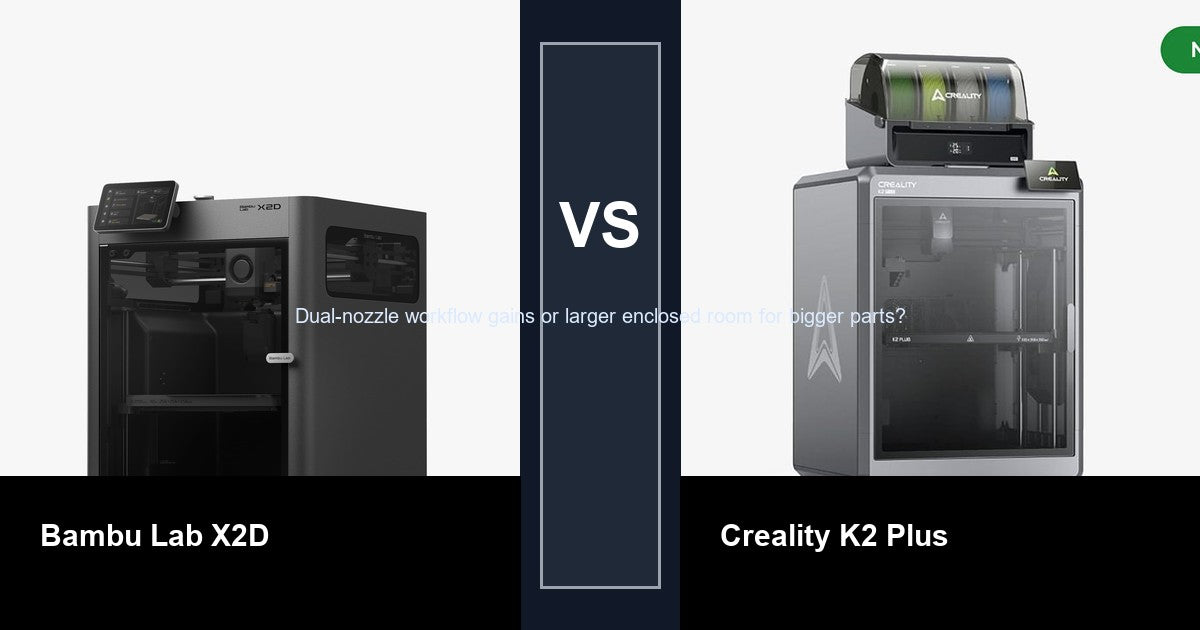

X2D vs K2 Plus: quick comparison
| Decision | Bambu Lab X2D | Creality K2 Plus |
|---|---|---|
| Manufacturer-listed build volume | 256 × 256 × 260 mm | 350 × 350 × 350 mm |
| Nominal X-Y area | 65,536 mm² | 122,500 mm²; about 87% more |
| Nominal rectangular volume | About 17.0 L | About 42.9 L; about 152% more |
| Active chamber listing | Up to 65 °C | Up to 60 °C |
| Material workflow | Main plus auxiliary nozzle for qualifying paired-material and support work; Bambu gives the auxiliary nozzle separate filament and calibration guidance and reports slightly lower print quality in its testing. | CFS path for automated filament changes through a single print-nozzle workflow |
| Best reason to buy | Nozzle two reduces cleanup, intervention, or material-change friction | Larger parts stay whole or useful batches need fewer plates |
| Main overbuy risk | Most jobs still use one nozzle | Most jobs still fit a 256 mm-class machine |
Specifications and workflow limits were checked against the current Bambu Lab X2D product page and Creality K2 Plus support page. Bambu currently says X2D flow-dynamics calibration applies to the main nozzle only, recommends official Bambu filament for the auxiliary nozzle, and reports slightly lower auxiliary-nozzle print quality in its testing. Confirm the exact regional package and included material-system hardware before buying.
Run this ten-job bottleneck test before buying
List your last ten prints or the next ten jobs with real files, customers, deadlines, or repeat demand. Mark each job where a second active nozzle would change the production method: cleaner support interfaces, less manual switching, a useful paired-material role, or a repeatable reduction in cleanup. Separately mark every job that cannot fit the smaller machine class without splitting, tiling, awkward orientation, or extra cycles.
The result should point in one direction. A queue dominated by nozzle-two benefits supports the X2D. A queue dominated by physical fit and batch-room pressure supports the K2 Plus. If only one or two jobs qualify on either side, neither premium is proven. Use the broader 3D printer chooser to reset the shortlist.
Where the X2D wins
The X2D does not need to match the K2 Plus envelope to win. A qualified second-nozzle job can reduce support cleanup, manual changes, or operator intervention. But the two nozzles are not interchangeable: Bambu publishes tighter auxiliary-nozzle filament and calibration guidance and reports slightly lower print quality from that nozzle in its testing. The advantage is real only when an allowed material pair still improves accepted surfaces, rework, or controlled process time.
Do not count novelty prints or every multicolor file as dual-nozzle proof. Document which jobs actually need two nozzle roles and whether their material temperatures, adhesion behavior, purge strategy, storage condition, and recovery are compatible. The X2D review, X2D buyer guide, and X2D worth-it checkpoint keep that proof separate.
Where the K2 Plus wins
The K2 Plus adds 94 mm on X and Y and 90 mm on Z. Its 350 mm square plate has about 1.87 times the nominal area of the X2D plate, while the rectangular envelope is about 2.52 times the volume. Clips, purge structures, supports, brims, toolhead clearance, orientation, shrinkage, and safe edge distance still reduce usable capacity.
Load representative models into both slicer profiles and record the supported bounding box. The K2 Plus wins when a housing, mold, prop section, fixture, tray, broad jig, or repeat-part layout remains whole and inspectable only on the larger platform. Use the K2 Plus review and K2 Plus buyer guide when size is the claimed reason to spend more.
Dual nozzles and CFS solve different problems
The X2D two-nozzle architecture and the K2 Plus CFS path should not be collapsed into one multicolor row. CFS automates filament selection and changes through the K2 Plus single print-nozzle workflow. The X2D assigns different roles to a main and auxiliary nozzle, but Bambu's current auxiliary-nozzle material, calibration, and finish limits narrow the jobs that qualify. Neither architecture guarantees low waste, flawless compatibility, or hands-off recovery.
For each job, count material changes, purge volume, setup time, drying and spool constraints, intervention, cleanup, and rejected parts. If a simpler single-nozzle machine covers the queue, compare X2D vs P2S. If a larger premium dual-nozzle Bambu is the real branch, use X2D vs H2D.
Both list active chamber heat
Older framing can make this sound like the X2D is merely enclosed while the K2 Plus owns the heated-chamber advantage. Current manufacturer pages do not support that split. Bambu lists active chamber heating up to 65 °C for the X2D, while Creality lists chamber temperature up to 60 °C for the K2 Plus.
Do not turn 65 versus 60 into a five-degree winner. Exact polymer grade, geometry, adhesion, nozzle, drying, ventilation, cooling, profile control, and inspection criteria matter more than a maximum chamber number. A larger K2 Plus part exposes more material and time to failure; a complex X2D job exposes two material paths and more setup variables. Qualify a representative part first.
If chamber heat is driving the purchase, check the material workflow before choosing the machine. The X2D material guide separates easy filaments, ABS/ASA, support pairing, nylon, and filled-material limits; the K2 Plus material guide does the same for its larger active-chamber and CFS workflow. Those support pages also surface the nozzle, drying, ventilation, and exact-spool checks that a headline chamber maximum cannot settle.
Compare whole workstations, not printer prices
Budget for the machine, material system you will actually use, build surfaces, drying and storage, maintenance stock, ventilation where required, safe placement, and the floor or bench space around the printer. Larger capacity can create hidden downstream costs if lifting, access, material handling, or post-processing becomes awkward. Dual-nozzle work can create its own profile, material, and maintenance overhead.
Estimate value from the jobs each machine changes. For the X2D, count saved labor and accepted output on qualifying two-nozzle work. For the K2 Plus, count splits avoided, cycles removed, and larger jobs accepted. Do not use every theoretical project in the comparison. Use a conservative monthly queue and include the cost of failures, operator attention, and idle capability.
Day-to-day ownership should match the operator
The X2D asks the operator to qualify a broader workflow. A second active nozzle can be valuable, but it also creates more combinations to control: nozzle roles, approved material pairing, temperature compatibility, purge behavior, support strategy, recovery, and the main-nozzle-only flow-dynamics calibration boundary Bambu currently publishes. Decide who owns profiles, material preparation, maintenance, and inspection before treating the architecture as an automatic productivity gain.
The K2 Plus asks the room and operator to support a larger physical system. Confirm placement, access, loading, unloading, build-surface handling, and a safe route for moving completed parts. A machine can have useful internal room while still being awkward for the actual workspace. Measure the intended location and the parts around it before delivery; the approved caliper route on this page is for validating real part and fit pressure, not for inventing a reason to buy bigger.
Count failure exposure, not only successful capacity
A more complex X2D job may put two materials, two nozzle paths, and more operator setup into one result. A larger K2 Plus job may place more material and machine time into one build. In both cases, capacity increases the value exposed when a print fails. Compare accepted output after cleanup, inspection, and fit checks rather than counting everything that begins printing.
Run a representative proof job before scaling the claim. For the X2D, choose a file whose support interface or paired-material role genuinely needs nozzle two, then repeat it with the same preparation and inspection criteria. For the K2 Plus, choose a supported file that stays whole only because of the larger format, then confirm that warping, removal, finishing, and fit remain controlled. One attractive first result is not a production process; repeatability is the evidence that makes the premium useful.
Three buyer scenarios
Small shop printing support-heavy functional parts
Lean X2D when support-interface work repeats and post-processing labor is measurable. If the queue uses one material and simple supports, prove another benefit before paying for nozzle two.
Prop, fixture, or housing builder splitting files every week
Lean K2 Plus when representative supported files stay whole and the larger result can be handled safely through printing, removal, inspection, and finishing.
Buyer who wants one premium machine for future ideas
Choose neither until the future ideas become files and a ten-job queue. The best X2D alternatives and best K2 Plus alternatives give safer routes when the headline feature is not yet proven.
When neither printer is the right answer
Skip the X2D when nearly every job uses one nozzle. Skip the K2 Plus when nearly every supported file fits a smaller enclosed machine. Skip both when the actual requirement is fleet simplicity, lower entry cost, serviceability, or a larger premium dual-nozzle system. The direct K2 Plus vs H2D comparison covers that last branch.
Common questions
Which printer is bigger, the Bambu X2D or Creality K2 Plus?
The K2 Plus is substantially larger on the published rectangular envelope: 350 × 350 × 350 mm versus 256 × 256 × 260 mm for the X2D. Slice the supported part with brim, purge, support, and safe-edge clearance before deciding that the larger number changes the job.
Which is better for support material?
The X2D has the clearer architectural case when two separate nozzles make a qualified support-interface workflow cleaner. The K2 Plus CFS changes filament through a single print-nozzle path. Before choosing X2D, verify the pair against Bambu's auxiliary-nozzle filament and calibration guidance and its stated slightly-lower print-quality boundary. Neither system guarantees that a material pair will bond, separate, purge, or hold dimensions correctly.
Does the K2 Plus make more sense for batch printing?
Only when the 350 mm plate lets a useful batch finish in fewer cycles without creating a larger failed-run exposure. Compare accepted parts per operator hour, not just how many copies can be packed into one nominal plate.
Which is the safer buy if every current part fits both printers?
Choose the X2D only if nozzle two has a recurring job, and choose the K2 Plus only if future capacity is supported by real files or orders. When every current part fits and uses one material, a simpler enclosed printer is usually the lower-risk purchase.
Bottom line
Choose the Bambu Lab X2D when recurring jobs prove that a qualified auxiliary-nozzle role changes accepted output after its filament, calibration, and finish limits are applied. Choose the Creality K2 Plus when recurring files prove that larger enclosed capacity changes what you can make. If neither result appears in the ten-job test, buy below this tier and keep the evidence for a later upgrade.
The X2D lane won?
Check the X2D buyer-fit guide
Confirm that nozzle two changes recurring accepted output rather than simply widening the list of future possibilities.
The K2 Plus lane won?
Check the K2 Plus buyer-fit guide
Confirm that supported one-piece files or packed plates repeatedly earn the larger enclosed capacity.
Still questioning ownership?
Compare buying with using a print service
Use this checkpoint when a handful of support-heavy or oversized jobs, rather than a stable production queue, are driving the premium-machine search.
Need an operator-minded second read?
Talk with JC Print Farm
Use operator help when part splitting, support strategy, material choice, or repeatability still needs a production-minded read.
Already know the file, material, quantity, and timing?
Request a quote
Use tracked intake when the research has already resolved into a defined parts need.
Availability note (July 30, 2026): The prior Kynup caliper listing is currently unavailable. The footer now uses the freshly buyable current Kynup 6 inch / 150 mm digital caliper listing. Verify the selected model and current listing details before buying.
X2D vs K2 Plus buyer questions
Which should you buy if every current job fits both printers?
Choose X2D only when nozzle two repeatedly changes accepted output. Choose K2 Plus only when a documented near-term file or batch uses the extra plate. Otherwise step down to a simpler enclosed machine.
Is the K2 Plus much larger than the X2D?
Yes on the published envelope: 350 x 350 x 350 mm versus 256 x 256 x 260 mm. Useful capacity is smaller once supports, brim, purge structures, clearance and removal are included, so approve the complete slice.
Are X2D dual nozzles equivalent to K2 Plus CFS multicolor?
No. X2D has main and auxiliary nozzle paths; K2 Plus CFS changes filament through one print-nozzle workflow. Compare the exact pairing, purge, calibration, support interface and finish required by the job.
Should 65 C versus 60 C decide the purchase?
Not by itself. Approve the exact material grade, geometry, drying, ventilation, surface, profile, bonding and dimensions. A higher chamber ceiling does not make every filament or part better.
Which printer is better for soluble or breakaway support?
X2D has the clearer architectural case when a qualified support-interface material can stay on the second nozzle. Prove bonding, separation, purge, calibration and surface acceptance before treating that advantage as production value.
